Name: Balance Shafts And Drive (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel)
Rating: 5.0 (1 reviews)

Balance Shafts And Drive (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Balance Shafts And Drive (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel)

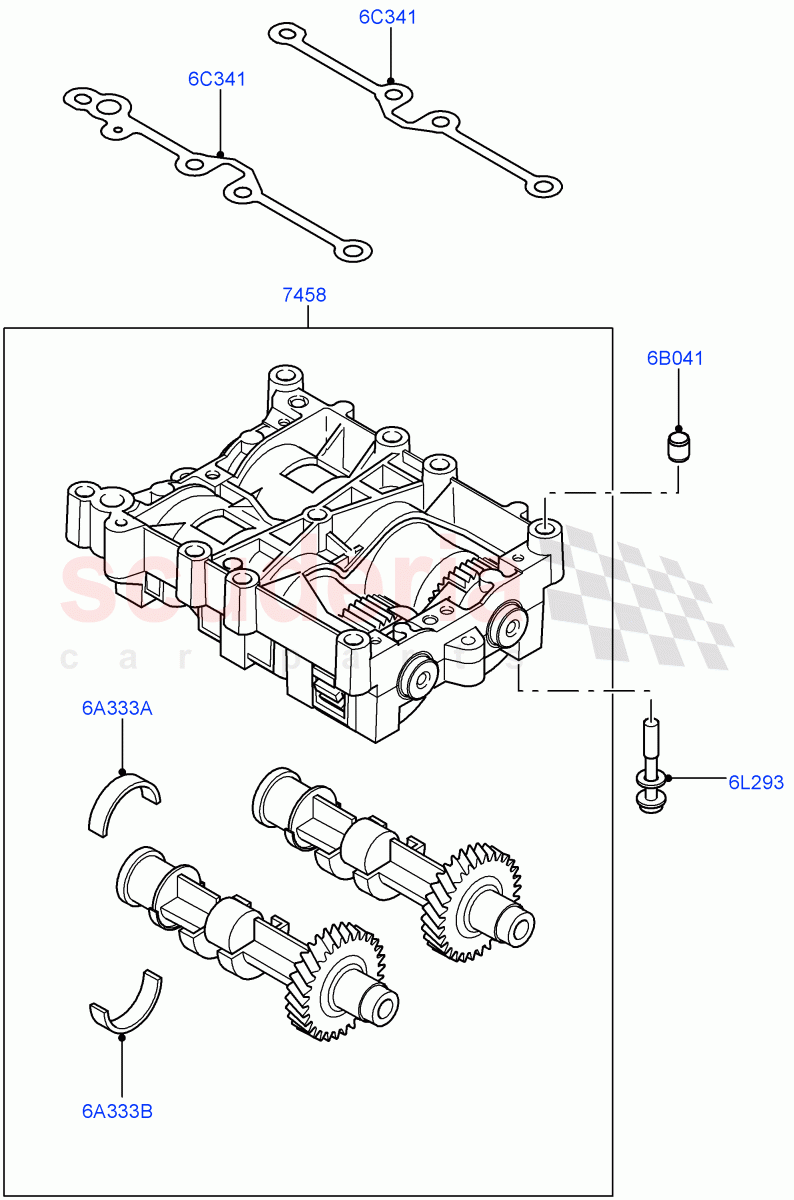

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010718	BALANCE SHAFT AND HOUSING	$1,878.99	To Order
	LR054285	BALANCE SHAFT AND HOUSING	$1,973.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002970	DOWEL	$10.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004258	SPACER - BALANCE SHAFTS	$20.43	To Order
	LR004260	SPACER - BALANCE SHAFTS	$20.43	To Order
	LR004261	SPACER	$22.07	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR002969	BOLT	$11.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054285	BALANCE SHAFT AND HOUSING	$1,973.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001366	BEARING - BALANCE SHAFT	$13.54	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
6A333A	LR054285	BALANCE SHAFT AND HOUSING	LR054285 BALANCE SHAFT AND HOUSING Upper	$1,973.95	4
6A333B	LR001366	BEARING - BALANCE SHAFT	LR001366 BEARING - BALANCE SHAFT Lower	$13.54	4
6B041	LR002970	DOWEL	LR002970 DOWEL 11MM	$10.82	2
6C341	LR004258	SPACER - BALANCE SHAFTS	LR004258 SPACER - BALANCE SHAFTS 1.19MM	$20.43	2
6C341	LR004260	SPACER - BALANCE SHAFTS	LR004260 SPACER - BALANCE SHAFTS 1.23MM	$20.43	2
6C341	LR004261	SPACER	LR004261 SPACER 1.25MM	$22.07	2
6C341	LR004263	SPACER - BALANCE SHAFTS	LR004263 SPACER - BALANCE SHAFTS 1.29MM	$20.43	2
6C341	LR004264	SPACER - BALANCE SHAFTS	LR004264 SPACER - BALANCE SHAFTS 1.31MM	$31.31	2
6C341	LR004265	SPACER	LR004265 SPACER 1.35MM	$7.45	2
6C341	LR004266	SPACER - BALANCE SHAFTS	LR004266 SPACER - BALANCE SHAFTS 1.37MM	$20.43	2
6C341	LR004267	SPACER	LR004267 SPACER 1.39MM	$3.32	2
6C341	LR004275	SPACER - BALANCE SHAFTS	LR004275 SPACER - BALANCE SHAFTS 1.41MM	$20.43	2
6C341	LR004276	SPACER - BALANCE SHAFTS	LR004276 SPACER - BALANCE SHAFTS 1.43MM	$37.56	2
6C341	LR004277	SPACER	LR004277 SPACER 1.47MM	$7.45	2
6C341	LR004278	SPACER - BALANCE SHAFTS	LR004278 SPACER - BALANCE SHAFTS 1.51MM	$31.94	2
6C341	LR004279	SPACER - BALANCE SHAFTS	LR004279 SPACER - BALANCE SHAFTS 1.53MM	$20.43	2
6C341	LR004280	SPACER - BALANCE SHAFTS	LR004280 SPACER - BALANCE SHAFTS 1.55MM	$20.43	2
6C341	LR004199	SPACER - BALANCE SHAFTS	LR004199 SPACER - BALANCE SHAFTS 1.57MM	$20.62	2
6C341	LR004282	SPACER	LR004282 SPACER 1.45MM	$3.35	2
6L293	LR002969	BOLT	LR002969 BOLT M8 x 60MM	$11.05	8
7458	LR010718	BALANCE SHAFT AND HOUSING	LR010718 BALANCE SHAFT AND HOUSING To: DH807709	$1,878.99	1
7458	LR054285	BALANCE SHAFT AND HOUSING	LR054285 BALANCE SHAFT AND HOUSING From: DH807710	$1,973.95	1

Balance Shafts And Drive (2.2L Dohc Efi Tc Dw12, 2.2L Cr Di 16V Diesel)

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel]

Land Rover Range Rover Evoque (2012-2018) [2.2 Single Turbo Diesel] - Balance Shafts And Drive (2.2L DOHC EFI TC DW12, 2.2L CR DI 16V Diesel)

Add to Shopping Cart
