Name: Fuel Injectors And Pipes (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001)
Rating: 5.0 (1 reviews)

View All

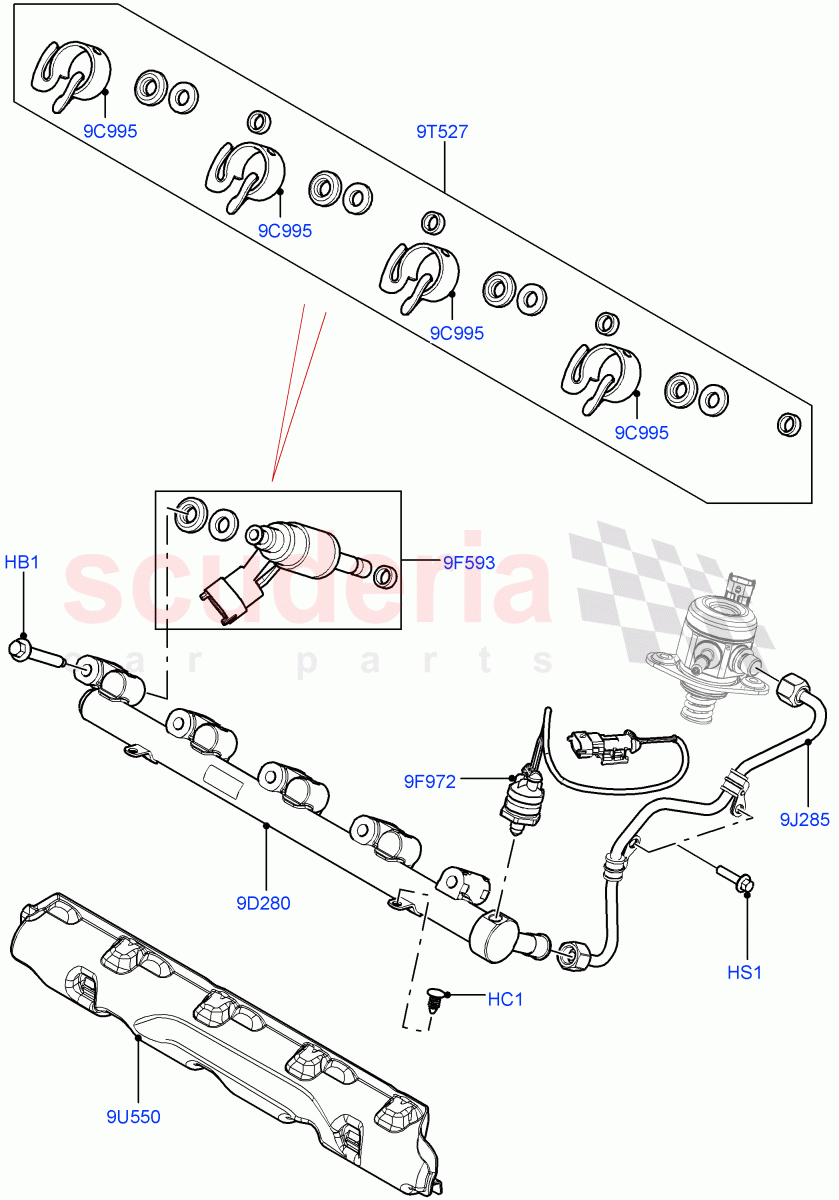

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR003777	BOLT	$2.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032857	PIN - FIXING	$4.66	To Order

Photo	Part No	Description	Price (each)	Stock
	4378449	SCREW	$2.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR025821	CLIP - FUEL INJECTOR MOUNTING	$6.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025853	MANIFOLD - FUEL SUPPLY	$448.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072564	INJECTOR - FUEL	$351.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024969	SENSOR - FUEL INJECTOR PRESSURE	$149.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101734	TUBE	$61.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR033977	KIT - INJECTOR REFIT	$156.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033992	COVER - INSULATOR	$50.69	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR003777	BOLT	LR003777 BOLT M8 x 50MM / From: GT000001	$2.08	5
HC1	LR032857	PIN - FIXING	LR032857 PIN - FIXING To Fuel Rail / From: GT000001	$4.66	1
HS1	4378449	SCREW IN STOCK	4378449 SCREW M6 x 25MM / From: GT000001 IN STOCK	$2.08	2
9C995	LR025821	CLIP - FUEL INJECTOR MOUNTING	LR025821 CLIP - FUEL INJECTOR MOUNTING From: GT000001	$6.12	4
9D280	LR025853	MANIFOLD - FUEL SUPPLY	LR025853 MANIFOLD - FUEL SUPPLY From: GT000001	$448.80	1
9F593	LR072564	INJECTOR - FUEL	LR072564 INJECTOR - FUEL From: GT000001	$351.49	4
9F972	LR024969	SENSOR - FUEL INJECTOR PRESSURE	LR024969 SENSOR - FUEL INJECTOR PRESSURE From: GT000001	$149.56	1
9J285	LR101734	TUBE IN STOCK	LR101734 TUBE Fuel Supply / From: GT000001 IN STOCK	$61.07	1
9T527	LR033977	KIT - INJECTOR REFIT	LR033977 KIT - INJECTOR REFIT From: GT000001	$156.94	1
9U550	LR033992	COVER - INSULATOR	LR033992 COVER - INSULATOR From: GT000001	$50.69	1

Fuel Injectors And Pipes (2.0L 16V Tivct T/C 240Ps Petrol, Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]
