Fuel Injectors And Pipes (2.0L 16V Tivct T/C Gen2 Petrol, Halewood (Uk)) ((V) Fromeh000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Fuel Injectors And Pipes (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK)) ((V) FROMEH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR003777 BOLT $2.08 To Order
Photo Part No Description Price (each) Stock
LR032857 PIN - FIXING $4.67 To Order
Photo Part No Description Price (each) Stock
4378449 SCREW $2.08 IN STOCK
LR068809 SCREW $3.23 To Order
Photo Part No Description Price (each) Stock
LR025821 CLIP - FUEL INJECTOR MOUNTING $6.12 To Order
LR010767 RETAINER - INJECTION VALVE $6.09 To Order
Photo Part No Description Price (each) Stock
LR054874 MANIFOLD - FUEL SUPPLY $429.40 To Order
Photo Part No Description Price (each) Stock
LR024998 INJECTOR - FUEL $272.85 To Order
LR072564 INJECTOR - FUEL $351.70 To Order
LR082008 INJECTOR - FUEL $348.50 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR049648 SENSOR - FUEL PRESSURE/TEMPERATURE $148.45 To Order
LR065516 SENSOR - FUEL PRESSURE/TEMPERATURE $160.76 To Order
Photo Part No Description Price (each) Stock
LR049649 TUBE - FUEL FEED $97.82 To Order
LR101733 TUBE - FUEL FEED $121.98 To Order
Photo Part No Description Price (each) Stock
LR033977 KIT - INJECTOR REFIT $157.04 To Order
Photo Part No Description Price (each) Stock
LR049654 COVER - INSULATOR $45.72 To Order
View All

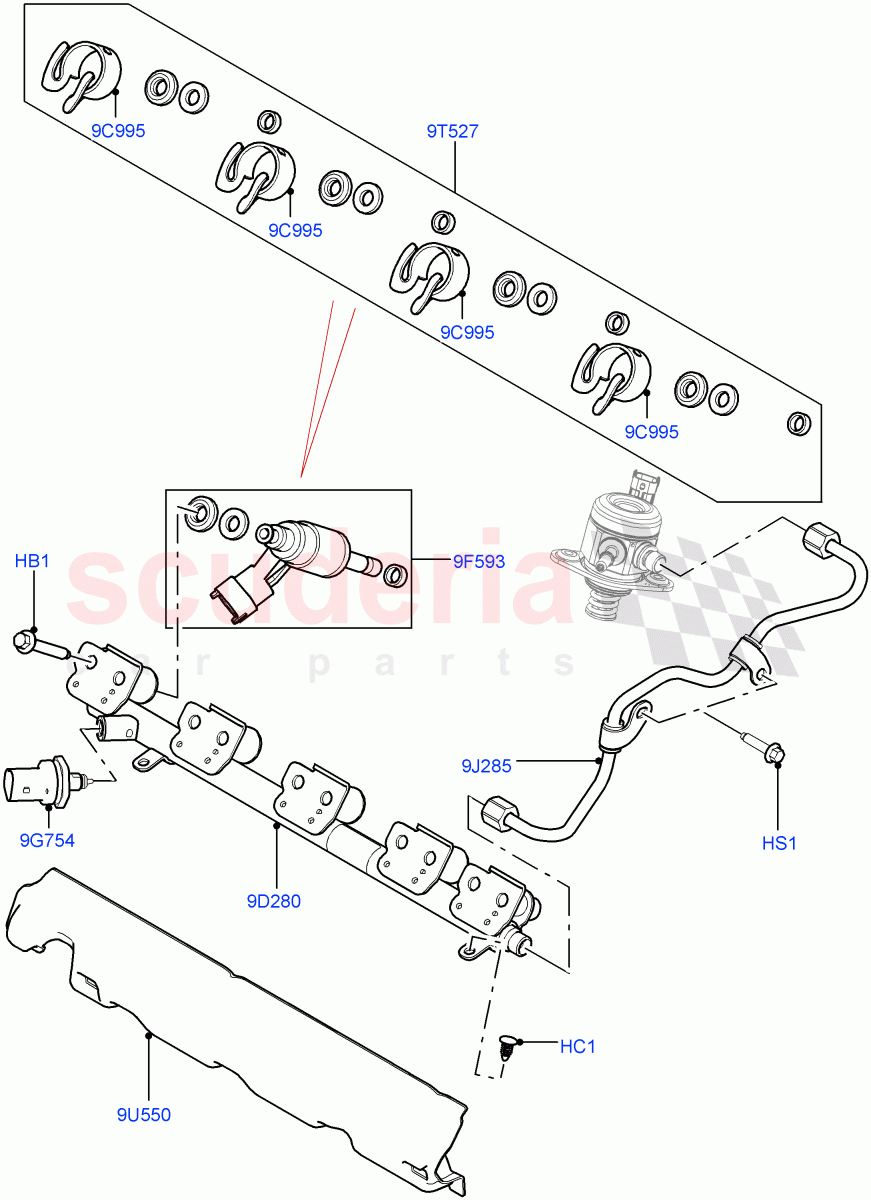

Fuel Injectors And Pipes (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK)) ((V) FROMEH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR003777
BOLT
M8 x 50MM / From: EH000001 		$2.08 5
HC1 LR032857
PIN - FIXING
To Fuel Rail / From: EH000001 		$4.67 2
HS1 4378449
SCREW
M6 x 25MM / From: EH000001 / To: FH999999
IN STOCK 		$2.08 2
HS1 LR068809
SCREW
M6 x 25MM / From: GH000001 		$3.23 2
9C995 LR025821
CLIP - FUEL INJECTOR MOUNTING
From: EH000001 / To: FH999999 		$6.12 4
9C995 LR010767
RETAINER - INJECTION VALVE
From: GH000001 		$6.09 4
9D280 LR054874
MANIFOLD - FUEL SUPPLY
From: EH000001 		$429.40 1
9F593 LR024998
INJECTOR - FUEL
New Part-Please Check For Reman Version / From: EH000001 / To: FH999999 		$272.85 4
9F593 LR072564
INJECTOR - FUEL
From: GH000001 / To: GH107238 		$351.70 4
9F593 LR082008
INJECTOR - FUEL
From: GH107239 		$348.50 4
9F593 LR030859
INJECTOR - FUEL
For UK and ROW markets except Russia, China, Brazil, Remanufactured Part / From: EH000001 / To: FH999999 		$208.30 4
9G754 LR049648
SENSOR - FUEL PRESSURE/TEMPERATURE
From: EH000001 / To: EH856720 		$148.45 1
9G754 LR065516
SENSOR - FUEL PRESSURE/TEMPERATURE
From: EH856721 		$160.76 1
9J285 LR049649
TUBE - FUEL FEED
Fuel Supply / From: EH000001 / To: HH236665 		$97.82 1
9J285 LR101733
TUBE - FUEL FEED
Fuel Supply / From: HH236666 		$121.98 1
9T527 LR033977
KIT - INJECTOR REFIT
From: EH000001 		$157.04 1
9U550 LR049654
COVER - INSULATOR
To Fuel Rail / From: EH000001 		$45.72 1
