Fuel Injection Pump-Engine Mounted (From Engine Serial Number - 071111153004) (2.0L 16V Tivct T/C...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Fuel Injection Pump-Engine Mounted (From Engine Serial Number - 071111153004) (2.0L 16V TIVCT T/C...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR030629 BOLT $6.94 To Order
Photo Part No Description Price (each) Stock
4469260 BOLT $3.52 To Order
Photo Part No Description Price (each) Stock
LR057591 BOLT $5.19 To Order
Photo Part No Description Price (each) Stock
LR025598 BOLT $1.91 IN STOCK
Photo Part No Description Price (each) Stock
LR011208 TAPPET - FUEL PUMP $56.78 To Order
LR038311 TAPPET $67.75 To Order
Photo Part No Description Price (each) Stock
LR107899 SEAL - FUEL INJECTION PUMP $7.07 To Order
Photo Part No Description Price (each) Stock
LR025599 PUMP - FUEL $554.19 To Order
Photo Part No Description Price (each) Stock
LR034323 SEAL - FUEL PUMP SUPPORT HOUSING $29.93 To Order
Photo Part No Description Price (each) Stock
LR025600 SHIELD - FUEL PUMP $13.20 To Order
LR040992 SHIELD - FUEL PUMP $13.20 To Order
LR056565 SHIELD - FUEL PUMP $41.20 To Order
Photo Part No Description Price (each) Stock
LR035936 COVER - FUEL PUMP $288.91 To Order
Photo Part No Description Price (each) Stock
LR076513 ACOUSTIC COVER - FUEL PUMP $19.23 To Order
LR060307 ACOUSTIC COVER - FUEL PUMP $67.78 To Order
LR076513 ACOUSTIC COVER - FUEL PUMP $19.23 To Order
View All

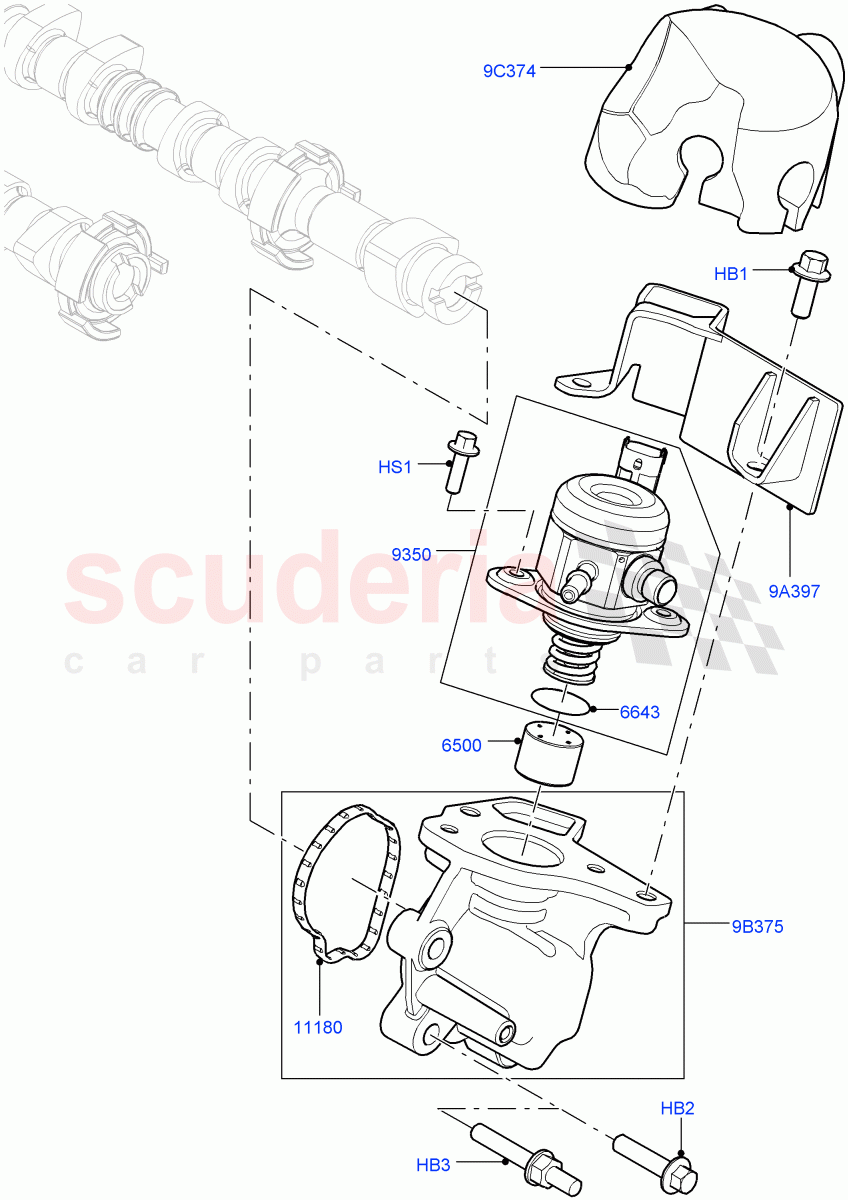

Fuel Injection Pump-Engine Mounted (From Engine Serial Number - 071111153004) (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT T/C 240PS Petrol) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR030629
BOLT
M8 X 20MM 		$6.94 2
HB2 4469260
BOLT
M8 X 35MM / To: DH999999 		$3.52 4
HB3 LR057591
BOLT
M8 x 40 + M8 x 16 / From: EH000001 		$5.19 4
HS1 LR025598
BOLT
M6 X 20MM
IN STOCK 		$1.91 2
9A397 LR025600
SHIELD - FUEL PUMP
To: CH999999 		$13.20 1
9A397 LR040992
SHIELD - FUEL PUMP
From: DH000001 / To: EH859637 		$13.20 1
9A397 LR056565
SHIELD - FUEL PUMP
From: EH859638 		$41.20 1
9B375 LR035936
COVER - FUEL PUMP
For Vehicles With Engine Serial Number Later Than 071111153004 - DD/MM/YY/Hrs/Min/Sec 		$288.91 1
9C374 LR076513
ACOUSTIC COVER - FUEL PUMP
To: DH999999 		$19.23 1
9C374 LR060307
ACOUSTIC COVER - FUEL PUMP
From: EH000001 / To: EH856720 		$67.78 1
9C374 LR076513
ACOUSTIC COVER - FUEL PUMP
From: EH856721 		$19.23 1
6500 LR011208
TAPPET - FUEL PUMP
For Fuel Pump / To: CH999999 		$56.78 1
6500 LR038311
TAPPET
For Fuel Pump / From: DH000001 		$67.75 1
6643 LR107899
SEAL - FUEL INJECTION PUMP
For Fuel Pump 		$7.07 1
9350 LR025599
PUMP - FUEL 		$554.19 1
11180 LR034323
SEAL - FUEL PUMP SUPPORT HOUSING
For Vehicles With Engine Serial Number Later Than 071111153004 - DD/MM/YY/Hrs/Min/Sec, Fuel Pump Support Housing To Cylinder Head, Seal - Fuel Pump Support Housing 		$29.93 1
