Intercooler/Air Ducts And Hoses (2.0L 16V Tivct T/C Gen2 Petrol, 2.0L 16V Tivct T/C 240Ps Petrol)...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Intercooler/Air Ducts And Hoses (2.0L 16V TIVCT T/C Gen2 Petrol, 2.0L 16V TIVCT T/C 240PS Petrol)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG501000 BOLT AND WASHER - HEX.HEAD $1.18 To Order
Photo Part No Description Price (each) Stock
LR024636 CLAMP - HOSE $15.43 To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.60 IN STOCK
Photo Part No Description Price (each) Stock
FX108046 NUT - LOCKING $0.42 IN STOCK
Photo Part No Description Price (each) Stock
LR000479 BOLT - HEX.HEAD $0.76 To Order
Photo Part No Description Price (each) Stock
RYP500810 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
LR048122 PIPE - AIR INLET $13.68 To Order
Photo Part No Description Price (each) Stock
LR049458 RIVET - BLIND $1.03 To Order
Photo Part No Description Price (each) Stock
LR049696 DUCT - AIR $664.30 To Order
Photo Part No Description Price (each) Stock
LR050248 TUBE - OUTLET $119.99 IN STOCK
Photo Part No Description Price (each) Stock
LR024306 BRACKET - CHARGE AIR COOLER $4.60 To Order
LR056322 BRACKET - CHARGE AIR COOLER $16.82 To Order
Photo Part No Description Price (each) Stock
LR024516 TUBE - WATER INLET $145.52 To Order
Photo Part No Description Price (each) Stock
LR031467 INTERCOOLER $461.72 To Order
Photo Part No Description Price (each) Stock
LR021587 SENSOR - AIR TEMPERATURE & PRESSURE $62.59 To Order
Photo Part No Description Price (each) Stock
LR048135 MESH - RADIATOR GRILLE $157.89 To Order
LR067362 MESH - RADIATOR GRILLE $110.04 To Order
LR072623 MESH - RADIATOR GRILLE $210.66 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR050236 HOSE - INTERCOOLER $128.79 To Order
Photo Part No Description Price (each) Stock
LR049730 CONNECTION - AIR INLET $199.97 To Order
LR049727 CONNECTION - AIR INLET $199.97 To Order
LR063273 CONNECTION - AIR INLET $252.68 To Order
Photo Part No Description Price (each) Stock
LR031917 HOSE - AIR INLET $14.58 To Order
LR024518 HOSE - INTERCOOLER $65.52 IN STOCK
Photo Part No Description Price (each) Stock
LR024519 HOSE - CONNECTING $38.42 To Order
LR063268 HOSE - CONNECTING $54.81 To Order
View All

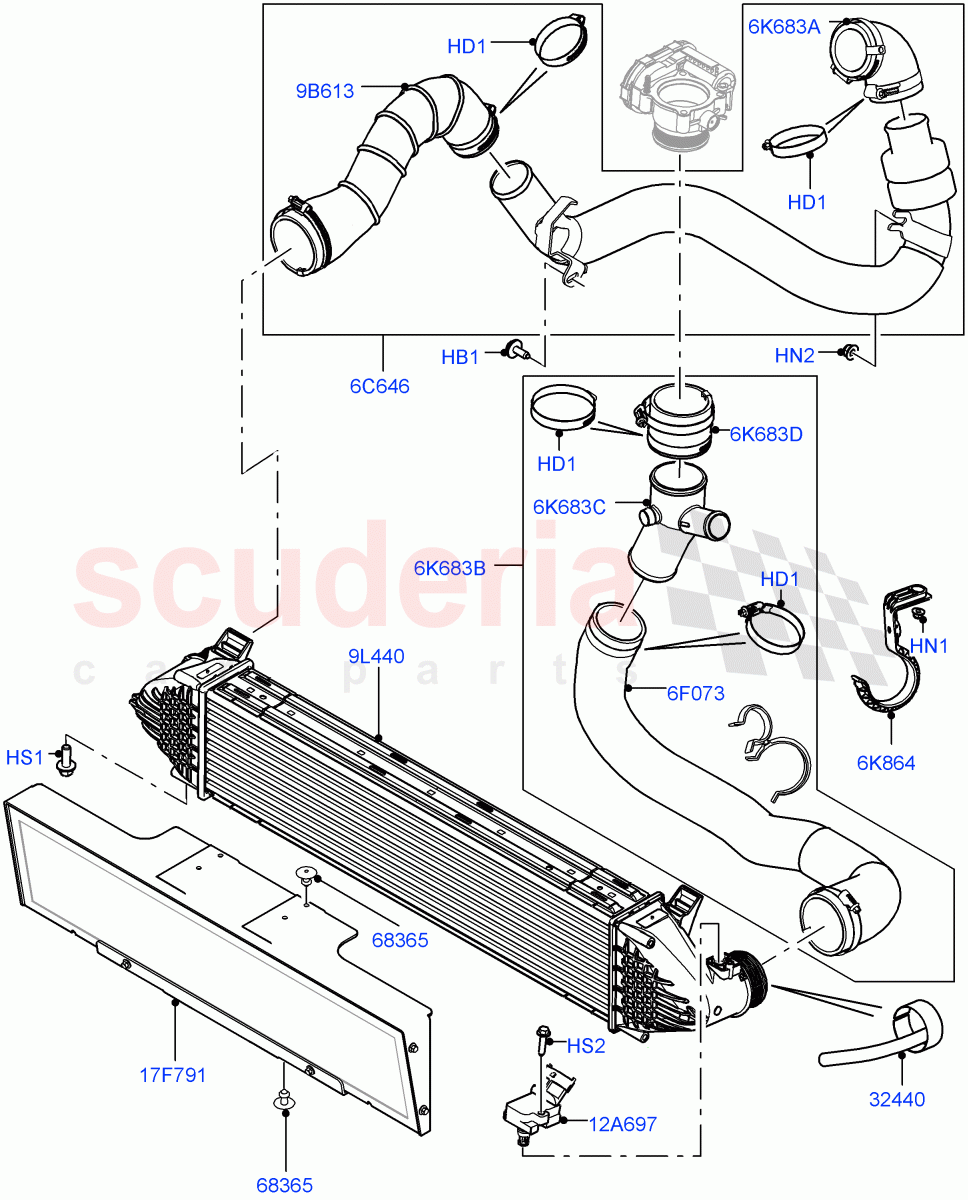

Intercooler/Air Ducts And Hoses (2.0L 16V TIVCT T/C Gen2 Petrol, 2.0L 16V TIVCT T/C 240PS Petrol) ((V) FROMEH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG501000
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M8 X 21MM / From: EH000001 		$1.18 1
HD1 LR024636
CLAMP - HOSE
50-70MM / From: EH000001 		$15.43 4
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6 / From: EH000001
IN STOCK 		$0.60 1
HN2 FX108046
NUT - LOCKING
M8 / From: EH000001
IN STOCK 		$0.42 1
HS1 LR000479
BOLT - HEX.HEAD
M6X16 / From: EH000001 		$0.76 2
HS2 RYP500810
SCREW
Hexagonal Head, M5 x 20MM, MAP Sensor / From: EH000001 		$0.63 1
6C646 LR049696
DUCT - AIR
Turbocharger To Intercooler / From: EH000001 		$664.30 1
6F073 LR050248
TUBE - OUTLET
From: EH000001
IN STOCK 		$119.99 1
6K683A LR050236
HOSE - INTERCOOLER
Turbocharger Outlet / From: EH000001 		$128.79 1
6K683B LR049730
CONNECTION - AIR INLET
(+)"CHN", 2.0L 16V TIVCT T/C 240PS Petrol / Intercooler To Throttle Body / From: EH000001 		$199.97 1
6K683B LR049727
CONNECTION - AIR INLET
(-)"CHN", 2.0L 16V TIVCT T/C 240PS Petrol / Intercooler To Throttle Body / From: EH000001 / To: EH938242 		$199.97 1
6K683B LR063273
CONNECTION - AIR INLET
(-)"CHN", 2.0L 16V TIVCT T/C 240PS Petrol / Intercooler To Throttle Body / From: EH938243 		$252.68 1
6K683C LR031917
HOSE - AIR INLET
(+)"CHN", 2.0L 16V TIVCT T/C 240PS Petrol / Air Tube Connector, Small - To Purge Valve / From: EH000001 		$14.58 1
6K683C LR024518
HOSE - INTERCOOLER
2.0L 16V TIVCT T/C Gen2 Petrol / Air Tube Connector, Large - To Resonator, Small - To Purge Valve / From: EH000001
IN STOCK 		$65.52 1
6K683D LR024519
HOSE - CONNECTING
Connection, Upper / From: EH000001 / To: EH938242 		$38.42 1
6K683D LR063268
HOSE - CONNECTING
Connection, Upper / From: EH938243 		$54.81 1
6K864 LR024306
BRACKET - CHARGE AIR COOLER
From: EH000001 / To: EH867831 		$4.60 1
6K864 LR056322
BRACKET - CHARGE AIR COOLER
From: EH867832 		$16.82 1
9B613 LR024516
TUBE - WATER INLET
Intercooler Inlet / From: EH000001 		$145.52 1
9L440 LR031467
INTERCOOLER
From: EH000001 		$461.72 1
12A697 LR021587
SENSOR - AIR TEMPERATURE & PRESSURE
Sensor - Air Temperature And Pressure / From: EH000001 		$62.59 1
17F791 LR048135
MESH - RADIATOR GRILLE
2.0L 16V TIVCT T/C Gen2 Petrol / From: EH000001 / To: FH981273 		$157.89 1
17F791 LR067362
MESH - RADIATOR GRILLE
2.0L 16V TIVCT T/C Gen2 Petrol / From: FH981274 / To: FH999999 		$110.04 1
17F791 LR072623
MESH - RADIATOR GRILLE
2.0L 16V TIVCT T/C Gen2 Petrol / From: GH000001 / To: GH163926 		$210.66 1
17F791 LR089147
MESH - RADIATOR GRILLE
2.0L 16V TIVCT T/C Gen2 Petrol / From: GH163927 		$210.66 1
17F791 LR089147
MESH - RADIATOR GRILLE
2.0L 16V TIVCT T/C 240PS Petrol, With Standard Engine Cooling System / From: EH000001 		$210.66 1
32440 LR048122
PIPE - AIR INLET
2.0L 16V TIVCT T/C Gen2 Petrol / From: EH000001 		$13.68 1
68365 LR049458
RIVET - BLIND
2.0L 16V TIVCT T/C Gen2 Petrol / From: EH000001 		$1.03 8
