Name: Air Cleaner (2.0L 16V TIVCT T/C Gen2 Petrol) ((V) FROMEH000001)
Rating: 4.3 (1 reviews)

Air Cleaner (2.0L 16V TIVCT T/C Gen2 Petrol) ((V) FROMEH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Air Cleaner (2.0L 16V TIVCT T/C Gen2 Petrol) ((V) FROMEH000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR030371	BOLT	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500910	BOLT	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000482	BOLT - HEX.HEAD	$0.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024316	PIN	$3.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR066535	SCREW	$2.64	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500960	SCREW	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028234	STUD	$5.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049780	CLEANER - AIR	$371.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161844	FILTER - AIR CLEANER	$34.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR024311	TUBE - AIR CLEANER INTAKE	$69.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025081	DUCT - AIR INTAKE	$227.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024313	BRACKET - AIR CLEANER	$46.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049995	BRACKET - AIR DUCT SUPPORT	$11.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR056238	DUCT - AIR INTAKE	$153.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024307	TUBE - AIR INTAKE	$151.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000753	INSULATOR - AIR CLEANER HOUSING	$4.95	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR019830	SENSOR - MASS AIR FLOW	$150.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060069	INSULATOR - AIR CLEANER HOUSING	$14.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025918	STUD - ENGINE COVER	$6.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025916	STUD - ENGINE COVER	$6.98	To Order

View All

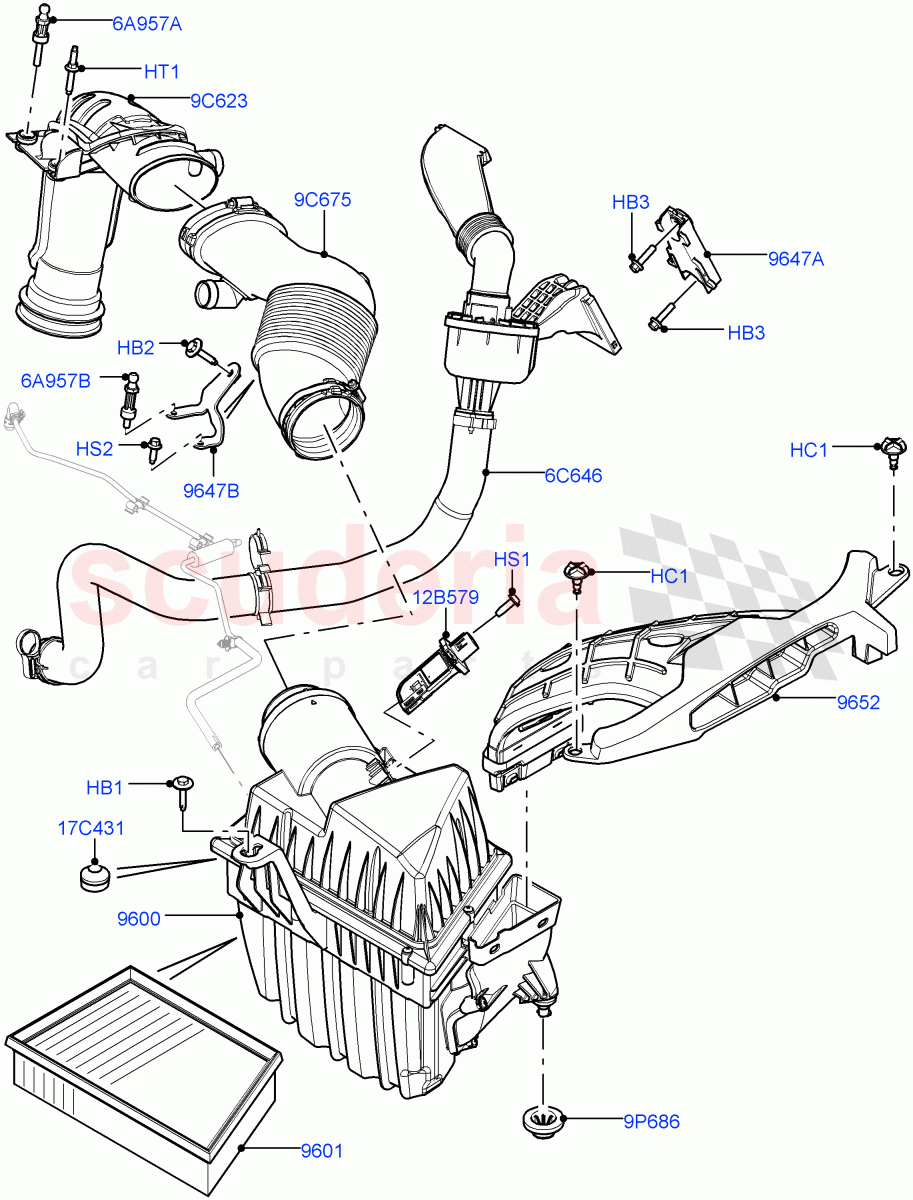

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR030371	BOLT	LR030371 BOLT Bolt And Washer, Hexagonal Head, M6 x 25MM / From: EH000001	$1.32	1
HB2	RYG500910	BOLT	RYG500910 BOLT Bolt And Washer, Hexagonal Head, M6 x 35MM / From: EH000001	$0.52	1
HB3	LR000482	BOLT - HEX.HEAD	LR000482 BOLT - HEX.HEAD M6 x 25MM / From: EH000001	$0.80	2
HC1	LR024316	PIN IN STOCK	LR024316 PIN Rivet Blind 9.4 X 13 / From: EH000001 IN STOCK	$3.44	2
HS1	LR066535	SCREW	LR066535 SCREW 4 X 12MM / From: EH000001	$2.64	2
HS2	RYP500960	SCREW	RYP500960 SCREW M6 X 16MM, Torx / From: EH000001	$0.57	1
HT1	LR028234	STUD	LR028234 STUD M6 X 25 + M6 X 16 / From: EH000001	$5.03	1
6A957A	LR025918	STUD - ENGINE COVER	LR025918 STUD - ENGINE COVER RH, Upper Engine Cover Support / From: EH000001	$6.82	1
6A957B	LR025916	STUD - ENGINE COVER	LR025916 STUD - ENGINE COVER LH, Upper Engine Cover Support / From: EH000001	$6.98	1
6C646	LR025081	DUCT - AIR INTAKE	LR025081 DUCT - AIR INTAKE Symposer (Resonator) / From: EH000001	$227.77	1
9C623	LR056238	DUCT - AIR INTAKE	LR056238 DUCT - AIR INTAKE Turbocharger Inlet / From: EH000001	$153.84	1
9C675	LR024307	TUBE - AIR INTAKE	LR024307 TUBE - AIR INTAKE Air Cleaner To Turbocharger / From: EH000001	$151.86	1
9P686	LR000753	INSULATOR - AIR CLEANER HOUSING IN STOCK	LR000753 INSULATOR - AIR CLEANER HOUSING Air Cleaner Box Holdown / From: EH000001 IN STOCK	$4.95	2
12B579	LR019830	SENSOR - MASS AIR FLOW	LR019830 SENSOR - MASS AIR FLOW Mass Air Flow Sensor / From: EH000001	$150.38	1
17C431	LR060069	INSULATOR - AIR CLEANER HOUSING	LR060069 INSULATOR - AIR CLEANER HOUSING Air Cleaner Box Holdown	$14.84	1
9600	LR049780	CLEANER - AIR	LR049780 CLEANER - AIR From: EH000001	$371.54	1
9601	LR161844	FILTER - AIR CLEANER IN STOCK	LR161844 FILTER - AIR CLEANER From: EH000001 IN STOCK	$34.00	1
9647A	LR024313	BRACKET - AIR CLEANER	LR024313 BRACKET - AIR CLEANER Symposer (Resonator) / From: EH000001	$46.46	1
9647B	LR049995	BRACKET - AIR DUCT SUPPORT	LR049995 BRACKET - AIR DUCT SUPPORT Air Cleaner To Turbocharger / From: EH000001	$11.10	1
9652	LR024311	TUBE - AIR CLEANER INTAKE	LR024311 TUBE - AIR CLEANER INTAKE From: EH000001	$69.81	1

Air Cleaner (2.0L 16V Tivct T/C Gen2 Petrol) ((V) Fromeh000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Air Cleaner (2.0L 16V TIVCT T/C Gen2 Petrol) ((V) FROMEH000001)

Add to Shopping Cart
