Air Cleaner (2.0L 16V Tivct T/C 240Ps Petrol, Halewood (Uk))

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Air Cleaner (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR030371 BOLT $1.32 To Order
Photo Part No Description Price (each) Stock
RYG500910 BOLT $0.52 To Order
Photo Part No Description Price (each) Stock
LR000482 BOLT - HEX.HEAD $0.80 To Order
Photo Part No Description Price (each) Stock
LR024316 PIN $3.43 IN STOCK
Photo Part No Description Price (each) Stock
LR066535 SCREW $2.63 To Order
Photo Part No Description Price (each) Stock
RYG500190 SCREW $0.73 IN STOCK
RYP500960 SCREW $0.57 To Order
Photo Part No Description Price (each) Stock
LR028234 STUD $5.01 To Order
Photo Part No Description Price (each) Stock
LR024310 CLEANER - AIR $526.69 To Order
LR053014 CLEANER - AIR $437.70 To Order
Photo Part No Description Price (each) Stock
LR161844 FILTER - AIR CLEANER $33.90 IN STOCK
Photo Part No Description Price (each) Stock
LR024311 TUBE - AIR CLEANER INTAKE $69.60 To Order
Photo Part No Description Price (each) Stock
LR025081 DUCT - AIR INTAKE $227.08 To Order
Photo Part No Description Price (each) Stock
LR024313 BRACKET - AIR CLEANER $46.32 To Order
Photo Part No Description Price (each) Stock
LR045378 BRACKET - AIR DUCT SUPPORT $12.18 To Order
LR049995 BRACKET - AIR DUCT SUPPORT $11.06 To Order
Photo Part No Description Price (each) Stock
LR024312 DUCT - AIR INTAKE $81.93 To Order
Photo Part No Description Price (each) Stock
LR024307 TUBE - AIR INTAKE $151.41 To Order
Photo Part No Description Price (each) Stock
LR000753 INSULATOR - AIR CLEANER HOUSING $4.93 IN STOCK
Photo Part No Description Price (each) Stock
LR019830 SENSOR - MASS AIR FLOW $149.93 To Order
Photo Part No Description Price (each) Stock
LR060069 INSULATOR - AIR CLEANER HOUSING $14.80 To Order
Photo Part No Description Price (each) Stock
LR025918 STUD - ENGINE COVER $6.80 To Order
Photo Part No Description Price (each) Stock
LR025916 STUD - ENGINE COVER $6.95 To Order
View All

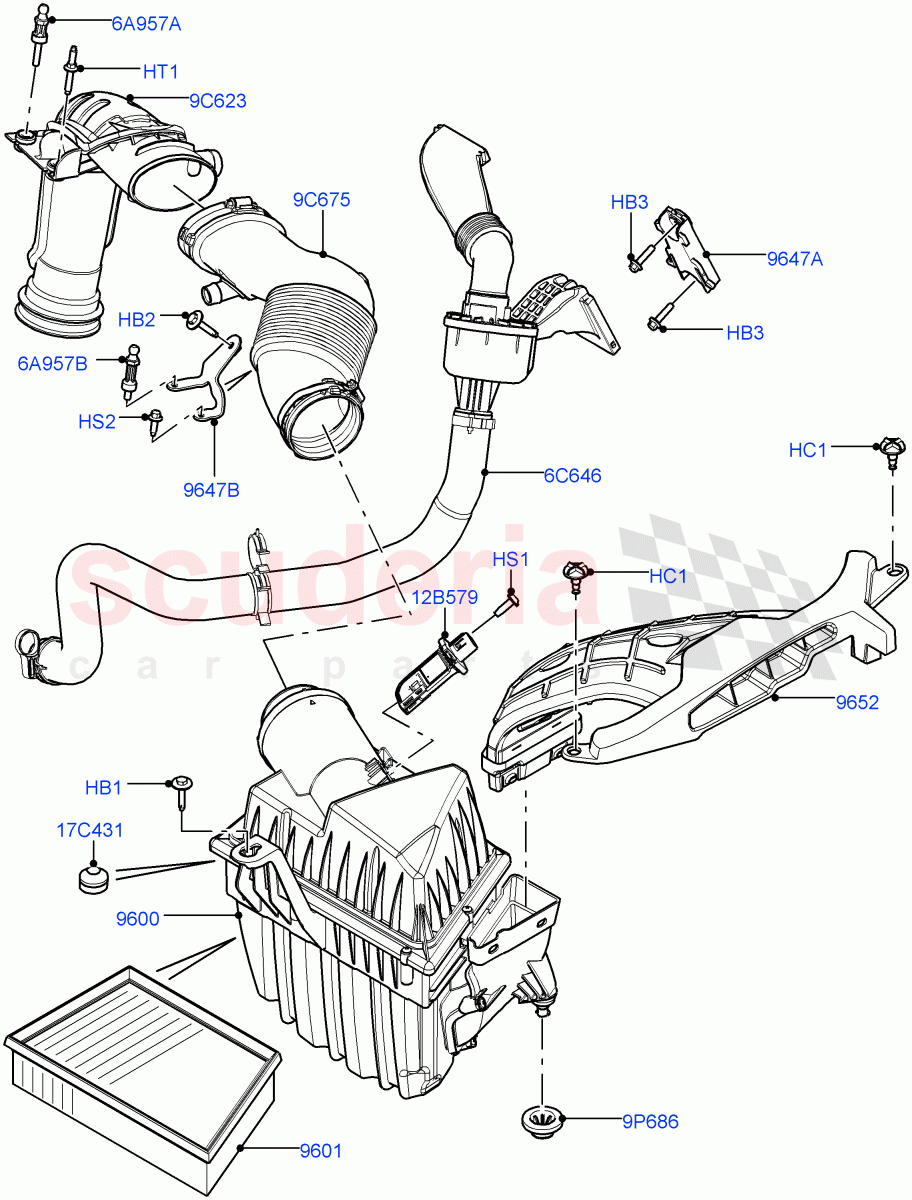

Air Cleaner (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR030371
BOLT
Bolt And Washer, Hexagonal Head, M6 x 25MM 		$1.32 1
HB2 RYG500910
BOLT
Bolt And Washer, Hexagonal Head, M6 x 35MM 		$0.52 1
HB3 LR000482
BOLT - HEX.HEAD
M6 x 25MM 		$0.80 2
HC1 LR024316
PIN
Rivet Blind 9.4 X 13
IN STOCK 		$3.43 2
HS1 LR066535
SCREW
4 X 12MM 		$2.63 2
HS2 RYG500190
SCREW
Hexagonal Head, M6 X 16MM / To: CH629323
IN STOCK 		$0.73 1
HS2 RYP500960
SCREW
M6 X 16MM, Torx / From: CH629324 		$0.57 1
HT1 LR028234
STUD
M6 X 25 + M6 X 16 		$5.01 1
6A957A LR025918
STUD - ENGINE COVER
RH, Upper Engine Cover Support 		$6.80 1
6A957B LR025916
STUD - ENGINE COVER
LH, Upper Engine Cover Support 		$6.95 1
6C646 LR025081
DUCT - AIR INTAKE
Symposer (Resonator) 		$227.08 1
9C623 LR024312
DUCT - AIR INTAKE
Turbocharger Inlet 		$81.93 1
9C675 LR024307
TUBE - AIR INTAKE
Air Cleaner To Turbocharger 		$151.41 1
9P686 LR000753
INSULATOR - AIR CLEANER HOUSING
Air Cleaner Box Holdown
IN STOCK 		$4.93 2
12B579 LR019830
SENSOR - MASS AIR FLOW
Mass Air Flow Sensor 		$149.93 1
17C431 LR060069
INSULATOR - AIR CLEANER HOUSING
Air Cleaner Box Holdown 		$14.80 1
9600 LR024310
CLEANER - AIR
To: DH999999 		$526.69 1
9600 LR053014
CLEANER - AIR
From: EH000001 		$437.70 1
9601 LR161844
FILTER - AIR CLEANER
IN STOCK 		$33.90 1
9647A LR024313
BRACKET - AIR CLEANER 		$46.32 1
9647B LR045378
BRACKET - AIR DUCT SUPPORT
Air Cleaner To Turbocharger / To: DH796381 		$12.18 1
9647B LR049995
BRACKET - AIR DUCT SUPPORT
Air Cleaner To Turbocharger / From: DH796382 		$11.06 1
9652 LR024311
TUBE - AIR CLEANER INTAKE 		$69.60 1
