Inlet Manifold (2.0L 16V Tivct T/C Gen2 Petrol) ((V) Fromeh000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Inlet Manifold (2.0L 16V TIVCT T/C Gen2 Petrol) ((V) FROMEH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR048504 BOLT $3.75 To Order
Photo Part No Description Price (each) Stock
LR022159 SCREW $3.17 To Order
Photo Part No Description Price (each) Stock
LR049871 SCREW $3.95 To Order
Photo Part No Description Price (each) Stock
LR049870 STUD $9.13 To Order
Photo Part No Description Price (each) Stock
LR049640 MANIFOLD - INLET $1,029.11 To Order
LR077856 MANIFOLD - INLET $714.31 To Order
LR083482 MANIFOLD - INLET $753.79 To Order
Photo Part No Description Price (each) Stock
LR057234 GASKET - INTAKE MANIFOLD $11.08 IN STOCK
Photo Part No Description Price (each) Stock
LR039602 COVER - ENGINE TOP $146.81 To Order
LR039520 COVER - ENGINE TOP $146.81 To Order
Photo Part No Description Price (each) Stock
LR052965 KIT - INTAKE PLUG $9.48 To Order
Photo Part No Description Price (each) Stock
LR040241 GASKET - THROTTLE $11.82 To Order
Photo Part No Description Price (each) Stock
LR038762 SENSOR - MANIFOLD ABSOLUTE PRESSURE $66.32 To Order
Photo Part No Description Price (each) Stock
LR050520 HOSE - VACUUM CONNECTING $45.40 To Order
LR049643 HOSE - VACUUM CONNECTING $43.77 To Order
Photo Part No Description Price (each) Stock
LR049651 RESERVOIR - VACUUM $219.10 To Order
Photo Part No Description Price (each) Stock
LR025918 STUD - ENGINE COVER $6.81 To Order
Photo Part No Description Price (each) Stock
LR025916 STUD - ENGINE COVER $6.97 To Order
View All

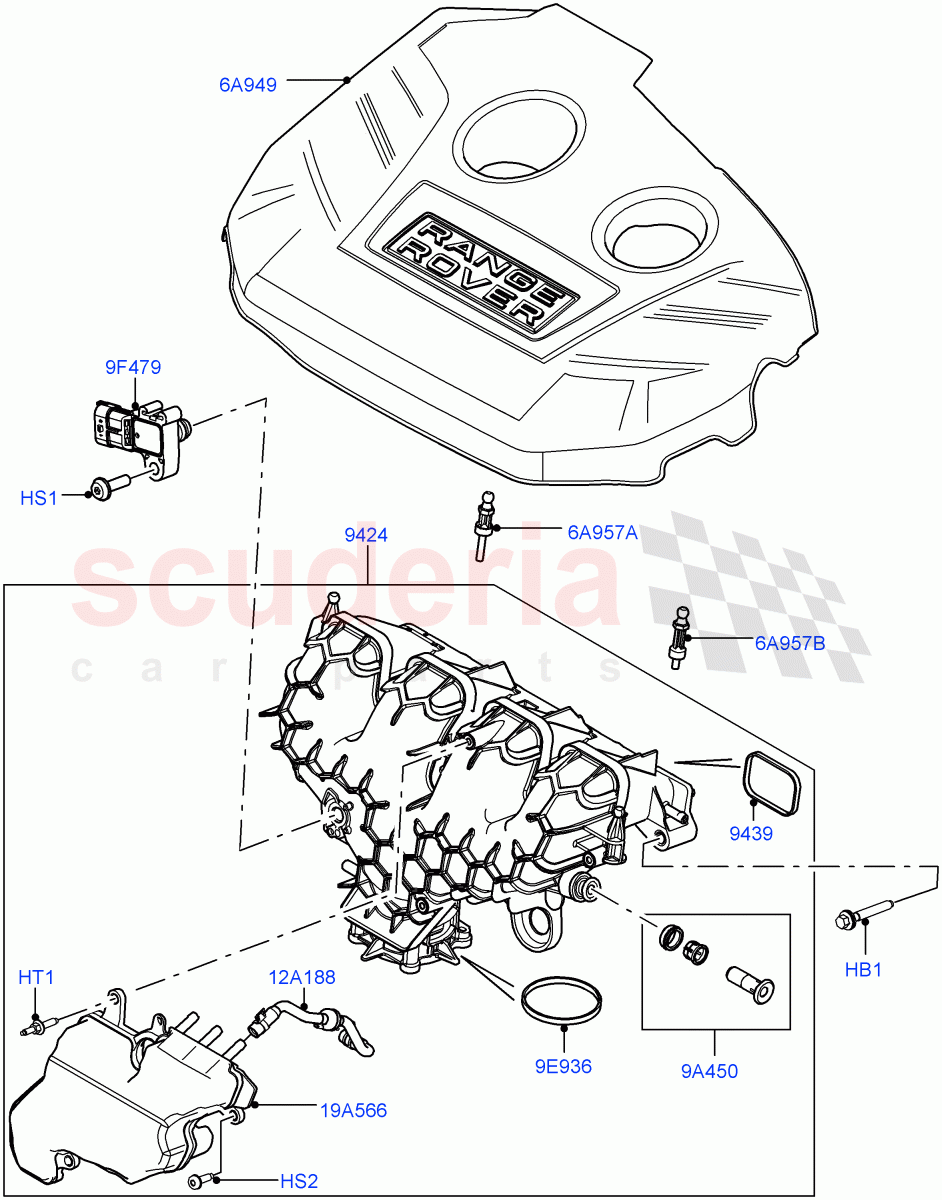

Inlet Manifold (2.0L 16V TIVCT T/C Gen2 Petrol) ((V) FROMEH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR048504
BOLT
M8 x 55MM, Manifold To Cylinder Head / From: EH000001 		$3.75 5
HS1 LR022159
SCREW
M6 x 25MM, MAP Sensor / From: EH000001 		$3.17 1
HS2 LR049871
SCREW
M6 X 20MM / From: EH000001 		$3.95 2
HT1 LR049870
STUD
M5 X 12MM, M6 X 20MM, Reservoir / From: EH000001 		$9.13 1
6A949 LR039602
COVER - ENGINE TOP
Engine, Range Rover Logo, Top / From: EH000001 / To: EH999999 		$146.81 1
6A949 LR039520
COVER - ENGINE TOP
Engine, Land Rover Logo, Top / From: FH000001 		$146.81 1
6A957A LR025918
STUD - ENGINE COVER
RH, Upper Engine Cover Support / From: EH000001 		$6.81 1
6A957B LR025916
STUD - ENGINE COVER
LH, Upper Engine Cover Support / From: EH000001 		$6.97 1
9A450 LR052965
KIT - INTAKE PLUG
From: EH000001 		$9.48 1
9E936 LR040241
GASKET - THROTTLE
Throttle Body To Intake / From: EH000001 		$11.82 1
9F479 LR038762
SENSOR - MANIFOLD ABSOLUTE PRESSURE
Sensor - Manifold Absolute Pressure (MAP) / From: EH000001 		$66.32 1
12A188 LR050520
HOSE - VACUUM CONNECTING
Vacuum Reservoir Connection / From: EH000001 / To: EH100001 		$45.40 1
12A188 LR049643
HOSE - VACUUM CONNECTING
Vacuum Reservoir Connection / From: EH100002 		$43.77 1
19A566 LR049651
RESERVOIR - VACUUM
From: EH000001 		$219.10 1
9424 LR049640
MANIFOLD - INLET
From: EH000001 / To: EH856720 		$1,029.11 1
9424 LR077856
MANIFOLD - INLET
From: EH856721 / To: GH090049 		$714.31 1
9424 LR083482
MANIFOLD - INLET
From: GH090050 		$753.79 1
9439 LR057234
GASKET - INTAKE MANIFOLD
Manifold To Cylinder Head / From: EH000001
IN STOCK 		$11.08 4
