Cylinder Head (2.0L 16V Tivct T/C 240Ps Petrol, Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Cylinder Head (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR025391 BOLT $7.49 To Order
Photo Part No Description Price (each) Stock
LR025383 BUSH - REDUCING $1.11 To Order
Photo Part No Description Price (each) Stock
LR025389 PLUG - WATER JACKET $8.93 To Order
Photo Part No Description Price (each) Stock
LR003600 RIVET - BLIND $1.24 To Order
Photo Part No Description Price (each) Stock
LR000498 PLUG - BLANKING $1.71 To Order
Photo Part No Description Price (each) Stock
LR025655 PLUG - THREADED $2.83 To Order
Photo Part No Description Price (each) Stock
LR025394 PLUG - BLANKING $4.05 To Order
Photo Part No Description Price (each) Stock
LR004349 BOLT $4.15 To Order
Photo Part No Description Price (each) Stock
LR028243 CYLINDER HEAD $3,461.17 To Order
Photo Part No Description Price (each) Stock
LR024975 GASKET - CYLINDER HEAD $114.59 To Order
Photo Part No Description Price (each) Stock
LR025253 BOLT - HEX.HEAD $8.48 To Order
Photo Part No Description Price (each) Stock
LR025265 TAPPET - VALVE $10.97 To Order
LR025266 TAPPET - VALVE $17.85 To Order
LR025267 TAPPET - VALVE $17.99 To Order
...and 32 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR030370 VALVE - EXHAUST $31.85 To Order
Photo Part No Description Price (each) Stock
LR025301 VALVE - INLET $99.43 To Order
Photo Part No Description Price (each) Stock
LR031531 SPRING - VALVE $7.10 To Order
Photo Part No Description Price (each) Stock
LR025012 RETAINER - VALVE SPRING $1.76 To Order
Photo Part No Description Price (each) Stock
LR008878 COLLET - VALVE SPRING RETAINER $1.37 IN STOCK
Photo Part No Description Price (each) Stock
LR025006 SEAL - VALVE STEM $6.74 To Order
LR116445 SEAL - VALVE STEM $14.01 To Order
Photo Part No Description Price (each) Stock
LR025018 SEAL - VALVE STEM $5.33 To Order
Photo Part No Description Price (each) Stock
LR025304 FILTER OIL - CAMSHAFT SPROCKET $16.09 To Order
Photo Part No Description Price (each) Stock
LR057343 SENSOR - CAMSHAFT POSITION $181.94 To Order
View All

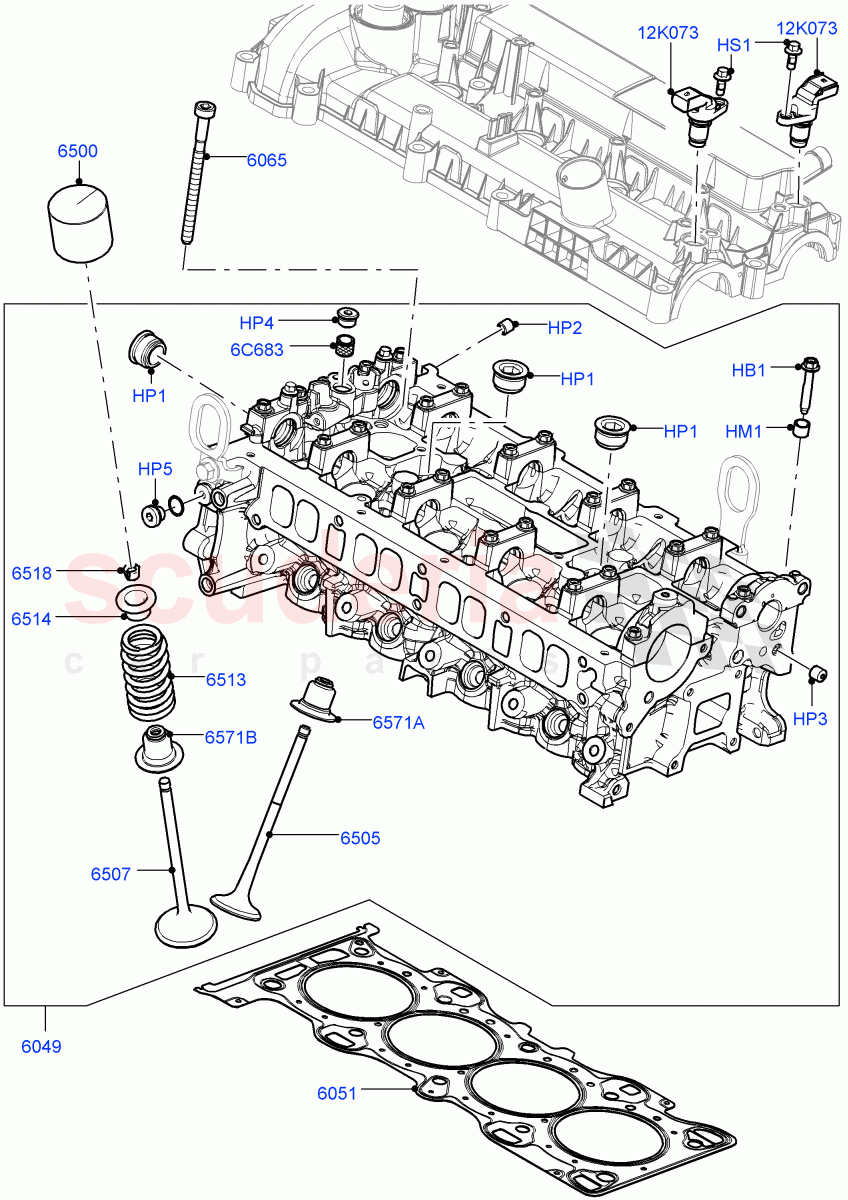

Cylinder Head (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR025391
BOLT
M7 X 39MM / From: EG000001 		$7.49 24
HM1 LR025383
BUSH - REDUCING
Bush 7.4 X 9.05 X 7.75 / From: EG000001 		$1.11 4
HP1 LR025389
PLUG - WATER JACKET
M27 x 1.5MM / From: EG000001 		$8.93 3
HP2 LR003600
RIVET - BLIND
Blanking, 		$1.24 1
HP3 LR000498
PLUG - BLANKING
Blanking, 		$1.71 1
HP4 LR025655
PLUG - THREADED
VCT Filter / From: EG000001 		$2.83 1
HP5 LR025394
PLUG - BLANKING
Blanking, M12 X 1.5MM / From: EG000001 		$4.05 1
HS1 LR004349
BOLT
M6 X 16MM / From: EG000001 		$4.15 2
6C683 LR025304
FILTER OIL - CAMSHAFT SPROCKET
VCT Filter / From: EG000001 		$16.09 1
12K073 LR057343
SENSOR - CAMSHAFT POSITION
Camshaft Position Sensor / From: EG000001 		$181.94 2
6049 LR028243
CYLINDER HEAD
From: EG000001 		$3,461.17 1
6051 LR024975
GASKET - CYLINDER HEAD
From: EG000001 		$114.59 1
6065 LR025253
BOLT - HEX.HEAD
From: EG000001 		$8.48 10
6500 LR025265
TAPPET - VALVE
3MM / From: EG000001 		$10.97 -
6500 LR025266
TAPPET - VALVE
3.025MM / From: EG000001 		$17.85 -
6500 LR025267
TAPPET - VALVE
3.050MM / From: EG000001 		$17.99 -
6500 LR025268
TAPPET - VALVE
3.075MM / From: EG000001 		$10.18 -
6500 LR025269
TAPPET - VALVE
3.100MM / From: EG000001 		$17.99 -
6500 LR025270
TAPPET - VALVE
3.122MM / From: EG000001 		$17.99 -
6500 LR025271
TAPPET - VALVE
3.142MM / From: EG000001 		$17.99 -
6500 LR025272
TAPPET - VALVE
3.162MM / From: EG000001 		$17.61 -
6500 LR025273
TAPPET - VALVE
3.182MM / From: EG000001 		$16.78 -
6500 LR025274
TAPPET - VALVE
3.202MM / From: EG000001 		$17.14 -
6500 LR025276
TAPPET - VALVE
3.242MM / From: EG000001 		$16.38 -
6500 LR025277
TAPPET - VALVE
3.262MM / From: EG000001 		$16.38 -
6500 LR025278
TAPPET - VALVE
3.282MM / From: EG000001 		$17.99 -
6500 LR025279
TAPPET - VALVE
3.302MM / From: EG000001 		$17.99 -
6500 LR025280
TAPPET - VALVE
3.322MM / From: EG000001 		$17.14 -
6500 LR025281
TAPPET - VALVE
3.342MM / From: EG000001 		$17.99 -
6500 LR025282
TAPPET - VALVE
3.362MM / From: EG000001 		$17.21 -
6500 LR025283
TAPPET - VALVE
3.382MM / From: EG000001 		$17.99 -
6500 LR025284
TAPPET - VALVE
3.402MM / From: EG000001 		$17.99 -
6500 LR025285
TAPPET - VALVE
3.422MM / From: EG000001 		$17.14 -
6500 LR025286
TAPPET - VALVE
3.442MM / From: EG000001 		$14.93 -
6500 LR025287
TAPPET - VALVE
3.462MM / From: EG000001 		$16.38 -
6500 LR025288
TAPPET - VALVE
3.482MM / From: EG000001 		$15.23 -
6500 LR025289
TAPPET - VALVE
3.502MM / From: EG000001 		$17.14 -
6500 LR025290
TAPPET - VALVE
3.522MM / From: EG000001 		$16.33 -
6500 LR025291
TAPPET - VALVE
3.542MM / From: EG000001 		$17.99 -
6500 LR025292
TAPPET - VALVE
3.562MM / From: EG000001 		$17.14 -
6500 LR025293
TAPPET - VALVE
3.582MM / From: EG000001 		$17.99 -
6500 LR025294
TAPPET - VALVE
3.602MM / From: EG000001 		$17.99 -
6500 LR025295
TAPPET - VALVE
3.625MM / From: EG000001 		$17.99 -
6500 LR025296
TAPPET - VALVE
3.65MM / From: EG000001 		$17.99 -
6500 LR025297
TAPPET - VALVE
3.675MM / From: EG000001 		$17.99 -
6500 LR025298
TAPPET - VALVE
3.70MM / From: EG000001 		$17.85 -
6500 LR025299
TAPPET - VALVE
3.725MM / From: EG000001 		$17.99 -
6500 LR025275
TAPPET - VALVE
3.222MM / From: EG000001 		$16.97 -
6505 LR030370
VALVE - EXHAUST
From: EG000001 		$31.85 8
6507 LR025301
VALVE - INLET
From: EG000001 		$99.43 8
6513 LR031531
SPRING - VALVE
From: EG000001 		$7.10 16
6514 LR025012
RETAINER - VALVE SPRING
From: EG000001 		$1.76 16
6518 LR008878
COLLET - VALVE SPRING RETAINER
From: EG000001
IN STOCK 		$1.37 32
6571A LR025006
SEAL - VALVE STEM
Exhaust / From: EG000001 / To: HG161787 		$6.74 8
6571A LR116445
SEAL - VALVE STEM
Exhaust / From: HG161788 		$14.01 1
6571B LR025018
SEAL - VALVE STEM
Intake / From: EG000001 		$5.33 8
