Name: Cylinder Block And Plugs (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001)
Rating: 5.0 (1 reviews)

Cylinder Block And Plugs (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Cylinder Block And Plugs (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001)

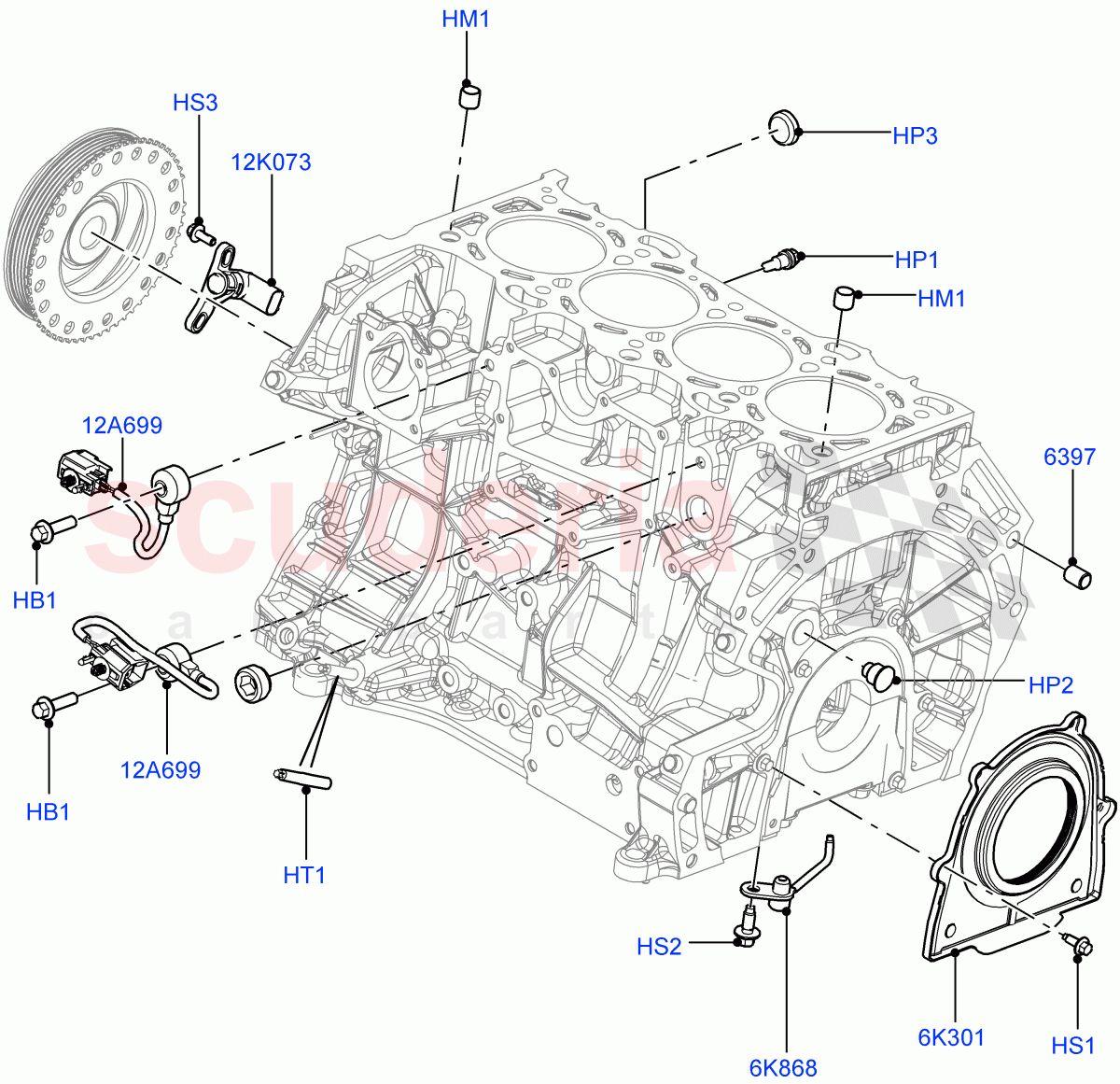

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000302	BOLT - HEX.HEAD	$3.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025378	DOWEL	$4.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000376	PLUG - THREADED	$9.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004820	PLUG - BLANKING	$23.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025380	PLUG - ENGINE	$7.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045335	SCREW	$2.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000622	SCREW	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022159	SCREW	$3.17	To Order

Photo	Part No	Description	Price (each)	Stock
	1331241	STUD	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048491	DOWEL - PIN	$4.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041955	RETAINER AND SEAL - CRANKSHAFT	$242.83	To Order
	LR025670	RETAINER AND SEAL - CRANKSHAFT	$58.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045099	NOZZLE - PISTON COOLING	$40.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025005	SENSOR - ENGINE KNOCK	$245.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038756	SENSOR - CRANKSHAFT POSITION - CPS	$188.78	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR000302	BOLT - HEX.HEAD	LR000302 BOLT - HEX.HEAD M8 X 35MM / From: EG000001	$3.03	2
HM1	LR025378	DOWEL	LR025378 DOWEL Pin - Dowell / From: EG000001	$4.72	2
HP1	LR000376	PLUG - THREADED	LR000376 PLUG - THREADED M10 X 11.5, Threaded Timing Plug / From: EG000001	$9.85	1
HP2	LR004820	PLUG - BLANKING	LR004820 PLUG - BLANKING 16MM, Blanking / From: EG000001	$23.27	2
HP3	LR025380	PLUG - ENGINE	LR025380 PLUG - ENGINE 25MM / From: EG000001	$7.38	1
HS1	LR045335	SCREW	LR045335 SCREW M6 X 14MM / From: EG000001	$2.48	6
HS2	LR000622	SCREW	LR000622 SCREW M6 x 12MM, Oil Lubrication Jet / From: EG000001	$0.61	4
HS3	LR022159	SCREW	LR022159 SCREW M6 x 25MM, Sensor - Crankshaft Position - CPS / From: EG000001	$3.17	2
HT1	1331241	STUD	1331241 STUD M8 X 15 + M8 X 35 / From: EG000001	$1.11	1
6K301	LR041955	RETAINER AND SEAL - CRANKSHAFT	LR041955 RETAINER AND SEAL - CRANKSHAFT With Fitting Tool And Instructions / From: EG005270 / To: HG161788	$242.83	1
6K301	LR025670	RETAINER AND SEAL - CRANKSHAFT	LR025670 RETAINER AND SEAL - CRANKSHAFT From: EG000001 / To: EG005269	$58.45	1
6K868	LR045099	NOZZLE - PISTON COOLING	LR045099 NOZZLE - PISTON COOLING From: EG000001	$40.25	4
12A699	LR025005	SENSOR - ENGINE KNOCK	LR025005 SENSOR - ENGINE KNOCK From: EG000001	$245.86	2
12K073	LR038756	SENSOR - CRANKSHAFT POSITION - CPS	LR038756 SENSOR - CRANKSHAFT POSITION - CPS Sensor - Crankshaft Position - CPS / From: EG000001	$188.78	1
6397	LR048491	DOWEL - PIN	LR048491 DOWEL - PIN 12.7 X 14.5MM, Clutch Housing To Transmission / From: EG000001	$4.04	2

Cylinder Block And Plugs (2.0L 16V Tivct T/C 240Ps Petrol, Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Cylinder Block And Plugs (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001)
