Name: Fuel Tank & Related Parts (2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMJH000001)
Rating: 5.0 (1 reviews)

Fuel Tank & Related Parts (2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid DOHC AJ200 Petrol) ((V) FROMJH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Fuel Tank & Related Parts (2.0L I4 High DOHC AJ200 Petrol, 2.0L I4 Mid DOHC AJ200 Petrol) ((V)...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR088949	BOLT	$3.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006655	CLIP	$1.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003643	NUT - SPECIAL	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500170	RETAINER - RIVET	$1.01	To Order
	LR115125	RETAINER - RIVET	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094171	TANK - FUEL	$861.62	To Order
	LR094172	TANK - FUEL	$1,194.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092779	CAP - FUEL TANK FILLER	$39.52	To Order
	LR181511	CAP - FUEL TANK FILLER	$39.32	To Order
	LR053665	CAP - FUEL TANK FILLER	$34.87	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR110256	PIPE - FUEL FILLER	$276.78	To Order
	LR045112	PIPE - FUEL FILLER	$141.49	To Order
	LR079221	PIPE - FUEL FILLER	$253.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028399	HOSE - FILLER PIPE	$34.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094170	STRAP - FUEL TANK	$64.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR052183	HOSE - VENT	$52.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025816	FOAM PAD - ENERGY ABSORBING	$55.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094505	HEAT SHIELD - FUEL TANK	$42.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081543	SHIELD - FUEL TANK	$188.40	To Order

View All

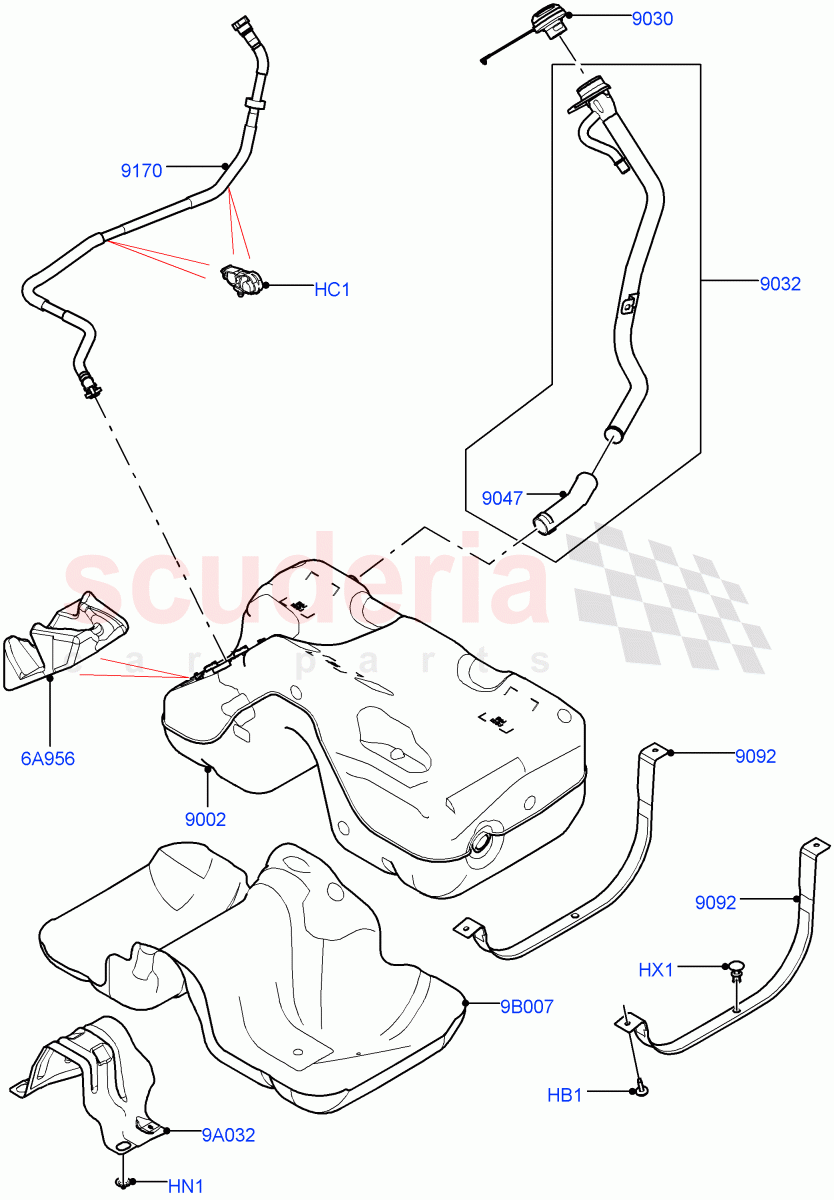

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR088949	BOLT	LR088949 BOLT Fuel Tank Strap, M6 X 40MM / From: JH000001	$3.96	4
HC1	LR006655	CLIP	LR006655 CLIP Fuel Tank Filler Neck - Unleaded / 14+12-20.5 X 7.5 X 1-3 / From: JH000001	$1.23	3
HN1	LR003643	NUT - SPECIAL	LR003643 NUT - SPECIAL M5 / From: JH000001	$0.61	2
HX1	RYQ500170	RETAINER - RIVET	RYQ500170 RETAINER - RIVET Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: JH000001 / To: JH309714	$1.01	2
HX1	LR115125	RETAINER - RIVET	LR115125 RETAINER - RIVET Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon / From: JH309715	$1.03	2
6A956	LR025816	FOAM PAD - ENERGY ABSORBING	LR025816 FOAM PAD - ENERGY ABSORBING From: JH000001	$55.79	1
9A032	LR094505	HEAT SHIELD - FUEL TANK	LR094505 HEAT SHIELD - FUEL TANK Front / From: JH000001	$42.45	1
9B007	LR081543	SHIELD - FUEL TANK	LR081543 SHIELD - FUEL TANK Main / From: JH000001	$188.40	1
9002	LR094171	TANK - FUEL	LR094171 TANK - FUEL Pet Tank With Leak Det - Lrg Filter / From: JH000001	$861.62	1
9002	LR094172	TANK - FUEL	LR094172 TANK - FUEL Pet Tank W/O Leak Det - Std Filter / From: JH000001	$1,194.86	1
9030	LR092779	CAP - FUEL TANK FILLER	LR092779 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - DMTL / From: JH000001 / To: KH333321	$39.52	1
9030	LR181511	CAP - FUEL TANK FILLER	LR181511 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Unleaded / From: JH000001 / To: KH333701	$39.32	1
9030	LR053665	CAP - FUEL TANK FILLER	LR053665 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Unleaded / From: KH333702	$34.87	1
9030	202123475	CAP - FUEL TANK FILLER	202123475 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - DMTL / From: KH333322	$40.74	1
9032	LR110256	PIPE - FUEL FILLER	LR110256 PIPE - FUEL FILLER Fuel Tank Filler Neck With Inhibit / From: JH000001	$276.78	1
9032	LR045112	PIPE - FUEL FILLER	LR045112 PIPE - FUEL FILLER Fuel Tank Filler Neck - Unleaded / From: JH000001	$141.49	1
9032	LR079221	PIPE - FUEL FILLER	LR079221 PIPE - FUEL FILLER Fuel Tank Filler Neck - DMTL / From: JH000001	$253.03	1
9047	LR028399	HOSE - FILLER PIPE	LR028399 HOSE - FILLER PIPE From: JH000001	$34.73	1
9092	LR094170	STRAP - FUEL TANK IN STOCK	LR094170 STRAP - FUEL TANK From: JH000001 IN STOCK	$64.44	2
9170	LR052183	HOSE - VENT	LR052183 HOSE - VENT Fuel Tank Filler Neck - Unleaded / From: JH000001	$52.97	1

Fuel Tank & Related Parts (2.0L I4 High Dohc Aj200 Petrol, 2.0L I4 Mid Dohc Aj200 Petrol) ((V)...
