Name: Fuel Lines (Centre And Front) (2.0L I4 Mid AJ200 Petrol E100, Itatiaia (Brazil)) ((V) FROMJT000001)
Rating: 4.7 (1 reviews)

Fuel Lines (Centre And Front) (2.0L I4 Mid AJ200 Petrol E100, Itatiaia (Brazil)) ((V) FROMJT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Fuel Lines (Centre And Front) (2.0L I4 Mid AJ200 Petrol E100, Itatiaia (Brazil)) ((V) FROMJT000001)

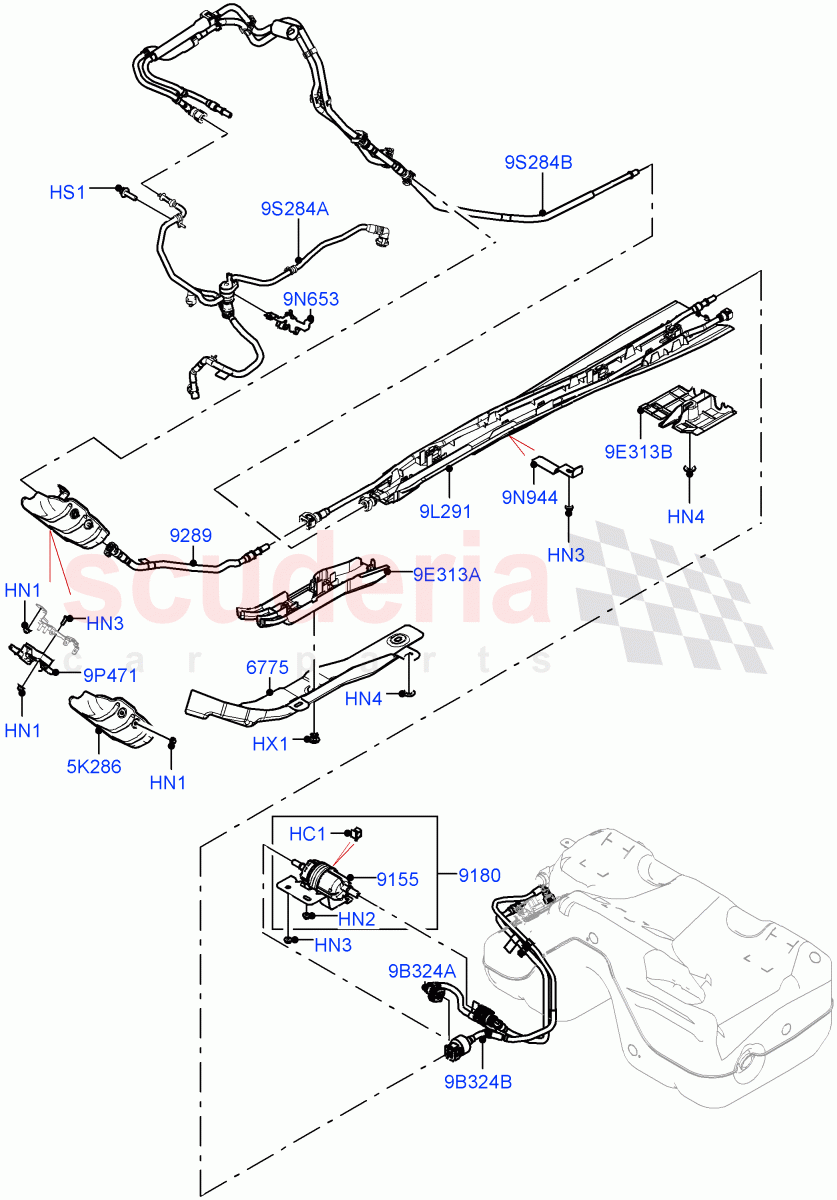

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR051520	CLIP - SINGLE	$3.52	To Order

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	$0.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYH500570	NUT - ADJUSTING	$2.85	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR003643	NUT - SPECIAL	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR005896	RETAINER - RIVET	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR072003	SHIELD - FUEL TUBES	$18.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR167098	FILTER - FUEL	$72.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110786	BRACKET - FUEL FILTER	$61.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116808	TUBE	$50.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113750	HEAT SHIELD - SENSOR	$21.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110808	TUBE - FUEL SUPPLY	$201.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107666	BRACKET - FUEL TUBE SUPPORT	$35.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005291	BRACKET - FUEL LINES	$44.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113753	SENSOR - FUEL QUALITY	$177.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110784	TUBE - FUEL	$75.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110785	TUBE - FUEL	$75.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005634	SHIELD - FUEL TUBES	$6.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003826	SHIELD - FUEL TUBES	$7.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094430	TUBE - FUEL SUPPLY AND VAPOUR	$182.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110828	TUBE - FUEL SUPPLY AND VAPOUR	$227.19	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR051520	CLIP - SINGLE	LR051520 CLIP - SINGLE From: JT000001	$3.52	1
HN1	FX106046	NUT - FLANGED IN STOCK	FX106046 NUT - FLANGED Hexagonal Head, M6 / From: JT000001 IN STOCK	$0.60	2
HN2	RYH500570	NUT - ADJUSTING	RYH500570 NUT - ADJUSTING M6 / From: JT000001	$2.85	1
HN3	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6, Support Bracket / From: JT000001 IN STOCK	$1.47	1
HN4	LR003643	NUT - SPECIAL	LR003643 NUT - SPECIAL M5, Shield / From: JT000001	$0.61	3
HS1	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: JT000001 IN STOCK	$1.60	2
HX1	LR005896	RETAINER - RIVET IN STOCK	LR005896 RETAINER - RIVET 10 X 4 - 5, Front, Shield / From: JT000001 IN STOCK	$1.47	2
5K286	LR113750	HEAT SHIELD - SENSOR	LR113750 HEAT SHIELD - SENSOR From: JT000001	$21.23	1
9B324A	LR110784	TUBE - FUEL	LR110784 TUBE - FUEL Feed Line To Filter Assy / From: JT000001	$75.21	1
9B324B	LR110785	TUBE - FUEL	LR110785 TUBE - FUEL Feed Line To U Floor Lines Assy / From: JT000001	$75.21	1
9E313A	LR005634	SHIELD - FUEL TUBES	LR005634 SHIELD - FUEL TUBES Front / From: JT000001	$6.17	1
9E313B	LR003826	SHIELD - FUEL TUBES	LR003826 SHIELD - FUEL TUBES Rear / From: JT000001	$7.76	1
9L291	LR110808	TUBE - FUEL SUPPLY	LR110808 TUBE - FUEL SUPPLY Tube Assembly / From: JT000001	$201.95	1
9N653	LR107666	BRACKET - FUEL TUBE SUPPORT	LR107666 BRACKET - FUEL TUBE SUPPORT From: JT000001	$35.91	1
9N944	LR005291	BRACKET - FUEL LINES	LR005291 BRACKET - FUEL LINES Support Bracket / From: JT000001	$44.36	1
9P471	LR113753	SENSOR - FUEL QUALITY	LR113753 SENSOR - FUEL QUALITY From: JT000001	$177.13	1
9S284A	LR094430	TUBE - FUEL SUPPLY AND VAPOUR	LR094430 TUBE - FUEL SUPPLY AND VAPOUR Front / From: JT000001	$182.41	1
9S284B	LR110828	TUBE - FUEL SUPPLY AND VAPOUR	LR110828 TUBE - FUEL SUPPLY AND VAPOUR Rear / From: JT000001	$227.19	1
6775	LR072003	SHIELD - FUEL TUBES	LR072003 SHIELD - FUEL TUBES Front / From: JT000001	$18.66	1
9155	LR167098	FILTER - FUEL	LR167098 FILTER - FUEL From: JT000001	$72.33	1
9180	LR110786	BRACKET - FUEL FILTER	LR110786 BRACKET - FUEL FILTER Assembly / From: JT000001	$61.67	1
9289	LR116808	TUBE	LR116808 TUBE From: JT000001	$50.71	1

Fuel Lines (Centre And Front) (2.0L I4 Mid Aj200 Petrol E100, Itatiaia (Brazil)) ((V) Fromjt000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Fuel Lines (Centre And Front) (2.0L I4 Mid AJ200 Petrol E100, Itatiaia (Brazil)) ((V) FROMJT000001)
