Name: Fuel Lines (Rear) (2 Door Convertible, 2.0L I4 Mid DOHC AJ200 Petrol, (-) "CDN/MEX/USA", Fuel Tank Filler Neck - Unleaded, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJH000001)
Rating: 4.8 (1 reviews)

Fuel Lines (Rear) (2 Door Convertible, 2.0L I4 Mid DOHC AJ200 Petrol, (-) "CDN/MEX/USA", Fuel Tank Filler Neck - Unleaded, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Fuel Lines (Rear) (2 Door Convertible, 2.0L I4 Mid DOHC AJ200 Petrol, (-) "CDN/MEX/USA", Fuel Tank...

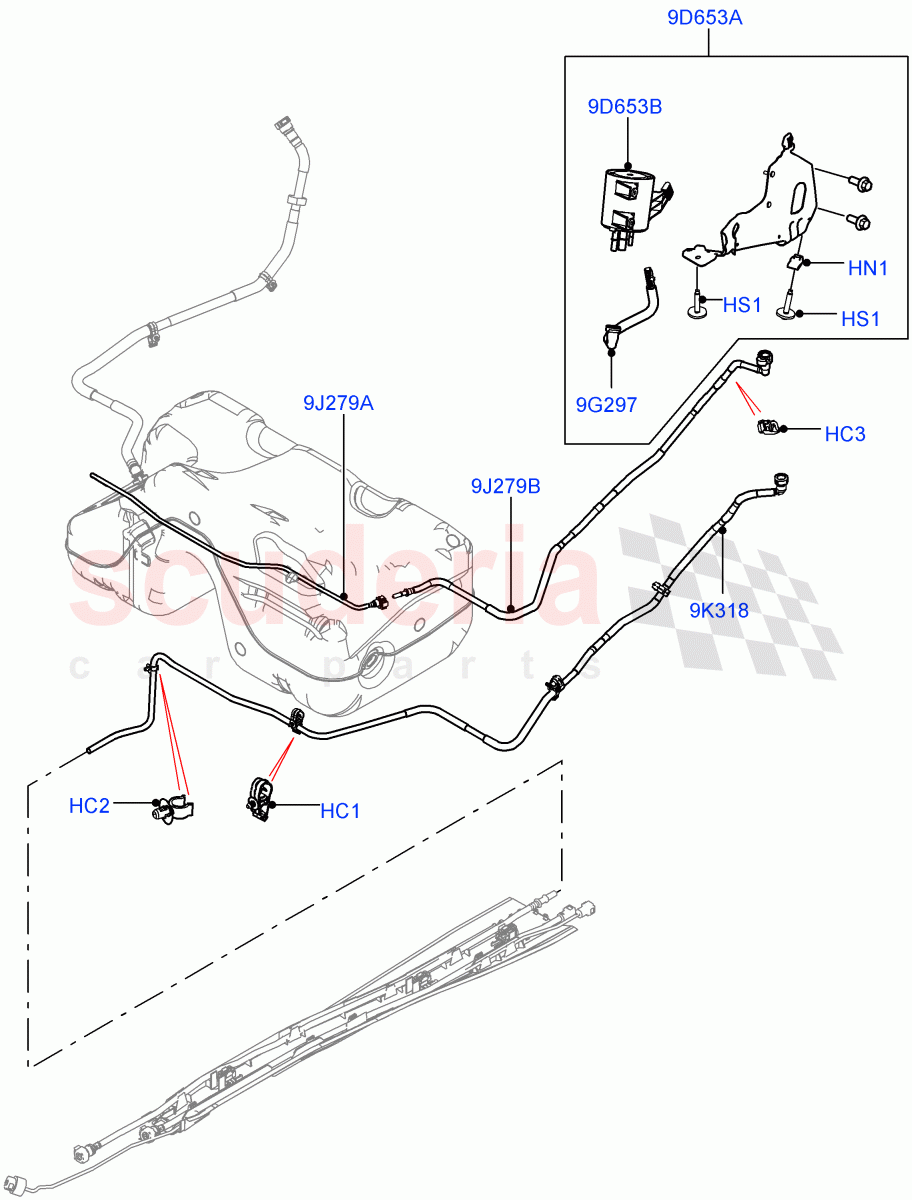

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006655	CLIP	$1.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004596	CLIP	$1.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060351	CLIP - HOSE	$4.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070982	TUBE - FUEL VAPOUR	$44.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027876	TUBE - FUEL VAPOUR	$83.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070985	CANNISTER - FUEL VAPOUR STORE	$553.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003486	RESERVOIR - FUEL TANK VENT SYSTEM	$52.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094139	HOSE - VENT	$33.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027879	TUBE - VENTILATION	$31.73	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR006655	CLIP	LR006655 CLIP 14+12-20.5 X 7.5 X 1-3 / From: JH000001	$1.22	3
HC2	LR004596	CLIP	LR004596 CLIP 12 x 7.8X.8/4, Plastic / From: JH000001	$1.69	1
HC3	LR060351	CLIP - HOSE	LR060351 CLIP - HOSE From: JH000001	$4.43	1
HN1	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED M6 / From: JH000001 IN STOCK	$1.62	1
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: JH000001	$4.20	2
9D653A	LR070985	CANNISTER - FUEL VAPOUR STORE	LR070985 CANNISTER - FUEL VAPOUR STORE Charcoal Cannister, With Bracket / From: JH000001	$553.79	1
9D653B	LR003486	RESERVOIR - FUEL TANK VENT SYSTEM	LR003486 RESERVOIR - FUEL TANK VENT SYSTEM Charcoal Cannister / From: JH000001	$52.80	1
9G297	LR070982	TUBE - FUEL VAPOUR	LR070982 TUBE - FUEL VAPOUR Charcoal Cannister / From: JH000001	$44.21	1
9J279A	LR094139	HOSE - VENT	LR094139 HOSE - VENT Centre, Purge Line From Fuel Tank To Charcoal Canister / From: JH000001	$33.55	1
9J279B	LR027879	TUBE - VENTILATION	LR027879 TUBE - VENTILATION Inlet Tube, Purge Line From Fuel Tank To Charcoal Canister / From: JH000001	$31.73	1
9K318	LR027876	TUBE - FUEL VAPOUR	LR027876 TUBE - FUEL VAPOUR Fuel Vapor Cannister Purge - Outlet / From: JH000001	$83.21	1

Fuel Lines (Rear) (2 Door Convertible, 2.0L I4 Mid Dohc Aj200 Petrol, (-) "Cdn/Mex/Usa", Fuel Tank...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol AJ200P] - Fuel Lines (Rear) (2 Door Convertible, 2.0L I4 Mid DOHC AJ200 Petrol, (-) "CDN/MEX/USA", Fuel Tank...
