Name: Front Seat Base (Electric Front Seat Adj Non-Memory, Changsu (China), Driver/Pass Elec Fr Seat Adj/Memory, Electric Front Seat Adj Drv Memory) ((V) FROMEG000001)
Rating: 5.0 (1 reviews)

Front Seat Base (Electric Front Seat Adj Non-Memory, Changsu (China), Driver/Pass Elec Fr Seat Adj/Memory, Electric Front Seat Adj Drv Memory) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Front Seat Base (Electric Front Seat Adj Non-Memory, Changsu (China), Driver/Pass Elec Fr Seat...

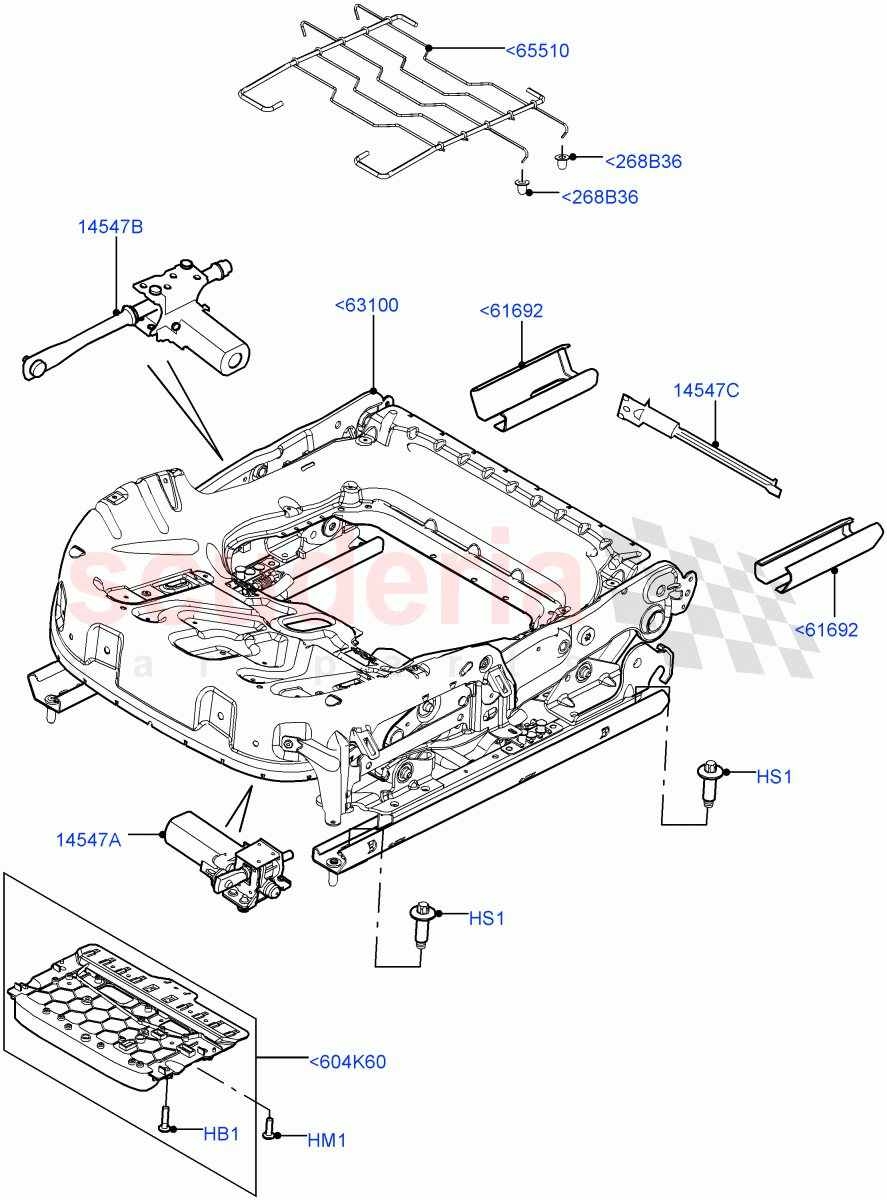

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR026775	SCREW	$2.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029121	SCREW - PAN HEAD	$0.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067428	SCREW	$2.42	IN STOCK
	LR026575	SCREW	$3.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057929	COVER - FRONT SEAT TRACK SUPPORT	$21.15	To Order
	LR057993	COVER - FRONT SEAT TRACK SUPPORT	$16.84	To Order
	LR058764	COVER - FRONT SEAT TRACK SUPPORT	$21.95	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR026731	FRAME - SEAT	$763.49	To Order
	LR026733	FRAME - SEAT	$895.87	To Order
	LR026741	FRAME - SEAT	$976.20	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027165	SUPPORT - FRONT SEAT CUSHION	$25.04	To Order

Photo	Part No	Description	Price (each)	Stock
	HHL500250	MOTOR - SEAT ADJUSTER	$390.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028225	MOTOR - SEAT ADJUSTER	$389.50	To Order
	LR028227	MOTOR - SEAT ADJUSTER	$382.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028226	MOTOR - SEAT ADJUSTER	$380.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072505	BUSH - SUSPENSION MAT	$1.24	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047637	TRAY - PACKAGE	$47.44	To Order
	LR069139	TRAY - PACKAGE	$52.37	To Order
	LR088354	TRAY - PACKAGE	$49.03	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<268B36	LR072505	BUSH - SUSPENSION MAT	LR072505 BUSH - SUSPENSION MAT Please Order With LR026575 / From: EG000001	$1.24	4
<604K60	LR047637	TRAY - PACKAGE	LR047637 TRAY - PACKAGE ECU / From: EG000001 / To: GG134737	$47.44	2
<604K60	LR069139	TRAY - PACKAGE	LR069139 TRAY - PACKAGE ECU / From: GG134738 / To: GG146524	$52.37	2
<604K60	LR088354	TRAY - PACKAGE	LR088354 TRAY - PACKAGE ECU / From: GG146525	$49.03	2
<61692	LR057929	COVER - FRONT SEAT TRACK SUPPORT	LR057929 COVER - FRONT SEAT TRACK SUPPORT RH / From: EG000001 / To: GG134737	$21.15	3
<61692	LR057993	COVER - FRONT SEAT TRACK SUPPORT	LR057993 COVER - FRONT SEAT TRACK SUPPORT LH / From: EG000001 / To: GG134737	$16.84	3
<61692	LR058764	COVER - FRONT SEAT TRACK SUPPORT	LR058764 COVER - FRONT SEAT TRACK SUPPORT LH / From: GG134738	$21.95	3
<61692	LR058759	COVER - FRONT SEAT TRACK SUPPORT	LR058759 COVER - FRONT SEAT TRACK SUPPORT RH / From: GG134738	$20.11	3
<63100	LR026731	FRAME - SEAT	LR026731 FRAME - SEAT With Pass 4 Way Power Seat Adjuster / RH / From: EG000001 / To: GG134737	$763.49	1
<63100	LR026733	FRAME - SEAT	LR026733 FRAME - SEAT With Pass 6 Way Power Seat Adjuster / RH / From: EG000001 / To: GG134737	$895.87	1
<63100	LR026741	FRAME - SEAT	LR026741 FRAME - SEAT With Driver 6 Way Pwr.Seat Adjuster / LH / From: EG000001 / To: GG134737	$976.20	1
<63100	LR026742	FRAME - SEAT	LR026742 FRAME - SEAT With Driver 8 Way Pwr.Seat Adjuster / LH / From: EG000001 / To: GG134737	$991.21	1
<63100	LR074169	FRAME - SEAT	LR074169 FRAME - SEAT Driver/Pass Elec Fr Seat Adj/Memory / RH, Includes Seat Motors / From: GG134738 / To: GG146040	$1,224.50	1
<63100	LR074172	FRAME - SEAT	LR074172 FRAME - SEAT Driver/Pass Elec Fr Seat Adj/Memory / LH, Includes Seat Motors / From: GG134738 / To: GG146040	$1,088.80	1
<63100	LR069655	FRAME - SEAT	LR069655 FRAME - SEAT Electric Front Seat Adj Non-Memory / RH / From: GG134738 / To: GG146040	$1,167.36	1
<63100	LR069658	FRAME - SEAT	LR069658 FRAME - SEAT Electric Front Seat Adj Non-Memory / LH / From: GG134738 / To: GG146040	$1,339.15	1
<63100	LR087292	FRAME - SEAT	LR087292 FRAME - SEAT Driver/Pass Elec Fr Seat Adj/Memory / RH, Includes Seat Motors / From: GG146041	$978.97	1
<63100	LR087295	FRAME - SEAT	LR087295 FRAME - SEAT Driver/Pass Elec Fr Seat Adj/Memory / LH, Includes Seat Motors / From: GG146041	$978.97	1
<63100	LR087298	FRAME - SEAT	LR087298 FRAME - SEAT Electric Front Seat Adj Non-Memory / RH, Includes Seat Motors, Please Consider Repair Using Repair Component LR156907 / From: GG146041	$947.52	1
<63100	LR087299	FRAME - SEAT	LR087299 FRAME - SEAT Electric Front Seat Adj Non-Memory / LH, Includes Seat Motors, Please Consider Repair Using Repair Component LR156907 / From: GG146041	$947.52	1
<65510	LR027165	SUPPORT - FRONT SEAT CUSHION	LR027165 SUPPORT - FRONT SEAT CUSHION From: EG000001	$25.04	2
HB1	LR026775	SCREW	LR026775 SCREW ECU, M6 X 25MM / From: EG000001	$2.24	4
HM1	LR029121	SCREW - PAN HEAD	LR029121 SCREW - PAN HEAD Electric Front Seat Adj Drv Memory / M6X16, Pan Head / From: EG000001	$0.64	4
HS1	LR067428	SCREW IN STOCK	LR067428 SCREW M10 x 32MM / From: GG134738 IN STOCK	$2.42	8
HS1	LR026575	SCREW	LR026575 SCREW M10 x 32MM / From: EG000001 / To: GG134737	$3.69	8
14547A	HHL500250	MOTOR - SEAT ADJUSTER	HHL500250 MOTOR - SEAT ADJUSTER With Driver 8 Way Pwr.Seat Adjuster / Tilt Motor / From: EG000001 / To: GG134737	$390.70	1
14547B	LR028225	MOTOR - SEAT ADJUSTER	LR028225 MOTOR - SEAT ADJUSTER RH, Seat Height Adjust / From: EG000001 / To: GG134737	$389.50	1
14547B	LR028227	MOTOR - SEAT ADJUSTER	LR028227 MOTOR - SEAT ADJUSTER LH, Seat Height Adjust / From: EG000001 / To: GG134737	$382.18	1
14547C	LR028226	MOTOR - SEAT ADJUSTER	LR028226 MOTOR - SEAT ADJUSTER Fore And Aft / From: EG000001 / To: GG134737	$380.00	1
