Front Seat Back (Changsu (China), Seat - Standard) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Front Seat Back (Changsu (China), Seat - Standard) ((V) FROMEG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR031749 BOLT - SQUAB FRAME TO CUSHION $5.49 To Order
LR078208 BOLT $1.56 To Order
Photo Part No Description Price (each) Stock
LR067775 KIT - GREASE APPLICATION $21.99 To Order
Photo Part No Description Price (each) Stock
HGF500030 RETAINER - SPRING $0.81 To Order
Photo Part No Description Price (each) Stock
LR065115 FRAME - SEAT $737.16 To Order
LR065117 FRAME - SEAT $857.99 To Order
LR084018 FRAME - SEAT $757.31 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR027118 SUPPORT - SEAT VALANCE $6.10 To Order
LR027119 SUPPORT - SEAT VALANCE $6.10 To Order
LR084717 SUPPORT - SEAT BACK - LUMBAR $22.88 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR071985 SUPPORT - SEAT BACK - LUMBAR $238.93 To Order
LR071987 SUPPORT - SEAT BACK - LUMBAR $251.79 To Order
LR069174 SUPPORT - SEAT BACK - LUMBAR $294.26 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR036086 SUPPORT - FRONT SEAT SQUAB $15.25 To Order
LR058814 SUPPORT - FRONT SEAT SQUAB $35.33 To Order
Photo Part No Description Price (each) Stock
LR026763 BRACKET - ENGINE COVER $24.38 To Order
LR026764 SLEEVE - HEADREST GUIDE $23.07 To Order
LR026766 SLEEVE - HEADREST GUIDE $24.38 To Order
...and 8 more part variants. See table on right for more details.
View All

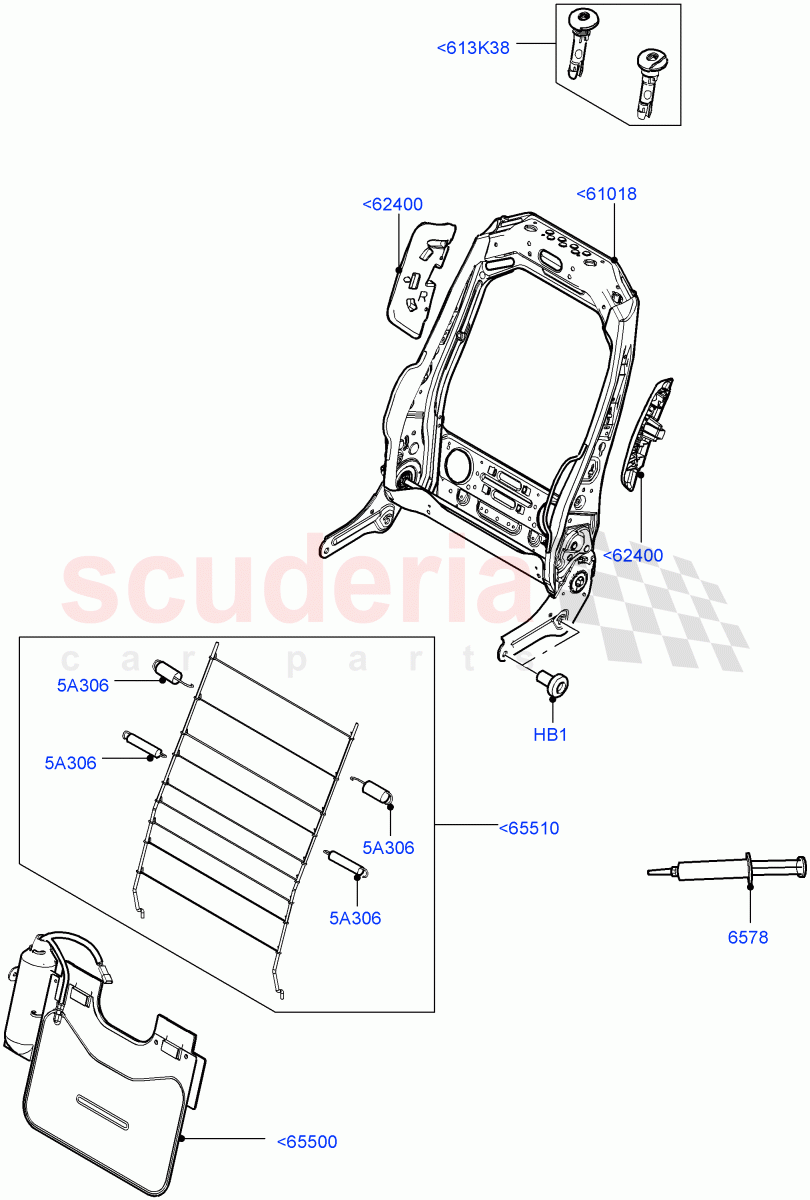

Front Seat Back (Changsu (China), Seat - Standard) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<613K38 LR026763
BRACKET - ENGINE COVER
I/P Facia Contrast-Espresso/Ivory, Tan / Locking Type / From: EG000001 / To: GG134737 		$24.38 2
<613K38 LR026764
SLEEVE - HEADREST GUIDE
Ivory/Lunar / Locking Type / From: EG000001 / To: GG134737 		$23.07 2
<613K38 LR026766
SLEEVE - HEADREST GUIDE
Ivory / Locking Type / From: EG000001 / To: GG134737 		$24.38 2
<613K38 LR026767
SLEEVE - HEADREST GUIDE
I/P Facia Contrast - Ebony Black, Tan / Locking Type / From: EG000001 / To: GG134737 		$23.92 2
<613K38 LR026768
SLEEVE - HEADREST GUIDE
Almond / Locking Type / From: EG000001 / To: GG134737 		$22.28 2
<613K38 LR036038
SLEEVE - HEADREST GUIDE
I/P Facia Contrast-Espresso/Ivory, Tan / Non Locking / From: EG000001 / To: GG134737 		$8.76 2
<613K38 LR036039
SLEEVE - HEADREST GUIDE
Ivory/Lunar / Non Locking / From: EG000001 / To: GG134737 		$9.74 2
<613K38 LR036041
SLEEVE - HEADREST GUIDE
Ivory / Non Locking / From: EG000001 / To: GG134737 		$9.74 2
<613K38 LR036042
SLEEVE - HEADREST GUIDE
I/P Facia Contrast - Ebony Black, Tan / Non Locking / From: EG000001 / To: GG134737 		$9.74 2
<613K38 LR036043
SLEEVE - HEADREST GUIDE
Almond / Non Locking / From: EG000001 / To: GG134737 		$9.50 2
<613K38 LR074206
SLEEVE - HEADREST GUIDE
From: GG134738 		$11.94 4
<61018 LR065115
FRAME - SEAT
Electric Front Seat Adj Drv Memory / Includes Motor - Not Serviced Separately / From: EG000001 / To: GG134737 		$737.16 1
<61018 LR065117
FRAME - SEAT
Electric Front Seat Adj Non-Memory / Includes Motor - Not Serviced Separately / From: EG000001 / To: GG134737 		$857.99 1
<61018 LR084018
FRAME - SEAT
Electric Front Seat Adj Non-Memory / Includes Motor - Not Serviced Separately, Please Consider Repair Using Repair Component LR154977 / From: GG134738 / To: JG167671 		$757.31 2
<61018 LR084019
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory / Includes Motor - Not Serviced Separately, Please Consider Repair Using Repair Component LR154977 / From: GG134738 / To: JG167671 		$988.15 2
<61018 LR108502
FRAME - SEAT
Electric Front Seat Adj Non-Memory / Includes Motor - Not Serviced Separately, Please Consider Repair Using Repair Component LR154977 / From: JG167672 		$558.12 2
<61018 LR108501
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory / Includes Motor - Not Serviced Separately, Please Consider Repair Using Repair Component LR154977 / From: JG167672 		$524.91 2
<62400 LR027118
SUPPORT - SEAT VALANCE
RH / From: EG000001 / To: GG134737 		$6.10 2
<62400 LR027119
SUPPORT - SEAT VALANCE
LH / From: EG000001 / To: GG134737 		$6.10 2
<62400 LR084717
SUPPORT - SEAT BACK - LUMBAR
RH / From: GG143868 		$22.88 2
<62400 LR084718
SUPPORT - SEAT BACK - LUMBAR
LH / From: GG143868 		$22.88 2
<62400 LR065751
SUPPORT - SEAT BACK - LUMBAR
RH / From: GG134738 / To: GG143867 		$22.34 2
<62400 LR065752
SUPPORT - SEAT BACK - LUMBAR
LH / From: GG134738 / To: GG143867 		$23.78 2
<65500 LR071985
SUPPORT - SEAT BACK - LUMBAR
Less Seat Temperature Control, With Drivers Power Lumbar Support / From: EG000001 / To: GG134737 		$238.93 2
<65500 LR071987
SUPPORT - SEAT BACK - LUMBAR
Heated/Cooled Front - Heated Rear, With Drivers Power Lumbar Support / From: EG000001 / To: GG134737 		$251.79 2
<65500 LR069174
SUPPORT - SEAT BACK - LUMBAR
Lumbar Seat - 4 Way Driver / From: GG134738 		$294.26 2
<65500 LR069176
SUPPORT - SEAT BACK - LUMBAR
Lmbr Seat-4 Way Adjustabl Blstr Drv / From: GG134738 		$405.00 2
<65500 LR080139
SUPPORT - SEAT BACK - LUMBAR
Lumbr Massge-Adjustable Bolster Drv / From: GG134738 		$939.88 2
<65510 LR036086
SUPPORT - FRONT SEAT SQUAB
From: EG000001 / To: GG134737 		$15.25 2
<65510 LR058814
SUPPORT - FRONT SEAT SQUAB
From: GG134738 		$35.33 2
HB1 LR031749
BOLT - SQUAB FRAME TO CUSHION
Seat Frame / From: EG000001 / To: GG134737 		$5.49 8
HB1 LR078208
BOLT
Seat Frame / From: GG134738 		$1.56 8
5A306 HGF500030
RETAINER - SPRING
From: EG000001 		$0.81 2
6578 LR067775
KIT - GREASE APPLICATION
grease, Service Kit / From: EG000001 		$21.99 1
