Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Front Seat Base (Halewood (UK), Seat - Premium)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR026775 SCREW $2.24 To Order
Photo Part No Description Price (each) Stock
LR029121 SCREW - PAN HEAD $0.64 To Order
Photo Part No Description Price (each) Stock
LR026575 SCREW $3.69 To Order
LR067428 SCREW $2.43 IN STOCK
Photo Part No Description Price (each) Stock
LR156907 KIT - FRONT SEAT CUSHION REPAIR $43.77 To Order
Photo Part No Description Price (each) Stock
LR027176 COVER - FRONT SEAT TRACK SUPPORT $16.51 To Order
LR028216 COVER - FRONT SEAT TRACK SUPPORT $16.83 To Order
LR057993 COVER - FRONT SEAT TRACK SUPPORT $16.85 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR026747 FRAME - SEAT $1,266.94 To Order
LR026748 FRAME - SEAT $1,108.66 To Order
LR039439 FRAME - SEAT $1,136.92 To Order
...and 17 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR027165 SUPPORT - FRONT SEAT CUSHION $25.06 To Order
Photo Part No Description Price (each) Stock
HHL500240 MOTOR - SEAT ADJUSTER $392.91 To Order
HHL500250 MOTOR - SEAT ADJUSTER $390.98 To Order
Photo Part No Description Price (each) Stock
LR135605 MOTOR - SEAT ADJUSTER $292.96 To Order
LR135606 MOTOR - SEAT ADJUSTER $279.48 To Order
Photo Part No Description Price (each) Stock
LR047053 MOTOR - SEAT ADJUSTER $283.52 To Order
LR028226 MOTOR - SEAT ADJUSTER $380.28 To Order
Photo Part No Description Price (each) Stock
LR072505 BUSH - SUSPENSION MAT $1.24 To Order
Photo Part No Description Price (each) Stock
LR047637 TRAY - PACKAGE $47.48 To Order
LR027018 TRAY - PACKAGE $35.88 To Order
LR069139 TRAY - PACKAGE $52.41 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR154975 MOTOR - SEAT ADJUSTER $286.54 To Order
LR154976 MOTOR - SEAT ADJUSTER $261.68 To Order
Photo Part No Description Price (each) Stock
LR154842 MOTOR - SEAT ADJUSTER $349.13 To Order
LR154843 MOTOR - SEAT ADJUSTER $349.13 To Order
View All

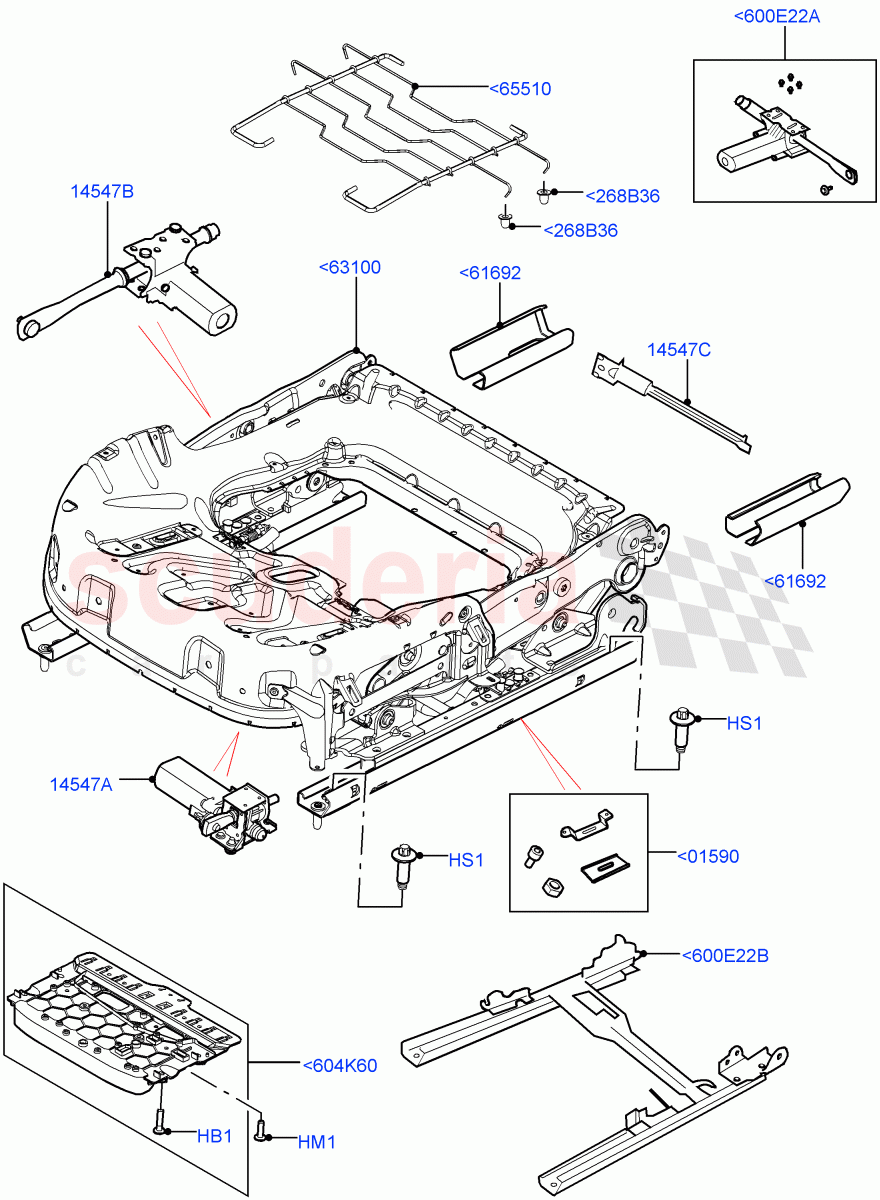

Front Seat Base (Halewood (UK), Seat - Premium) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<268B36 LR072505
BUSH - SUSPENSION MAT
Please Order With LR026575 / From: CH000001 / To: FH999999 		$1.24 4
<600E22A LR154975
MOTOR - SEAT ADJUSTER
RH, Seat Height Adjust / From: GH000001 		$286.54 1
<600E22A LR154976
MOTOR - SEAT ADJUSTER
LH, Seat Height Adjust / From: GH000001 		$261.68 1
<600E22B LR154842
MOTOR - SEAT ADJUSTER
5 Door / RH, Fore/Aft Adjustment / From: GH000001 		$349.13 1
<600E22B LR154843
MOTOR - SEAT ADJUSTER
5 Door / LH, Fore/Aft Adjustment / From: GH000001 		$349.13 1
<604K60 LR047637
TRAY - PACKAGE
ECU / From: EH000001 / To: FH999999 		$47.48 2
<604K60 LR027018
TRAY - PACKAGE
ECU / To: DH999999 		$35.88 2
<604K60 LR069139
TRAY - PACKAGE
ECU / From: GH000001 / To: GH148753 		$52.41 2
<604K60 LR088354
TRAY - PACKAGE
ECU / From: GH148754 / To: KH341376 		$49.06 2
<604K60 LR139508
TRAY - PACKAGE
ECU / From: KH341377 		$47.52 2
<01590 LR156907
KIT - FRONT SEAT CUSHION REPAIR
For Seat Frame, Service Kit 		$43.77 1
<61692 LR027176
COVER - FRONT SEAT TRACK SUPPORT
RH / To: EH861159 		$16.51 3
<61692 LR028216
COVER - FRONT SEAT TRACK SUPPORT
LH / To: EH861159 		$16.83 3
<61692 LR057993
COVER - FRONT SEAT TRACK SUPPORT
LH / From: EH861160 / To: FH999999 		$16.85 3
<61692 LR057929
COVER - FRONT SEAT TRACK SUPPORT
RH / From: EH861160 / To: FH999999 		$21.17 3
<61692 LR058764
COVER - FRONT SEAT TRACK SUPPORT
LH Front, LH Seat, RH Rear / From: GH000001 / To: HH999999 		$21.97 2
<61692 LR058759
COVER - FRONT SEAT TRACK SUPPORT
Front RH, LH Rear, RH Seat / From: GH000001 / To: HH999999 		$20.13 2
<61692 LR058759
COVER - FRONT SEAT TRACK SUPPORT
LH Rear, LH Seat / From: GH000001 / To: HH999999 		$20.13 1
<61692 LR058764
COVER - FRONT SEAT TRACK SUPPORT
RH Rear, RH Seat / From: GH000001 / To: HH999999 		$21.97 1
<61692 LR058759
COVER - FRONT SEAT TRACK SUPPORT
Left Side Of Both Seats, Rear / From: JH000001 		$20.13 2
<61692 LR058764
COVER - FRONT SEAT TRACK SUPPORT
Rear, Right Side Of Both Seats / From: JH000001 		$21.97 2
<61692 LR097264
COVER - FRONT SEAT TRACK SUPPORT
RH, Front / From: JH000001 		$28.60 1
<61692 LR097265
COVER - FRONT SEAT TRACK SUPPORT
LH, Front / From: JH000001 		$21.97 1
<63100 LR026747
FRAME - SEAT
RHD / RH / To: CH999999 		$1,266.94 1
<63100 LR026748
FRAME - SEAT
LHD / RH / To: CH999999 		$1,108.66 1
<63100 LR039439
FRAME - SEAT
3 Door, RHD / RH / From: DH000001 / To: FH974829 		$1,136.92 1
<63100 LR039440
FRAME - SEAT
3 Door, LHD / RH / From: DH000001 / To: FH974829 		$1,137.12 1
<63100 LR026747
FRAME - SEAT
5 Door, RHD / RH / From: DH000001 / To: FH999999 		$1,266.94 1
<63100 LR026748
FRAME - SEAT
5 Door, LHD / RH / From: DH000001 / To: FH999999 		$1,108.66 1
<63100 LR064924
FRAME - SEAT
3 Door, RHD / RH / From: FH974830 / To: FH999999 		$1,677.32 1
<63100 LR064925
FRAME - SEAT
3 Door, LHD / RH / From: FH974830 / To: FH999999 		$1,573.62 1
<63100 LR026749
FRAME - SEAT
RHD / LH / To: CH999999 		$1,249.33 1
<63100 LR026749
FRAME - SEAT
5 Door, RHD / LH / From: DH000001 / To: FH999999 		$1,249.33 1
<63100 LR026742
FRAME - SEAT
LHD / LH, Please Consider Repair Using Lower Level Components: LR154976-Height Adjustment; LR154843-Fore/Aft Adjustment / To: CH999999 		$991.92 1
<63100 LR026742
FRAME - SEAT
5 Door, LHD / LH, Please Consider Repair Using Lower Level Components: LR154976-Height Adjustment; LR154843-Fore/Aft Adjustment / From: DH000001 / To: FH999999 		$991.92 1
<63100 LR039445
FRAME - SEAT
3 Door, RHD / LH / From: DH000001 / To: FH974829 		$1,137.12 1
<63100 LR064930
FRAME - SEAT
3 Door, RHD / LH / From: FH974830 / To: FH999999 		$1,588.83 1
<63100 LR039449
FRAME - SEAT
3 Door, LHD / LH, Please Consider Repair Using Lower Level Components: LR154976-Height Adjustment; LR154843-Fore/Aft Adjustment / From: DH000001 / To: FH974829 		$1,044.67 1
<63100 LR064929
FRAME - SEAT
3 Door, LHD / LH, Please Consider Repair Using Lower Level Components: LR154976-Height Adjustment; LR154843-Fore/Aft Adjustment / From: FH974830 / To: FH999999 		$1,098.70 1
<63100 LR087296
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory / RH, Please Consider Repair Using Lower Level Components: LR154975-Height Adjustment; LR154842-Fore/Aft Adjustment, Please Consider Repair Using Repair Component LR156907 / From: HH000001 / To: KH328045 		$1,068.99 1
<63100 LR087297
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory / LH, Please Consider Repair Using Lower Level Components: LR154976-Height Adjustment; LR154843-Fore/Aft Adjustment, Please Consider Repair Using Repair Component LR156907 / From: HH000001 / To: KH349012 		$1,171.25 1
<63100 LR129303
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory / RH, Please Consider Repair Using Lower Level Components: LR154975-Height Adjustment; LR154842-Fore/Aft Adjustment, Please Consider Repair Using Repair Component LR156907 / From: KH328046 		$1,040.05 1
<63100 LR131161
FRAME - SEAT
Driver/Pass Elec Fr Seat Adj/Memory / LH, Please Consider Repair Using Lower Level Components: LR154976-Height Adjustment; LR154843-Fore/Aft Adjustment, Please Consider Repair Using Repair Component LR156907 / From: KH349013 		$1,218.37 1
<65510 LR027165
SUPPORT - FRONT SEAT CUSHION
To: FH999999 		$25.06 2
HB1 LR026775
SCREW
ECU, M6 X 25MM 		$2.24 4
HM1 LR029121
SCREW - PAN HEAD
M6X16, Pan Head 		$0.64 4
HS1 LR026575
SCREW
M10 x 32MM / To: EH999999 		$3.69 4
HS1 LR067428
SCREW
M10 x 32MM / From: FH000001
IN STOCK 		$2.43 4
14547A HHL500240
MOTOR - SEAT ADJUSTER
Driver/Pass Elec Fr Seat Adj/Memory, RHD, With Driver 8 Way Pwr.Seat Adjuster / RH, Tilt Motor, With Memory Seat / To: FH999999 		$392.91 1
14547A HHL500250
MOTOR - SEAT ADJUSTER
Electric Front Seat Adj Drv Memory, LHD, With Driver 8 Way Pwr.Seat Adjuster / LH, Tilt Motor, With Memory Seat / To: FH999999 		$390.98 1
14547B LR135605
MOTOR - SEAT ADJUSTER
RH, Seat Height Adjust / To: FH999999 		$292.96 1
14547B LR135606
MOTOR - SEAT ADJUSTER
LH, Seat Height Adjust / To: FH999999 		$279.48 1
14547C LR047053
MOTOR - SEAT ADJUSTER
3 Door / Fore And Aft / To: FH999999 		$283.52 2
14547C LR028226
MOTOR - SEAT ADJUSTER
5 Door / Fore And Aft / To: FH999999 		$380.28 2
