Rear Door Trim Installation (5 Door, Halewood (Uk))

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Rear Door Trim Installation (5 Door, Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR033002 BOLT AND WASHER - TORX HEAD $1.49 To Order
Photo Part No Description Price (each) Stock
LR001790 CLIP $0.66 To Order
Photo Part No Description Price (each) Stock
LR013135 CLIP - TRIM $1.75 IN STOCK
Photo Part No Description Price (each) Stock
LR044885 CLIP $1.42 To Order
Photo Part No Description Price (each) Stock
LR031438 NUT - SQUARE $1.20 To Order
Photo Part No Description Price (each) Stock
LR028847 PLUG - DOOR TRIM PANEL $8.48 To Order
Photo Part No Description Price (each) Stock
LR003493 SCREW $0.98 To Order
LR079183 SCREW $0.91 To Order
Photo Part No Description Price (each) Stock
LR002884 SCREW $0.22 To Order
Photo Part No Description Price (each) Stock
LR066957 SCREW AND WASHER $4.40 To Order
Photo Part No Description Price (each) Stock
LR028114 HOUSING - SWITCH $29.84 To Order
LR028115 HOUSING - SWITCH $29.84 To Order
LR028117 HOUSING - SWITCH $29.24 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR028403 ESCUTCHEON - DOOR INSIDE HANDLE $24.48 To Order
LR028402 ESCUTCHEON - DOOR INSIDE HANDLE $25.34 To Order
LR028404 ESCUTCHEON - DOOR INSIDE HANDLE $25.34 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR030565 HANDLE - DOOR - INNER $38.62 To Order
LR030566 HANDLE - DOOR - INNER $38.62 To Order
LR065133 HANDLE - DOOR - INNER $52.28 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR028113 PLATE - BLANKING - DOOR $7.10 To Order
Photo Part No Description Price (each) Stock
LR028098 COVER - DOOR INSIDE HANDLE $7.46 To Order
LR028105 COVER - DOOR INSIDE HANDLE $7.46 To Order
LR071818 COVER - DOOR INSIDE HANDLE $9.81 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR028037 COVER - DOOR INNER PANEL $59.56 To Order
LR028039 COVER - DOOR INNER PANEL $59.56 To Order
LR071820 COVER - DOOR INSIDE HANDLE $9.81 To Order
...and 1 more part variants. See table on right for more details.
View All

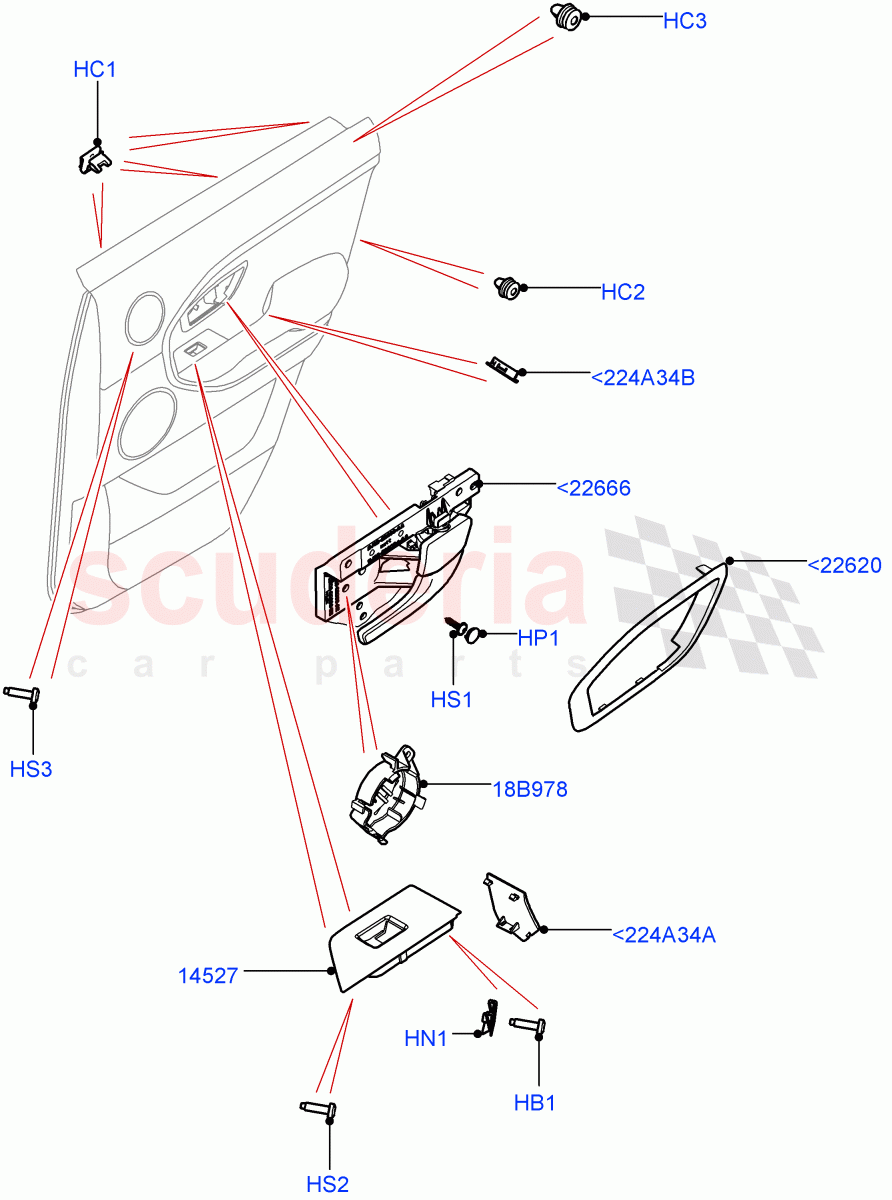

Rear Door Trim Installation (5 Door, Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<224A34A LR028098
COVER - DOOR INSIDE HANDLE
RH, Armrest, Front / To: FH999999 		$7.46 1
<224A34A LR028105
COVER - DOOR INSIDE HANDLE
LH, Armrest, Front / To: FH999999 		$7.46 1
<224A34A LR071818
COVER - DOOR INSIDE HANDLE
5 Door / LH, Armrest, Front / From: GH000001 / To: GH116132 		$9.81 1
<224A34A LR071815
COVER - DOOR INSIDE HANDLE
5 Door / RH, Armrest, Front / From: GH000001 / To: GH116132 		$9.50 1
<224A34A LR079438
COVER - DOOR INSIDE HANDLE
5 Door / RH, Armrest, Front / From: GH116133 		$9.35 1
<224A34A LR079437
COVER - DOOR INSIDE HANDLE
5 Door / LH, Armrest, Front / From: GH116133 		$9.61 1
<224A34B LR028037
COVER - DOOR INNER PANEL
RH, Armrest, Rear / To: FH999999 		$59.56 1
<224A34B LR028039
COVER - DOOR INNER PANEL
LH, Armrest, Rear / To: FH999999 		$59.56 1
<224A34B LR071820
COVER - DOOR INSIDE HANDLE
5 Door / LH, Armrest, Rear / From: GH000001 		$9.81 1
<224A34B LR071817
COVER - DOOR INSIDE HANDLE
5 Door / RH, Armrest, Rear / From: GH000001 		$9.81 1
<22620 LR028403
ESCUTCHEON - DOOR INSIDE HANDLE
Piano Black Appliques / RH, Also Serviced In Assy 		$24.48 1
<22620 LR028402
ESCUTCHEON - DOOR INSIDE HANDLE
Meteor Appliques / RH, Also Serviced In Assy 		$25.34 1
<22620 LR028404
ESCUTCHEON - DOOR INSIDE HANDLE
Meteor Appliques / LH, Also Serviced In Assy 		$25.34 1
<22620 LR028405
ESCUTCHEON - DOOR INSIDE HANDLE
Piano Black Appliques / LH, Also Serviced In Assy 		$25.34 1
<22666 LR030565
HANDLE - DOOR - INNER
RH / To: FH973001 		$38.62 1
<22666 LR030566
HANDLE - DOOR - INNER
LH / To: FH973001 		$38.62 1
<22666 LR065133
HANDLE - DOOR - INNER
RH / From: FH973002 		$52.28 1
<22666 LR065132
HANDLE - DOOR - INNER
LH / From: FH973002 		$52.28 1
HB1 LR033002
BOLT AND WASHER - TORX HEAD
For Armrest Door, M6 X 20.5, Torx 		$1.49 4
HC1 LR001790
CLIP
For Rear Door Trim Panel 		$0.66 10
HC2 LR013135
CLIP - TRIM
8.5 X 0.8 - 2.2, Also Serviced In Assy, Door Trim Panel
IN STOCK 		$1.75 18
HC3 LR044885
CLIP
Clip Lantern 8.2 X 1.2 + 2.5 Plastic, Door Trim Panel / From: HH691310 		$1.42 2
HN1 LR031438
NUT - SQUARE
For Armrest Door, M6 		$1.20 4
HP1 LR028847
PLUG - DOOR TRIM PANEL
Located In Door Handle 		$8.48 2
HS1 LR003493
SCREW
4.2 x 22MM, Handle And Housing Assy / To: FH999999 		$0.98 2
HS1 LR079183
SCREW
4.2 x 22MM, Handle And Housing Assy / From: GH000001 		$0.91 2
HS2 LR002884
SCREW
M4 x 10MM 		$0.22 1
HS3 LR066957
SCREW AND WASHER
4.2 x 16MM 		$4.40 1
18B978 LR028113
PLATE - BLANKING - DOOR
Blanking 		$7.10 2
14527 LR028114
HOUSING - SWITCH
Meteor Appliques / RH, Also Serviced In Assy 		$29.84 1
14527 LR028115
HOUSING - SWITCH
Piano Black Appliques / RH, Also Serviced In Assy 		$29.84 1
14527 LR028117
HOUSING - SWITCH
Meteor Appliques / LH, Also Serviced In Assy 		$29.24 1
14527 LR028118
HOUSING - SWITCH
Piano Black Appliques / LH, Also Serviced In Assy 		$29.84 1
