Instrument Panel (Upper, Internal Components) (Halewood (Uk), Less Head Up Display)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Instrument Panel (Upper, Internal Components) (Halewood (UK), Less Head Up Display)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500440 BOLT $1.02 To Order
Photo Part No Description Price (each) Stock
LR005902 BOLT $6.19 To Order
LR049472 BOLT $9.89 To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.61 IN STOCK
Photo Part No Description Price (each) Stock
LR006214 NUT $1.11 IN STOCK
Photo Part No Description Price (each) Stock
LR000070 PLUG - BLANKING $3.36 To Order
Photo Part No Description Price (each) Stock
LR032351 PLUG - RUBBER $2.63 To Order
Photo Part No Description Price (each) Stock
LR030395 SCREW AND WASHER $2.50 To Order
Photo Part No Description Price (each) Stock
RYG501150 SCREW AND WASHER $0.91 To Order
Photo Part No Description Price (each) Stock
PYP500140 SCREW $0.77 IN STOCK
Photo Part No Description Price (each) Stock
LR006211 SCREW $0.52 IN STOCK
Photo Part No Description Price (each) Stock
LR025172 SCREW $1.23 IN STOCK
Photo Part No Description Price (each) Stock
LR028425 SCREW $1.10 IN STOCK
Photo Part No Description Price (each) Stock
RYG500460 BOLT - HEX.HEAD $5.01 IN STOCK
Photo Part No Description Price (each) Stock
LR005903 WASHER $1.93 To Order
Photo Part No Description Price (each) Stock
LR026084 EXTENSION - DASH PANEL $3.68 To Order
Photo Part No Description Price (each) Stock
LR073097 BRACKET - SUPPORT $30.22 To Order
Photo Part No Description Price (each) Stock
LR062491 BRACKET - INSTRUMENT PANEL $41.33 To Order
Photo Part No Description Price (each) Stock
LR026134 MOULDING - INSTRUMENT PANEL $73.56 To Order
LR071333 MOULDING - INSTRUMENT PANEL $159.10 To Order
LR087748 MOULDING - INSTRUMENT PANEL $161.81 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR029225 Brace $20.63 To Order
Photo Part No Description Price (each) Stock
LR026086 REINFORCEMENT - INSTRUMENT PANEL $1,171.66 To Order
LR026087 REINFORCEMENT - INSTRUMENT PANEL $522.04 To Order
LR055530 REINFORCEMENT - INSTRUMENT PANEL $707.71 To Order
...and 1 more part variants. See table on right for more details.
View All

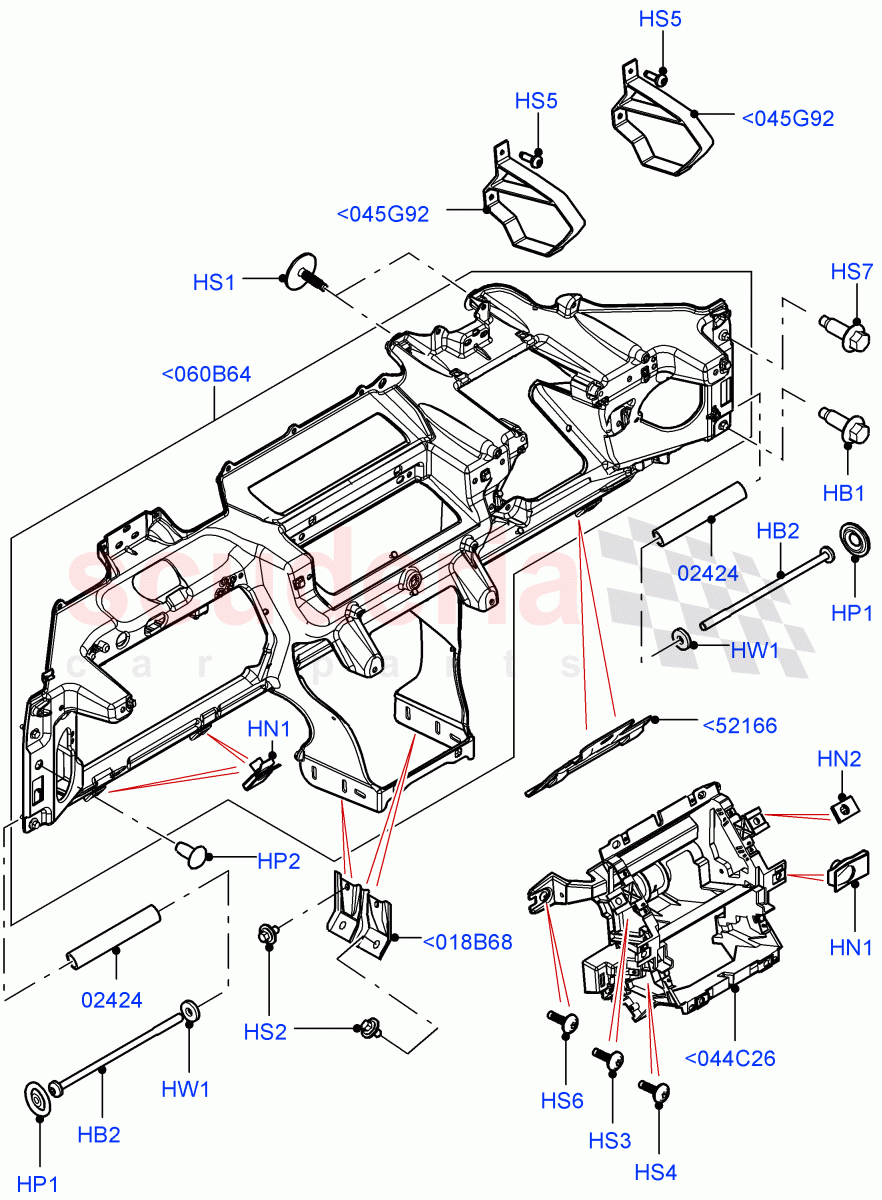

Instrument Panel (Upper, Internal Components) (Halewood (UK), Less Head Up Display) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<018B68 LR062491
BRACKET - INSTRUMENT PANEL 		$41.33 2
<044C26 LR026134
MOULDING - INSTRUMENT PANEL
To: FH999999 		$73.56 1
<044C26 LR071333
MOULDING - INSTRUMENT PANEL
From: GH000001 / To: GH125983 		$159.10 1
<044C26 LR087748
MOULDING - INSTRUMENT PANEL
NGI Head Unit / From: GH125984 / To: HH206196 		$161.81 1
<044C26 LR095475
MOULDING - INSTRUMENT PANEL
Infotainment Head Unit Level C / From: HH206197 		$489.01 1
<045G92 LR029225
Brace
(+)"CDN/MEX/USA" 		$20.63 2
<060B64 LR026086
REINFORCEMENT - INSTRUMENT PANEL
LHD / To: EH999999 		$1,171.66 1
<060B64 LR026087
REINFORCEMENT - INSTRUMENT PANEL
RHD / To: EH999999 		$522.04 1
<060B64 LR055530
REINFORCEMENT - INSTRUMENT PANEL
LHD / From: FH000001 		$707.71 1
<060B64 LR055531
REINFORCEMENT - INSTRUMENT PANEL
RHD / From: FH000001 		$778.50 1
<52166 LR073097
BRACKET - SUPPORT
RHD / From: GH103080 		$30.22 1
HB1 RYG500440
BOLT
Hexagonal Head, M8 X 20MM 		$1.02 2
HB2 LR005902
BOLT
M12 X 260MM / To: DH854785 		$6.19 2
HB2 LR049472
BOLT
M12 X 1.25 X 240 / From: DH854786 		$9.89 2
HN1 LR000053
NUT - FLANGED
M6
IN STOCK 		$1.61 1
HN2 LR006214
NUT
4.2 X 2.25 - 3
IN STOCK 		$1.11 1
HP1 LR000070
PLUG - BLANKING
40 x 0.7 - 3.0 		$3.36 2
HP2 LR032351
PLUG - RUBBER
13 X 3.5, Reinforcement, Rubber 		$2.63 2
HS1 LR030395
SCREW AND WASHER
M8 x 28MM 		$2.50 2
HS2 RYG501150
SCREW AND WASHER
M8 Hex, M8 X 16MM 		$0.91 8
HS3 PYP500140
SCREW
4.2 x 13MM, Torx
IN STOCK 		$0.77 1
HS4 LR006211
SCREW
4.2 x 16MM, Torx
IN STOCK 		$0.52 1
HS5 LR025172
SCREW
M6 X 16MM
IN STOCK 		$1.23 1
HS6 LR028425
SCREW
M6 X 1.4 X 17
IN STOCK 		$1.10 1
HS7 RYG500460
BOLT - HEX.HEAD
Hexagonal Head, M8 X 25MM
IN STOCK 		$5.01 2
HW1 LR005903
WASHER
13.4 X 32 X 6 FL Steel / To: DH854785 		$1.93 2
02424 LR026084
EXTENSION - DASH PANEL 		$3.68 2
