Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Console - Floor (Internal Components) (Halewood (UK))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR028883 SCREW $1.21 To Order
LR028883 SCREW $1.21 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.22 IN STOCK
Photo Part No Description Price (each) Stock
LR006025 BOLT $1.38 IN STOCK
Photo Part No Description Price (each) Stock
LR027849 SCREW $1.41 To Order
Photo Part No Description Price (each) Stock
RYG500820 SCREW AND WASHER $0.66 To Order
Photo Part No Description Price (each) Stock
LR027191 HINGE - STOWAGE BOX $4.20 To Order
Photo Part No Description Price (each) Stock
LR027190 BUMP STOP - FLOOR CONSOLE $8.25 To Order
Photo Part No Description Price (each) Stock
LR032137 BUMPER - FLOOR CONSOLE $6.94 To Order
Photo Part No Description Price (each) Stock
LR025861 CONSOLE - CENTRE FLOOR $496.87 To Order
LR033473 CONSOLE - CENTRE FLOOR $356.16 To Order
LR047943 CONSOLE - CENTRE FLOOR $496.87 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR025857 COVER - CONSOLE FIXING $205.98 To Order
LR026081 COVER - CONSOLE FIXING $31.12 To Order
LR025857 COVER - CONSOLE FIXING $205.98 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR025860 BRACKET - CONSOLE $463.34 To Order
LR025860 BRACKET - CONSOLE $463.34 To Order
Photo Part No Description Price (each) Stock
LR025859 BRACKET - CONSOLE $97.66 To Order
LR025859 BRACKET - CONSOLE $97.66 To Order
Photo Part No Description Price (each) Stock
LR025858 BRACKET - STOWAGE MOUNTING $37.29 To Order
LR033472 BRACKET - STOWAGE MOUNTING $37.29 To Order
LR071507 BRACKET - STOWAGE MOUNTING $130.83 To Order
...and 1 more part variants. See table on right for more details.
View All

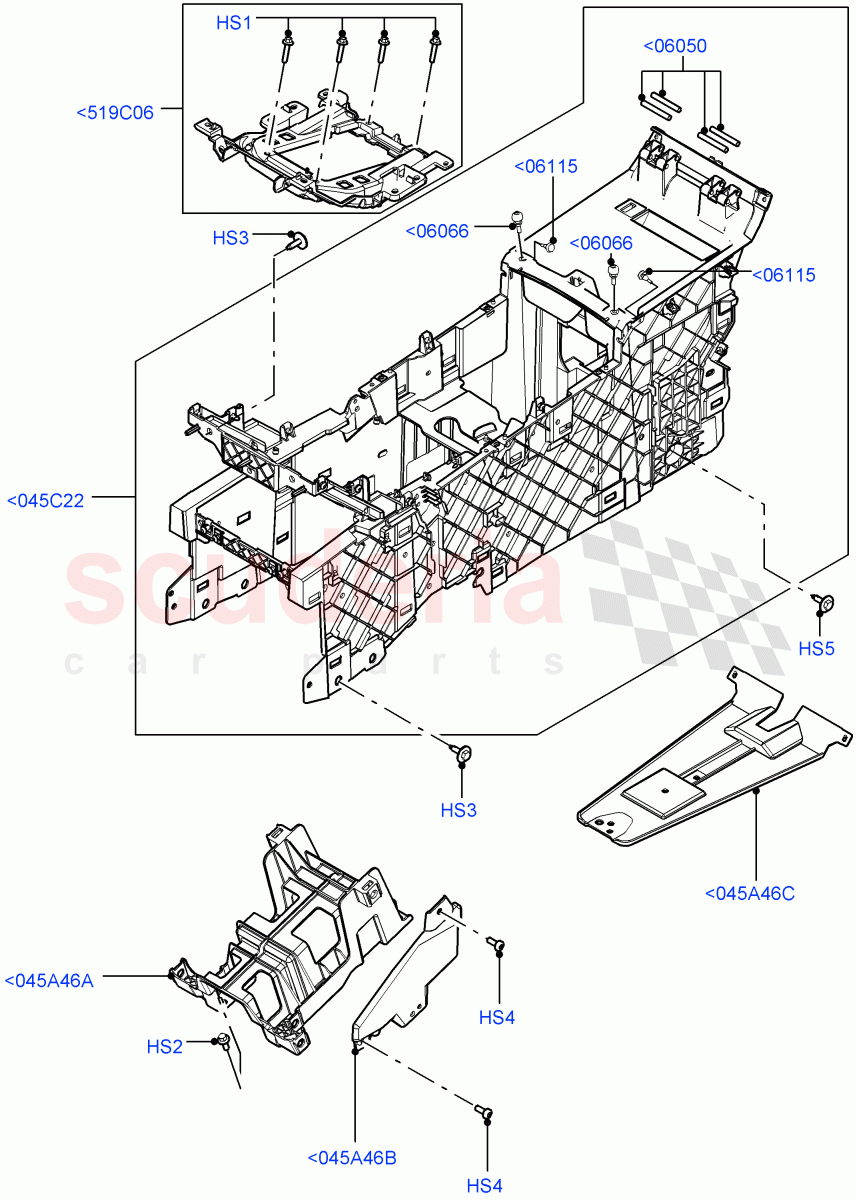

Console - Floor (Internal Components) (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<045A46A LR025860
BRACKET - CONSOLE
6 Speed Auto AWF21 AWD 		$463.34 1
<045A46A LR025860
BRACKET - CONSOLE
9 Speed Auto AWD / From: EH000001 		$463.34 1
<045A46B LR025859
BRACKET - CONSOLE
Rear End Console With Stowage / To: HH999999 		$97.66 1
<045A46B LR025859
BRACKET - CONSOLE
With Front Comfort Air Con (IHKA) / From: JH000001 		$97.66 1
<045A46C LR025858
BRACKET - STOWAGE MOUNTING
Rear End Console With Stowage / To: CH607660 		$37.29 1
<045A46C LR033472
BRACKET - STOWAGE MOUNTING
Rear End Console With Stowage / From: CH607661 / To: FH999999 		$37.29 1
<045A46C LR071507
BRACKET - STOWAGE MOUNTING
Rear End Console With Stowage / From: GH000001 / To: HH999999 		$130.83 1
<045A46C LR071507
BRACKET - STOWAGE MOUNTING
With Front Comfort Air Con (IHKA) / From: JH000001 		$130.83 1
<045C22 LR025861
CONSOLE - CENTRE FLOOR
To: CH607660 		$496.87 1
<045C22 LR033473
CONSOLE - CENTRE FLOOR
From: CH607661 / To: DH999999 		$356.16 1
<045C22 LR047943
CONSOLE - CENTRE FLOOR
From: EH000001 / To: FH999999 		$496.87 1
<045C22 LR071508
CONSOLE - CENTRE FLOOR
From: GH000001 		$496.87 1
<519C06 LR025857
COVER - CONSOLE FIXING
6 Speed Auto AWF21 AWD 		$205.98 1
<519C06 LR026081
COVER - CONSOLE FIXING
6 Speed Manual Trans M66 - AWD / To: FH999999 		$31.12 1
<519C06 LR025857
COVER - CONSOLE FIXING
9 Speed Auto AWD / From: EH000001 / To: FH999999 		$205.98 1
<519C06 LR071523
PANEL - CONSOLE - SUPPORT
9 Speed Auto AWD / From: GH000001 		$37.40 1
<519C06 LR071524
PANEL - CONSOLE - SUPPORT
6 Speed Manual Trans M66 - AWD / From: GH000001 		$216.70 1
<06050 LR027191
HINGE - STOWAGE BOX
Stowage Box / To: DH999999 		$4.20 4
<06066 LR027190
BUMP STOP - FLOOR CONSOLE
Stowage Box 		$8.25 2
<06115 LR032137
BUMPER - FLOOR CONSOLE
Stowage Box 		$6.94 2
HS1 LR028883
SCREW
6 Speed Auto AWF21 AWD / M5 x 25MM 		$1.21 4
HS1 LR028883
SCREW
9 Speed Auto AWD / M5 x 25MM / From: EH000001 		$1.21 1
HS2 FS106166
SCREW
Hexagonal Head, M6 X 16MM
IN STOCK 		$1.22 4
HS3 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex
IN STOCK 		$1.38 4
HS4 LR027849
SCREW
Bracket, M6 X 16MM 		$1.41 2
HS5 RYG500820
SCREW AND WASHER
Hexagonal Head, M6 X 16MM 		$0.66 2
