Electrical Wiring - Engine And Dash (Main Harness) (Halewood (Uk)) ((V) Fromgh000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Electrical Wiring - Engine And Dash (Main Harness) (Halewood (UK)) ((V) FROMGH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
LR000060 NUT - SPECIAL $0.52 To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT $1.39 IN STOCK
Photo Part No Description Price (each) Stock
LR074634 MAIN BODY HARNESS $3,850.62 To Order
LR084932 MAIN BODY HARNESS $7,255.22 To Order
LR094263 MAIN BODY HARNESS $7,378.60 To Order
Photo Part No Description Price (each) Stock
LR041091 BOX - FUSES AND RELAYS $214.72 To Order
Photo Part No Description Price (each) Stock
LR078500 BRACKET - FUSE BOX $107.93 To Order
Photo Part No Description Price (each) Stock
LR024566 CAP - PROTECTIVE $3.25 To Order
View All

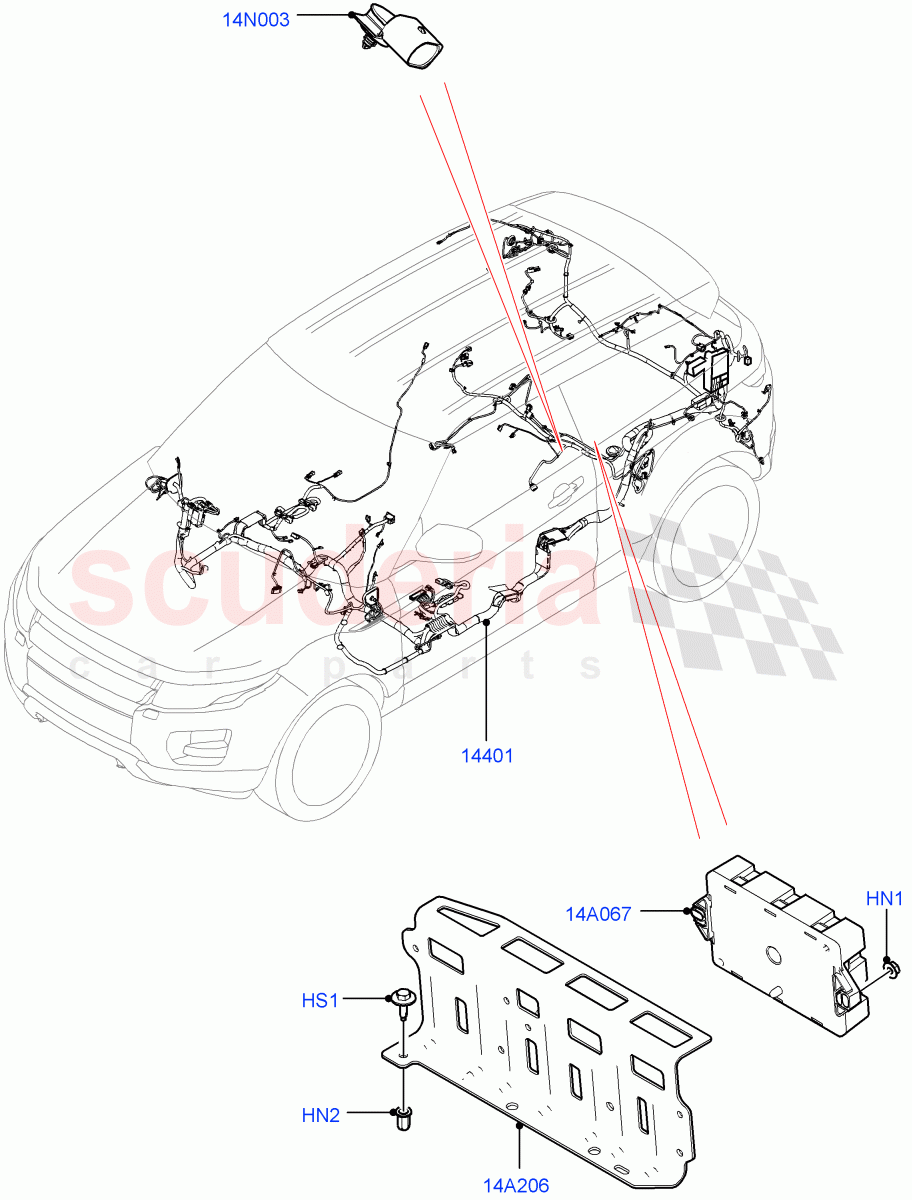

Electrical Wiring - Engine And Dash (Main Harness) (Halewood (UK)) ((V) FROMGH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: GH000001
IN STOCK 		$1.47 2
HN2 LR000060
NUT - SPECIAL
M6, Plastic Nut / From: GH000001 		$0.52 1
HS1 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex / From: GH000001
IN STOCK 		$1.39 3
14A067 LR041091
BOX - FUSES AND RELAYS
From: GH000001 		$214.72 1
14A206 LR078500
BRACKET - FUSE BOX
For Fusebox / From: GH000001 		$107.93 1
14N003 LR024566
CAP - PROTECTIVE
6 Speed Manual Trans-JLR M66 2WD / Spare Haldex Connector Cap / From: GH000001 		$3.25 1
14401 LR074634
MAIN BODY HARNESS
Requires VIN To Order / KSK harness / From: GH000001 / To: GH999999 		$3,850.62 1
14401 LR084932
MAIN BODY HARNESS
Requires VIN To Order / KSK harness / From: HH000001 / To: HH999999 		$7,255.22 1
14401 LR094263
MAIN BODY HARNESS
Requires VIN To Order / KSK harness / From: JH000001 		$7,378.60 1
