Rear Lamps (Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Rear Lamps (Changsu (China)) ((V) FROMEG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000081 CLIP - RETAINING $0.64 To Order
Photo Part No Description Price (each) Stock
RYH500950 NUT - ADJUSTING $1.22 To Order
Photo Part No Description Price (each) Stock
LR001598 SCREW $0.64 To Order
Photo Part No Description Price (each) Stock
LR025837 LAMP - LICENCE PLATE $149.01 To Order
Photo Part No Description Price (each) Stock
LR035132 DECAL - WELD COVER (RH) $14.27 To Order
LR035133 DECAL - WELD COVER (LH) $14.02 To Order
Photo Part No Description Price (each) Stock
LR025150 BULB - FLASHER LAMP $74.24 IN STOCK
Photo Part No Description Price (each) Stock
LR000699 BULB - WARNING LAMP $6.41 To Order
Photo Part No Description Price (each) Stock
LR044460 BULB - FLASHER LAMP $46.16 To Order
LR095530 BULB - FLASHER LAMP $44.86 To Order
Photo Part No Description Price (each) Stock
LR045241 LAMP - REAR - HIGH MOUNTED $159.70 To Order
LR085686 LAMP - REAR - HIGH MOUNTED $155.62 To Order
Photo Part No Description Price (each) Stock
LR058816 LAMP - REAR- STOP AND FLASHER $353.45 To Order
LR058817 LAMP - REAR- STOP AND FLASHER $371.14 To Order
LR074796 LAMP - REAR- STOP AND FLASHER $386.13 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR025148 LAMP - FOG - REAR $126.13 To Order
LR025149 LAMP - FOG - REAR $115.39 To Order
LR088531 LAMP - FOG - REAR $117.73 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR028097 WIRING - TAILGATE $118.06 To Order
Photo Part No Description Price (each) Stock
LR038065 COVER - LAMP ACCESS $17.68 To Order
LR038064 COVER - LAMP ACCESS $20.42 To Order
Photo Part No Description Price (each) Stock
LR035129 STRIP - PROTECTIVE $2.63 To Order
LR072677 FILM - PAINT PROTECTIVE $2.54 To Order
View All

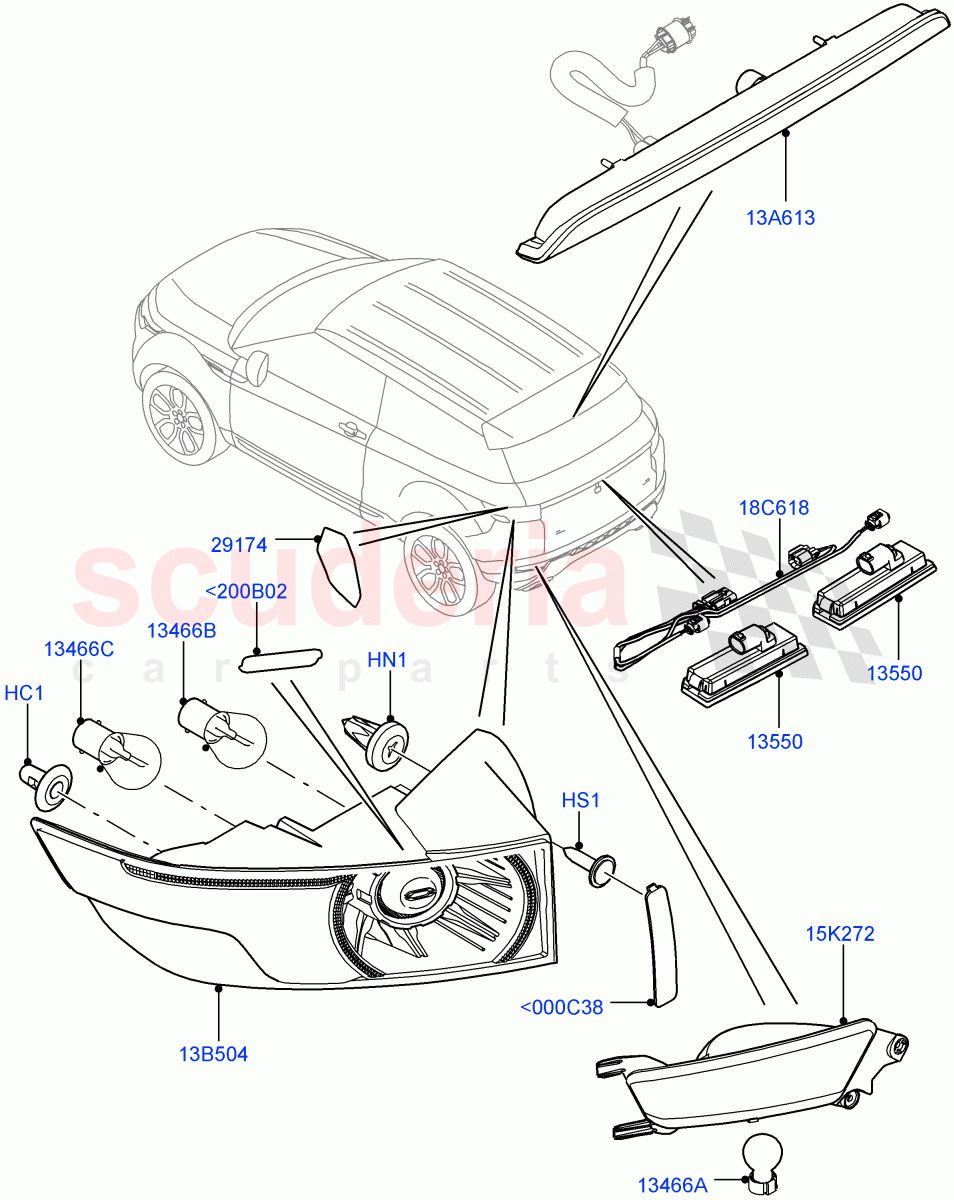

Rear Lamps (Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<000C38 LR038065
COVER - LAMP ACCESS
RH / From: EG000001 		$17.68 1
<000C38 LR038064
COVER - LAMP ACCESS
LH / From: EG000001 		$20.42 1
<200B02 LR035129
STRIP - PROTECTIVE
From: EG000001 / To: FG109947 		$2.63 2
<200B02 LR072677
FILM - PAINT PROTECTIVE
From: FG109948 		$2.54 2
HC1 LR000081
CLIP - RETAINING
M8 x 1.0MM / From: EG000001 		$0.64 2
HN1 RYH500950
NUT - ADJUSTING
4.8 X 8 X 8 X 0.7, Expanding Rivet, Includes Seal / From: EG000001 		$1.22 4
HS1 LR001598
SCREW
4.8 X 19MM, Torx / From: EG000001 		$0.64 4
13A613 LR045241
LAMP - REAR - HIGH MOUNTED
From: EG000001 / To: GG134737 		$159.70 1
13A613 LR085686
LAMP - REAR - HIGH MOUNTED
From: GG134738 		$155.62 1
13B504 LR058816
LAMP - REAR- STOP AND FLASHER
Clear Glass Front Lamp Lens / RH / From: EG000001 / To: FG113151 		$353.45 1
13B504 LR058817
LAMP - REAR- STOP AND FLASHER
Clear Glass Front Lamp Lens / LH / From: EG000001 / To: FG112075 		$371.14 1
13B504 LR074796
LAMP - REAR- STOP AND FLASHER
Clear Glass Front Lamp Lens / RH / From: FG113152 / To: GG134737 		$386.13 1
13B504 LR074813
LAMP - REAR- STOP AND FLASHER
Clear Glass Front Lamp Lens / LH / From: FG112076 / To: GG134737 		$386.13 1
13B504 LR072648
LAMP - REAR- STOP AND FLASHER
Clear Glass Front Lamp Lens / RH / From: GG134738 		$449.67 1
13B504 LR072649
LAMP - REAR
Clear Glass Front Lamp Lens / LH / From: GG134738 		$442.40 1
13B504 LR077961
LAMP - REAR- STOP AND FLASHER
Smoked Glass Front Lamp Lens / RH / From: GG134738 / To: HG161787 		$445.48 1
13B504 LR077965
LAMP - REAR- STOP AND FLASHER
Smoked Glass Front Lamp Lens / LH / From: GG134738 / To: HG161787 		$433.12 1
13B504 LR116203
LAMP - REAR- STOP AND FLASHER
Smoked Glass Front Lamp Lens / RH / From: HG161788 		$456.35 1
13B504 LR116208
LAMP - REAR- STOP AND FLASHER
Smoked Glass Front Lamp Lens / LH / From: HG161788 		$456.35 1
15K272 LR025148
LAMP - FOG - REAR
RH / From: EG000001 / To: GG138561 		$126.13 1
15K272 LR025149
LAMP - FOG - REAR
LH / From: EG000001 / To: GG138561 		$115.39 1
15K272 LR088531
LAMP - FOG - REAR
RH / From: GG138562 		$117.73 1
15K272 LR088532
LAMP - FOG - REAR
LH / From: GG138562 		$117.73 1
18C618 LR028097
WIRING - TAILGATE
From: EG000001 		$118.06 1
13466A LR025150
BULB - FLASHER LAMP
For Fog Lamps / From: EG000001
IN STOCK 		$74.24 2
13466B LR000699
BULB - WARNING LAMP
12V 16W, Clear, Reverse / From: EG000001 		$6.41 2
13466C LR044460
BULB - FLASHER LAMP
Indicator Bulb, PSY24W / From: EG000001 / To: HG161787 		$46.16 1
13466C LR095530
BULB - FLASHER LAMP
Indicator Bulb, PSY24W / From: HG161788 		$44.86 1
13550 LR025837
LAMP - LICENCE PLATE
Need To Be Replaced In Pairs / From: EG000001 		$149.01 2
29174 LR035132
DECAL - WELD COVER (RH)
RH / From: EG000001 		$14.27 1
29174 LR035133
DECAL - WELD COVER (LH)
LH / From: EG000001 		$14.02 1
