Headlamps And Front Flasher Lamps (Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Headlamps And Front Flasher Lamps (Changsu (China)) ((V) FROMEG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR006025 BOLT $1.38 IN STOCK
Photo Part No Description Price (each) Stock
LR048047 HEADLAMP AND FLASHER $1,534.08 To Order
LR048049 HEADLAMP AND FLASHER $1,714.57 To Order
LR048056 HEADLAMP AND FLASHER $1,534.08 To Order
...and 17 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR048351 LAMP - EXTERIOR MIRROR $83.22 IN STOCK
LR048352 LAMP - EXTERIOR MIRROR $83.22 IN STOCK
Photo Part No Description Price (each) Stock
LR044460 BULB - FLASHER LAMP $46.16 To Order
LR095530 BULB - FLASHER LAMP $44.86 To Order
Photo Part No Description Price (each) Stock
LR025160 CAP - SCREW $0.99 To Order
Photo Part No Description Price (each) Stock
LR025751 BRACKET - HEADLAMP MOUNTING $7.55 To Order
Photo Part No Description Price (each) Stock
LR025157 BALLAST - HEADLAMP $330.61 To Order
LR082270 BALLAST - HEADLAMP $384.36 To Order
Photo Part No Description Price (each) Stock
LR025156 COVER - BULB $19.87 To Order
Photo Part No Description Price (each) Stock
LR025753 HOLDER - BULB $21.99 To Order
Photo Part No Description Price (each) Stock
LR025744 PLATE - HEADLAMP MOUNTING $53.87 To Order
LR044484 PLATE - HEADLAMP MOUNTING $56.97 To Order
Photo Part No Description Price (each) Stock
LR025749 PLUNGER - HEADLAMP $18.79 To Order
Photo Part No Description Price (each) Stock
LR009163 BULB - HEADLAMP MAIN BEAM $142.54 IN STOCK
Photo Part No Description Price (each) Stock
LR044458 BULB $35.72 To Order
View All

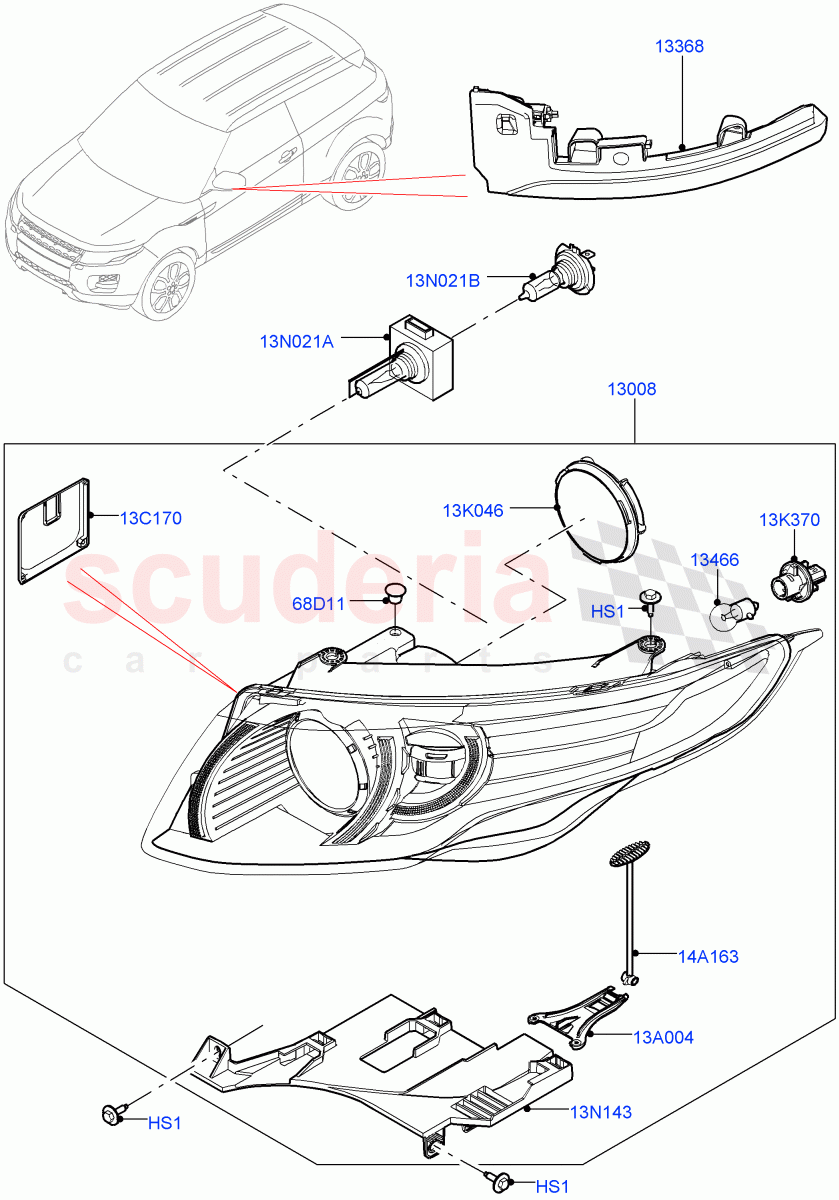

Headlamps And Front Flasher Lamps (Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex / From: EG000001
IN STOCK 		$1.38 8
13A004 LR025751
BRACKET - HEADLAMP MOUNTING
RH/LH / From: EG000001 		$7.55 2
13C170 LR025157
BALLAST - HEADLAMP
With BI - Xenon Headlamps / From: EG000001 / To: GG134737 		$330.61 1
13C170 LR082270
BALLAST - HEADLAMP
With BI - Xenon Headlamps / From: GG134738 		$384.36 1
13K046 LR025156
COVER - BULB
From: EG000001 		$19.87 1
13K370 LR025753
HOLDER - BULB
From: EG000001 		$21.99 1
13N021A LR009163
BULB - HEADLAMP MAIN BEAM
With Adaptive Headlamps Bi Xenon / D3S, High Intensity Discharge, With Ignitor / From: EG000001
IN STOCK 		$142.54 1
13N021B LR044458
BULB
With Halogen Headlamp / From: EG000001 / To: GG134738 		$35.72 2
13N143 LR025744
PLATE - HEADLAMP MOUNTING
RH / From: EG000001 		$53.87 1
13N143 LR044484
PLATE - HEADLAMP MOUNTING
LH / From: EG000001 		$56.97 1
14A163 LR025749
PLUNGER - HEADLAMP
RH/LH / From: EG000001 		$18.79 2
68D11 LR025160
CAP - SCREW
From: EG000001 		$0.99 2
13008 LR048047
HEADLAMP AND FLASHER
With BI - Xenon Headlamps / RH / From: EG000001 / To: GG134737 		$1,534.08 1
13008 LR048049
HEADLAMP AND FLASHER
With Adaptive Headlamps Bi Xenon / RH / From: EG000001 / To: GG134737 		$1,714.57 1
13008 LR048056
HEADLAMP AND FLASHER
With BI - Xenon Headlamps / LH / From: EG000001 / To: GG134737 		$1,534.08 1
13008 LR048058
HEADLAMP AND FLASHER
With Adaptive Headlamps Bi Xenon / LH / From: EG000001 / To: GG134737 		$1,714.57 1
13008 LR083552
HEADLAMP AND FLASHER
Clear Glass Front Lamp Lens, With BI - Xenon Headlamps / RH / From: GG134738 / To: GG138270 		$1,534.08 1
13008 LR084160
HEADLAMP AND FLASHER
Clear Glass Front Lamp Lens, With BI - Xenon Headlamps / LH / From: GG134738 / To: GG146040 		$1,534.08 1
13008 LR043656
Headlamp
Smoked Glass Front Lamp Lens, With Adaptive Headlamps Bi Xenon / LH / From: EG000001 / To: GG134737 		$2,075.54 1
13008 LR077380
HEADLAMP AND FLASHER
Smoked Glass Front Lamp Lens, With Adaptive Headlamps Bi Xenon / RH / From: EG000001 / To: GG134737 		$2,075.54 1
13008 LR077946
HEADLAMP AND FLASHER
Adaptive Led Headlamps, Smoked Glass Front Lamp Lens / RH / From: GG134738 / To: GG135269 		$2,337.20 1
13008 LR077952
HEADLAMP AND FLASHER
Adaptive Led Headlamps, Smoked Glass Front Lamp Lens / LH / From: GG134738 / To: GG135269 		$2,337.20 1
13008 LR083554
HEADLAMP AND FLASHER
Adaptive Led Headlamps, Clear Glass Front Lamp Lens / RH / From: GG134738 / To: GG135177 		$2,256.00 1
13008 LR084162
HEADLAMP AND FLASHER
Adaptive Led Headlamps, Clear Glass Front Lamp Lens / LH / From: GG134738 / To: GG135177 		$2,256.00 1
13008 LR084569
HEADLAMP AND FLASHER
Adaptive Led Headlamps, Clear Glass Front Lamp Lens / LH / From: GG135178 		$2,240.32 1
13008 LR084572
HEADLAMP AND FLASHER
Adaptive Led Headlamps, Clear Glass Front Lamp Lens / RH / From: GG135178 / To: HG161788 		$2,256.00 1
13008 LR084684
HEADLAMP AND FLASHER
Adaptive Led Headlamps, Smoked Glass Front Lamp Lens / RH / From: GG135270 / To: HG161787 		$2,074.48 1
13008 LR084690
HEADLAMP AND FLASHER
Adaptive Led Headlamps, Smoked Glass Front Lamp Lens / LH / From: GG135270 		$2,337.20 1
13008 LR084570
HEADLAMP AND FLASHER
Clear Glass Front Lamp Lens, With BI - Xenon Headlamps / RH / From: GG138271 		$1,604.08 1
13008 LR112561
HEADLAMP AND FLASHER
Adaptive Led Headlamps, Clear Glass Front Lamp Lens / RH / From: HG161789 		$2,419.56 1
13008 LR087244
HEADLAMP AND FLASHER
Clear Glass Front Lamp Lens, With BI - Xenon Headlamps / LH / From: GG146041 		$1,604.08 1
13008 LR112564
HEADLAMP AND FLASHER
Adaptive Led Headlamps, Smoked Glass Front Lamp Lens / RH / From: HG161788 		$2,419.56 1
13368 LR048351
LAMP - EXTERIOR MIRROR
RH / From: EG000001
IN STOCK 		$83.22 1
13368 LR048352
LAMP - EXTERIOR MIRROR
LH / From: EG000001
IN STOCK 		$83.22 1
13466 LR044460
BULB - FLASHER LAMP
Indicator Bulb, PSY24W / From: EG000001 / To: HG161787 		$46.16 1
13466 LR095530
BULB - FLASHER LAMP
Indicator Bulb, PSY24W / From: HG161788 		$44.86 1
