Front Axle Case ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] - Front Axle Case ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
KYG000230 BOLT $3.23 IN STOCK
Photo Part No Description Price (each) Stock
FC114206 BOLT $8.25 IN STOCK
Photo Part No Description Price (each) Stock
KYG000240 BOLT $9.73 To Order
Photo Part No Description Price (each) Stock
FY110056 NUT $4.36 IN STOCK
Photo Part No Description Price (each) Stock
TYP500090 SCREW $12.73 To Order
Photo Part No Description Price (each) Stock
TYP500100 SCREW $1.18 IN STOCK
Photo Part No Description Price (each) Stock
TAU500080 SUPPORT $153.87 To Order
Photo Part No Description Price (each) Stock
FTC5431 PLUG - OIL DRAIN $12.11 To Order
Photo Part No Description Price (each) Stock
LR019450 VALVE - VENT $21.60 To Order
Photo Part No Description Price (each) Stock
TAG500140 DIFFERENTIAL - FRONT $3,684.20 To Order
LR029569 DIFFERENTIAL - FRONT $2,668.59 To Order
LR055520 DIFFERENTIAL - FRONT $3,561.32 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR158113 SEAL - OIL $23.03 To Order
Photo Part No Description Price (each) Stock
TYX500040 SEAL $12.37 To Order
Photo Part No Description Price (each) Stock
TYB500060 PLUG - FILLER $3.49 To Order
Photo Part No Description Price (each) Stock
TAU500070 BRACKET $102.39 To Order
Photo Part No Description Price (each) Stock
LR028144 HOSE - VENT $86.70 To Order
Photo Part No Description Price (each) Stock
TAP500130 HOSE - VENT $30.10 To Order
Photo Part No Description Price (each) Stock
KQB000152 INSULATOR - DIFFERENTIAL $16.11 To Order
Photo Part No Description Price (each) Stock
KQB000133 INSULATOR - DIFFERENTIAL $134.71 To Order
Photo Part No Description Price (each) Stock
KQB500151 INSULATOR - DIFFERENTIAL $142.18 To Order
Photo Part No Description Price (each) Stock
LR019019 SEAL - SPECIAL $19.26 To Order
View All

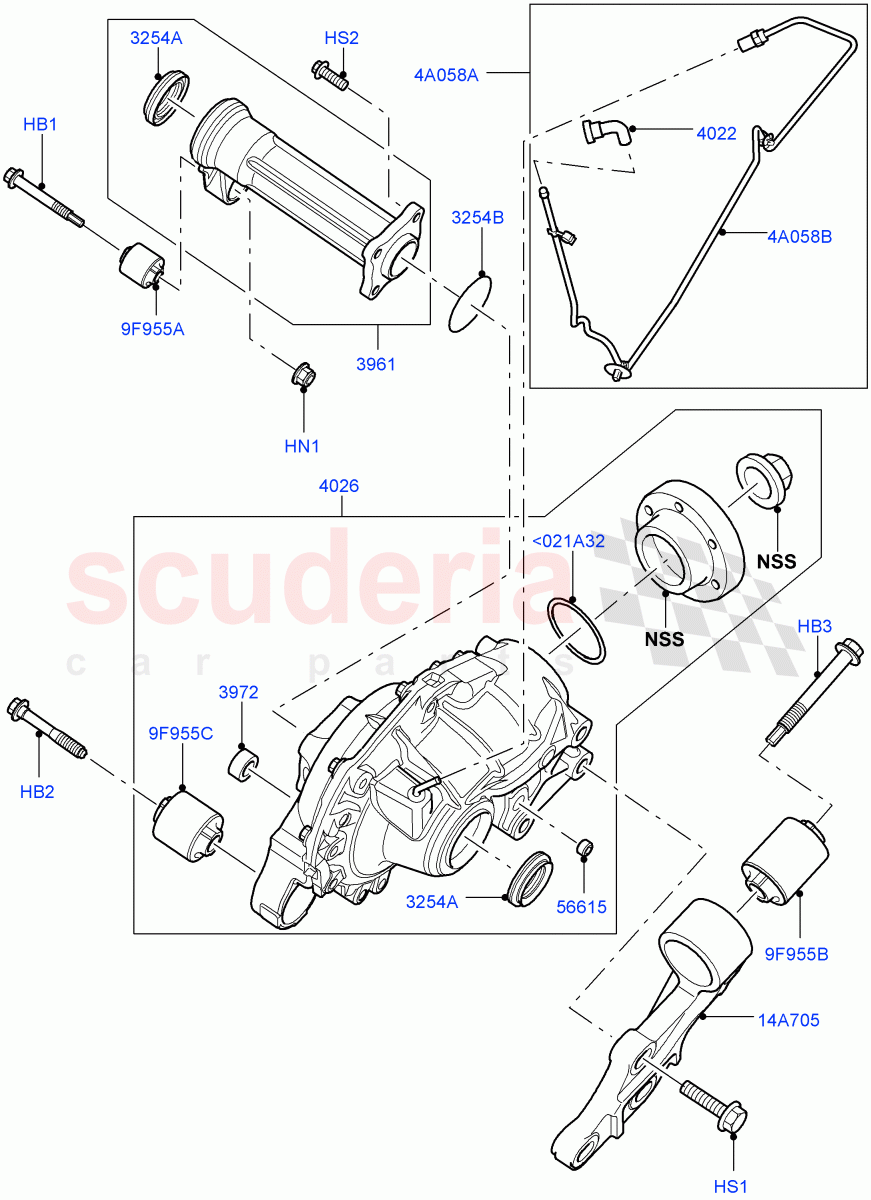

Front Axle Case ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [5.0 OHC SGDI NA V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 LR019019
SEAL - SPECIAL
From: AA000001 		$19.26 1
HB1 KYG000230
BOLT
Hexagonal Head, M10 x 70MM / From: AA000001
IN STOCK 		$3.23 1
HB2 FC114206
BOLT
Hexagonal Head, M14 x 100MM / From: AA000001
IN STOCK 		$8.25 2
HB3 KYG000240
BOLT
M16 X 120MM / From: AA000001 		$9.73 2
HN1 FY110056
NUT
M10 / From: AA000001
IN STOCK 		$4.36 1
HS1 TYP500090
SCREW
Hexagonal Head, M14 x 50MM / From: AA000001 		$12.73 3
HS2 TYP500100
SCREW
Hexagonal Head, M10 X 30MM / From: AA000001
IN STOCK 		$1.18 4
4A058A LR028144
HOSE - VENT
Breather, Required When Re-Fitting Axle/Drive Unit / From: BA573099 		$86.70 1
4A058B TAP500130
HOSE - VENT
Breather, Required When Re-Fitting Axle/Drive Unit / From: AA000001 / To: BA573098 		$30.10 1
9F955A KQB000152
INSULATOR - DIFFERENTIAL
From: AA000001 		$16.11 1
9F955B KQB000133
INSULATOR - DIFFERENTIAL
From: AA000001 		$134.71 1
9F955C KQB500151
INSULATOR - DIFFERENTIAL 		$142.18 2
14A705 TAU500070
BRACKET
From: AA000001 		$102.39 1
3254A LR158113
SEAL - OIL
Driveshaft / From: AA000001 		$23.03 2
3254B TYX500040
SEAL
From: AA000001 		$12.37 1
3961 TAU500080
SUPPORT
From: AA000001 		$153.87 1
3972 FTC5431
PLUG - OIL DRAIN
From: AA000001 		$12.11 1
4022 LR019450
VALVE - VENT
From: AA000001 		$21.60 1
4026 TAG500140
DIFFERENTIAL - FRONT
Automatic Transmission, Lion Diesel 2.7 V6 (140KW) / Also Order Breather Hose In Addition To This Item, New Part-Please Check For Reman Version / From: AA000001 / To: DA690511 		$3,684.20 1
4026 LR029569
DIFFERENTIAL - FRONT
3.0 V6 Diesel, 8 Speed Auto Trans ZF 8HP70 4WD / Also Order Breather Hose In Addition To This Item / From: CA000001 / To: DA690511 		$2,668.59 1
4026 LR055520
DIFFERENTIAL - FRONT
3.0 V6 Diesel, 8 Speed Auto Trans ZF 8HP70 4WD / Also Order Breather Hose In Addition To This Item, New Part-Please Check For Reman Version / From: DA690512 		$3,561.32 1
4026 LR006011
FRONT - AXLE ASSY
Automatic Transmission, Lion Diesel 2.7 V6 (140KW) / Also Order Breather Hose In Addition To This Item, Remanufactured Part / From: AA000001 		$968.61 1
4026 LR009478
AXLE ASSEMBLY FRONT
Automatic Transmission, Cologne V6 4.0 EFI (SOHC) / Also Order Breather Hose In Addition To This Item, Remanufactured Part / From: AA000001 		$987.78 1
4026 TAG500150
AXLE - FRONT
6 Speed Man ZF S6-53, Lion Diesel 2.7 V6 (140KW) / Also Order Breather Hose In Addition To This Item, New Part-Please Check For Reman Version / From: AA000001 		$4,323.13 1
4026 LR009477
AXLE - FRONT
6 Speed Man ZF S6-53, Lion Diesel 2.7 V6 (140KW) / Also Order Breather Hose In Addition To This Item, Remanufactured Part / From: AA000001 		$987.78 1
4026 LR056944
DIFFERENTIAL - FRONT
Automatic Transmission, Lion Diesel 2.7 V6 (140KW) / Also Order Breather Hose In Addition To This Item / From: DA690512 		$3,580.34 1
4026 LR055677
DIFFERENTIAL - FRONT
Automatic Transmission, Cologne V6 4.0 EFI (SOHC) / Also Order Breather Hose In Addition To This Item, New Part-Please Check For Reman Version / From: DA694276 		$3,776.33 1
4026 TAG500160
DIFFERENTIAL - FRONT
Automatic Transmission, Cologne V6 4.0 EFI (SOHC) / Also Order Breather Hose In Addition To This Item, New Part-Please Check For Reman Version / From: AA000001 / To: DA694275 		$3,776.33 1
4026 LR050893
AXLE - FRONT
3.0L DOHC GDI SC V6 PETROL / Also Order Breather Hose In Addition To This Item / From: EA000001 		$4,183.04 1
4026 LR124950
DIFFERENTIAL - FRONT
3.0 V6 Diesel, 8 Speed Auto Trans ZF 8HP70 4WD / Also Order Breather Hose In Addition To This Item, Remanufactured Part / From: DA690512 		$2,200.48 1
56615 TYB500060
PLUG - FILLER
Filler Plug / From: AA000001 		$3.49 1
