Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Turbocharger (RH Side - Secondary) (3.0 V6 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB106116 BOLT - HEX.HEAD $0.99 To Order
Photo Part No Description Price (each) Stock
1419376 BOLT $2.57 To Order
Photo Part No Description Price (each) Stock
LR000628 BOLT $4.61 To Order
Photo Part No Description Price (each) Stock
LR014200 BOLT - HEX.HEAD $1.09 To Order
LR105437 BOLT - HEX.HEAD $0.87 To Order
Photo Part No Description Price (each) Stock
LR106277 NUT - HEX. - FLANGED $2.17 IN STOCK
Photo Part No Description Price (each) Stock
FS108126 SCREW $1.36 IN STOCK
Photo Part No Description Price (each) Stock
RYP500960 SCREW $0.57 To Order
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
LR013236 GASKET - EXHAUST MANIFOLD $44.14 To Order
LR084664 GASKET - EXHAUST MANIFOLD $62.11 To Order
Photo Part No Description Price (each) Stock
LR044555 PLUG - BLANKING $90.28 To Order
Photo Part No Description Price (each) Stock
LR020589 SEAL - TURBINE SHUT OFF VALVE $59.76 To Order
Photo Part No Description Price (each) Stock
LR013205 TURBOCHARGER $2,978.70 To Order
LR021254 TURBOCHARGER $3,217.01 To Order
LR032370 TURBOCHARGER $3,345.71 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR014229 HOSE - VACUUM $73.05 To Order
LR026382 HOSE - VACUUM $100.31 To Order
Photo Part No Description Price (each) Stock
LR013808 HOSE $145.40 To Order
LR026218 HOSE $135.28 To Order
Photo Part No Description Price (each) Stock
LR033284 KIT - ACTUATOR SHUT OFF VALVE $120.21 To Order
Photo Part No Description Price (each) Stock
LR017426 VALVE-AIR SHUT-OFF & RECIRCULATION $847.59 To Order
LR023415 VALVE-AIR SHUT-OFF & RECIRCULATION $600.79 To Order
LR031464 VALVE-AIR SHUT-OFF & RECIRCULATION $857.63 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR023511 KIT - TURBINE SHUT OFF VALVE $997.91 To Order
LR020588 KIT - VALVE $738.10 To Order
LR066430 KIT - TURBINE SHUT OFF VALVE $813.47 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013611 HOSE - OIL RETURN $94.42 To Order
Photo Part No Description Price (each) Stock
LR044556 HOSE - OIL RETURN $61.94 To Order
LR087351 HOSE - OIL RETURN $57.94 IN STOCK
Photo Part No Description Price (each) Stock
LR013234 GASKET - OIL TUBE $9.81 To Order
Photo Part No Description Price (each) Stock
LR013235 GASKET - OIL RETURN HOSE $5.18 To Order
Photo Part No Description Price (each) Stock
LR014335 BRACKET - SUPPORT - SHUT OFF VALVE $27.72 To Order
Photo Part No Description Price (each) Stock
LR047785 Bracket - Support Enquire To Order
LR013485 BRACKET - TURBOCHARGER $21.55 To Order
LR050528 BRACKET - TURBOCHARGER $48.27 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR013613 HEAT SHIELD - EXHAUST MANIFOLD $52.39 To Order
Photo Part No Description Price (each) Stock
LR013602 HEAT SHIELD - TURBOCHARGER $29.67 To Order
View All

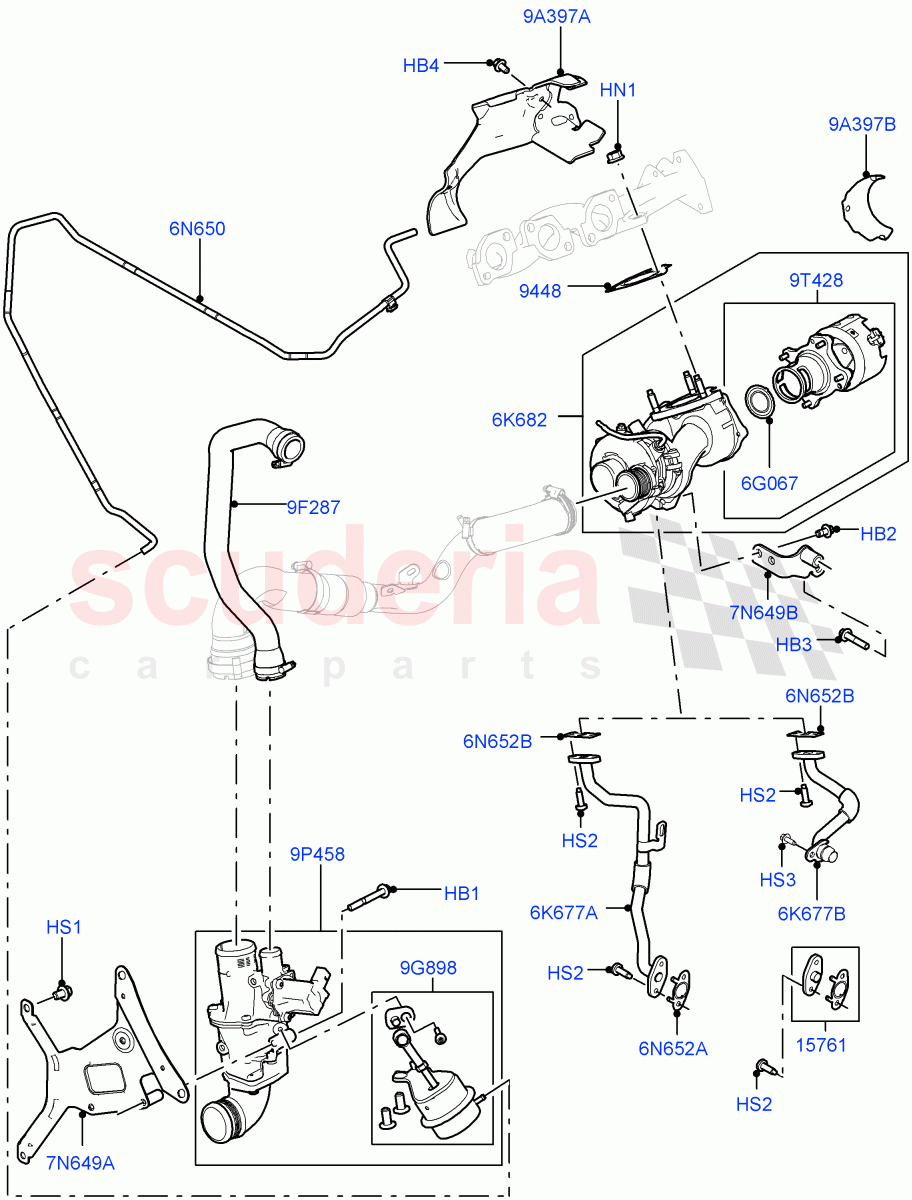

Turbocharger (RH Side - Secondary) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB106116
BOLT - HEX.HEAD
M6 x 55MM, Valve Assembly / From: AA000001 		$0.99 3
HB2 1419376
BOLT
Bracket, Hexagonal Head, M8 X 16MM, Turbocharger Assembly / From: AA000001 		$2.57 3
HB3 LR000628
BOLT
Bracket, Hexagonal Head, M8 x 40MM, Turbocharger Assembly / From: AA000001 		$4.61 1
HB4 LR014200
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 X 10MM / From: AA000001 / To: GA845750 		$1.09 3
HB4 LR105437
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 X 8MM / From: GA845751 		$0.87 3
HN1 LR106277
NUT - HEX. - FLANGED
M8, Turbocharger Inlet / From: AA000001
IN STOCK 		$2.17 3
HS1 FS108126
SCREW
M8 x 12MM, Support Bracket / From: AA000001
IN STOCK 		$1.36 4
HS2 RYP500960
SCREW
M6 X 16MM, Oil Pan, Torx / From: AA000001 		$0.57 2
HS3 RYG500160
SCREW
Cylinder Block, Hexagonal Head, M6 X 14MM / From: AA000001 		$0.63 1
6G067 LR020589
SEAL - TURBINE SHUT OFF VALVE
Repair Kit, Turbine Shut Off Valve / From: AA000001 		$59.76 1
6K677A LR013611
HOSE - OIL RETURN
Catalogue Introduction VIN Does Not Reflect The Actual Timing - Please Refer To Engine Serial Number, For Engine Serial Number Earlier Than ELD11 050613 0753185 - ELD11 DD/MM/YY Serial / From: AA000001 		$94.42 1
6K677B LR044556
HOSE - OIL RETURN
Catalogue Introduction VIN Does Not Reflect The Actual Timing - Please Refer To Engine Serial Number, For Engine Serial Number Later Than ELD11 050613 0753185 - ELD11 DD/MM/YY Serial / From: AA000001 / To: GA817307 		$61.94 1
6K677B LR087351
HOSE - OIL RETURN
From: GA817308
IN STOCK 		$57.94 1
6K682 LR013205
TURBOCHARGER
RH, New Part-Please Check For Reman Version, Secondary / From: AA000001 / To: AA537584 		$2,978.70 1
6K682 LR021254
TURBOCHARGER
RH, New Part-Please Check For Reman Version, Secondary / From: AA537585 / To: CA599605 		$3,217.01 1
6K682 LR032370
TURBOCHARGER
RH, New Part-Please Check For Reman Version, Secondary / From: CA599606 / To: CA641958 		$3,345.71 1
6K682 LR038620
TURBOCHARGER
RH, New Part-Please Check For Reman Version, Secondary / From: CA641959 / To: DA999999 		$2,798.77 1
6K682 LR056370
TURBOCHARGER
RH, New Part-Please Check For Reman Version, Secondary / From: EA000001 / To: EA720958 		$2,833.07 1
6K682 LR063777
TURBOCHARGER
3.0L 24V V6 Turbo Diesel Std Flow / RH, New Part-Please Check For Reman Version, Secondary / From: EA720959 / To: GA814485 		$2,282.63 1
6K682 LR062000
TURBOCHARGER
3.0 V6 D Gen2 Twin Turbo / RH, Secondary / From: GA000001 / To: GA794900 		$3,041.10 1
6K682 LR092675
TURBOCHARGER
3.0 V6 D Gen2 Twin Turbo / RH, Secondary / From: GA794901 		$2,802.45 1
6K682 LR128704
TURBOCHARGER
3.0L 24V V6 Turbo Diesel Std Flow / RH, New Part-Please Check For Reman Version, Secondary / From: GA814486 		$2,897.56 1
6K682 LR082293
TURBOCHARGER
3.0L 24V DOHC V6 TC Diesel / RH, Remanufactured Part, Secondary / From: AA000001 		$1,833.36 1
6N650 LR014229
HOSE - VACUUM
To Vacuum / From: AA000001 / To: BA553135 		$73.05 1
6N650 LR026382
HOSE - VACUUM
To Vacuum / From: BA553136 		$100.31 1
6N652A LR013234
GASKET - OIL TUBE
For Engine Serial Number Earlier Than ELD11 050613 0753185 - ELD11 DD/MM/YY Serial, Lower, Tube - Oil Return / From: AA000001 		$9.81 1
6N652B LR013235
GASKET - OIL RETURN HOSE
Gasket - Turbocharger Oil Return Hose, Upper / From: AA000001 		$5.18 1
7N649A LR014335
BRACKET - SUPPORT - SHUT OFF VALVE
Valve Assembly / From: AA000001 		$27.72 1
7N649B LR047785
Bracket - Support
Turbocharger / From: DA000001 / To: DA681328 		- 1 Enquire
7N649B LR013485
BRACKET - TURBOCHARGER
Turbocharger / From: AA000001 / To: CA999999 		$21.55 1
7N649B LR050528
BRACKET - TURBOCHARGER
Turbocharger / From: DA681329 / To: EA720133 		$48.27 1
7N649B LR063745
BRACKET - TURBOCHARGER
Turbocharger / From: EA720134 		$16.29 1
9A397A LR013613
HEAT SHIELD - EXHAUST MANIFOLD
RH, Exhaust Manifold / From: AA000001 		$52.39 1
9A397B LR013602
HEAT SHIELD - TURBOCHARGER
RH, Turbocharger / From: AA000001 		$29.67 1
9F287 LR013808
HOSE
Compressed Air Recirculation, From Valve To Air Inlet Hose / From: AA000001 / To: BA556503 		$145.40 1
9F287 LR026218
HOSE
Compressed Air Recirculation, From Valve To Air Inlet Hose / From: BA556504 		$135.28 1
9G898 LR033284
KIT - ACTUATOR SHUT OFF VALVE
Compressed Air Recirculation And Shut Off Valve / From: AA000001 		$120.21 1
9P458 LR017426
VALVE-AIR SHUT-OFF & RECIRCULATION
Compressed Air Recirculation, Shut Off Valve / From: AA000001 / To: AA534733 		$847.59 1
9P458 LR023415
VALVE-AIR SHUT-OFF & RECIRCULATION
Compressed Air Recirculation, Shut Off Valve / From: AA534734 / To: BA575852 		$600.79 1
9P458 LR031464
VALVE-AIR SHUT-OFF & RECIRCULATION
Compressed Air Recirculation, Shut Off Valve / From: BA575853 / To: BA588088 		$857.63 1
9P458 LR032128
VALVE-AIR SHUT-OFF & RECIRCULATION
Compressed Air Recirculation, Shut Off Valve / From: BA588089 / To: CA609384 		$706.01 1
9P458 LR038281
VALVE-AIR SHUT-OFF & RECIRCULATION
Compressed Air Recirculation, Shut Off Valve / From: CA609385 / To: CA639816 		$757.60 1
9P458 LR043939
VALVE - AIR SHUT-OFF & RECIRCULATION
Compressed Air Recirculation, Shut Off Valve / From: CA639817 		$714.71 1
9T428 LR023511
KIT - TURBINE SHUT OFF VALVE
3.0L 24V V6 Turbo Diesel Std Flow / Actuator, Seals And Fixing, Repair Kit / From: BA000001 / To: BA576451 		$997.91 1
9T428 LR020588
KIT - VALVE
Actuator, Seals And Fixing, Repair Kit / From: AA000001 / To: AA999999 		$738.10 1
9T428 LR066430
KIT - TURBINE SHUT OFF VALVE
3.0 V6 D Gen2 Twin Turbo / Actuator, Seals And Fixing, Repair Kit / From: GA000001 / To: GA834469 		$813.47 1
9T428 LR066431
KIT - TURBINE SHUT OFF VALVE
3.0L 24V V6 Turbo Diesel Std Flow / Actuator, Seals And Fixing, Repair Kit / From: BA576452 / To: GA814485 		$1,002.92 1
9T428 LR116634
KIT - TURBINE SHUT OFF VALVE
3.0 V6 D Gen2 Twin Turbo / Actuator, Seals And Fixing, Repair Kit / From: GA834470 		$865.33 1
9T428 LR128703
KIT - TURBINE SHUT OFF VALVE
3.0L 24V DOHC V6 TC Diesel / Actuator, Seals And Fixing, Repair Kit / From: GA814486 		$935.76 1
9448 LR013236
GASKET - EXHAUST MANIFOLD
Turbocharger / From: AA000001 / To: GA798190 		$44.14 1
9448 LR084664
GASKET - EXHAUST MANIFOLD
Turbocharger / From: GA798191 		$62.11 1
15761 LR044555
PLUG - BLANKING
Please Refer To Technical Service Bulletin LTB00487, With Gasket / From: DA676456 		$90.28 1
