Fuel Injection Pump - Diesel (Solihull Plant Build) (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Fuel Injection Pump - Diesel (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR004693 BOLT $2.41 To Order
Photo Part No Description Price (each) Stock
LR000300 BOLT $6.52 To Order
Photo Part No Description Price (each) Stock
LR013438 NUT $7.86 To Order
Photo Part No Description Price (each) Stock
4378449 SCREW $2.08 IN STOCK
Photo Part No Description Price (each) Stock
LR083612 BRACKET - FUEL PUMP $114.09 To Order
LR083612 BRACKET - FUEL PUMP $114.09 To Order
Photo Part No Description Price (each) Stock
LR023597 PUMP - FUEL INJECTION $2,049.07 To Order
LR027564 INJECTION $2,179.19 To Order
LR041034 PUMP - FUEL INJECTION $2,131.63 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR023147 SENSOR - FUEL TEMPERATURE $26.95 To Order
Photo Part No Description Price (each) Stock
LR013424 SPROCKET - FUEL PUMP DRIVE $52.30 To Order
View All

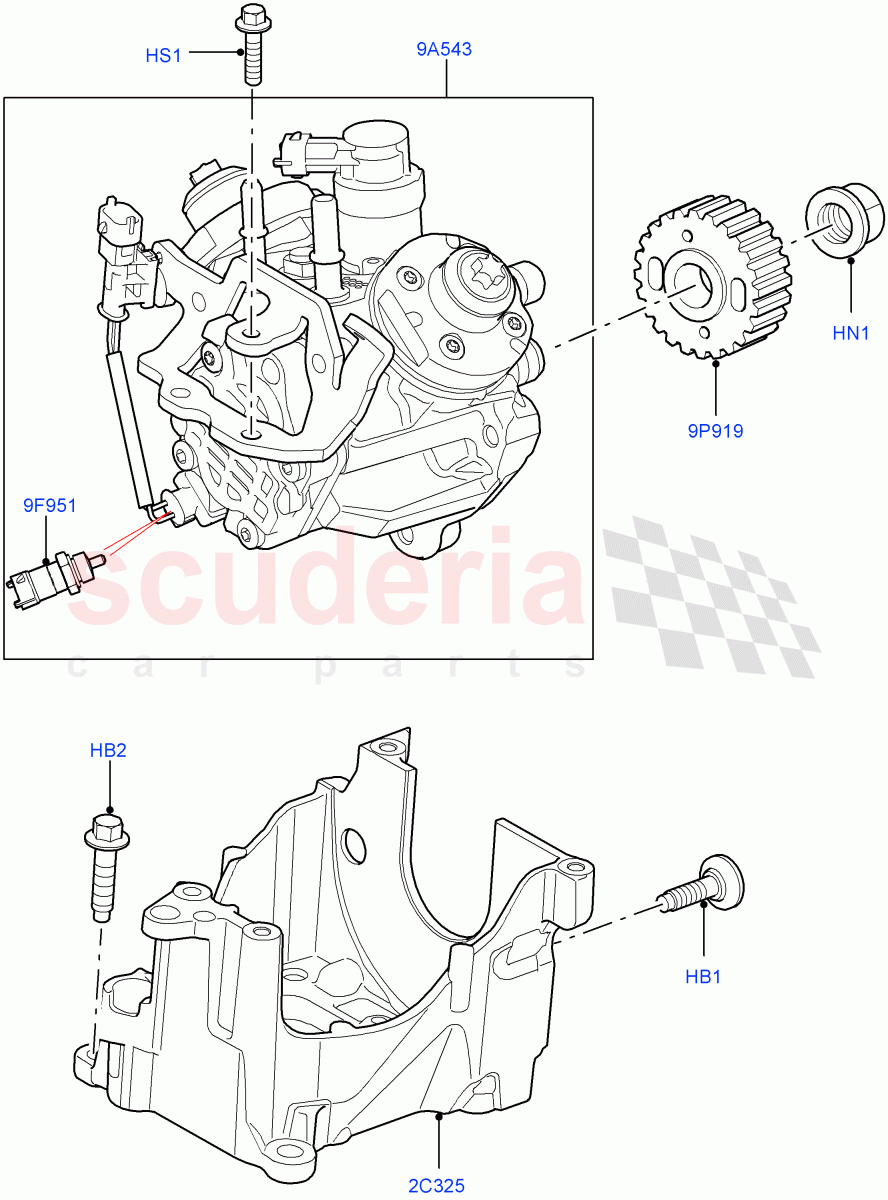

Fuel Injection Pump - Diesel (Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR004693
BOLT
For Fuel Pump, M8 X 22MM, Torx / From: AA000001 		$2.41 3
HB2 LR000300
BOLT
M8 X 30 / From: AA000001 		$6.52 4
HN1 LR013438
NUT
Fuel Pump Gear / From: AA000001 		$7.86 1
HS1 4378449
SCREW
Bracket, M6 x 25MM / From: AA000001
IN STOCK 		$2.08 5
2C325 LR083612
BRACKET - FUEL PUMP
For Fuel Pump / From: AA000001 / To: EA160773 		$114.09 1
2C325 LR083612
BRACKET - FUEL PUMP
For Fuel Pump / From: EA160774 		$114.09 1
9A543 LR023597
PUMP - FUEL INJECTION
3.0L 24V V6 Turbo Diesel Std Flow / New Part-Please Check For Reman Version / From: AA000001 / To: BA551483 		$2,049.07 1
9A543 LR027564
INJECTION
3.0L 24V DOHC V6 TC Diesel / New Part-Please Check For Reman Version / From: BA551484 / To: CA632230 		$2,179.19 1
9A543 LR041034
PUMP - FUEL INJECTION
3.0L 24V V6 Turbo Diesel Std Flow / New Part-Please Check For Reman Version / From: CA632231 / To: DA699649 		$2,131.63 1
9A543 LR058160
PUMP - FUEL INJECTION
3.0 V6 Diesel Electric Hybrid Eng / New Part-Please Check For Reman Version / From: DA699650 / To: EA710385 		$2,038.89 1
9A543 LR079958
PUMP - FUEL INJECTION
3.0 V6 D Gen2 Twin Turbo / From: GA000001 		$2,249.41 1
9A543 LR078840
PUMP - FUEL INJECTION
3.0L 24V DOHC V6 TC Diesel / New Part-Please Check For Reman Version / From: EA710386 		$2,142.30 1
9A543 LR082294
PUMP - FUEL INJECTION
3.0L 24V DOHC V6 TC Diesel / For UK and ROW markets except Russia, China, Brazil, Remanufactured Part / From: EA710386 		$1,184.41 1
9A543 LR049603
PUMP - FUEL INJECTION
3.0L 24V V6 Turbo Diesel Std Flow / For UK and ROW markets except Russia, China, Brazil, Remanufactured Part / From: CA632231 / To: DA699649 		$1,234.95 1
9F951 LR023147
SENSOR - FUEL TEMPERATURE
Fuel Temperature Sensor / From: AA000001 		$26.95 1
9P919 LR013424
SPROCKET - FUEL PUMP DRIVE
Fuel Pump Drive / From: AA000001 		$52.30 1
