Throttle Housing (Solihull Plant Build) (3.0 V6 D Low Mt Row, 3.0L 24V V6 Turbo Diesel Std Flow,...

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Throttle Housing (Solihull Plant Build) (3.0 V6 D Low MT ROW, 3.0L 24V V6 Turbo Diesel Std Flow,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR008753 SCREW $1.02 To Order
Photo Part No Description Price (each) Stock
1316035 STUD $6.93 To Order
Photo Part No Description Price (each) Stock
LR181136 TUBE $622.04 To Order
LR181136 TUBE $622.04 To Order
LR049446 THROTTLE BODY AND MOTOR $569.14 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR019130 SENSOR - MANIFOLD ABSOLUTE PRESSURE $146.93 To Order
Photo Part No Description Price (each) Stock
1316152 SEAL - THROTTLE $12.67 IN STOCK
Photo Part No Description Price (each) Stock
LR008353 SEAL - THROTTLE $8.28 IN STOCK
View All

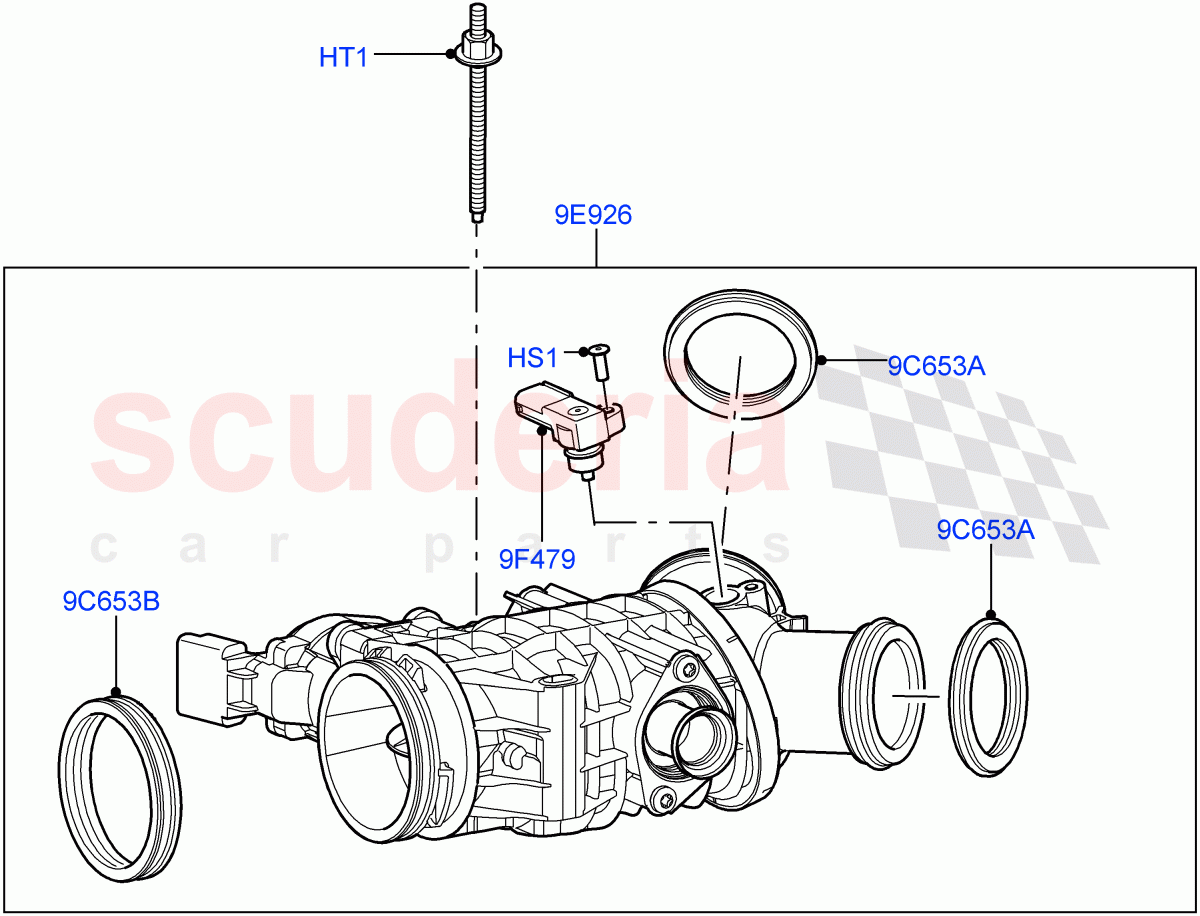

Throttle Housing (Solihull Plant Build) (3.0 V6 D Low MT ROW, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0L 24V DOHC V6 TC Diesel, 3.0 V6 Diesel Electric Hybrid Eng) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR008753
SCREW
5 X 16MM, MAP Sensor / From: AA000001 		$1.02 1
HT1 1316035
STUD
M6 X 65 + M6 X 12, Throttle / From: AA000001 		$6.93 2
9C653A 1316152
SEAL - THROTTLE
Rear / From: AA000001
IN STOCK 		$12.67 2
9C653B LR008353
SEAL - THROTTLE
Front / From: AA000001
IN STOCK 		$8.28 1
9E926 LR181136
TUBE
From: AA000001 / To: BA563072 		$622.04 1
9E926 LR181136
TUBE
From: BA563073 / To: DA662500 		$622.04 1
9E926 LR049446
THROTTLE BODY AND MOTOR
From: DA662501 / To: EA999999 		$569.14 1
9E926 LR076022
THROTTLE BODY AND MOTOR
3.0L 24V DOHC V6 TC Diesel / From: FA000001 / To: FA999999 		$623.11 1
9E926 LR079230
THROTTLE BODY AND MOTOR
3.0L 24V V6 Turbo Diesel Std Flow / From: GA000001 		$596.40 1
9F479 LR019130
SENSOR - MANIFOLD ABSOLUTE PRESSURE
Sensor - Manifold Absolute Pressure (MAP) / From: AA000001 		$146.93 1
