Name: Rear Window Wiper And Washer (Nitra Plant Build) ((V) FROMK2000001)
Rating: 4.5 (1 reviews)

View All

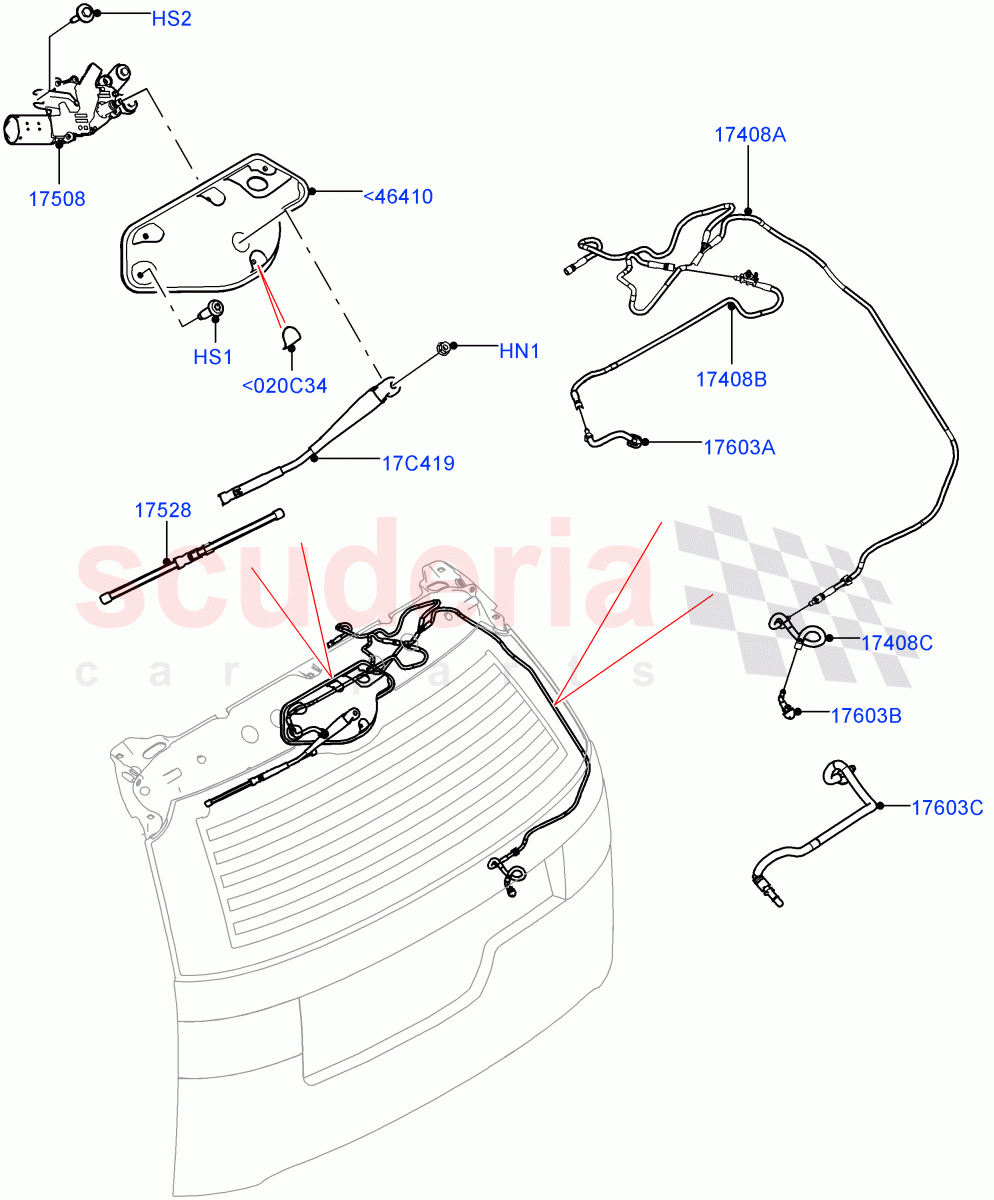

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR019197	NUT - FLANGED	$1.85	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR027974	SCREW - SELF-TAPPING	$1.29	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083128	MOTOR - WIPER	$340.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083130	BLADE - WIPER	$28.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083273	RETAINER	$26.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112046	HOSE - WINDSHIELD WASHER	$118.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084455	HOSE - WINDSHIELD WASHER	$80.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087022	HOSE - CAMERA WASHER	$87.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078293	JET	$37.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085575	JET - CAMERA WASHER	$35.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142290	JET - CAMERA WASHER	$30.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083129	ARM - WIPER	$65.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083274	COVER - TAILGATE LATCH	$5.86	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<020C34	LR083274	COVER - TAILGATE LATCH	LR083274 COVER - TAILGATE LATCH From: K2000001	$5.86	1
<46410	LR083273	RETAINER	LR083273 RETAINER Wiper Motor / From: K2000001	$26.71	1
HN1	LR019197	NUT - FLANGED IN STOCK	LR019197 NUT - FLANGED Domed Type, M8 / From: K2000001 IN STOCK	$1.85	1
HS1	LR027974	SCREW - SELF-TAPPING	LR027974 SCREW - SELF-TAPPING M6X16 / From: K2000001	$1.29	6
HS2	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: K2000001	$4.21	3
17C419	LR083129	ARM - WIPER	LR083129 ARM - WIPER From: K2000001	$65.65	1
17408A	LR112046	HOSE - WINDSHIELD WASHER	LR112046 HOSE - WINDSHIELD WASHER From: K2000001	$118.63	1
17408B	LR084455	HOSE - WINDSHIELD WASHER	LR084455 HOSE - WINDSHIELD WASHER From: K2000001	$80.05	1
17408C	LR087022	HOSE - CAMERA WASHER	LR087022 HOSE - CAMERA WASHER From: K2000001 / To: L2999999	$87.09	1
17508	LR083128	MOTOR - WIPER	LR083128 MOTOR - WIPER From: K2000001	$340.73	1
17528	LR083130	BLADE - WIPER	LR083130 BLADE - WIPER From: K2000001	$28.74	1
17603A	LR078293	JET	LR078293 JET From: K2000001	$37.57	1
17603B	LR085575	JET - CAMERA WASHER	LR085575 JET - CAMERA WASHER Surround Camera System / From: K2000001 / To: L2999999	$35.51	1
17603C	LR142290	JET - CAMERA WASHER	LR142290 JET - CAMERA WASHER 3D Surround Camera, Tailgate - Hands Free / From: M2000001	$30.67	1

Rear Window Wiper And Washer (Nitra Plant Build) ((V) Fromk2000001)

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]
