Rear Bumper (Nitra Plant Build) ((V) Fromk2000001, (V) Tol2999999)

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Rear Bumper (Nitra Plant Build) ((V) FROMK2000001, (V) TOL2999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR097372 BOLT $10.02 IN STOCK
Photo Part No Description Price (each) Stock
LR033214 BOLT $4.36 IN STOCK
Photo Part No Description Price (each) Stock
ANR2224 HARDWARE - MISCELLANEOUS $2.68 To Order
Photo Part No Description Price (each) Stock
FY114056 NUT - HEX. $1.25 IN STOCK
Photo Part No Description Price (each) Stock
LR165498 NUT - EXPANSION $0.63 IN STOCK
Photo Part No Description Price (each) Stock
KYP500320 SCREW $0.61 To Order
KYP500320 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
LR005896 RETAINER - RIVET $1.47 IN STOCK
Photo Part No Description Price (each) Stock
LR083022 BUMPER - REAR $446.41 To Order
LR083023 BUMPER - REAR $514.55 IN STOCK
LR086046 BUMPER - REAR $907.34 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR080358 REINFORCEMENT - BUMPER SECURING $155.07 To Order
LR080359 REINFORCEMENT - BUMPER SECURING $155.07 To Order
Photo Part No Description Price (each) Stock
LR012844 CLIP - RETAINING $3.68 IN STOCK
Photo Part No Description Price (each) Stock
LR116997 BRACKET - BUMPER MOUNTING $45.24 To Order
LR116998 BRACKET - BUMPER MOUNTING $45.24 To Order
Photo Part No Description Price (each) Stock
LR083042 BRACKET - BUMPER MOUNTING $18.18 To Order
LR083043 BRACKET - BUMPER MOUNTING $18.18 To Order
Photo Part No Description Price (each) Stock
LR083041 BRACKET - BUMPER MOUNTING $47.10 To Order
Photo Part No Description Price (each) Stock
LR080357 REINFORCEMENT - REAR BUMPER $200.25 To Order
Photo Part No Description Price (each) Stock
LR083024 INSERT - BUMPER $48.43 To Order
LR083026 INSERT - BUMPER $48.43 To Order
LR083028 INSERT - BUMPER $55.35 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR086049 INSERT - BUMPER $165.12 To Order
LR086051 INSERT - BUMPER $165.12 To Order
Photo Part No Description Price (each) Stock
LR086050 INSERT - BUMPER $104.38 To Order
LR086052 INSERT - BUMPER $104.38 To Order
Photo Part No Description Price (each) Stock
LR083030 COVER - TOWING HOOK OPENING $203.60 To Order
LR083031 COVER - TOWING HOOK OPENING $203.60 To Order
LR083032 COVER - TOWING HOOK OPENING $203.60 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR116571 COVER - BUMPER $44.44 To Order
LR116572 COVER - BUMPER $44.44 To Order
LR116573 COVER - BUMPER $44.44 To Order
...and 5 more part variants. See table on right for more details.
View All

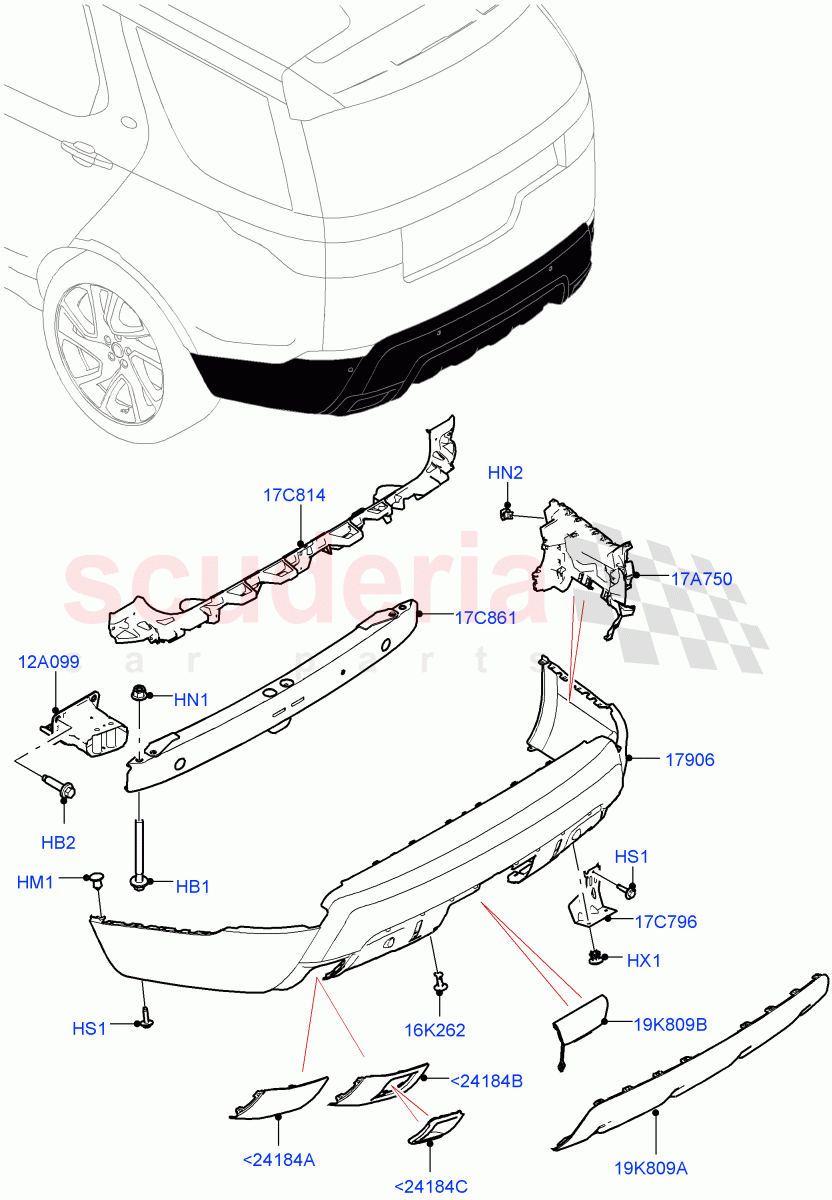

Rear Bumper (Nitra Plant Build) ((V) FROMK2000001, (V) TOL2999999) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<24184A LR083024
INSERT - BUMPER
Non Sport/Dynamic, Rear Bmp Lwr Valance - Dark Silver / RH / From: K2000001 		$48.43 1
<24184A LR083026
INSERT - BUMPER
Non Sport/Dynamic, Rear Bmp Lwr Valance - White Silver / RH / From: K2000001 		$48.43 1
<24184A LR083028
INSERT - BUMPER
Non Sport/Dynamic, Rear Bmp Lower Valance - Anthracite / RH / From: K2000001 		$55.35 1
<24184A LR083025
INSERT - BUMPER
Non Sport/Dynamic, Rear Bmp Lwr Valance - Dark Silver / LH / From: K2000001 		$48.43 1
<24184A LR083027
INSERT - BUMPER
Non Sport/Dynamic, Rear Bmp Lwr Valance - White Silver / LH / From: K2000001 		$48.43 1
<24184A LR083029
INSERT - BUMPER
Non Sport/Dynamic, Rear Bmp Lower Valance - Anthracite / LH / From: K2000001 		$55.35 1
<24184B LR086049
INSERT - BUMPER
Black Front Bumper, Rear Bmp Lower Valance-Indus Silver / RH / From: K2000001 		$165.12 1
<24184B LR086051
INSERT - BUMPER
Black Front Bumper, Rear Bmp Lower Valance-Indus Silver / LH / From: K2000001 		$165.12 1
<24184C LR086050
INSERT - BUMPER
Black Front Bumper, Rear Bmp Lower Valance-Indus Silver / RH, Blanking / From: K2000001 		$104.38 1
<24184C LR086052
INSERT - BUMPER
Black Front Bumper, Rear Bmp Lower Valance-Indus Silver / LH, Blanking / From: K2000001 		$104.38 1
HB1 LR097372
BOLT
Hexagonal Head, M14 X 148MM / From: K2000001
IN STOCK 		$10.02 4
HB2 LR033214
BOLT
Bolt And Washer, Hexagonal Head, M14 X 55MM / From: K2000001
IN STOCK 		$4.36 10
HM1 ANR2224
HARDWARE - MISCELLANEOUS
8 X 20MM, Pin / From: K2000001 		$2.68 2
HN1 FY114056
NUT - HEX.
Hexagonal Head, M14 / From: K2000001
IN STOCK 		$1.25 4
HN2 LR165498
NUT - EXPANSION
Plastic / From: K2000001
IN STOCK 		$0.63 8
HS1 KYP500320
SCREW
Bolt And Washer, M6 x 30MM, Mounting Bracket, Support / From: K2000001 		$0.61 2
HS1 KYP500320
SCREW
Bolt And Washer, Bumper, M6 x 30MM / From: K2000001 		$0.61 8
HX1 LR005896
RETAINER - RIVET
10 X 4 - 5 / From: K2000001
IN STOCK 		$1.47 4
12A099 LR080358
REINFORCEMENT - BUMPER SECURING
Less Trailer Towing Hitch / RH / From: K2000001 		$155.07 1
12A099 LR080359
REINFORCEMENT - BUMPER SECURING
Less Trailer Towing Hitch / LH / From: K2000001 		$155.07 1
16K262 LR012844
CLIP - RETAINING
1/4 Turn Click Type / From: K2000001
IN STOCK 		$3.68 4
17A750 LR116997
BRACKET - BUMPER MOUNTING
RH / From: K2000001 		$45.24 1
17A750 LR116998
BRACKET - BUMPER MOUNTING
LH / From: K2000001 		$45.24 1
17C796 LR083042
BRACKET - BUMPER MOUNTING
RH / From: K2000001 		$18.18 1
17C796 LR083043
BRACKET - BUMPER MOUNTING
LH / From: K2000001 		$18.18 1
17C814 LR083041
BRACKET - BUMPER MOUNTING
Centre / From: K2000001 		$47.10 1
17C861 LR080357
REINFORCEMENT - REAR BUMPER
Less Trailer Towing Hitch / From: K2000001 		$200.25 1
19K809A LR083030
COVER - TOWING HOOK OPENING
Less Trailer Towing Hitch, Rear Bmp Lwr Valance - Dark Silver / From: K2000001 		$203.60 1
19K809A LR083031
COVER - TOWING HOOK OPENING
Less Trailer Towing Hitch, Rear Bmp Lwr Valance - White Silver / From: K2000001 		$203.60 1
19K809A LR083032
COVER - TOWING HOOK OPENING
Less Trailer Towing Hitch, Rear Bmp Lower Valance - Anthracite / From: K2000001 		$203.60 1
19K809A LR083033
COVER - TOWING HOOK OPENING
Rear Bmp Lwr Valance - Dark Silver, Tow Hitch Receiver NAS / From: K2000001 		$95.52 1
19K809A LR083034
COVER - TOWING HOOK OPENING
Rear Bmp Lwr Valance - White Silver, Tow Hitch Receiver NAS / From: K2000001 		$95.52 1
19K809A LR083035
COVER - TOWING HOOK OPENING
Rear Bmp Lower Valance - Anthracite, Tow Hitch Receiver NAS / From: K2000001 		$106.32 1
19K809A LR083036
COVER - TOWING HOOK OPENING
Rear Bmp Lwr Valance - Dark Silver, Tow Hitch - Detatchable / From: K2000001 		$121.32 1
19K809A LR083037
COVER - TOWING HOOK OPENING
Rear Bmp Lwr Valance - White Silver, Tow Hitch - Electric Deployable / From: K2000001 		$121.32 1
19K809A LR083038
COVER - TOWING HOOK OPENING
Rear Bmp Lower Valance - Anthracite, Tow Hitch Man Detachable Swan Neck / From: K2000001 		$121.32 1
19K809A LR082879
COVER - TOWING HOOK OPENING
Less Trailer Towing Hitch, Rear Bmp Lower Valance-Indus Silver / From: K2000001 		$320.96 1
19K809A LR082880
COVER - TOWING HOOK OPENING
Rear Bmp Lower Valance-Indus Silver, Tow Hitch - Detatchable / From: K2000001 		$196.69 1
19K809A LR082881
COVER - TOWING HOOK OPENING
Rear Bmp Lower Valance-Indus Silver, Tow Hitch Receiver 12 Pin Elec / From: K2000001 		$170.08 1
19K809B LR116571
COVER - BUMPER
Rear Bmp Lwr Valance - Dark Silver, Tow Hitch - Electric Deployable / From: K2000001 / To: K2084731 		$44.44 1
19K809B LR116572
COVER - BUMPER
Rear Bmp Lwr Valance - White Silver, Tow Hitch - Detatchable / From: K2000001 / To: K2084731 		$44.44 1
19K809B LR116573
COVER - BUMPER
Rear Bmp Lower Valance - Anthracite, Tow Hitch - Electric Deployable / From: K2000001 / To: K2084731 		$44.44 1
19K809B LR116574
COVER - BUMPER
Rear Bmp Lower Valance-Indus Silver, Tow Hitch - Detatchable / From: K2000001 / To: K2084731 		$44.44 1
19K809B LR123361
COVER - BUMPER
Rear Bmp Lower Valance - Anthracite, Tow Hitch - Detatchable / From: K2084732 		$41.13 1
19K809B LR123359
COVER - BUMPER
Rear Bmp Lwr Valance - Dark Silver, Tow Hitch - Detatchable / From: K2084732 		$44.44 1
19K809B LR123360
COVER - BUMPER
Rear Bmp Lwr Valance - White Silver, Tow Hitch Elec Deployable Swan Neck / From: K2084732 		$44.44 1
19K809B LR123358
COVER - BUMPER
Rear Bmp Lower Valance-Indus Silver, Tow Hitch - Detatchable / From: K2084732 		$41.13 1
17906 LR083022
BUMPER - REAR
Less Park Assist, Non Sport/Dynamic / Primed / From: K2000001 		$446.41 1
17906 LR083023
BUMPER - REAR
Non Sport/Dynamic, Park Assist / Primed / From: K2000001
IN STOCK 		$514.55 1
17906 LR086046
BUMPER - REAR
Black Front Bumper, Less Park Assist / Primed / From: K2000001 		$907.34 1
17906 LR086047
BUMPER - REAR
Black Front Bumper, Park Assist / Primed / From: K2000001 		$907.34 1
