Name: Side Panels - Inner (Solihull Plant Build, Middle - Front) ((V) FROMHA000001)
Rating: 5.0 (1 reviews)

Side Panels - Inner (Solihull Plant Build, Middle - Front) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Side Panels - Inner (Solihull Plant Build, Middle - Front) ((V) FROMHA000001)

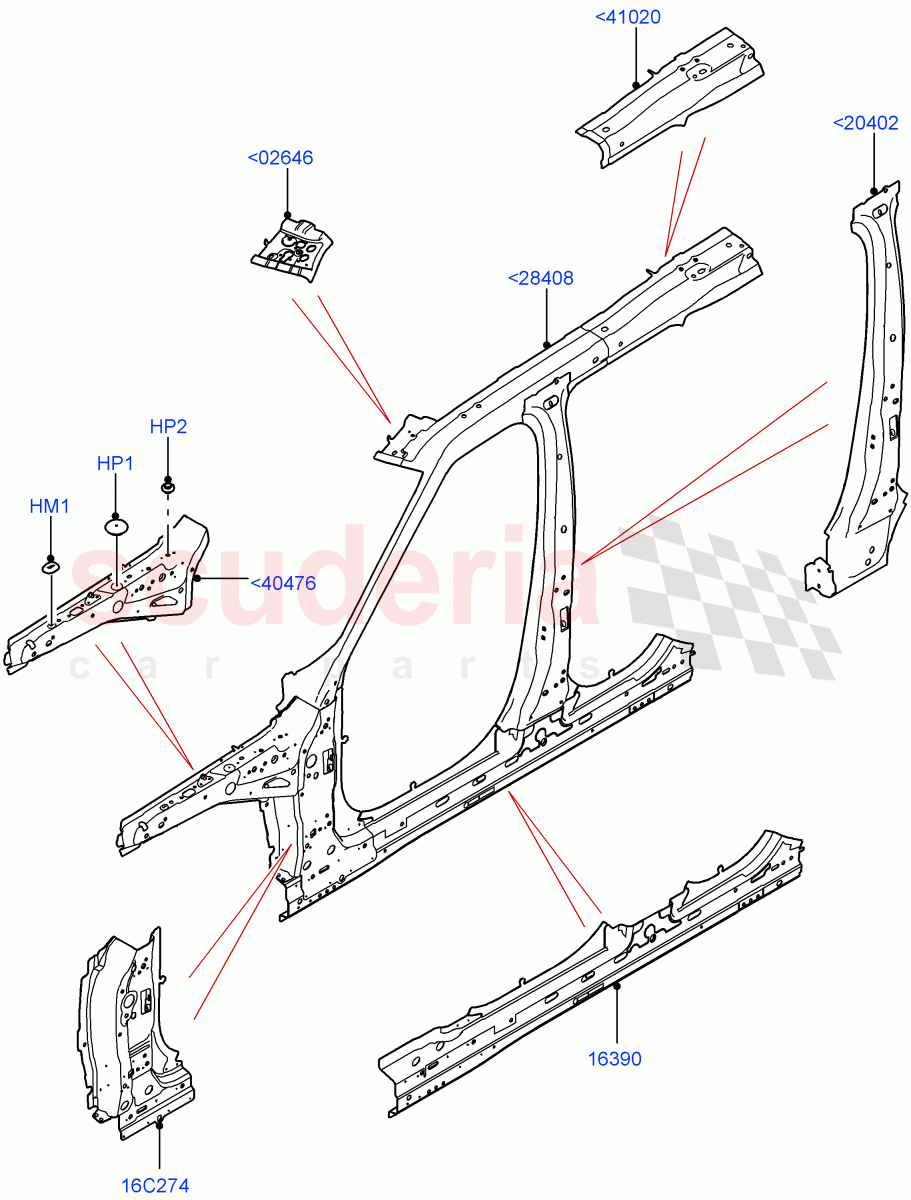

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000806	PLUG - BODY SEALING	$3.37	To Order

Photo	Part No	Description	Price (each)	Stock
	AYB000030	PLUG - BODY SEALING	$1.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004149	PLUG - BLANKING	$3.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037825	REINFORCEMENT - BODY SIDE-DOOR SILL	$290.98	To Order
	LR037826	REINFORCEMENT - BODY SIDE-DOOR SILL	$290.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080181	REINFORCEMENT - "A" PILLAR	$56.86	To Order
	LR080182	REINFORCEMENT - "A" PILLAR	$56.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081689	REINFORCEMENT - "B" PILLAR	$889.98	To Order
	LR081690	REINFORCEMENT - "B" PILLAR	$943.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081883	REINFORCEMENT - BODYSIDE	$1,477.32	To Order
	LR081884	REINFORCEMENT - BODYSIDE	$1,477.32	To Order
	LR111043	REINFORCEMENT - BODY SIDE - FRONT	$1,307.49	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR081907	PANEL - FENDER - FRONT	$312.12	To Order
	LR081909	PANEL - FENDER - FRONT	$310.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR080177	REINFORCEMENT - ROOF RAIL	$168.39	To Order
	LR080178	REINFORCEMENT - ROOF RAIL	$170.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081893	REINFORCEMENT - "A" PILLAR	$439.10	To Order
	LR081895	REINFORCEMENT - "A" PILLAR	$439.10	To Order
	LR111047	REINFORCEMENT - "A" PILLAR	$439.10	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<02646	LR080181	REINFORCEMENT - "A" PILLAR	LR080181 REINFORCEMENT - "A" PILLAR RH, Category A	$56.86	1
<02646	LR080182	REINFORCEMENT - "A" PILLAR	LR080182 REINFORCEMENT - "A" PILLAR LH, Category A	$56.86	1
<20402	LR081689	REINFORCEMENT - "B" PILLAR	LR081689 REINFORCEMENT - "B" PILLAR RH, "B" Pillar, Category A	$889.98	1
<20402	LR081690	REINFORCEMENT - "B" PILLAR	LR081690 REINFORCEMENT - "B" PILLAR LH, "B" Pillar, Category A	$943.97	1
<28408	LR081883	REINFORCEMENT - BODYSIDE	LR081883 REINFORCEMENT - BODYSIDE RH, Category A / To: HA999999	$1,477.32	1
<28408	LR081884	REINFORCEMENT - BODYSIDE	LR081884 REINFORCEMENT - BODYSIDE LH, Category A / To: HA999999	$1,477.32	1
<28408	LR111043	REINFORCEMENT - BODY SIDE - FRONT	LR111043 REINFORCEMENT - BODY SIDE - FRONT RH, Category A / From: JA000001	$1,307.49	1
<28408	LR111044	REINFORCEMENT - BODY SIDE - FRONT	LR111044 REINFORCEMENT - BODY SIDE - FRONT LH, Category A / From: JA000001	$1,307.49	1
<40476	LR081907	PANEL - FENDER - FRONT	LR081907 PANEL - FENDER - FRONT RH, Category A, Front Fender	$312.12	1
<40476	LR081909	PANEL - FENDER - FRONT	LR081909 PANEL - FENDER - FRONT LH, Category A, Front Fender	$310.30	1
<41020	LR080177	REINFORCEMENT - ROOF RAIL	LR080177 REINFORCEMENT - ROOF RAIL RH, Category A	$168.39	1
<41020	LR080178	REINFORCEMENT - ROOF RAIL	LR080178 REINFORCEMENT - ROOF RAIL LH, Category A	$170.41	1
HM1	LR000806	PLUG - BODY SEALING	LR000806 PLUG - BODY SEALING 12 X 18MM	$3.37	2
HP1	AYB000030	PLUG - BODY SEALING	AYB000030 PLUG - BODY SEALING 12MM, RH Side Only	$1.13	1
HP2	LR004149	PLUG - BLANKING	LR004149 PLUG - BLANKING 30 X 1MM, Rubber	$3.17	2
16C274	LR081893	REINFORCEMENT - "A" PILLAR	LR081893 REINFORCEMENT - "A" PILLAR RH, "A" Pillar, Category A / To: HA999999	$439.10	1
16C274	LR081895	REINFORCEMENT - "A" PILLAR	LR081895 REINFORCEMENT - "A" PILLAR LH, "A" Pillar, Category A / To: HA999999	$439.10	1
16C274	LR111047	REINFORCEMENT - "A" PILLAR	LR111047 REINFORCEMENT - "A" PILLAR RH, "A" Pillar, Category A / From: JA000001	$439.10	1
16C274	LR111048	REINFORCEMENT - "A" PILLAR	LR111048 REINFORCEMENT - "A" PILLAR LH, "A" Pillar, Category A / From: JA000001	$439.10	1
16390	LR037825	REINFORCEMENT - BODY SIDE-DOOR SILL	LR037825 REINFORCEMENT - BODY SIDE-DOOR SILL RH, Category A, Door, Sill	$290.98	1
16390	LR037826	REINFORCEMENT - BODY SIDE-DOOR SILL	LR037826 REINFORCEMENT - BODY SIDE-DOOR SILL LH, Category A, Door, Sill	$290.98	1

Side Panels - Inner (Solihull Plant Build, Middle - Front) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Side Panels - Inner (Solihull Plant Build, Middle - Front) ((V) FROMHA000001)
