Inlet Manifold (Nitra Plant Build, Manifolds, Intercooler And Cover) (3.0L Dohc Gdi Sc V6 Petrol)...

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Inlet Manifold (Nitra Plant Build, Manifolds, Intercooler And Cover) (3.0L DOHC GDI SC V6 PETROL)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR008883 BOLT - HEX.HEAD $4.34 To Order
Photo Part No Description Price (each) Stock
FS106126 BOLT $0.52 IN STOCK
Photo Part No Description Price (each) Stock
4567977 BOLT $3.90 IN STOCK
Photo Part No Description Price (each) Stock
LR010917 SCREW $1.15 IN STOCK
Photo Part No Description Price (each) Stock
LR011363 SCREW $1.96 IN STOCK
Photo Part No Description Price (each) Stock
LR011065 SCREW $2.47 To Order
Photo Part No Description Price (each) Stock
LR011067 SCREW $1.31 IN STOCK
Photo Part No Description Price (each) Stock
LR044772 SCREW $0.53 To Order
Photo Part No Description Price (each) Stock
LR011271 SCREW $1.23 IN STOCK
Photo Part No Description Price (each) Stock
LR025788 PLATE - BLANKING $64.82 To Order
Photo Part No Description Price (each) Stock
LR062494 COVER - ENGINE TOP $436.68 To Order
Photo Part No Description Price (each) Stock
LR010871 STUD - BALL $7.06 To Order
Photo Part No Description Price (each) Stock
LR011564 BRACKET - ENGINE COVER $24.53 To Order
Photo Part No Description Price (each) Stock
LR045355 MANIFOLD - INLET $255.38 To Order
Photo Part No Description Price (each) Stock
LR050936 INLET MANIFOLD WITH INTERCOOLER $794.90 To Order
Photo Part No Description Price (each) Stock
LR041645 MANIFOLD - INLET $235.34 To Order
Photo Part No Description Price (each) Stock
LR041680 GASKET - INTAKE MANIFOLD $58.31 To Order
Photo Part No Description Price (each) Stock
LR041681 GASKET - INTAKE MANIFOLD $15.68 IN STOCK
Photo Part No Description Price (each) Stock
LR041688 INSULATOR - INTAKE MANIFOLD $127.34 To Order
Photo Part No Description Price (each) Stock
LR041690 INSULATOR - INTAKE MANIFOLD $46.70 To Order
Photo Part No Description Price (each) Stock
LR021587 SENSOR - AIR TEMPERATURE & PRESSURE $64.78 To Order
Photo Part No Description Price (each) Stock
LR035536 SENSOR - AIR CHARGE TEMPERATURE $39.09 To Order
View All

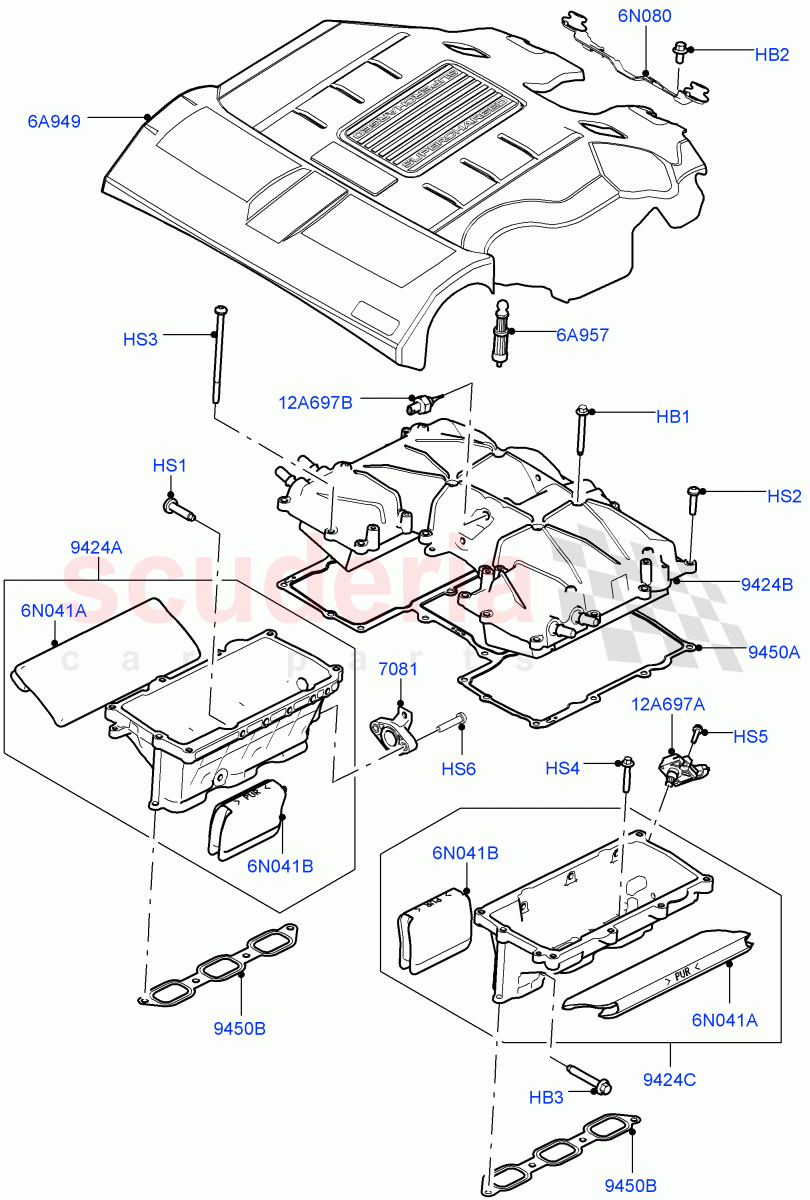

Inlet Manifold (Nitra Plant Build, Manifolds, Intercooler And Cover) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR008883
BOLT - HEX.HEAD
Intercooler, M8 x 65MM / From: K2000001 		$4.34 4
HB2 FS106126
BOLT
Bracket, Hexagonal Head, M6 x 12MM / From: K2000001
IN STOCK 		$0.52 2
HB3 4567977
BOLT
M8 X 50, Manifold To Supercharger / From: K2000001
IN STOCK 		$3.90 2
HS1 LR010917
SCREW
M8 x 30MM, Manifold To Supercharger / From: K2000001
IN STOCK 		$1.15 6
HS2 LR011363
SCREW
Intercooler To Manifold, M8 X 35MM / From: K2000001
IN STOCK 		$1.96 19
HS3 LR011065
SCREW
Intercooler To Cylinder Head, M8 X 150MM / From: K2000001 		$2.47 2
HS4 LR011067
SCREW
M8 X 45MM, Manifold To Cylinder Head / From: K2000001
IN STOCK 		$1.31 8
HS5 LR044772
SCREW
M5 x 20MM, Sensor - Air Temperature And Pressure / From: K2000001 		$0.53 1
HS6 LR011271
SCREW
M6 x 30MM / From: K2000001
IN STOCK 		$1.23 2
6A949 LR062494
COVER - ENGINE TOP
Engine, Land Rover Logo / From: K2000001 		$436.68 1
6A957 LR010871
STUD - BALL
Engine Cover / From: K2000001 		$7.06 2
6N041A LR041688
INSULATOR - INTAKE MANIFOLD
Attaches to intake manifold, Outer / From: K2000001 		$127.34 2
6N041B LR041690
INSULATOR - INTAKE MANIFOLD
Attaches to intake manifold, Inner / From: K2000001 		$46.70 2
6N080 LR011564
BRACKET - ENGINE COVER
Engine Cover / From: K2000001 		$24.53 1
12A697A LR021587
SENSOR - AIR TEMPERATURE & PRESSURE
Sensor - Air Temperature And Pressure / From: K2000001 		$64.78 1
12A697B LR035536
SENSOR - AIR CHARGE TEMPERATURE
From: K2000001 		$39.09 1
7081 LR025788
PLATE - BLANKING
For Vehicles Less Symposer / From: K2000001 		$64.82 1
9424A LR045355
MANIFOLD - INLET
RH / From: K2000001 		$255.38 1
9424B LR050936
INLET MANIFOLD WITH INTERCOOLER
Upper, With Intercooler / From: K2000001 		$794.90 1
9424C LR041645
MANIFOLD - INLET
LH / From: K2000001 		$235.34 1
9450A LR041680
GASKET - INTAKE MANIFOLD
Intercooler To Manifold / From: K2000001 		$58.31 1
9450B LR041681
GASKET - INTAKE MANIFOLD
Manifold To Cylinder Head / From: K2000001
IN STOCK 		$15.68 2
