Name: Cylinder Block And Plugs (Nitra Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMK2000001)
Rating: 4.7 (1 reviews)

Cylinder Block And Plugs (Nitra Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Cylinder Block And Plugs (Nitra Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMK2000001)

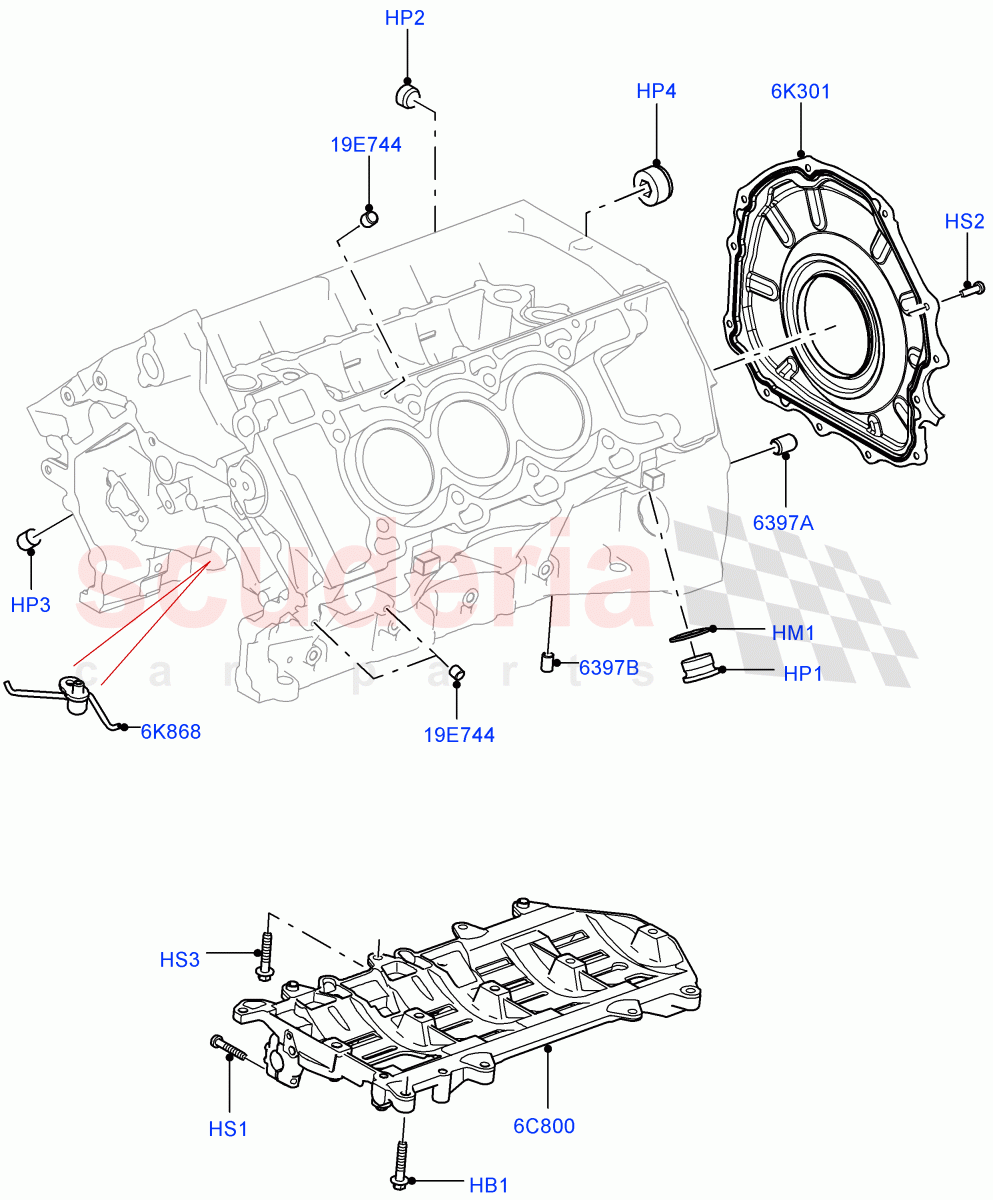

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR010903	BOLT	$3.12	To Order

Photo	Part No	Description	Price (each)	Stock
	4640315	SEAL - PLUG	$13.47	To Order

Photo	Part No	Description	Price (each)	Stock
	4640317	PLUG - DRAIN	$7.61	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008871	PLUG - ENGINE	$3.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007132	RIVET	$3.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111116	PLUG - ENGINE	$5.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020249	SCREW	$1.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010904	SCREW	$1.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011700	SCREW	$1.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4603182	DOWEL	$28.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000335	DOWEL - PIN	$12.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053447	TRAY - OIL	$312.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043721	RETAINER AND SEAL - CRANKSHAFT	$139.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091573	NOZZLE - PISTON COOLING	$36.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057802	DOWEL - PIN	$3.50	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR010903	BOLT	LR010903 BOLT M8 x 40MM, Windage Tray / From: K2000001	$3.12	12
HM1	4640315	SEAL - PLUG	4640315 SEAL - PLUG 28.25 X 39.13 X 4, Sealing Washer / From: K2000001	$13.47	1
HP1	4640317	PLUG - DRAIN	4640317 PLUG - DRAIN M30 / From: K2000001	$7.61	1
HP2	LR008871	PLUG - ENGINE	LR008871 PLUG - ENGINE 1/2" / From: K2000001	$3.60	1
HP3	LR007132	RIVET	LR007132 RIVET 16 MM, Rivet / From: K2000001	$3.04	1
HP4	LR111116	PLUG - ENGINE	LR111116 PLUG - ENGINE M18 X 1.5 X 10MM / From: K2000001	$5.15	1
HS1	LR020249	SCREW	LR020249 SCREW Fuel Pumps Shaft Carrier, M6 x 35MM / From: K2000001	$1.23	8
HS2	LR010904	SCREW	LR010904 SCREW M6 X 20MM, Retainer - Seal / From: K2000001	$1.23	12
HS3	LR011700	SCREW IN STOCK	LR011700 SCREW Fuel Pumps Shaft Carrier, M8 X 35MM / From: K2000001 IN STOCK	$1.39	1
6C800	LR053447	TRAY - OIL	LR053447 TRAY - OIL Stiffener - Includes Fuel Pumps Drive Shaft Carrier / From: K2000001	$312.01	1
6K301	LR043721	RETAINER AND SEAL - CRANKSHAFT	LR043721 RETAINER AND SEAL - CRANKSHAFT 1.5MM Thickness, Rear / From: K2000001	$139.83	1
6K868	LR091573	NOZZLE - PISTON COOLING	LR091573 NOZZLE - PISTON COOLING From: K2000001	$36.40	3
19E744	LR057802	DOWEL - PIN IN STOCK	LR057802 DOWEL - PIN IN STOCK	$3.50	6
6397A	4603182	DOWEL	4603182 DOWEL 15.7MM, Cyl Block to Flywheel Housing, Pin - Dowell / From: K2000001	$28.74	2
6397B	LR000335	DOWEL - PIN	LR000335 DOWEL - PIN Cylinder Block To Oil Pan,	$12.20	2

Cylinder Block And Plugs (Nitra Plant Build) (3.0L Dohc Gdi Sc V6 Petrol) ((V) Fromk2000001)

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Cylinder Block And Plugs (Nitra Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMK2000001)

Add to Shopping Cart
