Name: Inlet Manifold (Manifolds, Intercooler And Cover, Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001)
Rating: 5.0 (1 reviews)

Inlet Manifold (Manifolds, Intercooler And Cover, Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMEA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Inlet Manifold (Manifolds, Intercooler And Cover, Solihull Plant Build) (3.0L DOHC GDI SC V6...

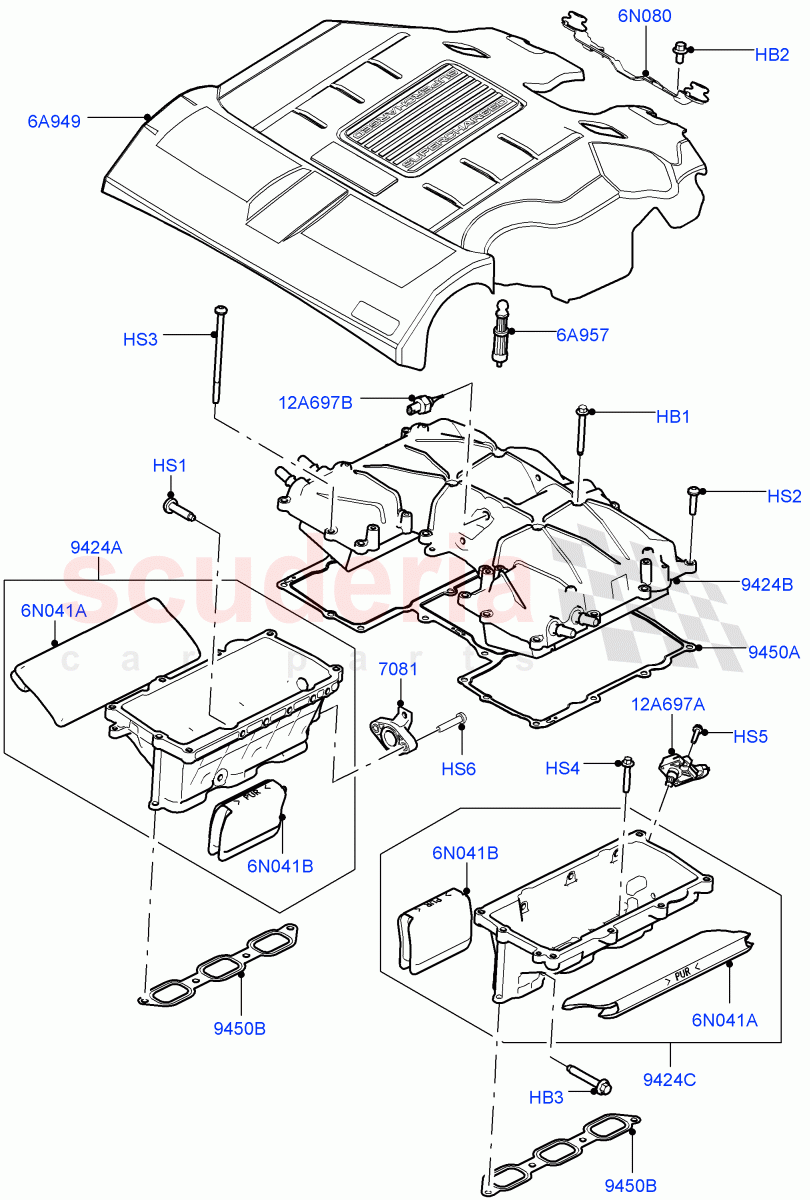

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR008883	BOLT - HEX.HEAD	$4.36	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4567977	BOLT	$3.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR010917	SCREW	$1.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011363	SCREW	$1.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR011065	SCREW	$2.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011067	SCREW	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR044772	SCREW	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011271	SCREW	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR025788	PLATE - BLANKING	$65.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062494	COVER - ENGINE TOP	$438.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010871	STUD - BALL	$7.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011564	BRACKET - ENGINE COVER	$24.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045355	MANIFOLD - INLET	$256.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050936	INLET MANIFOLD WITH INTERCOOLER	$798.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041645	MANIFOLD - INLET	$236.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041680	GASKET - INTAKE MANIFOLD	$58.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041681	GASKET - INTAKE MANIFOLD	$15.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR041688	INSULATOR - INTAKE MANIFOLD	$127.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041690	INSULATOR - INTAKE MANIFOLD	$46.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR021587	SENSOR - AIR TEMPERATURE & PRESSURE	$65.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035536	SENSOR - AIR CHARGE TEMPERATURE	$39.25	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR008883	BOLT - HEX.HEAD	LR008883 BOLT - HEX.HEAD Intercooler, M8 x 65MM	$4.36	4
HB2	FS106126	BOLT IN STOCK	FS106126 BOLT Bracket, Hexagonal Head, M6 x 12MM IN STOCK	$0.52	2
HB3	4567977	BOLT IN STOCK	4567977 BOLT M8 X 50, Manifold To Supercharger IN STOCK	$3.92	2
HS1	LR010917	SCREW IN STOCK	LR010917 SCREW M8 x 30MM, Manifold To Supercharger IN STOCK	$1.16	6
HS2	LR011363	SCREW IN STOCK	LR011363 SCREW Intercooler To Manifold, M8 X 35MM IN STOCK	$1.97	19
HS3	LR011065	SCREW	LR011065 SCREW Intercooler To Cylinder Head, M8 X 150MM	$2.48	2
HS4	LR011067	SCREW IN STOCK	LR011067 SCREW M8 X 45MM, Manifold To Cylinder Head IN STOCK	$1.32	8
HS5	LR044772	SCREW	LR044772 SCREW M5 x 20MM, Sensor - Air Temperature And Pressure	$0.53	1
HS6	LR011271	SCREW IN STOCK	LR011271 SCREW M6 x 30MM IN STOCK	$1.24	2
6A949	LR062494	COVER - ENGINE TOP	LR062494 COVER - ENGINE TOP Engine, Land Rover Logo	$438.46	1
6A957	LR010871	STUD - BALL	LR010871 STUD - BALL Engine Cover	$7.09	2
6N041A	LR041688	INSULATOR - INTAKE MANIFOLD	LR041688 INSULATOR - INTAKE MANIFOLD Attaches to intake manifold, Outer	$127.86	2
6N041B	LR041690	INSULATOR - INTAKE MANIFOLD	LR041690 INSULATOR - INTAKE MANIFOLD Attaches to intake manifold, Inner	$46.89	2
6N080	LR011564	BRACKET - ENGINE COVER	LR011564 BRACKET - ENGINE COVER Engine Cover	$24.63	1
12A697A	LR021587	SENSOR - AIR TEMPERATURE & PRESSURE	LR021587 SENSOR - AIR TEMPERATURE & PRESSURE Sensor - Air Temperature And Pressure	$65.04	1
12A697B	LR035536	SENSOR - AIR CHARGE TEMPERATURE	LR035536 SENSOR - AIR CHARGE TEMPERATURE	$39.25	1
7081	LR025788	PLATE - BLANKING	LR025788 PLATE - BLANKING For Vehicles Less Symposer	$65.08	1
9424A	LR045355	MANIFOLD - INLET	LR045355 MANIFOLD - INLET RH	$256.42	1
9424B	LR050936	INLET MANIFOLD WITH INTERCOOLER	LR050936 INLET MANIFOLD WITH INTERCOOLER Upper, With Intercooler	$798.14	1
9424C	LR041645	MANIFOLD - INLET	LR041645 MANIFOLD - INLET LH	$236.30	1
9450A	LR041680	GASKET - INTAKE MANIFOLD	LR041680 GASKET - INTAKE MANIFOLD Intercooler To Manifold	$58.55	1
9450B	LR041681	GASKET - INTAKE MANIFOLD IN STOCK	LR041681 GASKET - INTAKE MANIFOLD Manifold To Cylinder Head IN STOCK	$15.74	2

Inlet Manifold (Manifolds, Intercooler And Cover, Solihull Plant Build) (3.0L Dohc Gdi Sc V6...
