Vehicle Modules And Sensors (Nitra Plant Build) ((V) Fromk2000001)

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Vehicle Modules And Sensors (Nitra Plant Build) ((V) FROMK2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYQ500040 FASTENER $0.61 IN STOCK
Photo Part No Description Price (each) Stock
RYH500540 NUT - SPECIAL $1.24 To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.68 IN STOCK
FN106042 NUT $1.03 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
LR008793 SCREW $0.99 To Order
Photo Part No Description Price (each) Stock
LR129198 SCREW $0.97 To Order
Photo Part No Description Price (each) Stock
LR049976 SPEAKER $137.43 To Order
Photo Part No Description Price (each) Stock
VPLRV0131 BRACKET - MODULE $25.14 To Order
Photo Part No Description Price (each) Stock
LR081431 SENSOR - AIR CONDITIONER SUN LOAD $69.37 To Order
LR086370 SENSOR - AIR CONDITIONER SUN LOAD $72.01 To Order
Photo Part No Description Price (each) Stock
LR122404 MODULE - BODY CONTROL $1,213.66 To Order
LR140962 MODULE - BODY CONTROL $586.06 To Order
LR154985 JUNCTION BOX $525.15 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR142276 BRACKET $48.77 To Order
LR142277 BRACKET $48.77 To Order
Photo Part No Description Price (each) Stock
LR082106 BRACKET - INSTRUMENT PANEL $102.09 To Order
LR082108 BRACKET - INSTRUMENT PANEL $73.53 To Order
Photo Part No Description Price (each) Stock
LR149763 BRACKET - CONTROL MODULE $38.73 To Order
Photo Part No Description Price (each) Stock
LR144133 MODULE-CONTROL $562.79 To Order
LR169859 MODULE-CONTROL $575.68 To Order
Photo Part No Description Price (each) Stock
LR113194 SENSOR - BLIND SPOT MONITORING $853.14 To Order
LR129341 SENSOR - BLIND SPOT MONITORING $875.14 To Order
LR160825 SENSOR - BLIND SPOT MONITORING $946.98 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR079623 MODULE - BATTERY $316.31 To Order
Photo Part No Description Price (each) Stock
LR098327 SENSOR - DOOR $65.15 To Order
LR098321 SENSOR - DOOR $68.32 To Order
Photo Part No Description Price (each) Stock
LR058011 SENSOR - CLIMATE CONTROL SYSTEM $144.29 To Order
Photo Part No Description Price (each) Stock
LR112878 MODULE - WINDSHIELD RAIN SENSOR $218.63 To Order
LR112879 MODULE - WINDSHIELD RAIN SENSOR $227.03 To Order
LR139881 MODULE - WINDSHIELD RAIN SENSOR $209.12 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR093609 HEATER CONTROL $419.27 To Order
LR126761 HEATER CONTROL $437.01 To Order
Photo Part No Description Price (each) Stock
LR085668 SHIELD - BLIND SPOT RADAR $307.89 To Order
Photo Part No Description Price (each) Stock
LR081509 MODULE - BODY CONTROL $300.59 To Order
VPLYT0295 MODULE - BODY CONTROL $141.61 IN STOCK
VPLKT0318 MODULE - BODY CONTROL $300.04 To Order
Photo Part No Description Price (each) Stock
LR095386 MODULE - BODY CONTROL $357.56 To Order
LR144152 MODULE - BODY CONTROL $317.73 To Order
LR144666 MODULE - BODY CONTROL $304.57 To Order
Photo Part No Description Price (each) Stock
LR081398 CONTROL - POWER TAILGATE $178.98 To Order
LR141839 CONTROL UNIT - TAILGATE $162.52 To Order
Photo Part No Description Price (each) Stock
LR081397 CONTROL - POWER TAILGATE $168.95 To Order
LR141841 CONTROL - POWER TAILGATE $165.19 To Order
View All

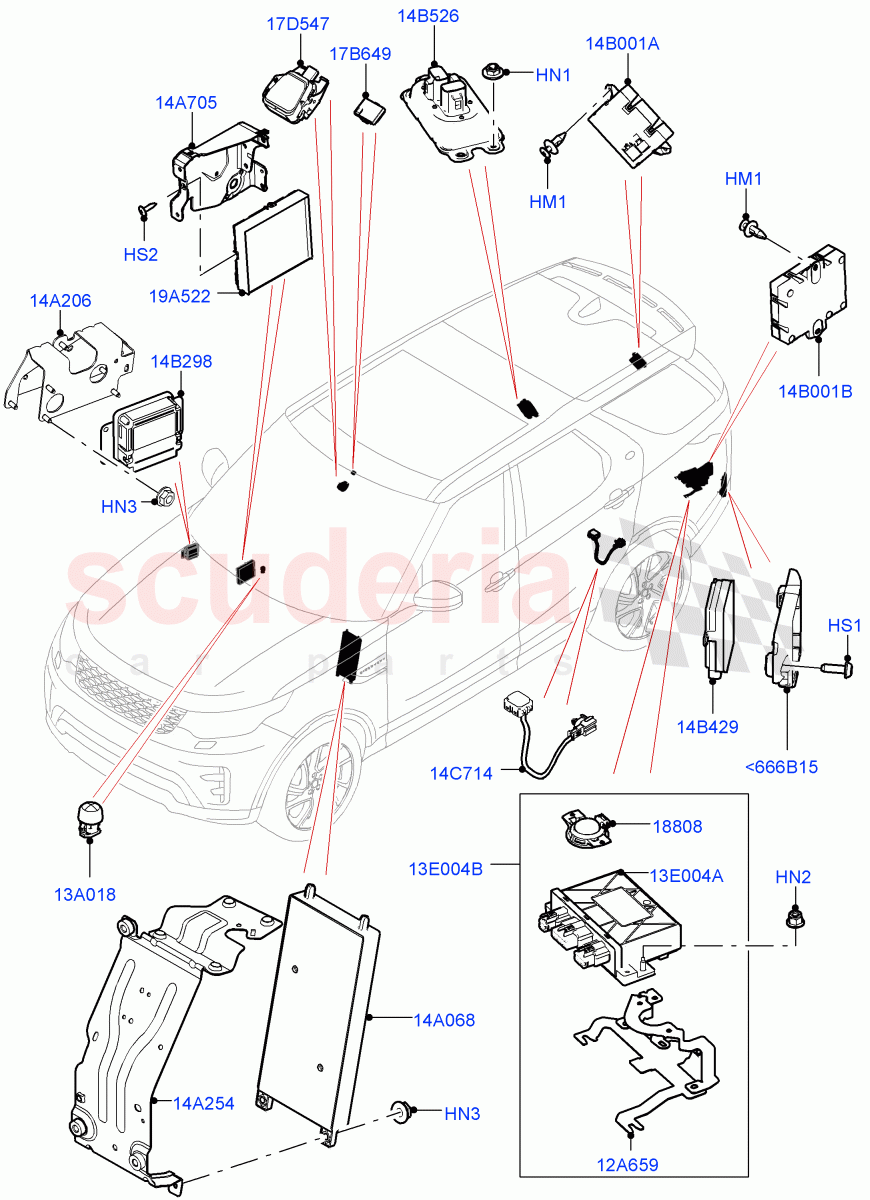

Vehicle Modules And Sensors (Nitra Plant Build) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<666B15 LR085668
SHIELD - BLIND SPOT RADAR
RH And LH, Sensor - Blind Spot Monitor / From: K2000001 		$307.89 2
HM1 RYQ500040
FASTENER
6.25 x 1.6/6MM / From: K2000001
IN STOCK 		$0.61 2
HN1 RYH500540
NUT - SPECIAL
Starter - Stop/Start System / M6 / From: K2000001 		$1.24 3
HN2 FY106046
NUT - HEX.
Tow Hitch Elec Deployable Swan Neck / Hexagonal Head, M6 / From: K2000001 / To: L2999999
IN STOCK 		$0.68 4
HN2 FN106042
NUT
Tow Hitch Elec Deployable Swan Neck / Hexagonal Head, M6 / From: M2000001
IN STOCK 		$1.03 4
HN3 FN106046
NUT - HEX.
Fuse Box, Hexagonal Head, M6 / From: K2000001
IN STOCK 		$1.47 2
HN3 FN106046
NUT - HEX.
Driver Assistance Domain Controller, Hexagonal Head, M6 / From: M2000001
IN STOCK 		$1.47 3
HS1 LR008793
SCREW
M5 X 16MM, Torx / From: K2000001 		$0.99 2
HS2 LR129198
SCREW
Hexagonal Head, M5 x 16mm / From: K2000001 		$0.97 4
12A659 VPLRV0131
BRACKET - MODULE
Tow Hitch - Electric Deployable / From: M2000001 		$25.14 1
13A018 LR081431
SENSOR - AIR CONDITIONER SUN LOAD
With Manual Air Conditioning / From: K2000001 		$69.37 1
13A018 LR086370
SENSOR - AIR CONDITIONER SUN LOAD
With Air Conditioning - Front/Rear / From: K2000001 		$72.01 1
13E004A LR081509
MODULE - BODY CONTROL
Tow Hitch Elec Deployable Swan Neck / From: K2000001 / To: L2999999 		$300.59 1
13E004A VPLYT0295
MODULE - BODY CONTROL
Tow Hitch Man Detachable Swan Neck / From: M2000001
IN STOCK 		$141.61 1
13E004A VPLKT0318
MODULE - BODY CONTROL
Tow Hitch - Electric Deployable / From: M2000001 		$300.04 1
13E004B LR095386
MODULE - BODY CONTROL
Tow Hitch - Electric Deployable / Assembly / From: K2000001 / To: L2999999 		$357.56 1
13E004B LR144152
MODULE - BODY CONTROL
Tow Hitch - Electric Deployable / Assembly / From: M2000001 		$317.73 1
13E004B LR144666
MODULE - BODY CONTROL
Tow Hitch Receiver 12 Pin Elec / Assembly / From: M2000001 		$304.57 1
14A068 LR122404
MODULE - BODY CONTROL
From: K2000001 / To: L2999999 		$1,213.66 1
14A068 LR140962
MODULE - BODY CONTROL
From: M2000001 / To: M2999999 		$586.06 1
14A068 LR154985
JUNCTION BOX
From: N2455016 / To: N2462168 		$525.15 1
14A068 475123462
MODULE - BODY CONTROL
From: N2000001 / To: N2455015 		$719.95 1
14A068 LR163546
JUNCTION BOX
From: N2462169 / To: N2464202 		$541.02 1
14A068 LR172878
JUNCTION BOX
From: N2464203 / To: N2999999 		$551.67 1
14A068 LR174522
Box - Fuse
From: P2000001 		$523.18 1
14A206 LR142276
BRACKET
RHD / From: M2000001 		$48.77 1
14A206 LR142277
BRACKET
LHD / From: M2000001 		$48.77 1
14A254 LR082106
BRACKET - INSTRUMENT PANEL
LHD / From: K2000001 		$102.09 1
14A254 LR082108
BRACKET - INSTRUMENT PANEL
RHD / From: K2000001 		$73.53 1
14A705 LR149763
BRACKET - CONTROL MODULE
Hidden Central IP Stowage, RHD 		$38.73 1
14B001A LR081398
CONTROL - POWER TAILGATE
Tailgate - Hands Free / Upper / From: K2000001 / To: L2999999 		$178.98 1
14B001A LR141839
CONTROL UNIT - TAILGATE
Tailgate-Powered Upper / Upper / From: M2000001 		$162.52 1
14B001B LR081397
CONTROL - POWER TAILGATE
Inner Tailgate - Powered / Lower / From: K2000001 / To: L2999999 		$168.95 1
14B001B LR141841
CONTROL - POWER TAILGATE
Inner Tailgate - Powered / Lower / From: M2000001 		$165.19 1
14B298 LR144133
MODULE-CONTROL
Driver Assistance Domain Controller / From: M2000001 / To: N2999999 		$562.79 1
14B298 LR169859
MODULE-CONTROL
Driver Assistance Domain Controller / From: P2000001 		$575.68 1
14B429 LR113194
SENSOR - BLIND SPOT MONITORING
Blind Spot Assist, Less Reverse Traffic Detection / RH/LH / From: K2000001 / To: L2997324 		$853.14 2
14B429 LR129341
SENSOR - BLIND SPOT MONITORING
Blind Spot Assist / RH/LH / From: M2000001 / To: N2461366 		$875.14 2
14B429 LR160825
SENSOR - BLIND SPOT MONITORING
Blind Spot Assist, Less Reverse Traffic Detection / RH/LH / From: L2997325 / To: L2999999 		$946.98 2
14B429 LR159593
SENSOR - BLIND SPOT MONITORING
Blind Spot Assist / RH/LH / From: N2461367 		$875.14 2
14B526 LR079623
MODULE - BATTERY
Starter - Stop/Start System / Voltage Quality Module / From: K2000001 		$316.31 1
14C714 LR098327
SENSOR - DOOR
Clear Exit Detection / LH / From: K2000001 		$65.15 1
14C714 LR098321
SENSOR - DOOR
Clear Exit Detection / RH / From: K2000001 		$68.32 1
17B649 LR058011
SENSOR - CLIMATE CONTROL SYSTEM
Humidity Sensor, Located Near Rear View Mirror / From: K2000001 		$144.29 1
17D547 LR112878
MODULE - WINDSHIELD RAIN SENSOR
Less Head Up Display / Located In Rear View Mirror Cover / From: K2000001 / To: L2999999 		$218.63 1
17D547 LR112879
MODULE - WINDSHIELD RAIN SENSOR
Head Up Display / Located In Rear View Mirror Cover / From: K2000001 / To: L2999999 		$227.03 1
17D547 LR139881
MODULE - WINDSHIELD RAIN SENSOR
Located In Rear View Mirror Cover / From: M2000001 / To: N2460568 		$209.12 1
17D547 LR162024
MODULE - WINDSHIELD RAIN SENSOR
Located In Rear View Mirror Cover / From: N2460569 / To: P2465767 		$218.55 1
17D547 LR166214
MODULE - WINDSHIELD RAIN SENSOR
Located In Rear View Mirror Cover / From: P2465768 		$212.59 1
19A522 LR093609
HEATER CONTROL
Hidden Central IP Stowage / From: K2000001 / To: L2999999 		$419.27 1
19A522 LR126761
HEATER CONTROL
2.0L I4 DSL HIGH DOHC AJ200 / From: M2000001 		$437.01 1
18808 LR049976
SPEAKER
Tow Hitch Elec Deployable Swan Neck / From: K2000001 		$137.43 1
