Hybrid Electrical Modules (Nitra Plant Build, Mhev Converter, Cooling Duct And Fans) (Electric...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Hybrid Electrical Modules (Nitra Plant Build, MHEV Converter, Cooling Duct And Fans) (Electric...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR037087 BOLT AND WASHER - HEX.HEAD $2.01 To Order
Photo Part No Description Price (each) Stock
LR122999 NUT - HEX. $3.04 To Order
Photo Part No Description Price (each) Stock
LR128887 SCREW $0.71 To Order
Photo Part No Description Price (each) Stock
BYP500170 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR141888 COVER - CONVERTER HOUSING $100.63 To Order
Photo Part No Description Price (each) Stock
LR141890 COVER - CONVERTER HOUSING $44.18 To Order
Photo Part No Description Price (each) Stock
LR140274 CARRIER $169.20 To Order
Photo Part No Description Price (each) Stock
LR123054 FAN - AUXILIARY COOLING $183.99 To Order
Photo Part No Description Price (each) Stock
LR149219 CABLE $98.13 To Order
Photo Part No Description Price (each) Stock
LR149218 CABLE $175.58 To Order
Photo Part No Description Price (each) Stock
LR149241 WIRE - SOLENOID $38.56 To Order
Photo Part No Description Price (each) Stock
LR128994 CONNECTOR - CABLE $15.10 To Order
Photo Part No Description Price (each) Stock
LR128992 CONNECTOR - CABLE $26.66 To Order
Photo Part No Description Price (each) Stock
LR131043 CONVERTER - VOLTAGE $824.42 To Order
Photo Part No Description Price (each) Stock
LR121392 DUCT - AIR $82.21 To Order
Photo Part No Description Price (each) Stock
LR141829 DUCT - COOLING $75.92 To Order
Photo Part No Description Price (each) Stock
LR117838 COVER - WIRING $6.89 To Order
Photo Part No Description Price (each) Stock
LR118777 COVER - PWR SUPPLY DISTRIBUTION BOX $15.25 To Order
View All

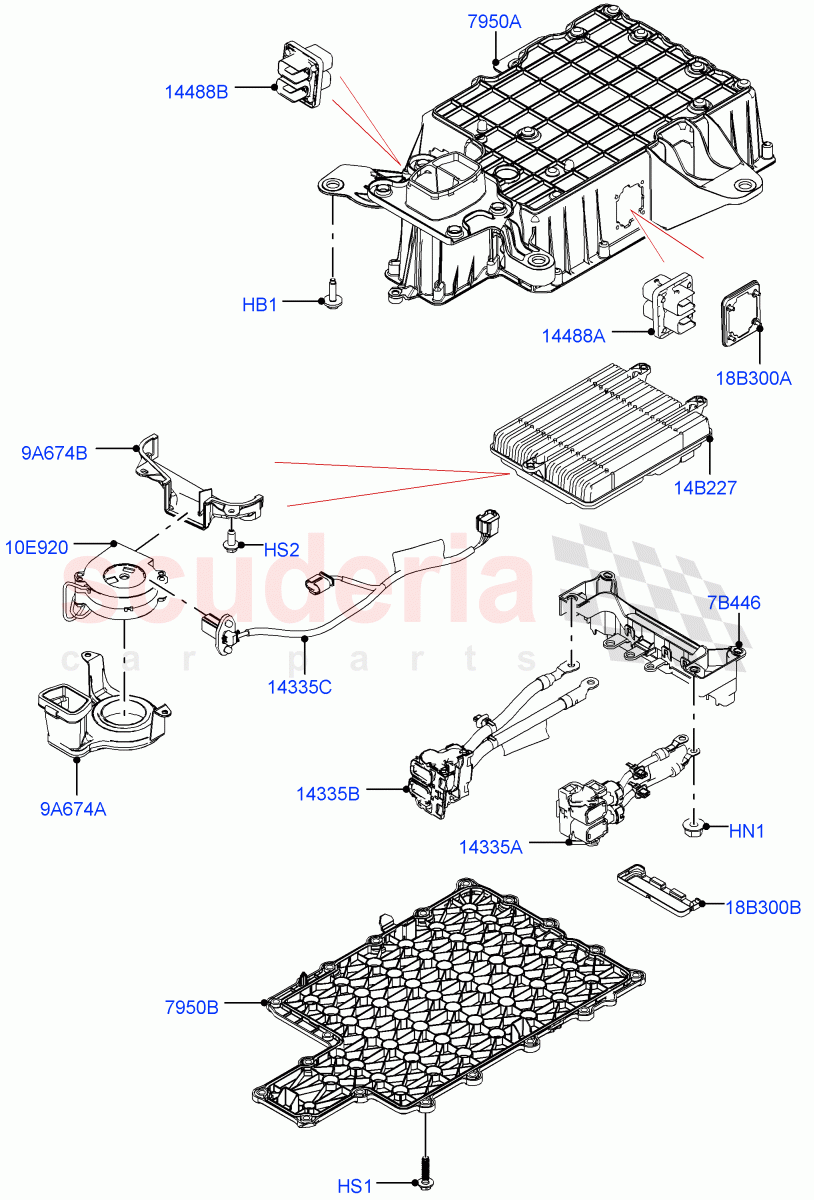

Hybrid Electrical Modules (Nitra Plant Build, MHEV Converter, Cooling Duct And Fans) (Electric Engine Battery-MHEV) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR037087
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M8 X 30MM / From: M2000001 		$2.01 5
HN1 LR122999
NUT - HEX.
M8 / From: M2000001 		$3.04 2
HS1 LR128887
SCREW
6x25 / From: M2000001 		$0.71 18
HS2 BYP500170
SCREW
Hexagonal Head, M6 x 14MM / From: M2000001
IN STOCK 		$1.24 2
7B446 LR140274
CARRIER
Converter / From: M2000001 		$169.20 1
9A674A LR121392
DUCT - AIR
Fan / From: M2000001 		$82.21 1
9A674B LR141829
DUCT - COOLING
Converter / From: M2000001 		$75.92 1
10E920 LR123054
FAN - AUXILIARY COOLING
Converter Cooling / From: M2000001 		$183.99 1
14B227 LR131043
CONVERTER - VOLTAGE
From: M2000001 		$824.42 1
18B300A LR117838
COVER - WIRING
Connector / From: M2000001 		$6.89 1
18B300B LR118777
COVER - PWR SUPPLY DISTRIBUTION BOX
Converter / From: M2000001 		$15.25 1
7950A LR141888
COVER - CONVERTER HOUSING
Upper / From: M2000001 		$100.63 1
7950B LR141890
COVER - CONVERTER HOUSING
Lower / From: M2000001 		$44.18 1
14335A LR149219
CABLE
Converter, Fuse Box / From: M2000001 		$98.13 1
14335B LR149218
CABLE
Bus Bar To Converter / From: M2000001 		$175.58 1
14335C LR149241
WIRE - SOLENOID
Converter, Cooling Fan Link Lead / From: M2000001 		$38.56 1
14488A LR128994
CONNECTOR - CABLE
Code A / From: M2000001 		$15.10 1
14488B LR128992
CONNECTOR - CABLE
Code B / From: M2000001 		$26.66 1
