Hybrid Electrical Modules (Mhev Charging Cables And Fixings, Nitra Plant Build) (Electric Engine...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Hybrid Electrical Modules (MHEV Charging Cables and Fixings, Nitra Plant Build) (Electric Engine...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR028253 BOLT $1.51 To Order
Photo Part No Description Price (each) Stock
LR049187 BOLT $1.05 To Order
Photo Part No Description Price (each) Stock
RYH500540 NUT - SPECIAL $1.24 To Order
Photo Part No Description Price (each) Stock
BYH500060 NUT - FLANGED $0.79 To Order
Photo Part No Description Price (each) Stock
LR122999 NUT - HEX. $3.04 To Order
Photo Part No Description Price (each) Stock
LR148280 CABLE $302.97 To Order
Photo Part No Description Price (each) Stock
LR121227 CABLE $227.80 To Order
Photo Part No Description Price (each) Stock
LR121224 CABLE $407.61 To Order
Photo Part No Description Price (each) Stock
LR149210 CABLE - UNDERBODY $864.26 To Order
Photo Part No Description Price (each) Stock
LR149220 CABLE $86.49 To Order
Photo Part No Description Price (each) Stock
LR149211 CABLE $966.09 To Order
LR170958 CABLE $951.80 To Order
Photo Part No Description Price (each) Stock
LR128883 BOX - FUSE $597.90 To Order
LR133903 JUNCTION BOX $597.42 To Order
Photo Part No Description Price (each) Stock
LR142282 BRACKET - WIRING $26.00 To Order
Photo Part No Description Price (each) Stock
LR142283 BRACKET - WIRING $26.00 To Order
View All

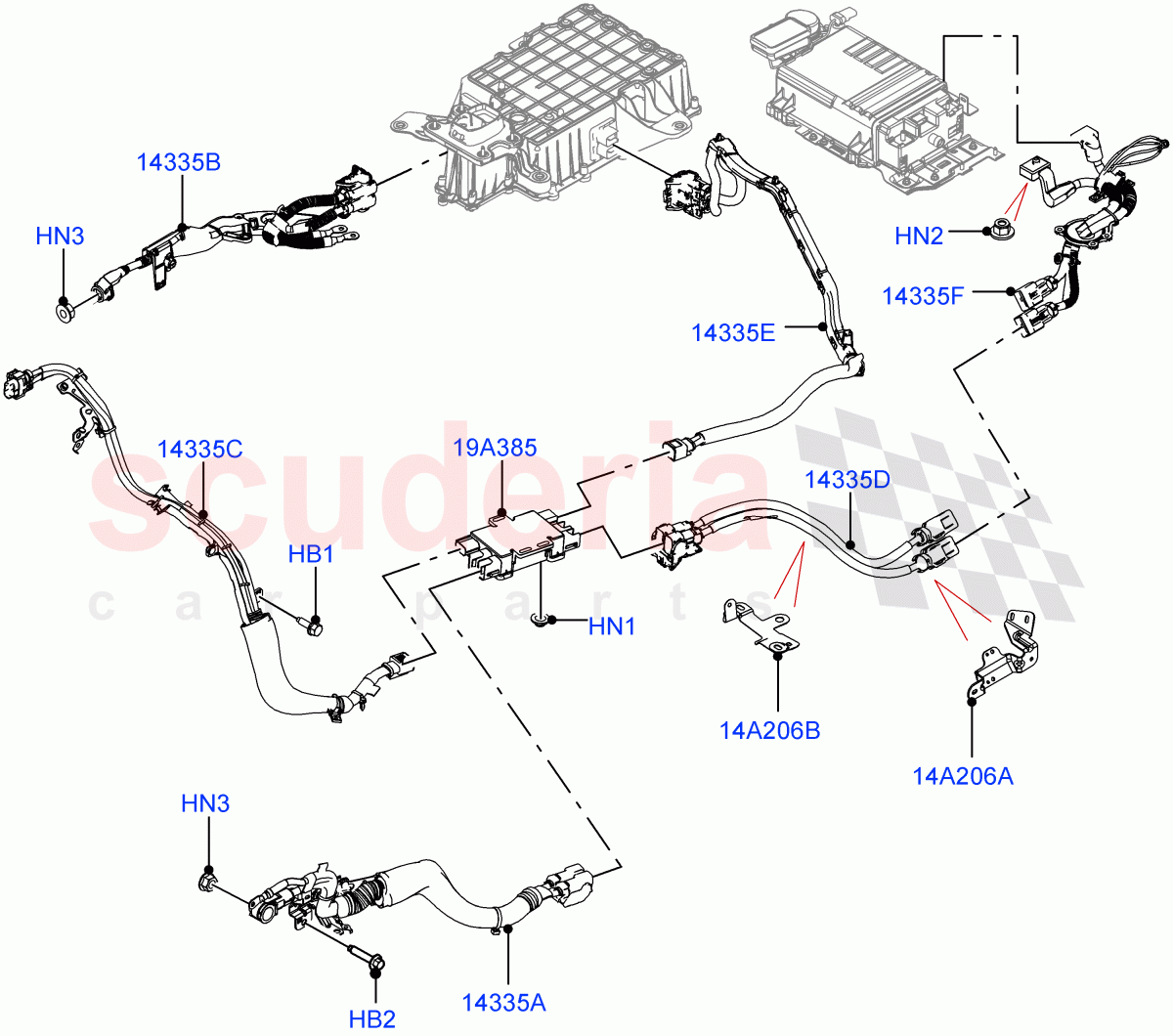

Hybrid Electrical Modules (MHEV Charging Cables and Fixings, Nitra Plant Build) (Electric Engine Battery-MHEV) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR028253
BOLT
3.0L AJ20P6 Petrol High / M6 X 16MM / From: M2000001 		$1.51 2
HB2 LR049187
BOLT
3.0L AJ20P6 Petrol High / M8 X 35MM / From: M2000001 		$1.05 1
HN1 RYH500540
NUT - SPECIAL
3.0L AJ20D6 Diesel High / M6 / From: M2000001 		$1.24 3
HN2 BYH500060
NUT - FLANGED
M8, Nut And Washer / From: M2000001 		$0.79 1
HN3 LR122999
NUT - HEX.
M8 / From: M2000001 		$3.04 3
14A206A LR142282
BRACKET - WIRING
Connector / From: M2000001 		$26.00 1
14A206B LR142283
BRACKET - WIRING
From: M2000001 		$26.00 1
19A385 LR128883
BOX - FUSE
3.0L AJ20P6 Petrol High / From: M2000001 		$597.90 1
19A385 LR133903
JUNCTION BOX
3.0L AJ20D6 Diesel High / From: M2000001 		$597.42 1
14335A LR148280
CABLE
Fuse Box / From: M2000001 		$302.97 1
14335B LR121227
CABLE
Bus Bar To Converter / From: M2000001 		$227.80 1
14335C LR121224
CABLE
3.0L AJ20P6 Petrol High / Fuse Box / From: M2000001 		$407.61 1
14335D LR149210
CABLE - UNDERBODY
Battery To Fusebox / From: M2000001 		$864.26 1
14335E LR149220
CABLE
Converter, Fuse Box / From: M2000001 		$86.49 1
14335F LR149211
CABLE
Lithium-ion Battery / From: M2000001 / To: N2999999 		$966.09 1
14335F LR170958
CABLE
Lithium-ion Battery / From: P2000001 		$951.80 1
