Tow Bar (Solihull Plant Build) (Tow Hitch Receiver NAS, Tow Hitch Receiver 12 Pin Elec, Tow Hitch - Electric Deployable, Tow Hitch Elec Deployable Swan Neck, Tow Hitch Man Detachable Swan Neck, Tow Hitch - Detatchable) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Tow Bar (Solihull Plant Build) (Tow Hitch Receiver NAS, Tow Hitch Receiver 12 Pin Elec, Tow Hitch -...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033214	BOLT	$4.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR034229	BOLT	$8.71	To Order
	LR097372	BOLT	$9.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR106035	HOOK - TOWING - REAR	$676.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR064194	HOOK - TOWING - REAR	$45.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083046	KIT - TOW BRACKET	$1,729.28	To Order
	LR083052	KIT - TOW BRACKET	$1,707.60	To Order
	LR113716	KIT - TOW BRACKET	$1,742.49	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR083048	KIT - TOW BRACKET	$1,840.12	To Order
	LR083050	KIT - TOW BRACKET	$1,855.53	To Order
	LR126252	KIT - TOW BRACKET	$1,840.12	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR083047	KIT - TOW BRACKET	$1,874.87	To Order
	LR083053	KIT - TOW BRACKET	$3,557.04	To Order
	LR083047	KIT - TOW BRACKET	$1,874.87	To Order

...and 1 more part variants. See table on right for more details.

View All

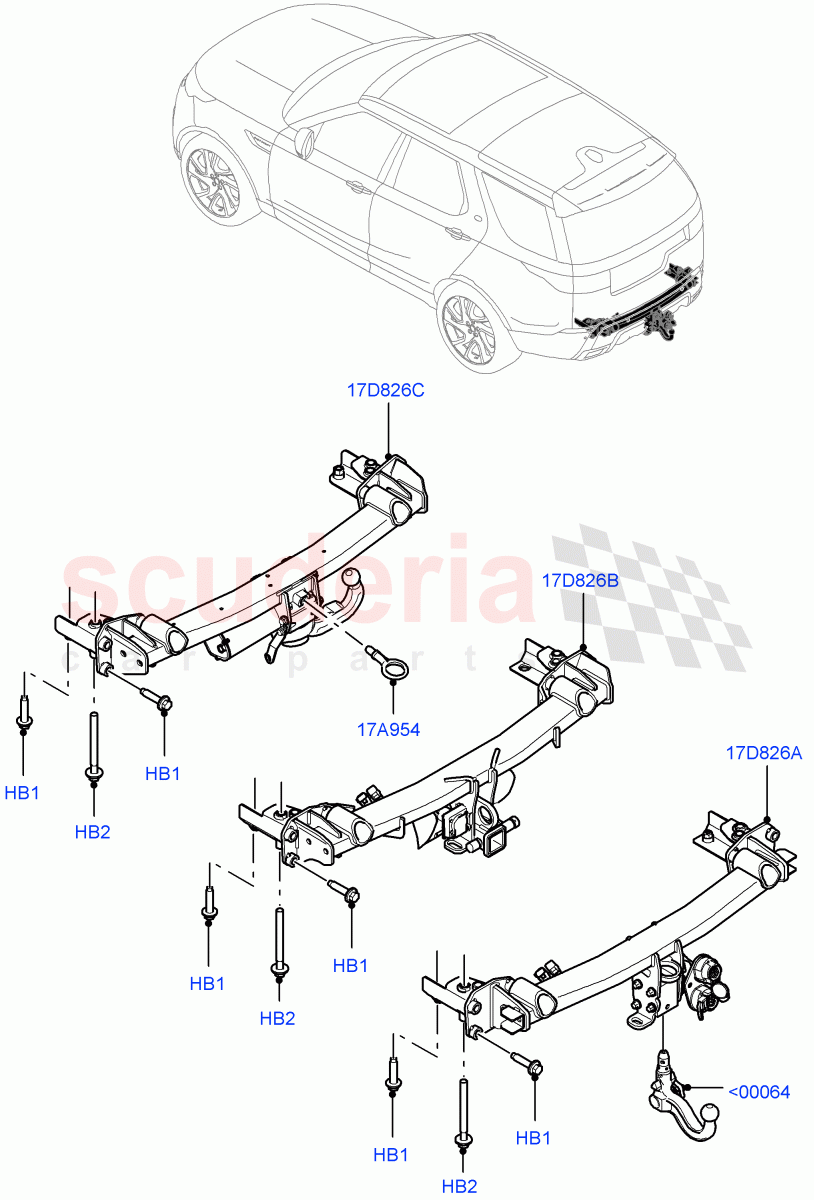

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<00064	LR106035	HOOK - TOWING - REAR	LR106035 HOOK - TOWING - REAR Tow Hitch Man Detachable Swan Neck	$676.32	1
HB1	LR033214	BOLT IN STOCK	LR033214 BOLT Bolt And Washer, Hexagonal Head, M14 X 55MM, To Body IN STOCK	$4.49	10
HB2	LR034229	BOLT	LR034229 BOLT Hexagonal Head, M14 X 148MM / To: HA011634	$8.71	4
HB2	LR097372	BOLT IN STOCK	LR097372 BOLT Hexagonal Head, M14 X 148MM / From: HA011635 IN STOCK	$9.90	4
17A954	LR064194	HOOK - TOWING - REAR	LR064194 HOOK - TOWING - REAR Tow Hitch Elec Deployable Swan Neck	$45.86	1
17D826A	LR083046	KIT - TOW BRACKET	LR083046 KIT - TOW BRACKET Tow Hitch Man Detachable Swan Neck, With 13 PIN Elec Socket And Harness / To: JA055574	$1,729.28	1
17D826A	LR083052	KIT - TOW BRACKET	LR083052 KIT - TOW BRACKET Tow Hitch Man Detachable Swan Neck, With 7 PIN N Type Socket/Harness / To: JA999999	$1,707.60	1
17D826A	LR113716	KIT - TOW BRACKET	LR113716 KIT - TOW BRACKET Tow Hitch Man Detachable Swan Neck, With 13 PIN Elec Socket And Harness / From: JA055575 / To: JA999999	$1,742.49	1
17D826A	LR113717	KIT - TOW BRACKET	LR113717 KIT - TOW BRACKET Tow Hitch - Detatchable / From: KA000001	$1,707.60	1
17D826A	LR126251	KIT - TOW BRACKET	LR126251 KIT - TOW BRACKET Tow Hitch Man Detachable Swan Neck / From: KA000001	$1,789.78	1
17D826B	LR083048	KIT - TOW BRACKET	LR083048 KIT - TOW BRACKET Tow Hitch Receiver 12 Pin Elec / To: JA079306	$1,840.12	1
17D826B	LR083050	KIT - TOW BRACKET	LR083050 KIT - TOW BRACKET Tow Hitch Receiver NAS / To: JA079306	$1,855.53	1
17D826B	LR126252	KIT - TOW BRACKET	LR126252 KIT - TOW BRACKET Tow Hitch Receiver 12 Pin Elec / From: JA079307	$1,840.12	1
17D826B	LR126253	KIT - TOW BRACKET	LR126253 KIT - TOW BRACKET Tow Hitch Receiver NAS / From: JA079307	$921.90	1
17D826C	LR083047	KIT - TOW BRACKET	LR083047 KIT - TOW BRACKET Tow Hitch Elec Deployable Swan Neck, With 13 PIN Elec Socket And Harness / To: JA999999	$1,874.87	1
17D826C	LR083053	KIT - TOW BRACKET	LR083053 KIT - TOW BRACKET Tow Hitch Elec Deployable Swan Neck, With 7 PIN N Type Socket/Harness / To: JA999999	$3,557.04	1
17D826C	LR083047	KIT - TOW BRACKET	LR083047 KIT - TOW BRACKET Tow Hitch Elec Deployable Swan Neck / From: KA000001	$1,874.87	1
17D826C	LR083053	KIT - TOW BRACKET	LR083053 KIT - TOW BRACKET Tow Hitch - Electric Deployable / From: KA000001	$3,557.04	1
