Name: Front Doors, Hinges & Weatherstrips (Weatherstrips And Seals, Solihull Plant Build) ((V) FROMHA000001)
Rating: 5.0 (1 reviews)

View All

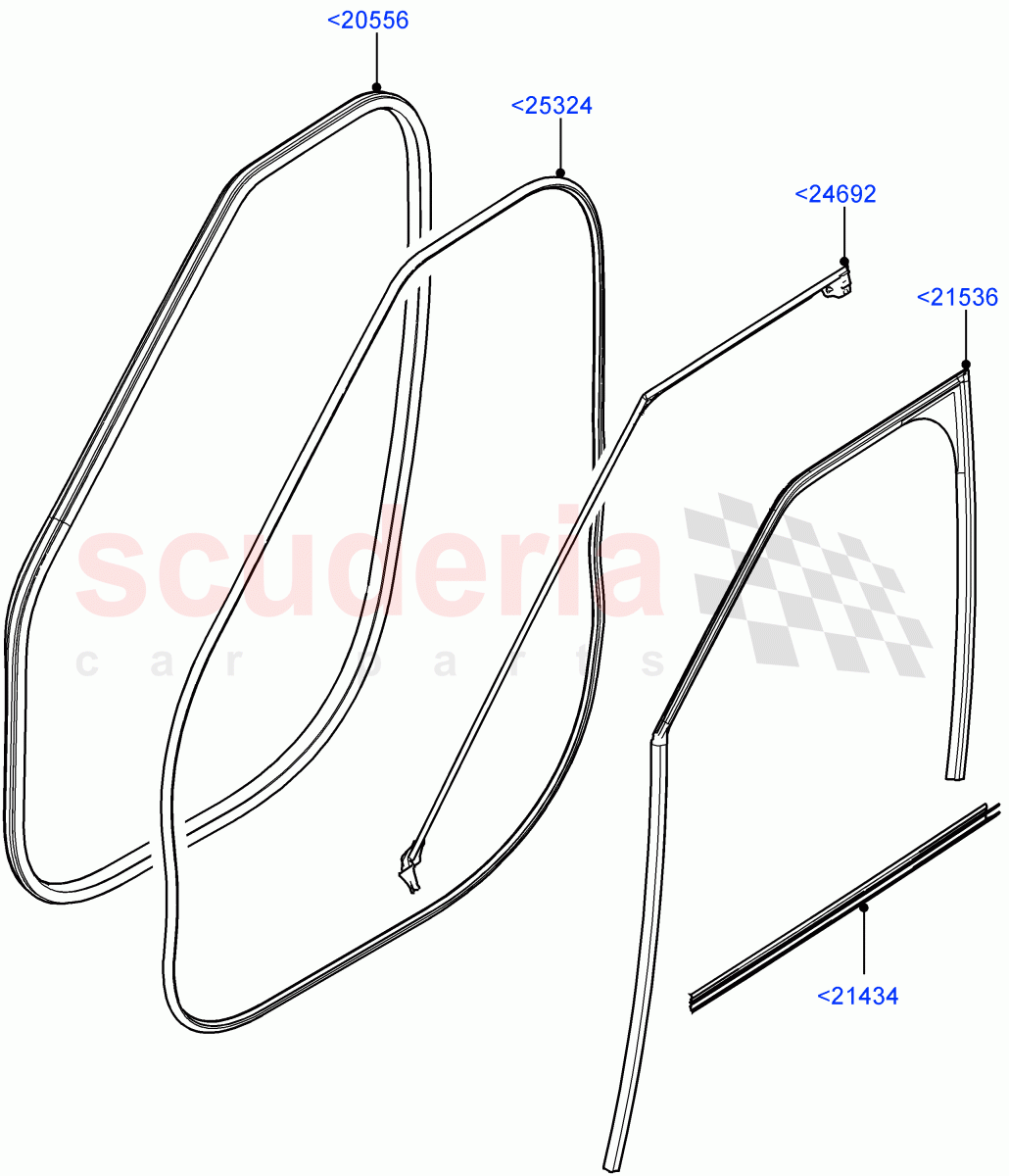

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

...and 1 more part variants. See table on right for more details.

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<20556	LR082952	SEAL - DOOR FRONT AND REAR	LR082952 SEAL - DOOR FRONT AND REAR Body, RH/LH / To: HA012373	$100.48	2
<20556	LR105175	SEAL - DOOR FRONT AND REAR	LR105175 SEAL - DOOR FRONT AND REAR Body, RH/LH / From: HA012374 / To: JA053293	$85.58	2
<20556	LR113843	SEAL - DOOR FRONT AND REAR	LR113843 SEAL - DOOR FRONT AND REAR Body, RH/LH / From: JA053294	$99.61	2
<21434	LR082962	WEATHERSTRIP - DOOR BELT	LR082962 WEATHERSTRIP - DOOR BELT RH / To: HA010108	$79.54	1
<21434	LR082964	WEATHERSTRIP - DOOR BELT	LR082964 WEATHERSTRIP - DOOR BELT LH / To: HA010108	$71.42	1
<21434	LR102567	WEATHERSTRIP - DOOR BELT	LR102567 WEATHERSTRIP - DOOR BELT RH / From: HA010109	$53.53	1
<21434	LR102566	WEATHERSTRIP - DOOR BELT	LR102566 WEATHERSTRIP - DOOR BELT LH / From: HA010109	$51.57	1
<21536	LR082975	RUN - DOOR GLASS	LR082975 RUN - DOOR GLASS RH	$99.37	1
<21536	LR082976	RUN - DOOR GLASS	LR082976 RUN - DOOR GLASS LH	$99.37	1
<24692	LR082954	SEAL - DOOR FRONT AND REAR	LR082954 SEAL - DOOR FRONT AND REAR RH, Upper	$71.40	1
<24692	LR082956	SEAL - DOOR FRONT AND REAR	LR082956 SEAL - DOOR FRONT AND REAR LH, Upper	$71.40	1
<25324	LR082977	SEAL - DOOR FRONT AND REAR	LR082977 SEAL - DOOR FRONT AND REAR RH/LH / To: HA009001	$90.90	2
<25324	LR104931	SEAL - DOOR FRONT AND REAR	LR104931 SEAL - DOOR FRONT AND REAR RH/LH / From: HA009002	$90.90	2

Front Doors, Hinges & Weatherstrips (Weatherstrips And Seals, Solihull Plant Build) ((V)...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]
