Splash And Heat Shields (Nitra Plant Build, Rear, Centre) ((V) Fromk2000001)

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Splash And Heat Shields (Nitra Plant Build, Rear, Centre) ((V) FROMK2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 $1.46 IN STOCK
LR009266 BOLT M6 X 24 $1.46 IN STOCK
Photo Part No Description Price (each) Stock
LR033409 BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD $1.34 IN STOCK
LR033409 BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD $1.34 IN STOCK
Photo Part No Description Price (each) Stock
LR033697 CLIP - PUSH ON STEEL $1.43 To Order
LR033697 CLIP - PUSH ON STEEL $1.43 To Order
Photo Part No Description Price (each) Stock
LR033698 NUT - HEX. - PLATE $1.47 To Order
LR033698 NUT - HEX. - PLATE $1.47 To Order
LR033698 NUT - HEX. - PLATE $1.47 To Order
Photo Part No Description Price (each) Stock
AYH100790 NUT - SPECIAL $1.23 To Order
Photo Part No Description Price (each) Stock
LR005311 PLUG - BODY SEALING $2.16 IN STOCK
Photo Part No Description Price (each) Stock
LR132021 PLUG $0.97 To Order
Photo Part No Description Price (each) Stock
RYG501170 SCREW AND WASHER $0.61 To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.95 IN STOCK
AYP500110 SCREW $0.95 IN STOCK
Photo Part No Description Price (each) Stock
LR106494 SCREW $2.24 IN STOCK
Photo Part No Description Price (each) Stock
RYQ500070 PIN - RETAINING 6.3 X 22MM $1.50 IN STOCK
Photo Part No Description Price (each) Stock
LR086390 INSULATOR - REAR FLOOR PAN $20.67 To Order
LR086390 INSULATOR - REAR FLOOR PAN $20.67 To Order
Photo Part No Description Price (each) Stock
LR098015 SHIELD - TRANS. TUNNEL - FRONT $244.83 To Order
LR136830 SHIELD - TRANS. TUNNEL - FRONT $244.83 To Order
LR139286 SHIELD - TRANS. TUNNEL - FRONT $244.83 To Order
Photo Part No Description Price (each) Stock
LR098010 SHIELD - TRANS. TUNNEL - REAR $255.26 To Order
LR118388 SHIELD - TRANS. TUNNEL - REAR $181.90 To Order
LR139253 SHIELD - TRANS. TUNNEL - REAR $181.90 To Order
Photo Part No Description Price (each) Stock
LR083675 SHIELD - REAR FLOOR PAN $117.66 To Order
LR083676 SHIELD - REAR FLOOR PAN $103.98 To Order
Photo Part No Description Price (each) Stock
LR094073 SHIELD - FRONT FLOOR PAN $44.47 To Order
LR094073 SHIELD - FRONT FLOOR PAN $44.47 To Order
Photo Part No Description Price (each) Stock
LR092621 SHIELD - REAR FLOOR PAN $164.57 To Order
LR137639 SHIELD - REAR FLOOR PAN $165.66 To Order
Photo Part No Description Price (each) Stock
LR116996 SHIELD - REAR FLOOR PAN $47.51 To Order
LR123051 SHIELD - REAR FLOOR PAN $40.66 To Order
LR123051 SHIELD - REAR FLOOR PAN $40.66 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR112555 HEAT SHIELD - EXHAUST $118.85 To Order
Photo Part No Description Price (each) Stock
LR112556 SHIELD - FLOOR $166.56 To Order
LR112556 SHIELD - FLOOR $166.56 To Order
Photo Part No Description Price (each) Stock
LR094596 SHIELD - FLOOR $30.23 To Order
Photo Part No Description Price (each) Stock
LR132936 HEAT SHIELD - EXHAUST $88.34 To Order
Photo Part No Description Price (each) Stock
LR116493 PAD - MUTE - FRONT $112.44 To Order
LR116493 PAD - MUTE - FRONT $112.44 To Order
Photo Part No Description Price (each) Stock
LR116494 PAD - MUTE - FRONT $112.44 To Order
Photo Part No Description Price (each) Stock
LR121156 PAD - MUTE - FRONT $98.02 To Order
Photo Part No Description Price (each) Stock
LR116993 HEATSHIELD - UNDERBODY SPARE TYRE $64.62 To Order
Photo Part No Description Price (each) Stock
LR083679 HEATSHIELD - UNDERBODY SPARE TYRE $44.83 To Order
View All

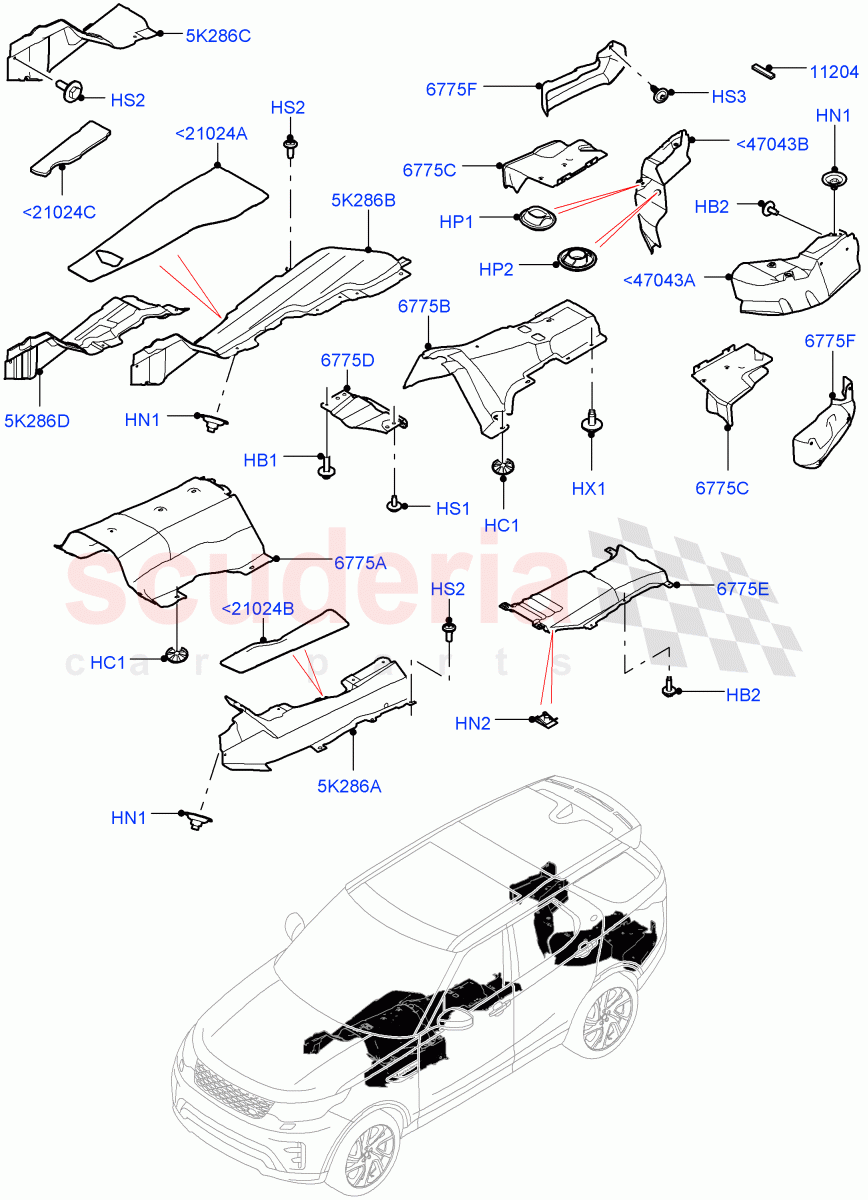

Splash And Heat Shields (Nitra Plant Build, Rear, Centre) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<21024A LR116493
PAD - MUTE - FRONT
2.0L I4 High DOHC AJ200 Petrol / RH / From: K2000001 / To: L2999999 		$112.44 1
<21024A LR116493
PAD - MUTE - FRONT
2.0L I4 High DOHC AJ200 Petrol / RH / From: M2000001 		$112.44 1
<21024B LR116494
PAD - MUTE - FRONT
3.0 V6 D Gen2 Mono Turbo / LH / From: K2000001 / To: L2999999 		$112.44 1
<21024C LR121156
PAD - MUTE - FRONT
3.0L AJ20P6 Petrol High / RH / From: M2000001 		$98.02 1
<47043A LR116993
HEATSHIELD - UNDERBODY SPARE TYRE
21" Full Size Spare Wheel, 3.0 V6 D Gen2 Mono Turbo / LH / From: K2000001 		$64.62 1
<47043B LR083679
HEATSHIELD - UNDERBODY SPARE TYRE
19" Full Size Spare Wheel / RH / From: K2000001 		$44.83 1
HB1 LR009266
BOLT M6 X 24
Bolt And Washer, Heat Shield, Hexagonal Head, M6 X 24MM / From: K2000001
IN STOCK 		$1.46 3
HB1 LR009266
BOLT M6 X 24
Bolt And Washer, Front Floor Pan, Hexagonal Head, M6 X 24MM / From: K2000001
IN STOCK 		$1.46 4
HB2 LR033409
BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD
Centre, M6 X 13.5MM / From: K2000001
IN STOCK 		$1.34 8
HB2 LR033409
BOLT AND WASHER M6 X 13.5 - HEXAGON HEAD
M6 X 13.5MM, Rear, Side / From: K2000001
IN STOCK 		$1.34 4
HC1 LR033697
CLIP - PUSH ON STEEL
Front, M6 / From: K2000001 		$1.43 3
HC1 LR033697
CLIP - PUSH ON STEEL
M6, Rear / From: K2000001 		$1.43 2
HN1 LR033698
NUT - HEX. - PLATE
LH, Heat Shield, M6 / From: K2000001 		$1.47 6
HN1 LR033698
NUT - HEX. - PLATE
RH, Heat Shield, M6 / From: K2000001 		$1.47 4
HN1 LR033698
NUT - HEX. - PLATE
Heat Shield, M6, Spare Wheel Mounting / From: K2000001 		$1.47 2
HN2 AYH100790
NUT - SPECIAL
M6 X 0.5-4, Nut "U" Spring / From: K2000001 		$1.23 2
HP1 LR005311
PLUG - BODY SEALING
19 X 25, Plastic / From: K2000001
IN STOCK 		$2.16 3
HP2 LR132021
PLUG
19mm x 0.7 - 2.5mm, Heatshield / From: K2000001 		$0.97 2
HS1 RYG501170
SCREW AND WASHER
Heat Shield, Hexagonal Head, M8 X 30MM / From: K2000001 		$0.61 1
HS2 AYP500110
SCREW
LH, Bolt And Washer, Heat Shield, Hexagonal Head, M6 X 20MM / From: K2000001
IN STOCK 		$0.95 2
HS2 AYP500110
SCREW
RH, Bolt And Washer, Heat Shield, Hexagonal Head, M6 X 20MM / From: K2000001
IN STOCK 		$0.95 1
HS3 LR106494
SCREW
M5 x 20MM, Self Tapping / From: K2000001
IN STOCK 		$2.24 6
HX1 RYQ500070
PIN - RETAINING 6.3 X 22MM
6.3 X 22MM, Push Pin / From: K2000001
IN STOCK 		$1.50 4
5K286A LR112555
HEAT SHIELD - EXHAUST
3.0 V6 D Gen2 Twin Turbo / LH / From: K2000001 / To: L2999999 		$118.85 1
5K286B LR112556
SHIELD - FLOOR
2.0L I4 High DOHC AJ200 Petrol / RH / From: K2000001 / To: L2999999 		$166.56 1
5K286B LR112556
SHIELD - FLOOR
2.0L I4 High DOHC AJ200 Petrol / RH / From: M2000001 		$166.56 1
5K286C LR094596
SHIELD - FLOOR
3.0 V6 D Gen2 Twin Turbo / From: K2000001 / To: L2999999 		$30.23 1
5K286D LR132936
HEAT SHIELD - EXHAUST
3.0L AJ20P6 Petrol High / From: M2000001 		$88.34 1
6775A LR098015
SHIELD - TRANS. TUNNEL - FRONT
Front, Transmission / From: K2000001 / To: L2432806 		$244.83 1
6775A LR136830
SHIELD - TRANS. TUNNEL - FRONT
Front, Transmission / From: L2432807 / To: L2433806 		$244.83 1
6775A LR139286
SHIELD - TRANS. TUNNEL - FRONT
Front, Transmission / From: L2433807 		$244.83 1
6775B LR098010
SHIELD - TRANS. TUNNEL - REAR
Rear, Transmission / From: K2000001 / To: L2432806 		$255.26 1
6775B LR118388
SHIELD - TRANS. TUNNEL - REAR
Rear, Transmission / From: L2432807 / To: L2433806 		$181.90 1
6775B LR139253
SHIELD - TRANS. TUNNEL - REAR
Rear, Transmission / From: L2433807 		$181.90 1
6775C LR083675
SHIELD - REAR FLOOR PAN
RH, Rear Floor / From: K2000001 		$117.66 1
6775C LR083676
SHIELD - REAR FLOOR PAN
LH, Rear Floor / From: K2000001 		$103.98 1
6775D LR094073
SHIELD - FRONT FLOOR PAN
3.0 V6 D Low MT ROW / From: K2000001 / To: L2999999 		$44.47 1
6775D LR094073
SHIELD - FRONT FLOOR PAN
2.0L I4 High DOHC AJ200 Petrol / From: M2000001 		$44.47 1
6775E LR092621
SHIELD - REAR FLOOR PAN
Centre, Rear Floor / From: K2000001 / To: L2423410 		$164.57 1
6775E LR137639
SHIELD - REAR FLOOR PAN
Centre, Rear Floor / From: L2423411 		$165.66 1
6775F LR116996
SHIELD - REAR FLOOR PAN
3.0 V6 D Gen2 Twin Turbo / RH, For Diesel Engines, Front Floor Pan / From: K2000001 / To: L2999999 		$47.51 1
6775F LR123051
SHIELD - REAR FLOOR PAN
3.0 V6 D Gen2 Mono Turbo / LH, For Diesel Engines, Front Floor Pan / From: K2000001 / To: L2999999 		$40.66 1
6775F LR123051
SHIELD - REAR FLOOR PAN
3.0L DOHC GDI SC V6 PETROL / LH, Front Floor Pan / From: K2000001 / To: L2999999 		$40.66 1
6775F LR083677
SHIELD - REAR FLOOR PAN
3.0L DOHC GDI SC V6 PETROL / RH, Front Floor Pan / From: K2000001 / To: L2999999 		$50.17 1
6775F LR142292
SHIELD - REAR FLOOR PAN
RH, Front Floor Pan / From: M2000001 		$41.45 1
6775F LR142293
SHIELD - REAR FLOOR PAN
2.0L I4 High DOHC AJ200 Petrol / LH, Front Floor Pan / From: M2000001 		$39.47 1
11204 LR086390
INSULATOR - REAR FLOOR PAN
3.0 V6 D Low MT ROW / From: K2000001 / To: L2999999 		$20.67 1
11204 LR086390
INSULATOR - REAR FLOOR PAN
From: M2000001 		$20.67 1
