Fuel Tank & Related Parts (Solihull Plant Build) (2.0L I4 High Dohc Aj200 Petrol) ((V) Fromja000001)

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Fuel Tank & Related Parts (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR093364 BOLT $2.81 To Order
Photo Part No Description Price (each) Stock
LR094032 CLIP - HOSE $4.41 To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE $6.12 To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW $4.21 To Order
Photo Part No Description Price (each) Stock
LR082726 TANK - FUEL $1,251.87 To Order
Photo Part No Description Price (each) Stock
202123475 CAP - FUEL TANK FILLER $40.75 To Order
LR053665 CAP - FUEL TANK FILLER $34.87 To Order
Photo Part No Description Price (each) Stock
LR082767 PIPE - FUEL FILLER $331.48 To Order
LR082768 PIPE - FUEL FILLER $355.27 To Order
Photo Part No Description Price (each) Stock
LR082774 HOSE - FILLER PIPE $147.28 To Order
LR082775 HOSE - FILLER PIPE $147.10 To Order
Photo Part No Description Price (each) Stock
LR082727 SHIELD - FUEL TANK $659.94 To Order
Photo Part No Description Price (each) Stock
LR082728 TUBE - FUEL $68.80 To Order
Photo Part No Description Price (each) Stock
LR082439 TUBE - VENTILATION $164.05 To Order
LR082442 TUBE - VENTILATION $96.46 To Order
LR123904 TUBE - VENTILATION $166.52 To Order
View All

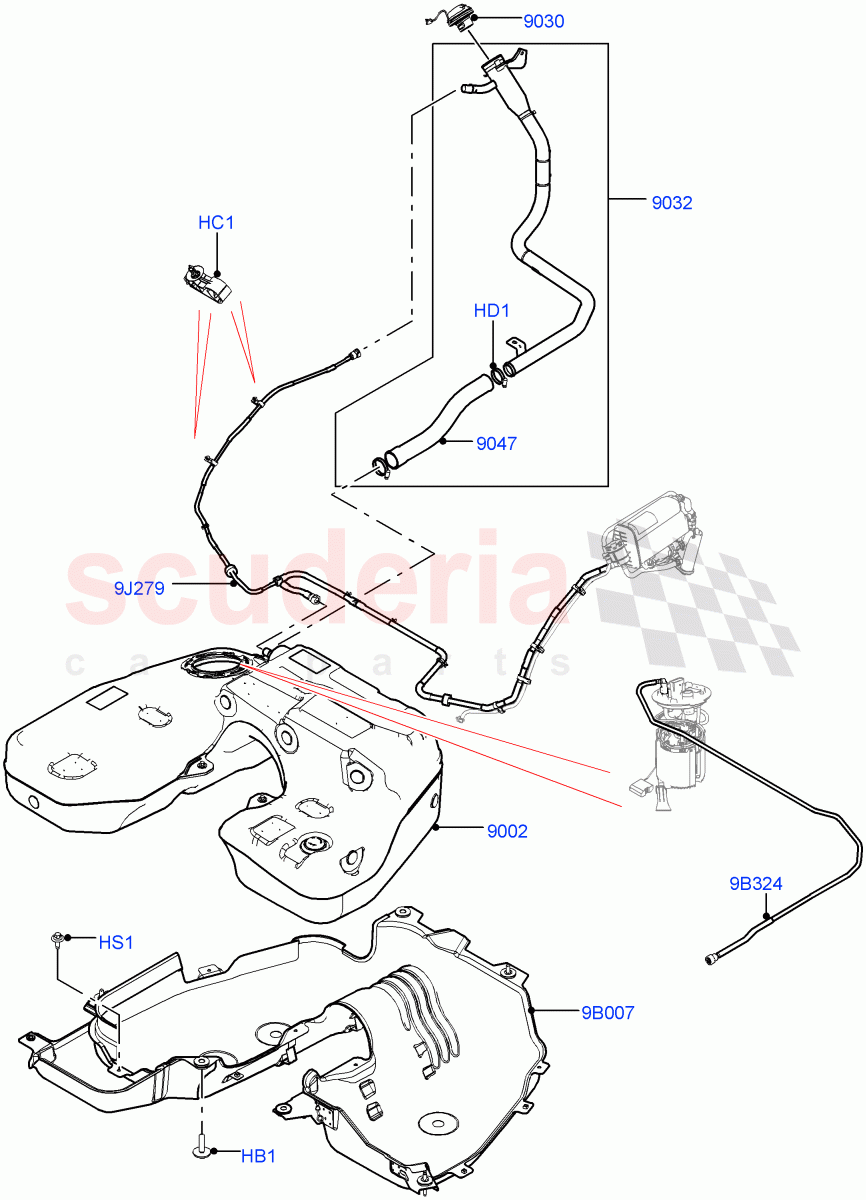

Fuel Tank & Related Parts (Solihull Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMJA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR093364
BOLT
Hexagonal Head, M10 X 50MM, To Body 		$2.81 6
HC1 LR094032
CLIP - HOSE
Breather Pipe, Plastic 		$4.41 2
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 		$6.12 1
HS1 RYG500900
SCREW
Bolt And Washer, Fuel Tank To Shield, Hexagonal Head, M6X30 		$4.21 5
9B007 LR082727
SHIELD - FUEL TANK
From: JA000001 		$659.94 1
9B324 LR082728
TUBE - FUEL
Feed / From: JA000001 		$68.80 1
9J279 LR082439
TUBE - VENTILATION
Narrow Filler Neck - Unleaded / From: JA000001 / To: KA088554 		$164.05 1
9J279 LR082442
TUBE - VENTILATION
Fuel Tank Filler Neck - Unleaded / From: JA000001 		$96.46 1
9J279 LR123904
TUBE - VENTILATION
Narrow Filler Neck - Unleaded / From: KA088555 		$166.52 1
9002 LR082726
TANK - FUEL
From: JA000001 		$1,251.87 1
9030 202123475
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - DMTL / From: JA000001 		$40.75 1
9030 LR053665
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Unleaded / From: JA000001 		$34.87 1
9032 LR082767
PIPE - FUEL FILLER
Fuel Tank Filler Neck - DMTL / From: JA000001 		$331.48 1
9032 LR082768
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Unleaded / From: JA000001 		$355.27 1
9047 LR082774
HOSE - FILLER PIPE
Fuel Tank Filler Neck - DMTL / From: JA000001 		$147.28 1
9047 LR082775
HOSE - FILLER PIPE
Fuel Tank Filler Neck - Unleaded / From: JA000001 		$147.10 1
