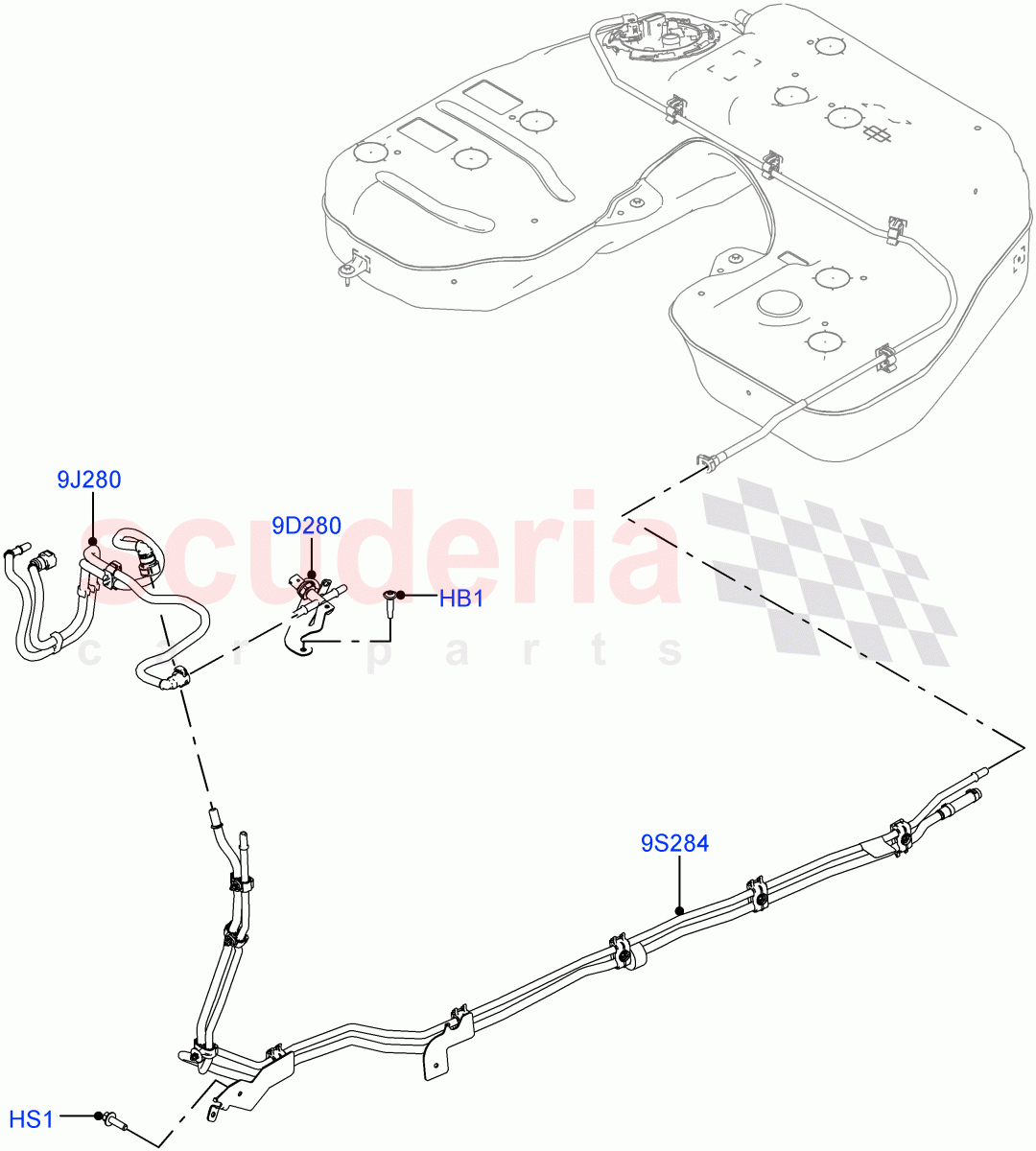

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034354	BOLT - PAN - TORX	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	$0.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR082759	MANIFOLD - FUEL SUPPLY	$136.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142294	PIPE - FUEL	$57.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142117	TUBE - FUEL SUPPLY AND VAPOUR	$281.01	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR034354	BOLT - PAN - TORX	LR034354 BOLT - PAN - TORX M6 x 19MM, Torx / From: M2000001	$1.07	2
HS1	FS106206	SCREW IN STOCK	FS106206 SCREW Hexagonal Head, M6 X 20MM / From: M2000001 IN STOCK	$0.96	2
9D280	LR082759	MANIFOLD - FUEL SUPPLY	LR082759 MANIFOLD - FUEL SUPPLY From: M2000001	$136.85	1
9J280	LR142294	PIPE - FUEL	LR142294 PIPE - FUEL Front / From: M2000001	$57.15	1
9S284	LR142117	TUBE - FUEL SUPPLY AND VAPOUR	LR142117 TUBE - FUEL SUPPLY AND VAPOUR Rear / From: M2000001	$281.01	1
