Name: Fuel Lines (Solihull Plant Build, Rear) (2.0L I4 High DOHC AJ200 Petrol, Petrol Tank With Leak Detection, Pet Tank With Leak Det - Lrg Filter) ((V) FROMKA000001)
Rating: 5.0 (1 reviews)

Fuel Lines (Solihull Plant Build, Rear) (2.0L I4 High DOHC AJ200 Petrol, Petrol Tank With Leak Detection, Pet Tank With Leak Det - Lrg Filter) ((V) FROMKA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Fuel Lines (Solihull Plant Build, Rear) (2.0L I4 High DOHC AJ200 Petrol, Petrol Tank With Leak...

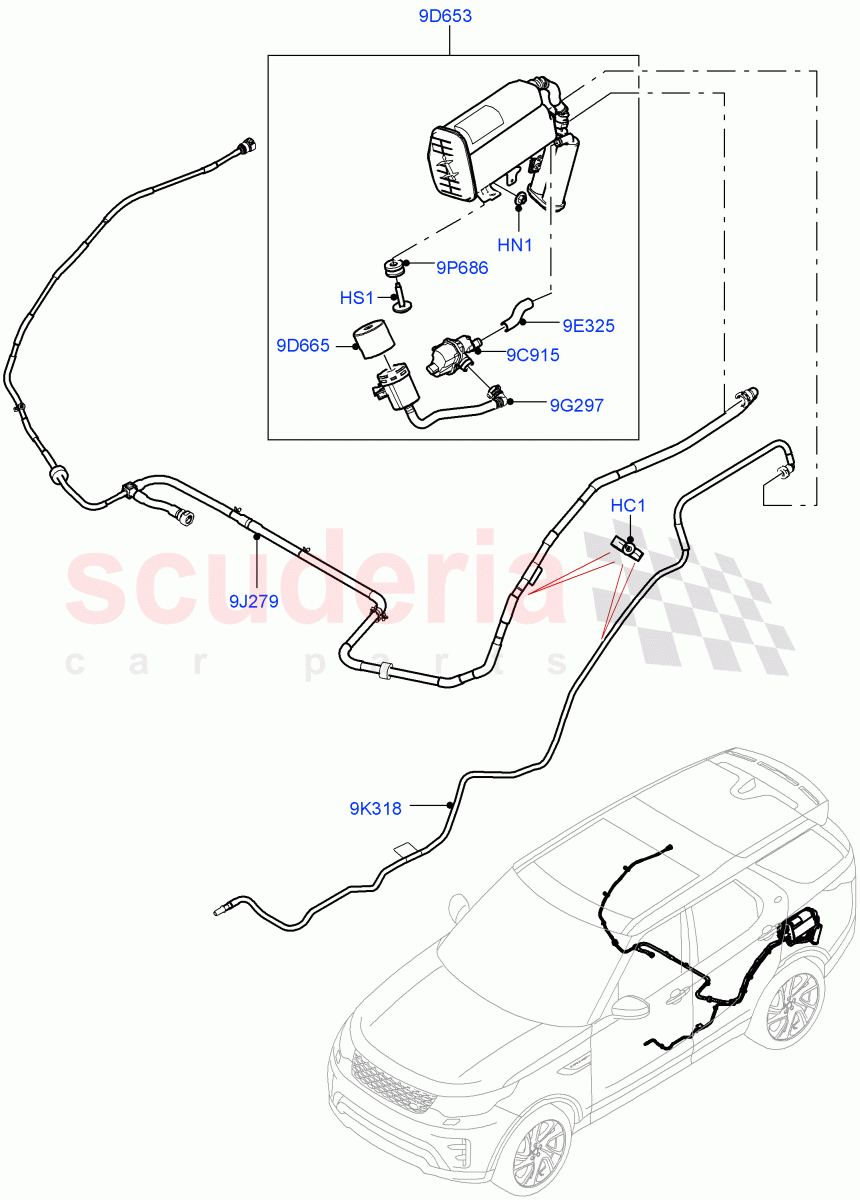

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR094032	CLIP - HOSE	$4.40	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500310	NUT AND WASHER - HEX.	$3.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP501050	SCREW - PAN - TORX	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR174757	VALVE - CONTROL	$191.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113351	RESERVOIR - FUEL VAPOUR SYSTEM	$663.23	To Order
	LR155136	RESERVOIR - FUEL VAPOUR SYSTEM	$692.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR155089	BRACKET	$11.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR089869	HOSE - FUEL	$25.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037482	HOSE - FUEL VAPOUR	$64.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082439	TUBE - VENTILATION	$163.65	To Order
	LR123904	TUBE - VENTILATION	$166.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082445	TUBE - FUEL VAPOUR	$70.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR102055	MOUNTING - RUBBER	$11.63	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR094032	CLIP - HOSE	LR094032 CLIP - HOSE Double, Plastic / From: KA000001	$4.40	4
HN1	RYH500310	NUT AND WASHER - HEX. IN STOCK	RYH500310 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer / From: KA000001 IN STOCK	$3.10	2
HS1	RYP501050	SCREW - PAN - TORX	RYP501050 SCREW - PAN - TORX M6 X 25MM, Torx / From: KA000001	$1.46	2
9C915	LR174757	VALVE - CONTROL	LR174757 VALVE - CONTROL Charcoal Cannister / From: KA000001	$191.90	1
9D653	LR113351	RESERVOIR - FUEL VAPOUR SYSTEM	LR113351 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister, With Bracket / From: KA000001 / To: KA088554	$663.23	1
9D653	LR155136	RESERVOIR - FUEL VAPOUR SYSTEM	LR155136 RESERVOIR - FUEL VAPOUR SYSTEM Charcoal Cannister, With Bracket / From: KA088555	$692.07	1
9D665	LR155089	BRACKET	LR155089 BRACKET From: KA088555	$11.00	1
9E325	LR089869	HOSE - FUEL	LR089869 HOSE - FUEL From: KA000001	$25.25	1
9G297	LR037482	HOSE - FUEL VAPOUR	LR037482 HOSE - FUEL VAPOUR Canister vent / From: KA000001	$64.59	1
9J279	LR082439	TUBE - VENTILATION	LR082439 TUBE - VENTILATION From: KA000001 / To: KA088554	$163.65	1
9J279	LR123904	TUBE - VENTILATION	LR123904 TUBE - VENTILATION From: KA088555	$166.11	1
9K318	LR082445	TUBE - FUEL VAPOUR	LR082445 TUBE - FUEL VAPOUR From Carbon Canister To Fuel Lines / From: KA000001	$70.91	1
9P686	LR102055	MOUNTING - RUBBER	LR102055 MOUNTING - RUBBER From: KA000001	$11.63	2
