Name: Turbocharger (Lubrication And Cooling, Nitra Plant Build) (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMK2000001)
Rating: 4.2 (1 reviews)

View All

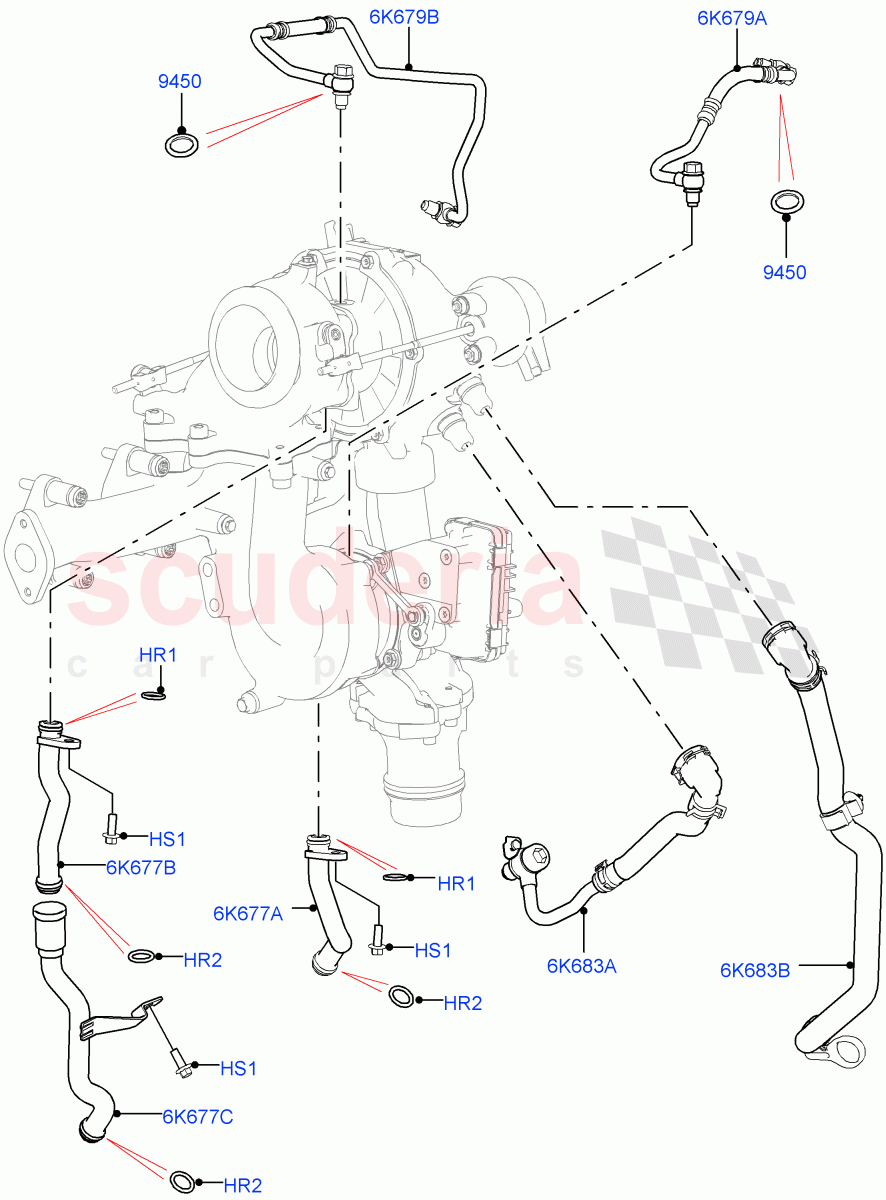

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073687	O-RING	$29.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073688	O-RING	$3.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073671	WASHER - COPPER	$4.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR110749	HOSE - OIL RETURN	$44.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081635	PIPE - OIL DRAIN	$55.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081637	PIPE - OIL DRAIN	$50.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081638	PIPE - OIL DRAIN	$109.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081639	PIPE - OIL DRAIN	$59.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081653	HOSE - WATER OUTLET	$85.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081654	HOSE - WATER INLET	$61.39	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR073687	O-RING	LR073687 O-RING 14.3 x 2.4, Turbocharger To Pipe / From: K2000001	$29.56	2
HR2	LR073688	O-RING IN STOCK	LR073688 O-RING 15 X 3MM, Lower / From: K2000001 IN STOCK	$3.99	3
HS1	LR073686	SCREW	LR073686 SCREW M6 X 16MM / From: K2000001	$2.49	3
6K677A	LR110749	HOSE - OIL RETURN	LR110749 HOSE - OIL RETURN Lower / From: K2000001	$44.47	1
6K677B	LR081635	PIPE - OIL DRAIN	LR081635 PIPE - OIL DRAIN Turbocharger, Upper / From: K2000001	$55.79	1
6K677C	LR081637	PIPE - OIL DRAIN	LR081637 PIPE - OIL DRAIN Cylinder Block, Upper / From: K2000001	$50.15	1
6K679A	LR081638	PIPE - OIL DRAIN	LR081638 PIPE - OIL DRAIN Secondary / From: K2000001	$109.15	1
6K679B	LR081639	PIPE - OIL DRAIN	LR081639 PIPE - OIL DRAIN Primary / From: K2000001	$59.10	1
6K683A	LR081653	HOSE - WATER OUTLET	LR081653 HOSE - WATER OUTLET Cylinder Block, Hose Water Outlet From Turbocharger / From: K2000001	$85.13	1
6K683B	LR081654	HOSE - WATER INLET	LR081654 HOSE - WATER INLET Hose Water Inlet To Turbocharger / From: K2000001	$61.39	1
9450	LR073671	WASHER - COPPER IN STOCK	LR073671 WASHER - COPPER Banjo Washer, Requires 2 Pcs Per Banjo-Bolt, Turbocharger Oil Feed / From: K2000001 IN STOCK	$4.69	8

Turbocharger (Lubrication And Cooling, Nitra Plant Build) (2.0L I4 Dsl High Dohc Aj200) ((V)...

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]
