Name: Turbocharger (Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200) ((V) FROMHA000001)
Rating: 4.5 (1 reviews)

View All

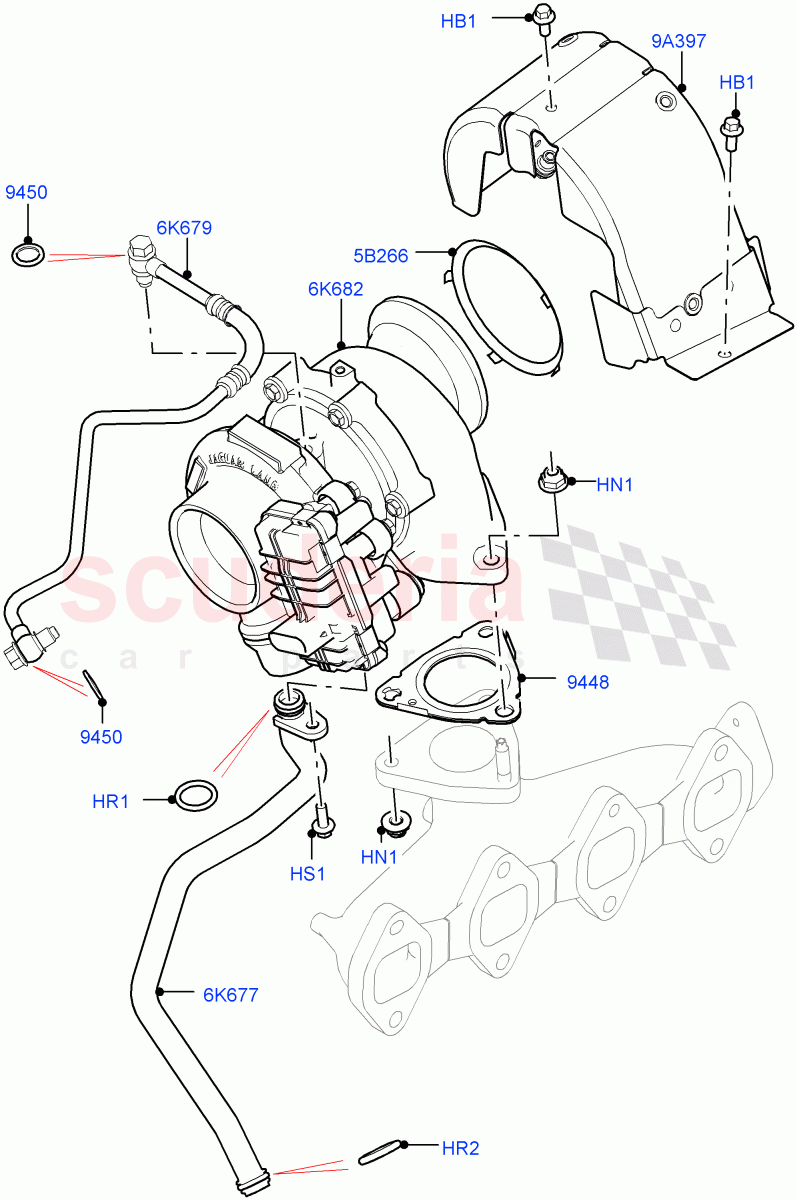

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073725	NUT - HEX.	$2.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073687	O-RING	$29.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073688	O-RING	$3.99	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079062	GASKET - EXHAUST MANIFOLD	$24.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073671	WASHER - COPPER	$4.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR072251	GASKET - TURBOCHARGER	$16.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081636	PIPE - OIL DRAIN	$63.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081640	PIPE - OIL DRAIN	$52.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083483	TURBOCHARGER	$2,099.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081617	HEAT SHIELD - TURBOCHARGER	$48.59	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD M6 X 14MM, Shield	$2.77	2
HN1	LR073725	NUT - HEX.	LR073725 NUT - HEX. M8	$2.48	3
HR1	LR073687	O-RING	LR073687 O-RING 14.3 x 2.4, Upper	$29.55	1
HR2	LR073688	O-RING IN STOCK	LR073688 O-RING 15 X 3MM, Lower IN STOCK	$3.99	1
HS1	LR073686	SCREW	LR073686 SCREW Drain, M6 X 16MM	$2.49	1
5B266	LR072251	GASKET - TURBOCHARGER	LR072251 GASKET - TURBOCHARGER 101 mm, To DPF	$16.70	1
6K677	LR081636	PIPE - OIL DRAIN	LR081636 PIPE - OIL DRAIN	$63.92	1
6K679	LR081640	PIPE - OIL DRAIN	LR081640 PIPE - OIL DRAIN	$52.47	1
6K682	LR083483	TURBOCHARGER	LR083483 TURBOCHARGER	$2,099.83	1
9A397	LR081617	HEAT SHIELD - TURBOCHARGER	LR081617 HEAT SHIELD - TURBOCHARGER	$48.59	1
9448	LR079062	GASKET - EXHAUST MANIFOLD	LR079062 GASKET - EXHAUST MANIFOLD Manifold To Turbocharger	$24.67	1
9450	LR073671	WASHER - COPPER IN STOCK	LR073671 WASHER - COPPER Banjo Washer, Requires 2 Pcs Per Banjo-Bolt, Turbocharger Oil Feed IN STOCK	$4.69	4

Turbocharger (Solihull Plant Build) (2.0L I4 Dsl Mid Dohc Aj200) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]
