Name: Turbocharger (Turbocharger Related Parts, Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMHA000001)
Rating: 4.4 (1 reviews)

Turbocharger (Turbocharger Related Parts, Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Turbocharger (Turbocharger Related Parts, Solihull Plant Build) (2.0L I4 DSL HIGH DOHC AJ200) ((V)...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR078918	BOLT - HEX. HEAD - FLANGED	$0.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081625	GASKET - EXHAUST MANIFOLD	$35.54	To Order
	LR112664	GASKET - EXHAUST MANIFOLD	$26.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122973	HEAT SHIELD - SENSOR	$20.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082481	SENSOR - EXHAUST GAS - TEMPERATURE	$154.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082495	SENSOR - EXHAUST GAS PRESSURE	$146.07	To Order
	LR112670	SENSOR - EXHAUST GAS PRESSURE	$204.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081623	HEAT SHIELD - TURBOCHARGER	$50.99	To Order
	LR117877	HEAT SHIELD - TURBOCHARGER	$58.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081620	HEAT SHIELD - TURBOCHARGER	$42.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081622	HEAT SHIELD - TURBOCHARGER	$37.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088543	HEAT SHIELD - TURBOCHARGER	$41.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081629	SHIELD - EXHAUST MANIFOLD HEAT	$34.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081628	SHIELD - EXHAUST MANIFOLD HEAT	$34.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104408	BRACKET	$17.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124570	BRACKET - CABLE SUPPORT	$14.30	To Order

View All

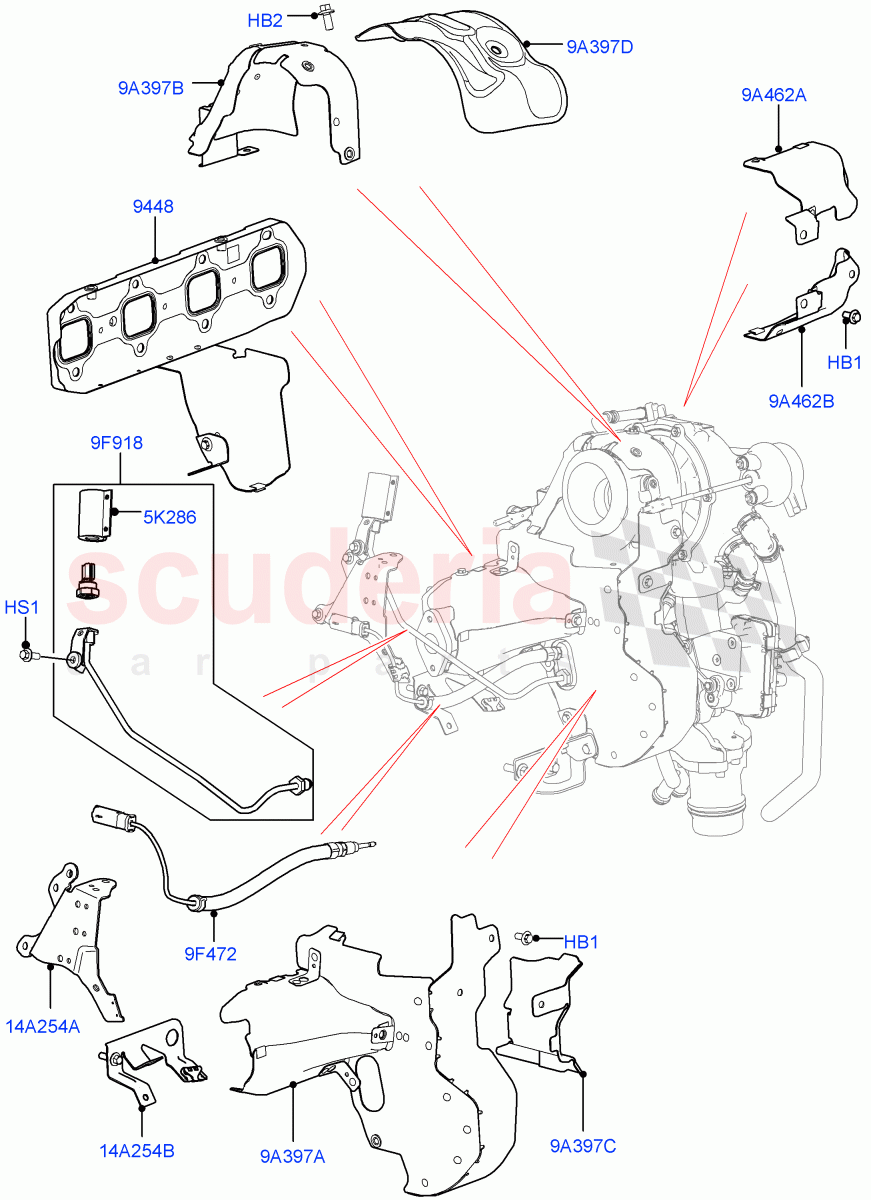

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR078918	BOLT - HEX. HEAD - FLANGED	LR078918 BOLT - HEX. HEAD - FLANGED Heat Shield, M6 X 14MM	$0.95	9
HB2	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD Heat Shield, M6 X 14MM	$2.77	2
HS1	LR073686	SCREW	LR073686 SCREW M6 X 16MM, Sensor	$2.49	1
5K286	LR122973	HEAT SHIELD - SENSOR	LR122973 HEAT SHIELD - SENSOR Pressure Sensor	$20.71	1
9A397A	LR081623	HEAT SHIELD - TURBOCHARGER	LR081623 HEAT SHIELD - TURBOCHARGER Bottom, Centre / To: JA069643	$50.99	1
9A397A	LR117877	HEAT SHIELD - TURBOCHARGER	LR117877 HEAT SHIELD - TURBOCHARGER Bottom, Centre / From: JA069644	$58.88	1
9A397B	LR081620	HEAT SHIELD - TURBOCHARGER	LR081620 HEAT SHIELD - TURBOCHARGER Upper	$42.22	1
9A397C	LR081622	HEAT SHIELD - TURBOCHARGER	LR081622 HEAT SHIELD - TURBOCHARGER Centre	$37.16	1
9A397D	LR088543	HEAT SHIELD - TURBOCHARGER	LR088543 HEAT SHIELD - TURBOCHARGER Top	$41.03	1
9A462A	LR081629	SHIELD - EXHAUST MANIFOLD HEAT	LR081629 SHIELD - EXHAUST MANIFOLD HEAT RH Upper	$34.40	1
9A462B	LR081628	SHIELD - EXHAUST MANIFOLD HEAT	LR081628 SHIELD - EXHAUST MANIFOLD HEAT RH Lower	$34.67	1
9F472	LR082481	SENSOR - EXHAUST GAS - TEMPERATURE	LR082481 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature	$154.92	1
9F918	LR082495	SENSOR - EXHAUST GAS PRESSURE	LR082495 SENSOR - EXHAUST GAS PRESSURE Complete Assembly, For Engine Serial Number Earlier Than ESN 180206W0745204DTD	$146.07	1
9F918	LR112670	SENSOR - EXHAUST GAS PRESSURE	LR112670 SENSOR - EXHAUST GAS PRESSURE Complete Assembly, For Engine Serial Number Later Than ESN 180206W0745204DTD	$204.20	1
14A254A	LR104408	BRACKET	LR104408 BRACKET Sensor Cable	$17.56	1
14A254B	LR124570	BRACKET - CABLE SUPPORT	LR124570 BRACKET - CABLE SUPPORT Sensor Cable	$14.30	1
9448	LR081625	GASKET - EXHAUST MANIFOLD	LR081625 GASKET - EXHAUST MANIFOLD Heat Shield, Manifold To Cylinder Head / To: HA046062	$35.54	1
9448	LR112664	GASKET - EXHAUST MANIFOLD	LR112664 GASKET - EXHAUST MANIFOLD Heat Shield, Manifold To Cylinder Head / From: HA046063	$26.77	1
