Name: Inlet Manifold (2.2L CR DI 16V Diesel, 2.2L DOHC EFI TC DW12)
Rating: 4.0 (1 reviews)

View All

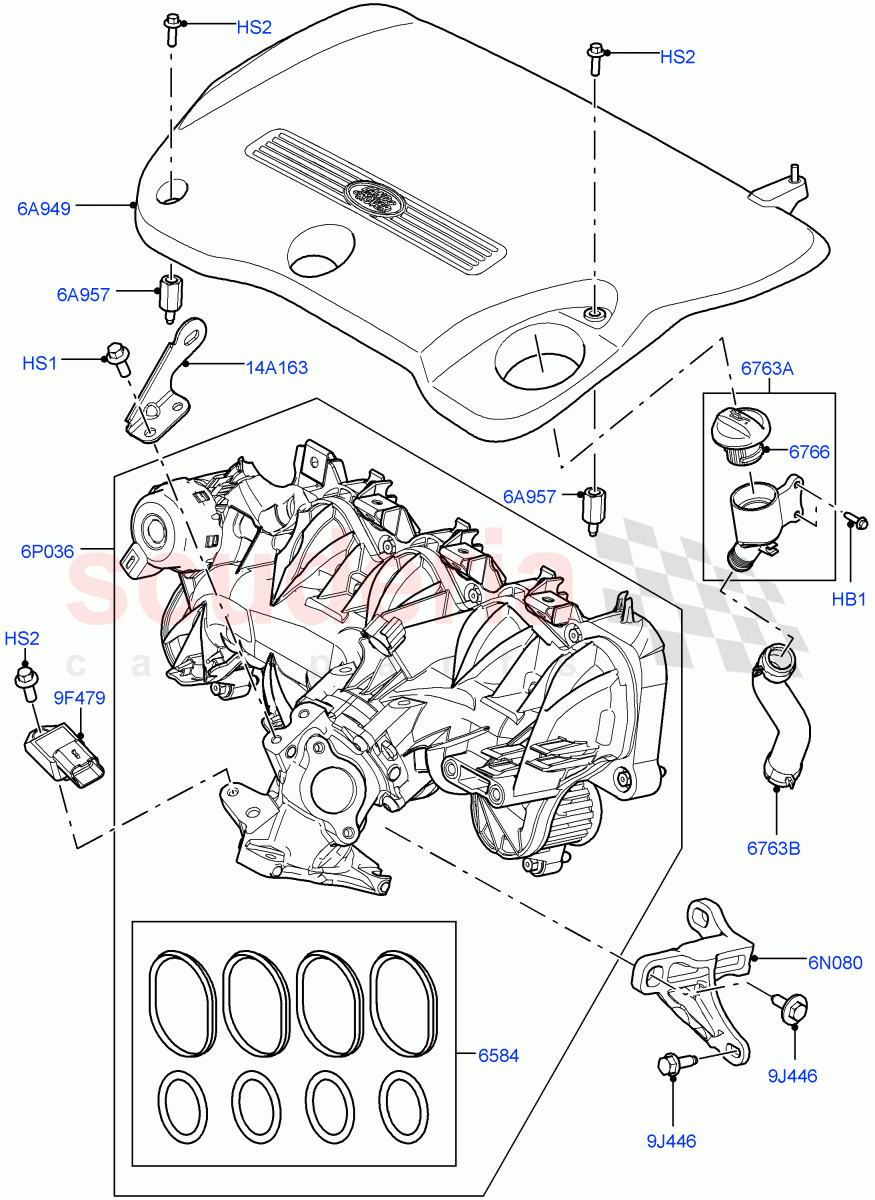

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR013333	SCREW	$5.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000640	SCREW	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	VYP500080	BOLT AND WASHER - HEX.HEAD	$0.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR005364	GASKET - INTAKE MANIFOLD	$31.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006104	CAP - OIL FILLER	$35.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011181	PIPE - OIL INLET	$50.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023173	HOSE - OIL FILLER	$82.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063918	COVER - ENGINE TOP	$388.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005045	STUD - SPECIAL	$9.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006682	BRACKET - MANIFOLD	$84.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019987	MANIFOLD - INLET	$932.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001324	SENSOR	$135.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002887	BOLT	$10.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001209	BRACKET - MANIFOLD	$14.51	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR013333	SCREW	LR013333 SCREW M6 x 25MM	$5.60	2
HS1	LR000640	SCREW	LR000640 SCREW M6 x 18MM	$0.52	2
HS2	VYP500080	BOLT AND WASHER - HEX.HEAD IN STOCK	VYP500080 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M6 X 20MM IN STOCK	$0.69	3
6A949	LR063918	COVER - ENGINE TOP	LR063918 COVER - ENGINE TOP Engine	$388.56	1
6A957	LR005045	STUD - SPECIAL	LR005045 STUD - SPECIAL Cover	$9.13	2
6N080	LR006682	BRACKET - MANIFOLD	LR006682 BRACKET - MANIFOLD	$84.58	1
6P036	LR019987	MANIFOLD - INLET	LR019987 MANIFOLD - INLET	$932.36	1
9F479	LR001324	SENSOR	LR001324 SENSOR Sensor - Manifold Absolute Pressure (MAP)	$135.71	1
9J446	LR002887	BOLT	LR002887 BOLT M6 X 20MM	$10.11	2
14A163	LR001209	BRACKET - MANIFOLD	LR001209 BRACKET - MANIFOLD	$14.51	1
6584	LR005364	GASKET - INTAKE MANIFOLD	LR005364 GASKET - INTAKE MANIFOLD Kit	$31.68	1
6763A	LR011181	PIPE - OIL INLET	LR011181 PIPE - OIL INLET	$50.94	1
6763B	LR023173	HOSE - OIL FILLER	LR023173 HOSE - OIL FILLER	$82.08	1
6766	LR006104	CAP - OIL FILLER	LR006104 CAP - OIL FILLER	$35.14	1

Inlet Manifold (2.2L Cr Di 16V Diesel, 2.2L Dohc Efi Tc Dw12)

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]
