Name: Cylinder Head (2.2L CR DI 16V Diesel, 2.2L DOHC EFI TC DW12)
Rating: 4.1 (1 reviews)

Cylinder Head (2.2L CR DI 16V Diesel, 2.2L DOHC EFI TC DW12) of Land Rover Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Cylinder Head (2.2L CR DI 16V Diesel, 2.2L DOHC EFI TC DW12)

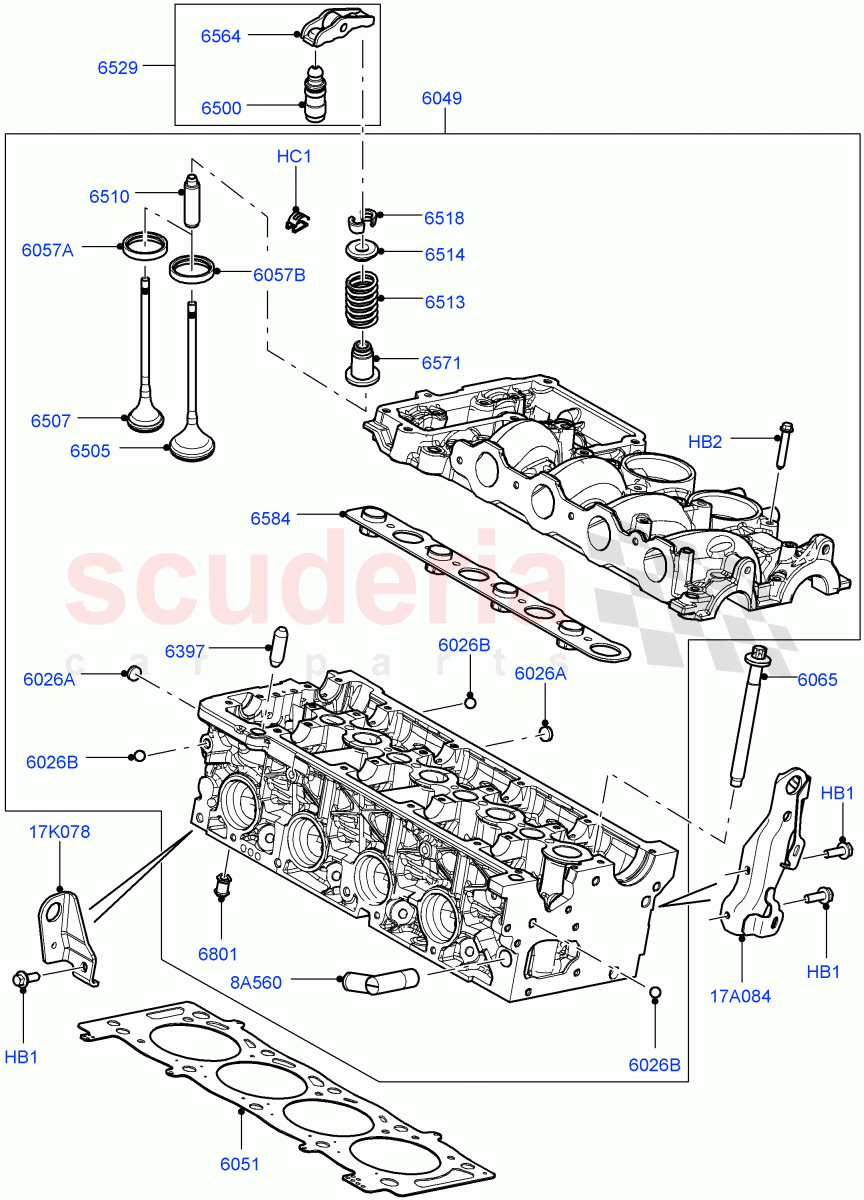

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR009409	BOLT	$5.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043999	BOLT - HEX.HEAD	$4.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004165	SPRING - RETAINING	$1.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022092	CYLINDER HEAD	$4,287.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017303	GASKET-CYLINDER HEAD	$119.00	To Order
	LR017304	GASKET-CYLINDER HEAD	$119.00	To Order
	LR017305	GASKET-CYLINDER HEAD	$119.00	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR062477	BOLT - HEX.HEAD	$19.78	To Order
	LR075366	BOLT - HEX.HEAD	$29.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000658	DOWEL - PIN	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004168	TAPPET - VALVE	$78.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069033	VALVE - EXHAUST	$67.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069031	VALVE - INLET	$24.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001240	SPRING - VALVE	$16.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000669	RETAINER - VALVE SPRING	$8.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007154	KEY - VALVE SPRING RETAINER	$15.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140311	ARM - VALVE ROCKER	$91.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004167	ARM - VALVE ROCKER	$52.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001242	SEAL - VALVE STEM	$11.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002834	GASKET - CYLINDER HEAD	$66.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000677	VALVE - CONTROL	$11.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR001215	PLUG - ENGINE	$0.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006657	PLUG - ENGINE	$7.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009393	CONNECTOR - INLET	$69.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006647	BRACKET - ENGINE LIFTING	$62.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005363	BRACKET - ENGINE LIFTING	$4.17	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR009409	BOLT	LR009409 BOLT M8 X 23MM	$5.12	3
HB2	LR043999	BOLT - HEX.HEAD	LR043999 BOLT - HEX.HEAD M6 X 40MM	$4.66	27
HC1	LR004165	SPRING - RETAINING	LR004165 SPRING - RETAINING Arm Assy Valve Rocker	$1.06	16
8A560	LR009393	CONNECTOR - INLET	LR009393 CONNECTOR - INLET	$69.46	1
17A084	LR006647	BRACKET - ENGINE LIFTING	LR006647 BRACKET - ENGINE LIFTING Rear	$62.05	1
17K078	LR005363	BRACKET - ENGINE LIFTING	LR005363 BRACKET - ENGINE LIFTING Front	$4.17	1
6026A	LR001215	PLUG - ENGINE	LR001215 PLUG - ENGINE	$0.85	4
6026B	LR006657	PLUG - ENGINE	LR006657 PLUG - ENGINE Ball Polished	$7.44	6
6049	LR022092	CYLINDER HEAD	LR022092 CYLINDER HEAD New Part-Please Check For Reman Version	$4,287.76	1
6051	LR017303	GASKET-CYLINDER HEAD	LR017303 GASKET-CYLINDER HEAD 1 Hole, 1.25MM	$119.00	1
6051	LR017304	GASKET-CYLINDER HEAD	LR017304 GASKET-CYLINDER HEAD 1.30MM, 2 Holes	$119.00	1
6051	LR017305	GASKET-CYLINDER HEAD	LR017305 GASKET-CYLINDER HEAD 1.35MM, 3 Holes	$119.00	1
6051	LR017307	GASKET-CYLINDER HEAD	LR017307 GASKET-CYLINDER HEAD 1.40MM, 4 Holes	$119.00	1
6065	LR062477	BOLT - HEX.HEAD	LR062477 BOLT - HEX.HEAD To: FH501000	$19.78	10
6065	LR075366	BOLT - HEX.HEAD	LR075366 BOLT - HEX.HEAD From: FH501001	$29.33	10
6397	LR000658	DOWEL - PIN	LR000658 DOWEL - PIN	$0.67	2
6500	LR004168	TAPPET - VALVE	LR004168 TAPPET - VALVE	$78.51	16
6505	LR069033	VALVE - EXHAUST	LR069033 VALVE - EXHAUST	$67.21	8
6507	LR069031	VALVE - INLET	LR069031 VALVE - INLET	$24.86	8
6513	LR001240	SPRING - VALVE	LR001240 SPRING - VALVE	$16.49	16
6514	LR000669	RETAINER - VALVE SPRING	LR000669 RETAINER - VALVE SPRING	$8.08	16
6518	LR007154	KEY - VALVE SPRING RETAINER	LR007154 KEY - VALVE SPRING RETAINER	$15.93	32
6529	LR140311	ARM - VALVE ROCKER	LR140311 ARM - VALVE ROCKER Complete Assembly	$91.14	16
6564	LR004167	ARM - VALVE ROCKER	LR004167 ARM - VALVE ROCKER	$52.43	16
6571	LR001242	SEAL - VALVE STEM	LR001242 SEAL - VALVE STEM	$11.13	16
6584	LR002834	GASKET - CYLINDER HEAD	LR002834 GASKET - CYLINDER HEAD	$66.39	1
6801	LR000677	VALVE - CONTROL	LR000677 VALVE - CONTROL	$11.79	1

Cylinder Head (2.2L Cr Di 16V Diesel, 2.2L Dohc Efi Tc Dw12)

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel] - Cylinder Head (2.2L CR DI 16V Diesel, 2.2L DOHC EFI TC DW12)
