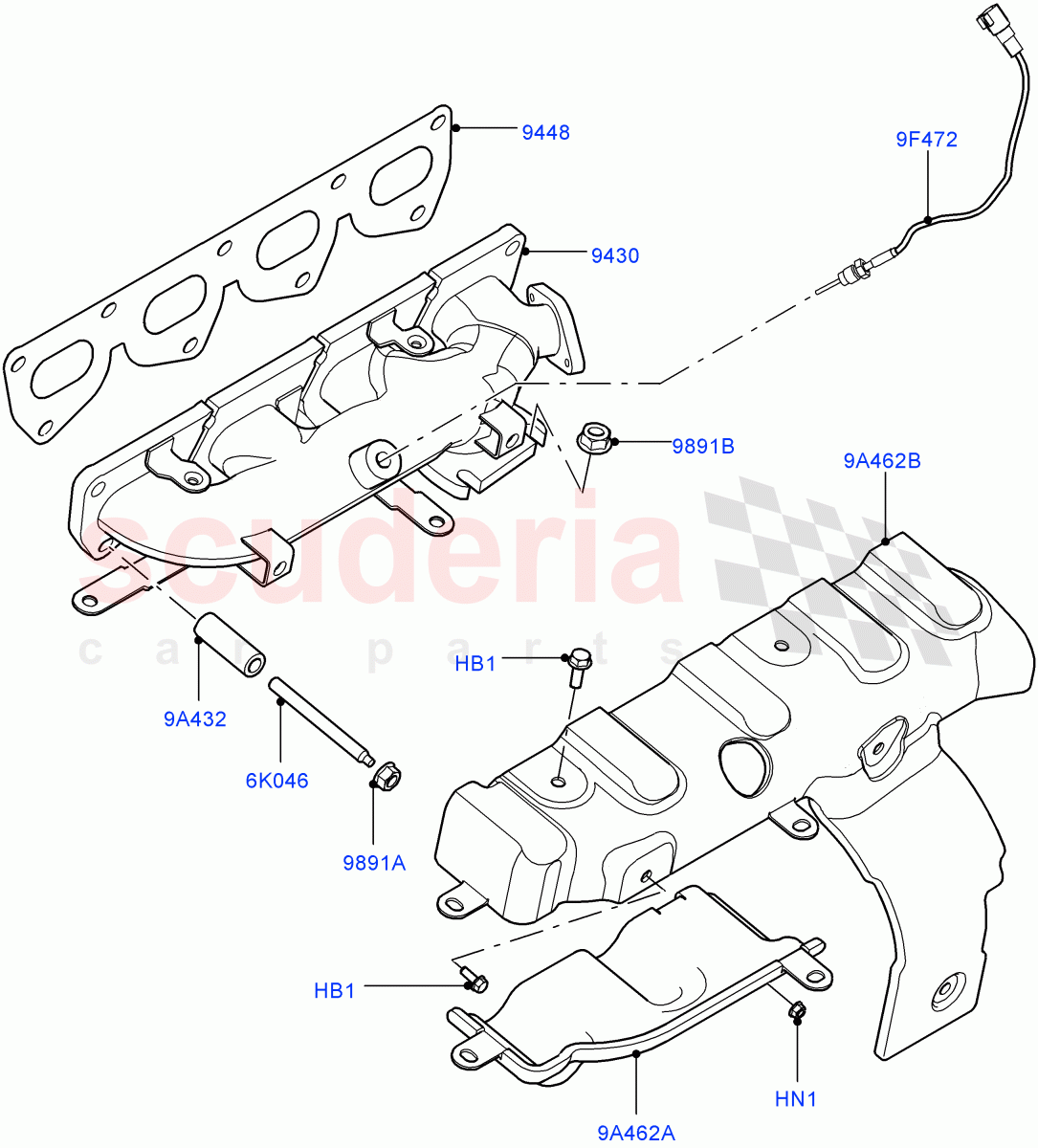

Name: Exhaust Manifold (2.2L CR DI 16V Diesel) ((V) FROMBH000001)
Rating: 4.0 (1 reviews)

View All

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR019986	BOLT	$8.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022342	NUT	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057194	MANIFOLD - EXHAUST	$442.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022333	GASKET - EXHAUST MANIFOLD	$59.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022099	STUD	$10.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016965	NUT - HEX.	$3.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019984	NUT - HEX.	$4.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006491	SPACER - EXHAUST MANIFOLD FIXING	$8.52	To Order
	LR124788	SPACER - EXHAUST MANIFOLD FIXING	$11.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030747	SENSOR - EXHAUST GAS - TEMPERATURE	$172.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022338	HEAT SHIELD - EXHAUST MANIFOLD	$360.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022341	HEAT SHIELD - EXHAUST MANIFOLD	$765.33	To Order
	LR100013	HEAT SHIELD - EXHAUST MANIFOLD	$154.28	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR019986	BOLT	LR019986 BOLT Heat Shield, M6 X 16MM	$8.17	5
HN1	LR022342	NUT	LR022342 NUT Heat Shield	$0.65	1
6K046	LR022099	STUD	LR022099 STUD Exhaust Manifold	$10.85	9
9A432	LR006491	SPACER - EXHAUST MANIFOLD FIXING	LR006491 SPACER - EXHAUST MANIFOLD FIXING Exhaust Manifold / To: FH530899	$8.52	9
9A432	LR124788	SPACER - EXHAUST MANIFOLD FIXING	LR124788 SPACER - EXHAUST MANIFOLD FIXING Exhaust Manifold / From: FH530900	$11.01	9
9A462A	LR022338	HEAT SHIELD - EXHAUST MANIFOLD	LR022338 HEAT SHIELD - EXHAUST MANIFOLD Lower	$360.19	1
9A462B	LR022341	HEAT SHIELD - EXHAUST MANIFOLD	LR022341 HEAT SHIELD - EXHAUST MANIFOLD Upper / To: FH530899	$765.33	1
9A462B	LR100013	HEAT SHIELD - EXHAUST MANIFOLD	LR100013 HEAT SHIELD - EXHAUST MANIFOLD Upper / From: FH530900	$154.28	1
9F472	LR030747	SENSOR - EXHAUST GAS - TEMPERATURE	LR030747 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature Sensor	$172.26	1
9430	LR057194	MANIFOLD - EXHAUST	LR057194 MANIFOLD - EXHAUST	$442.48	1
9448	LR022333	GASKET - EXHAUST MANIFOLD	LR022333 GASKET - EXHAUST MANIFOLD	$59.49	1
9891A	LR016965	NUT - HEX.	LR016965 NUT - HEX. Manifold Stud	$3.39	9
9891B	LR019984	NUT - HEX.	LR019984 NUT - HEX. Turbocharger Assembly	$4.33	2

Exhaust Manifold (2.2L Cr Di 16V Diesel) ((V) Frombh000001)

Land Rover Discovery Sport (2015+) [2.2 Single Turbo Diesel]
