Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Heater/Air Cond.Internal Components (Main Unit) (Halewood (UK)) ((V) FROMLH000001, (V) TOLH999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR003485 NUT $4.26 To Order
Photo Part No Description Price (each) Stock
RYP500770 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
LR117107 SCREW $1.74 To Order
Photo Part No Description Price (each) Stock
LR115803 CORE - HEATER $345.88 To Order
Photo Part No Description Price (each) Stock
LR115775 TUBE - HEATER WATER $55.87 To Order
Photo Part No Description Price (each) Stock
LR115687 RETAINER - AIR CLEANER $15.78 To Order
Photo Part No Description Price (each) Stock
LR115694 VALVE - EVAPORATOR EXPANSION $206.20 To Order
Photo Part No Description Price (each) Stock
LR115697 EVAPORATOR $533.59 To Order
Photo Part No Description Price (each) Stock
LR085678 SENSOR - AIR COND. AMBIENT AIR $112.36 IN STOCK
Photo Part No Description Price (each) Stock
LR115765 DUCT - FOOT ROOM AIR $70.36 To Order
Photo Part No Description Price (each) Stock
LR115120 PTC HEATER $349.22 To Order
LR136597 PTC HEATER $381.91 To Order
Photo Part No Description Price (each) Stock
LR115762 CLIP $7.50 To Order
Photo Part No Description Price (each) Stock
LR002683 SEAL $0.63 To Order
Photo Part No Description Price (each) Stock
LR115806 COVER - HEATER $13.66 To Order
Photo Part No Description Price (each) Stock
LR115808 BRACKET - HEATER MOUNTING $8.90 To Order
Photo Part No Description Price (each) Stock
LR017314 TUBE - WATER DRAIN $13.65 To Order
Photo Part No Description Price (each) Stock
LR127948 WIRE - AIR CONDITIONER $52.04 To Order
LR127949 WIRE - AIR CONDITIONER $52.04 To Order
LR127950 WIRE - AIR CONDITIONER $52.04 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR003200 SENSOR - HEATER TEMPERATURE CONTROL $9.42 To Order
Photo Part No Description Price (each) Stock
LR115829 STEPPER MOTOR - HEATER $148.53 To Order
Photo Part No Description Price (each) Stock
LR115784 FILTER - ODOUR AND PARTICLES $82.45 To Order
LR115835 FILTER - POLLEN $81.48 To Order
LR145403 FILTER - POLLEN $110.83 To Order
Photo Part No Description Price (each) Stock
LR115691 ACTUATOR - HEATER CONTROL $70.20 To Order
LR145224 ACTUATOR - HEATER CONTROL $31.84 To Order
Photo Part No Description Price (each) Stock
LR115692 ACTUATOR - HEATER CONTROL $61.32 To Order
Photo Part No Description Price (each) Stock
LR127944 ACTUATOR - HEATER CONTROL $71.74 To Order
Photo Part No Description Price (each) Stock
LR002633 CLIP $4.32 To Order
Photo Part No Description Price (each) Stock
LR003174 CLIP $0.59 To Order
Photo Part No Description Price (each) Stock
LR003201 RING - SEALING $1.88 To Order
Photo Part No Description Price (each) Stock
LR003202 O-RING $1.88 To Order
View All

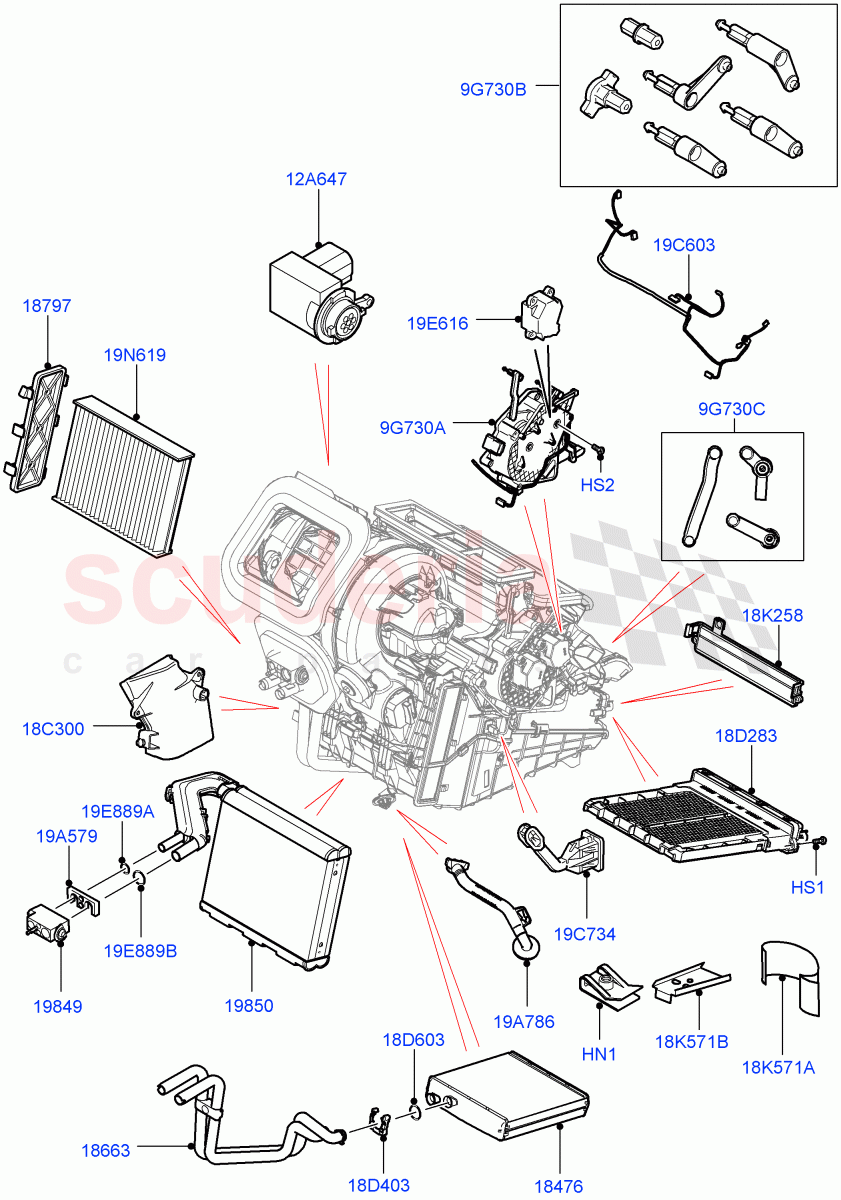

Heater/Air Cond.Internal Components (Main Unit) (Halewood (UK)) ((V) FROMLH000001, (V) TOLH999999) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR003485
NUT
M6 X 0.5-4 / From: LH000001 		$4.26 4
HS1 RYP500770
SCREW
5 X 16MM, Torx / From: LH000001 		$0.63 2
HS2 LR117107
SCREW
4 X 16 mm, Torx / From: LH000001 		$1.74 -
9G730A LR115691
ACTUATOR - HEATER CONTROL
With ATC Air Con & Row 2 Vents / Heater Air Control, Middle / From: LH000001 		$70.20 1
9G730A LR145224
ACTUATOR - HEATER CONTROL
2-Zone Climate Cntl w/Row2 Tmp Cntl / Heater Air Control, Middle / From: LH000001 		$31.84 1
9G730B LR115692
ACTUATOR - HEATER CONTROL
Cams, Service Kit / From: LH000001 		$61.32 1
9G730C LR127944
ACTUATOR - HEATER CONTROL
2-Zone Climate Cntl w/Row2 Tmp Cntl / Front, Heater Air Control / From: LH000001 		$71.74 1
12A647 LR085678
SENSOR - AIR COND. AMBIENT AIR
With Air Purifier Sensor / From: LH000001
IN STOCK 		$112.36 1
18C300 LR115765
DUCT - FOOT ROOM AIR
From: LH000001 		$70.36 1
18D283 LR115120
PTC HEATER
With Ptc Heater / Not Supplied With The Unit / From: LH000001 / To: LH841594 		$349.22 1
18D283 LR136597
PTC HEATER
With Ptc Heater / Not Supplied With The Unit / From: LH841595 		$381.91 1
18D403 LR115762
CLIP
Tube / From: LH000001 		$7.50 1
18D603 LR002683
SEAL
Heater core, O Ring / From: LH000001 		$0.63 2
18K258 LR115806
COVER - HEATER
Less Ptc Heater / From: LH000001 		$13.66 1
18K571A LR002633
CLIP
Heater / From: LH000001 		$4.32 2
18K571B LR003174
CLIP
Heater / From: LH000001 		$0.59 2
19A579 LR115808
BRACKET - HEATER MOUNTING
From: LH000001 		$8.90 1
19A786 LR017314
TUBE - WATER DRAIN
From: LH000001 		$13.65 1
19C603 LR127948
WIRE - AIR CONDITIONER
2-Zone Climate Cntl w/Row2 Tmp Cntl, LHD, Less Air Purifier Sensor / From: LH000001 		$52.04 1
19C603 LR127949
WIRE - AIR CONDITIONER
2-Zone Climate Cntl w/Row2 Tmp Cntl, LHD, With Air Purifier Sensor / From: LH000001 		$52.04 1
19C603 LR127950
WIRE - AIR CONDITIONER
2-Zone Climate Cntl w/Row2 Tmp Cntl, Less Air Purifier Sensor, RHD / From: LH000001 		$52.04 1
19C603 LR127951
WIRE - AIR CONDITIONER
2-Zone Climate Cntl w/Row2 Tmp Cntl, RHD, With Air Purifier Sensor / From: LH000001 		$52.04 1
19C603 LR067263
WIRE - AIR CONDITIONER
LHD, Less Air Purifier Sensor, With ATC Air Con & Row 2 Vents / From: LH000001 		$39.18 1
19C603 LR067264
WIRE - AIR CONDITIONER
Less Air Purifier Sensor, RHD, With ATC Air Con & Row 2 Vents / From: LH000001 		$41.37 1
19C603 LR067265
WIRE - AIR CONDITIONER
LHD, With ATC Air Con & Row 2 Vents, With Air Purifier Sensor / From: LH000001 		$36.26 1
19C603 LR067266
WIRE - AIR CONDITIONER
RHD, With ATC Air Con & Row 2 Vents, With Air Purifier Sensor / From: LH000001 		$37.15 1
19C734 LR003200
SENSOR - HEATER TEMPERATURE CONTROL
Attaches To Evaporator / From: LH000001 		$9.42 1
19E616 LR115829
STEPPER MOTOR - HEATER
Flap Actuator / From: LH000001 		$148.53 -
19E889A LR003201
RING - SEALING
10.82MM X 1.78MM / From: LH000001 		$1.88 1
19E889B LR003202
O-RING
14.0 X 1.78MM / From: LH000001 		$1.88 1
19N619 LR115784
FILTER - ODOUR AND PARTICLES
Filter - Odour And Particles, Standard / From: LH000001 / To: LH854975 		$82.45 1
19N619 LR115835
FILTER - POLLEN
272mm x 195mm x 43mm, Filter - Odour And Particles, Standard / From: LH854976 		$81.48 1
19N619 LR145403
FILTER - POLLEN
272mm x 195mm x 43mm, Filter - Odour And Particles, PM 2.5 Upgrade / From: LH000001 		$110.83 1
18476 LR115803
CORE - HEATER
From: LH000001 		$345.88 1
18663 LR115775
TUBE - HEATER WATER
Heater Core Inlet, Heater Core Outlet / From: LH000001 		$55.87 1
18797 LR115687
RETAINER - AIR CLEANER
Cover, Filter / From: LH000001 		$15.78 1
19849 LR115694
VALVE - EVAPORATOR EXPANSION
From: LH000001 		$206.20 1
19850 LR115697
EVAPORATOR
Service Kit / From: LH000001 		$533.59 1
