Name: Air Conditioning Condensr/Compressr (Halewood (UK), Electric Engine Battery-MHEV, Less Electric Engine Battery) ((V) FROMMH000001)
Rating: 4.0 (1 reviews)

Air Conditioning Condensr/Compressr (Halewood (UK), Electric Engine Battery-MHEV, Less Electric Engine Battery) ((V) FROMMH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Air Conditioning Condensr/Compressr (Halewood (UK), Electric Engine Battery-MHEV, Less Electric...

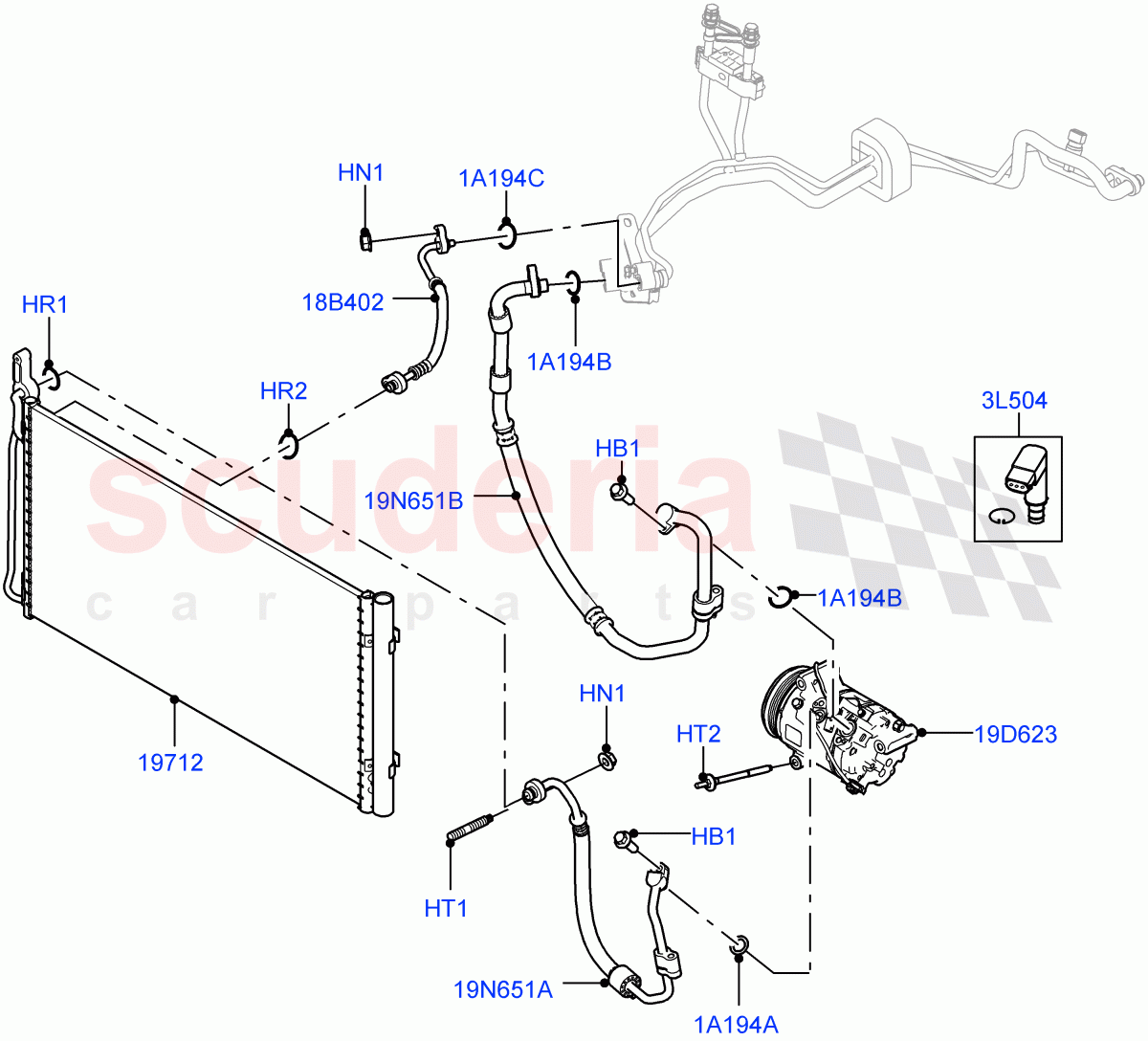

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108256	BOLT	$3.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN108046	NUT - HEX.	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002724	O-RING	$5.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002719	O-RING	$4.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015156	STUD	$1.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR116447	STUD	$4.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115952	CONDENSER	$551.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086045	KIT - VALVE REPAIR	$175.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115918	HOSE - AIR CONDITIONING	$184.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140033	COMPRESSOR - AIR CONDITIONING	$1,083.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117494	O-RING	$2.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117495	O-RING	$2.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117493	O-RING	$3.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139895	TUBE AND HOSE-A/C COMPRESSOR OUTLET	$210.27	To Order
	LR140037	TUBE AND HOSE-A/C COMPRESSOR OUTLET	$181.67	To Order
	LR155865	TUBE AND HOSE-A/C COMPRESSOR OUTLET	$167.44	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR139894	TUBE AND HOSE-A/C COMPRESSOR INLET	$208.53	To Order
	LR139892	TUBE AND HOSE-A/C COMPRESSOR INLET	$207.45	To Order
	LR155866	TUBE AND HOSE-A/C COMPRESSOR INLET	$208.53	To Order

...and 2 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108256	BOLT IN STOCK	FS108256 BOLT Hexagonal Head, M8 X 25MM / From: MH000001 IN STOCK	$3.56	2
HN1	FN108046	NUT - HEX.	FN108046 NUT - HEX. Hexagonal Head, M8 / From: MH000001	$1.97	4
HR1	LR002724	O-RING	LR002724 O-RING 13.7 X 2.5MM / From: MH000001	$5.36	1
HR2	LR002719	O-RING	LR002719 O-RING 9.5 X 2.5MM / From: MH000001	$4.39	1
HT1	LR015156	STUD	LR015156 STUD M8 X 12.5 + M8 X 14.5 / From: MH000001	$1.57	2
HT2	LR116447	STUD	LR116447 STUD Compressor Mounting, Hexagonal Head, M8 x 97.5mm + M6 x 15mm / From: MH000001	$4.02	3
1A194A	LR117494	O-RING	LR117494 O-RING 18.97 X 11.05 / From: MH000001	$2.70	1
1A194B	LR117495	O-RING	LR117495 O-RING 25.12 X 17.03 / From: MH000001	$2.81	2
1A194C	LR117493	O-RING	LR117493 O-RING 15.88 X 8.0 / From: MH000001	$3.50	1
3L504	LR086045	KIT - VALVE REPAIR	LR086045 KIT - VALVE REPAIR Includes A/C Compressor Control Valve And Snap Ring / From: MH000001	$175.93	1
18B402	LR115918	HOSE - AIR CONDITIONING	LR115918 HOSE - AIR CONDITIONING Condenser Outlet / From: MH000001	$184.26	1
19D623	LR140033	COMPRESSOR - AIR CONDITIONING	LR140033 COMPRESSOR - AIR CONDITIONING From: MH000001	$1,083.29	1
19N651A	LR139895	TUBE AND HOSE-A/C COMPRESSOR OUTLET	LR139895 TUBE AND HOSE-A/C COMPRESSOR OUTLET 1.5L AJ20P3 Petrol High / Compressor Outlet / From: MH000001 / To: MH893505	$210.27	1
19N651A	LR140037	TUBE AND HOSE-A/C COMPRESSOR OUTLET	LR140037 TUBE AND HOSE-A/C COMPRESSOR OUTLET 2.0L AJ20P4 Petrol Mid PTA / Compressor Outlet / From: MH000001 / To: MH890197	$181.67	1
19N651A	LR155865	TUBE AND HOSE-A/C COMPRESSOR OUTLET	LR155865 TUBE AND HOSE-A/C COMPRESSOR OUTLET 2.0L AJ21D4 Diesel Mid / Compressor Outlet / From: MH890198 / To: MH901411	$167.44	1
19N651A	LR155864	TUBE AND HOSE-A/C COMPRESSOR OUTLET	LR155864 TUBE AND HOSE-A/C COMPRESSOR OUTLET 1.5L AJ20P3 Petrol High / Compressor Outlet / From: MH893506	$210.27	1
19N651A	LR157196	TUBE AND HOSE-A/C COMPRESSOR OUTLET	LR157196 TUBE AND HOSE-A/C COMPRESSOR OUTLET 2.0L AJ20P4 Petrol High PTA / Compressor Outlet / From: MH901412	$180.29	1
19N651B	LR139894	TUBE AND HOSE-A/C COMPRESSOR INLET	LR139894 TUBE AND HOSE-A/C COMPRESSOR INLET 2.0L AJ21D4 Diesel Mid / Compressor Inlet / From: MH000001 / To: MH890393	$208.53	1
19N651B	LR139892	TUBE AND HOSE-A/C COMPRESSOR INLET	LR139892 TUBE AND HOSE-A/C COMPRESSOR INLET 1.5L AJ20P3 Petrol High / Compressor Inlet / From: MH000001 / To: MH890619	$207.45	1
19N651B	LR155866	TUBE AND HOSE-A/C COMPRESSOR INLET	LR155866 TUBE AND HOSE-A/C COMPRESSOR INLET 2.0L AJ20P4 Petrol High PTA / Compressor Inlet / From: MH890394 / To: MH900341	$208.53	1
19N651B	LR155867	TUBE AND HOSE-A/C COMPRESSOR INLET	LR155867 TUBE AND HOSE-A/C COMPRESSOR INLET 1.5L AJ20P3 Petrol High / Compressor Inlet / From: MH890620	$207.45	1
19N651B	LR157198	TUBE AND HOSE-A/C COMPRESSOR INLET	LR157198 TUBE AND HOSE-A/C COMPRESSOR INLET 2.0L AJ20P4 Petrol E100 PTA / Compressor Inlet / From: MH900342	$206.89	1
19712	LR115952	CONDENSER	LR115952 CONDENSER From: MH000001	$551.09	1

Air Conditioning Condensr/Compressr (Halewood (Uk), Electric Engine Battery-Mhev, Less Electric...

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI]

Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Air Conditioning Condensr/Compressr (Halewood (UK), Electric Engine Battery-MHEV, Less Electric...

Add to Shopping Cart
