Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] - Air Conditioning System (Halewood (UK), Climate Control - Chiller Unit, Air Conditioning...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR010925 BOLT $2.97 To Order
Photo Part No Description Price (each) Stock
LR035462 CLIP - HOSE $3.35 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $1.97 To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.68 IN STOCK
Photo Part No Description Price (each) Stock
LR044466 O-RING $4.35 To Order
Photo Part No Description Price (each) Stock
LR044465 O-RING $2.93 To Order
Photo Part No Description Price (each) Stock
LR002718 O-RING $13.08 To Order
Photo Part No Description Price (each) Stock
VYP500080 BOLT AND WASHER - HEX.HEAD $0.69 IN STOCK
Photo Part No Description Price (each) Stock
LR086926 SENSOR - REFRIGERANT PRESSURE $240.23 To Order
Photo Part No Description Price (each) Stock
LR138611 SLEEVE - INSULATING $24.46 To Order
LR167745 SLEEVE - INSULATING $18.95 To Order
Photo Part No Description Price (each) Stock
LR127946 TUBE- A/C EVAPORATOR INLET & OUTLET $206.63 To Order
LR139947 TUBE- A/C EVAPORATOR INLET & OUTLET $388.68 To Order
LR140055 TUBE- A/C EVAPORATOR INLET & OUTLET $282.17 To Order
Photo Part No Description Price (each) Stock
LR127940 TUBE - AUXILIARY HEATER SUPPLY $189.90 To Order
LR138734 TUBE - AUXILIARY HEATER SUPPLY $189.90 To Order
Photo Part No Description Price (each) Stock
LR127941 TUBE - AUXILIARY HEATER SUPPLY $180.84 To Order
LR138737 TUBE - AUXILIARY HEATER SUPPLY $189.90 To Order
LR144509 TUBE - AUXILIARY HEATER SUPPLY $189.90 To Order
Photo Part No Description Price (each) Stock
LR127943 TUBE - AUXILIARY HEATER SUPPLY $189.90 To Order
Photo Part No Description Price (each) Stock
LR138588 CLIP $12.24 To Order
Photo Part No Description Price (each) Stock
LR117493 O-RING $3.51 To Order
Photo Part No Description Price (each) Stock
LR117495 O-RING $2.81 To Order
Photo Part No Description Price (each) Stock
LR002940 VALVE $6.21 To Order
LR167738 VALVE - AIR CONDITIONING $29.48 To Order
Photo Part No Description Price (each) Stock
LR002941 VALVE - AIR CONDITIONING $3.41 To Order
LR167737 VALVE - AIR CONDITIONING $29.48 To Order
Photo Part No Description Price (each) Stock
LR002653 CAP - VALVE $28.14 To Order
LR167742 CAP $29.27 To Order
Photo Part No Description Price (each) Stock
LR002654 CAP $20.06 To Order
LR167743 CAP $27.76 To Order
Photo Part No Description Price (each) Stock
LR117474 BRACKET - A/C PIPE $17.53 To Order
Photo Part No Description Price (each) Stock
LR117475 BRACKET - A/C PIPE $13.17 To Order
Photo Part No Description Price (each) Stock
LR138609 BRACKET - A/C PIPE $13.62 To Order
Photo Part No Description Price (each) Stock
LR138610 BRACKET - A/C PIPE $13.62 To Order
Photo Part No Description Price (each) Stock
LR145221 BRACKET - A/C PIPE $12.86 To Order
View All

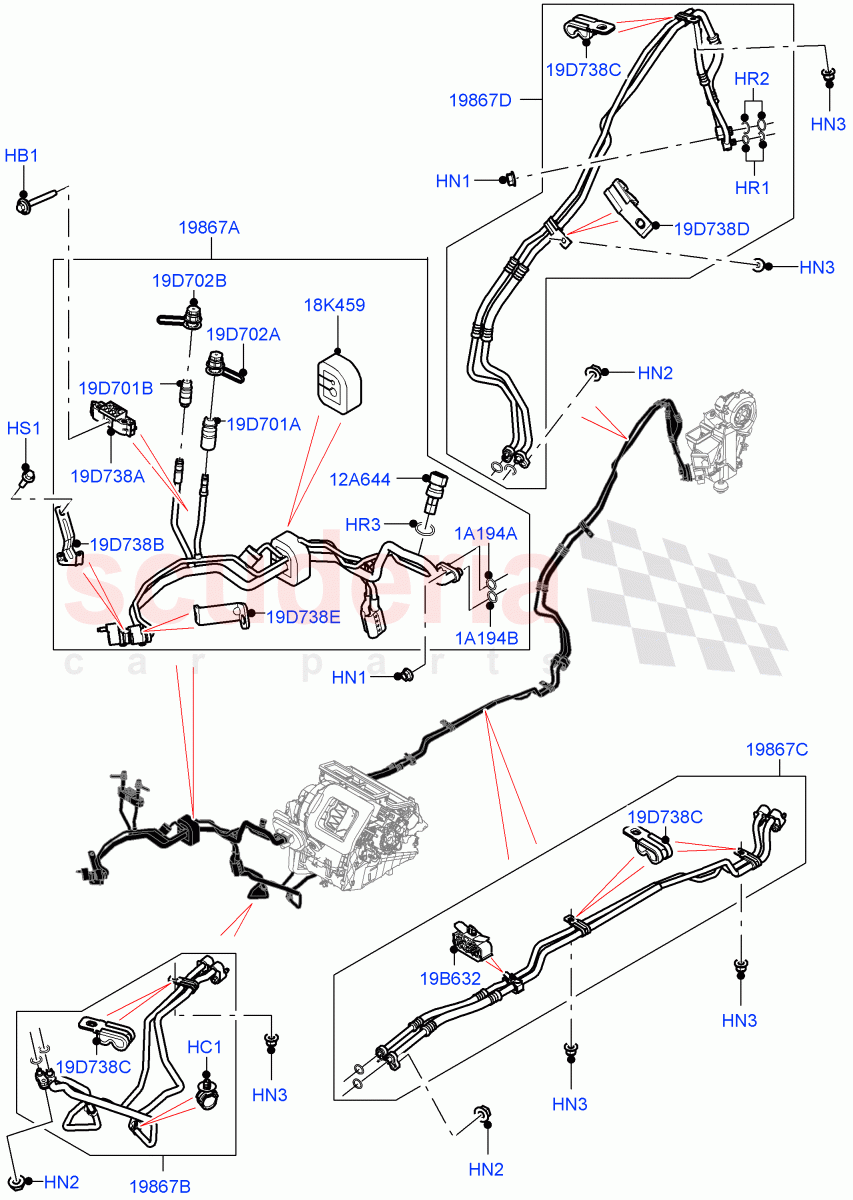

Air Conditioning System (Halewood (UK), Climate Control - Chiller Unit, Air Conditioning Refrigerant-R134A, Less Electric Engine Battery, Electric Engine Battery-MHEV) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR010925
BOLT
Hexagonal Head, M6 x 50MM / From: LH000001 		$2.97 1
HC1 LR035462
CLIP - HOSE
From: LH000001 		$3.35 2
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: LH000001
IN STOCK 		$1.47 3
HN2 FN108046
NUT - HEX.
Hexagonal Head, M8 / From: LH000001 		$1.97 9
HN3 FY106046
NUT - HEX.
Hexagonal Head, M6 / From: LH000001
IN STOCK 		$0.68 5
HR1 LR044466
O-RING
7.65 X 1.78 / From: LH000001 		$4.35 2
HR2 LR044465
O-RING
14 X 1.78 / From: LH000001 		$2.93 2
HR3 LR002718
O-RING
7.66 x 1.78mm / From: LH000001 		$13.08 1
HS1 VYP500080
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M6 X 20MM / From: LH000001
IN STOCK 		$0.69 1
1A194A LR117493
O-RING
15.88 X 8.0 / From: LH000001 		$3.51 1
1A194B LR117495
O-RING
25.12 X 17.03 / From: LH000001 		$2.81 1
12A644 LR086926
SENSOR - REFRIGERANT PRESSURE
From: LH000001 		$240.23 1
18K459 LR138611
SLEEVE - INSULATING
From: LH000001 / To: LH999999 		$24.46 1
18K459 LR167745
SLEEVE - INSULATING
From: MH000001 		$18.95 1
19B632 LR138588
CLIP
From: LH000001 		$12.24 1
19D701A LR002940
VALVE
Low Pressure Charge Port / From: LH000001 / To: LH999999 		$6.21 1
19D701A LR167738
VALVE - AIR CONDITIONING
High Pressure Charge Port / From: MH000001 		$29.48 1
19D701B LR002941
VALVE - AIR CONDITIONING
High Pressure Charge Port / From: LH000001 / To: LH999999 		$3.41 1
19D701B LR167737
VALVE - AIR CONDITIONING
Low Pressure Charge Port / From: MH000001 		$29.48 1
19D702A LR002653
CAP - VALVE
Low Pressure Servicing Connection / From: LH000001 / To: LH999999 		$28.14 1
19D702A LR167742
CAP
High Pressure Servicing Connection / From: MH000001 		$29.27 1
19D702B LR002654
CAP
High Pressure Servicing Connection / From: LH000001 / To: LH999999 		$20.06 1
19D702B LR167743
CAP
Low Pressure Servicing Connection / From: MH000001 		$27.76 1
19D738A LR117474
BRACKET - A/C PIPE
Charge Port Bracket / From: LH000001 		$17.53 1
19D738B LR117475
BRACKET - A/C PIPE
Sidemember / From: LH000001 		$13.17 1
19D738C LR138609
BRACKET - A/C PIPE
From: LH000001 		$13.62 4
19D738D LR138610
BRACKET - A/C PIPE
From: LH000001 		$13.62 1
19D738E LR145221
BRACKET - A/C PIPE
Ports Bracket / From: LH000001 		$12.86 1
19867A LR127946
TUBE- A/C EVAPORATOR INLET & OUTLET
Complete Assembly, Main Unit / From: LH000001 / To: LH868280 		$206.63 1
19867A LR139947
TUBE- A/C EVAPORATOR INLET & OUTLET
Complete Assembly, Main Unit / From: LH868281 / To: LH999999 		$388.68 1
19867A LR140055
TUBE- A/C EVAPORATOR INLET & OUTLET
Complete Assembly, Main Unit / From: MH000001 		$282.17 1
19867B LR127940
TUBE - AUXILIARY HEATER SUPPLY
Front / From: LH000001 / To: LH867354 		$189.90 1
19867B LR138734
TUBE - AUXILIARY HEATER SUPPLY
Front / From: LH867355 		$189.90 1
19867C LR127941
TUBE - AUXILIARY HEATER SUPPLY
Centre / From: LH000001 / To: LH867354 		$180.84 1
19867C LR138737
TUBE - AUXILIARY HEATER SUPPLY
Centre / From: LH867355 / To: LH876444 		$189.90 1
19867C LR144509
TUBE - AUXILIARY HEATER SUPPLY
Centre / From: LH876445 		$189.90 1
19867D LR127943
TUBE - AUXILIARY HEATER SUPPLY
Rear / From: LH000001 		$189.90 1
